DMC:V2500-00-70-08-00-00A-017A-D|Issue No:001|Issue Date:2013-03-20

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Description

TASK 70-08-00-990-501 General
1. General
  The I.A.E. approved conversion tables can be found in the tables given below:

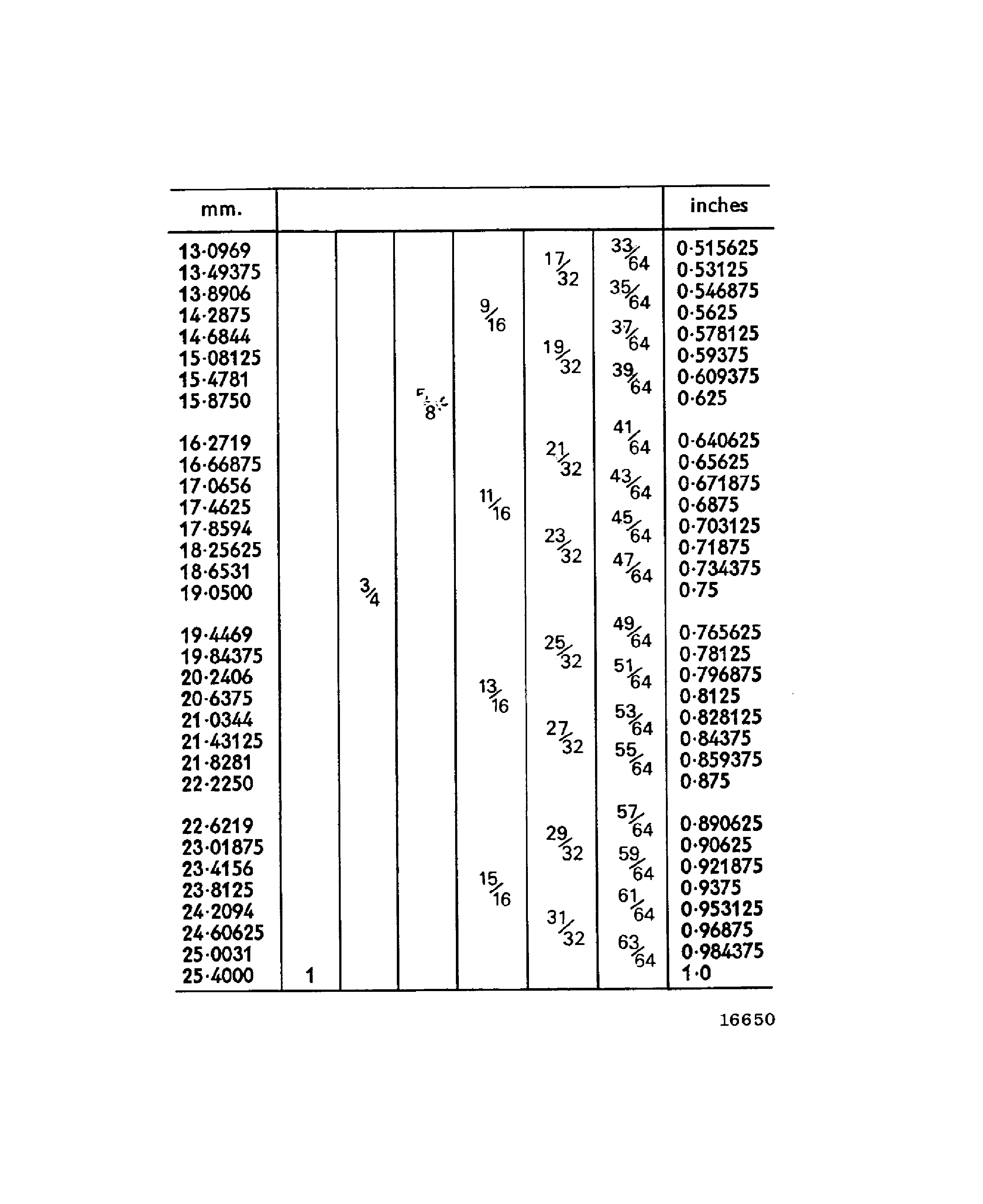

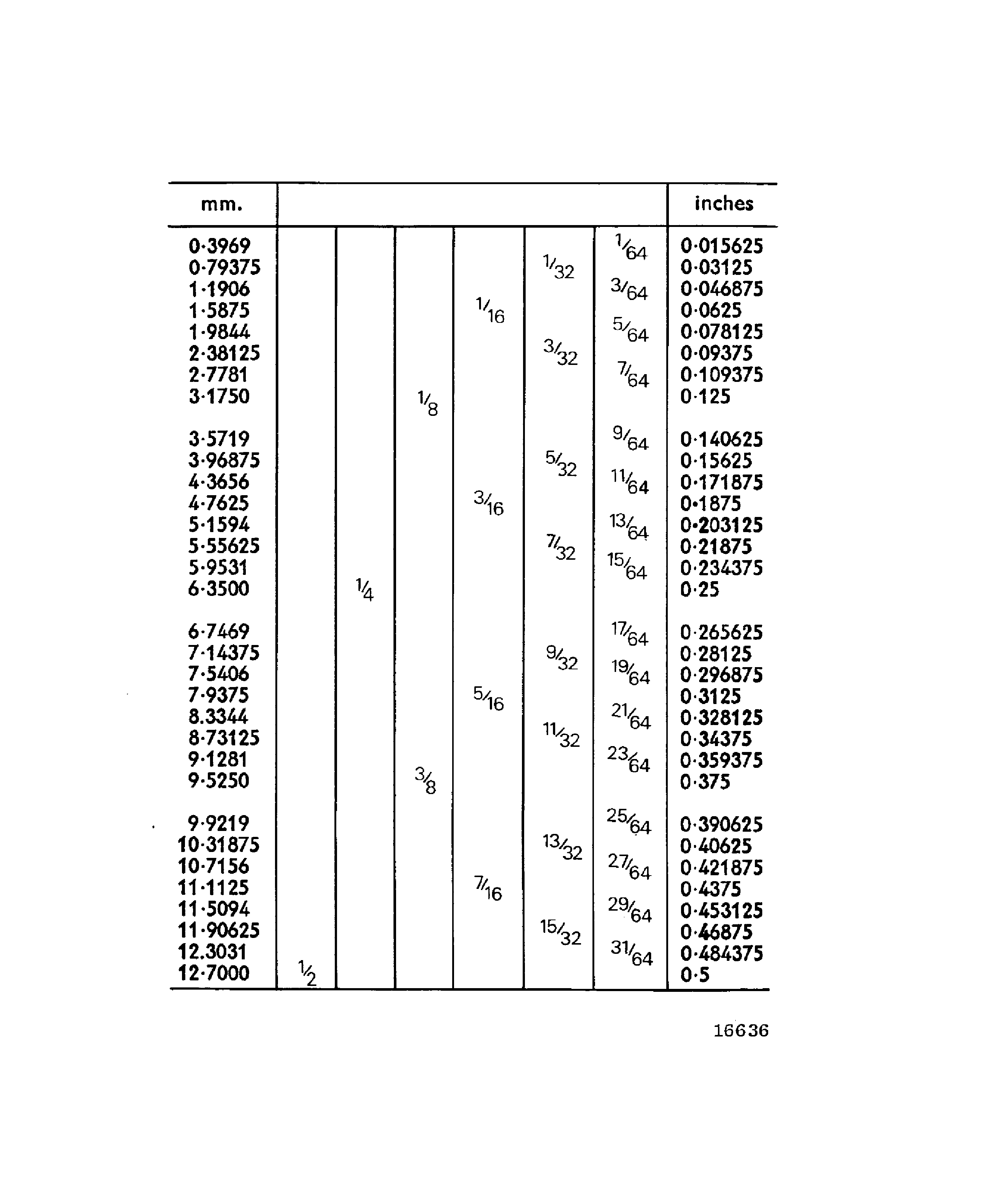

  1. Metric and decimal equivalents of fractions, Figure.

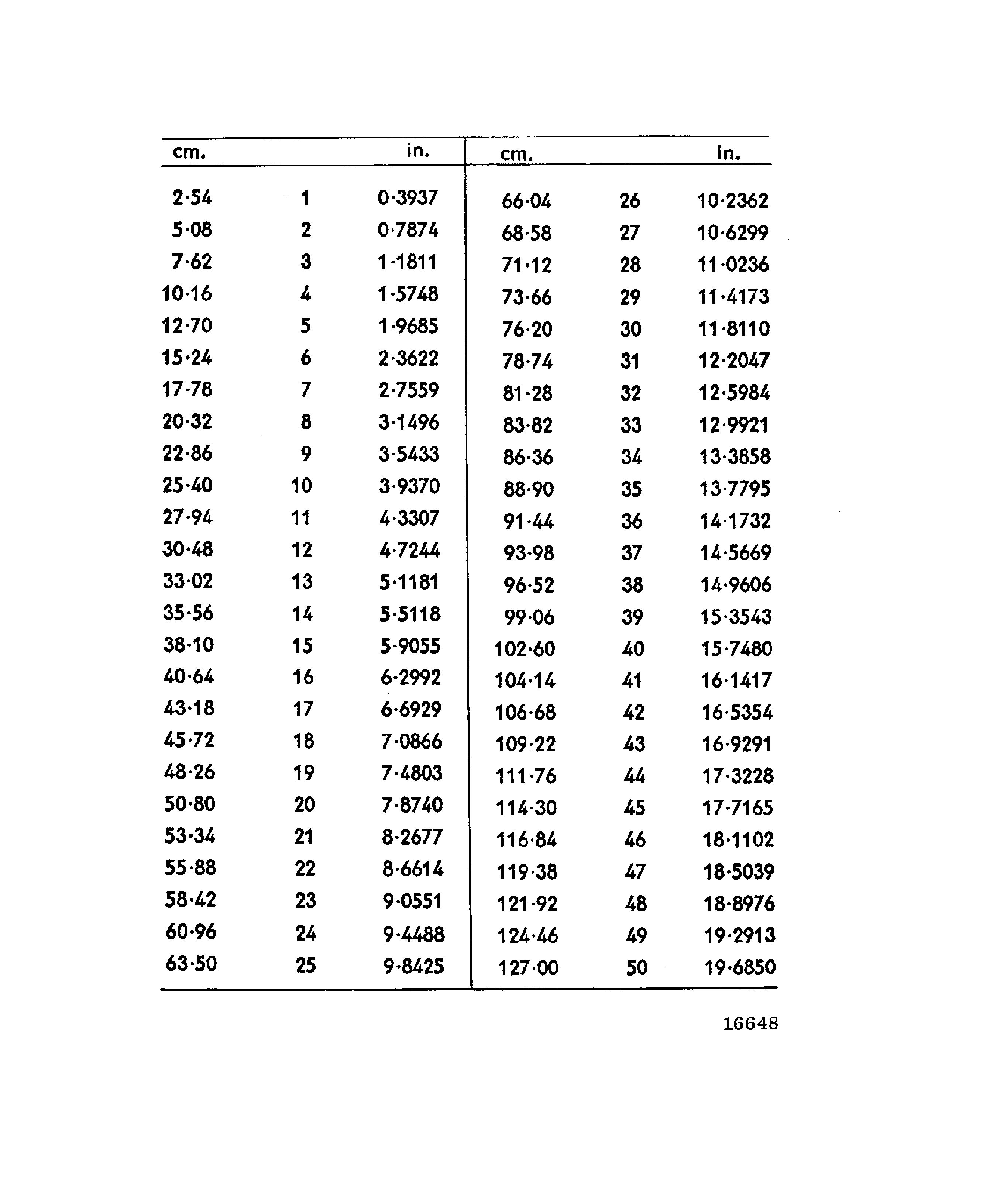

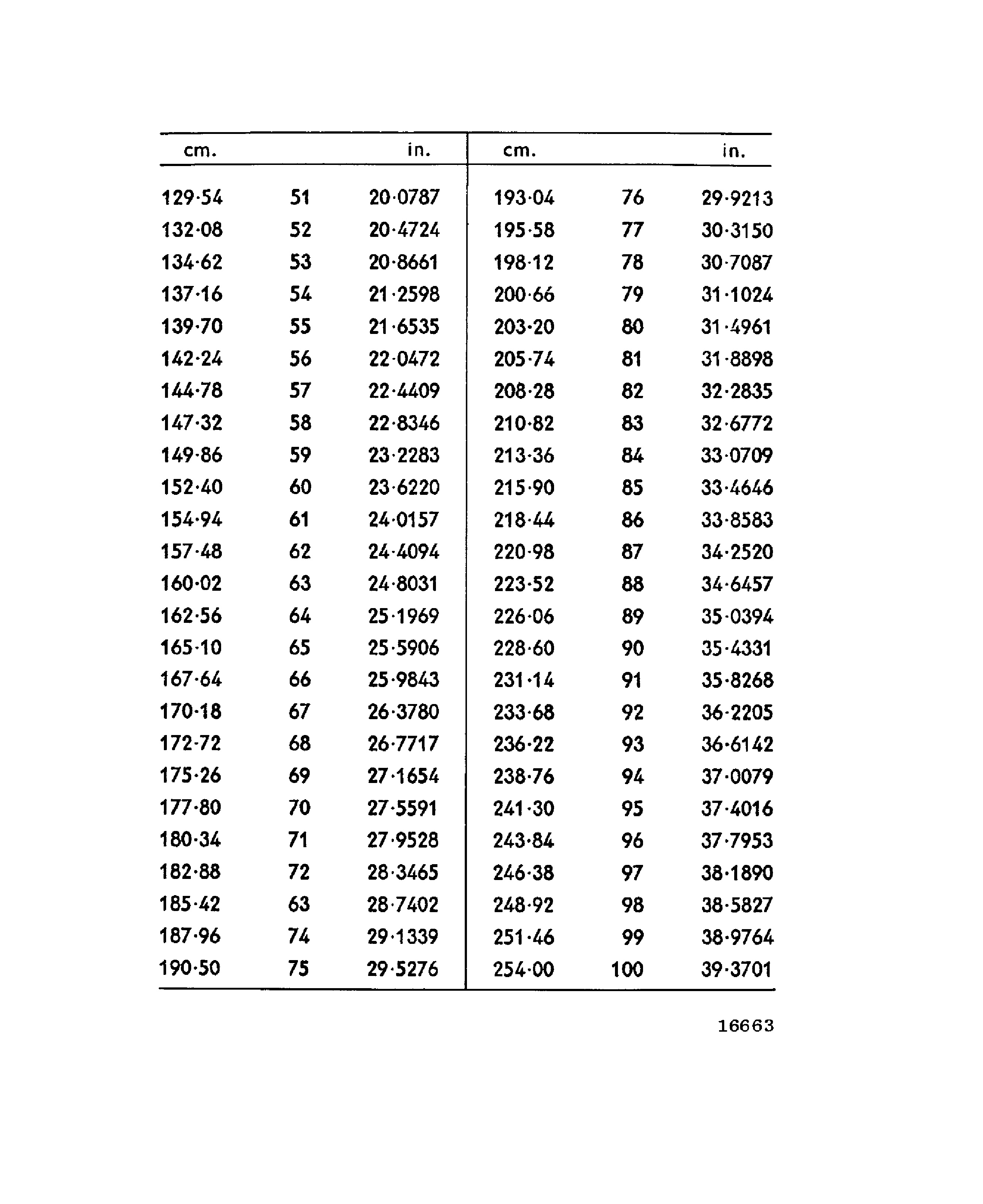

  2. Centimeters - Inches, Figure.

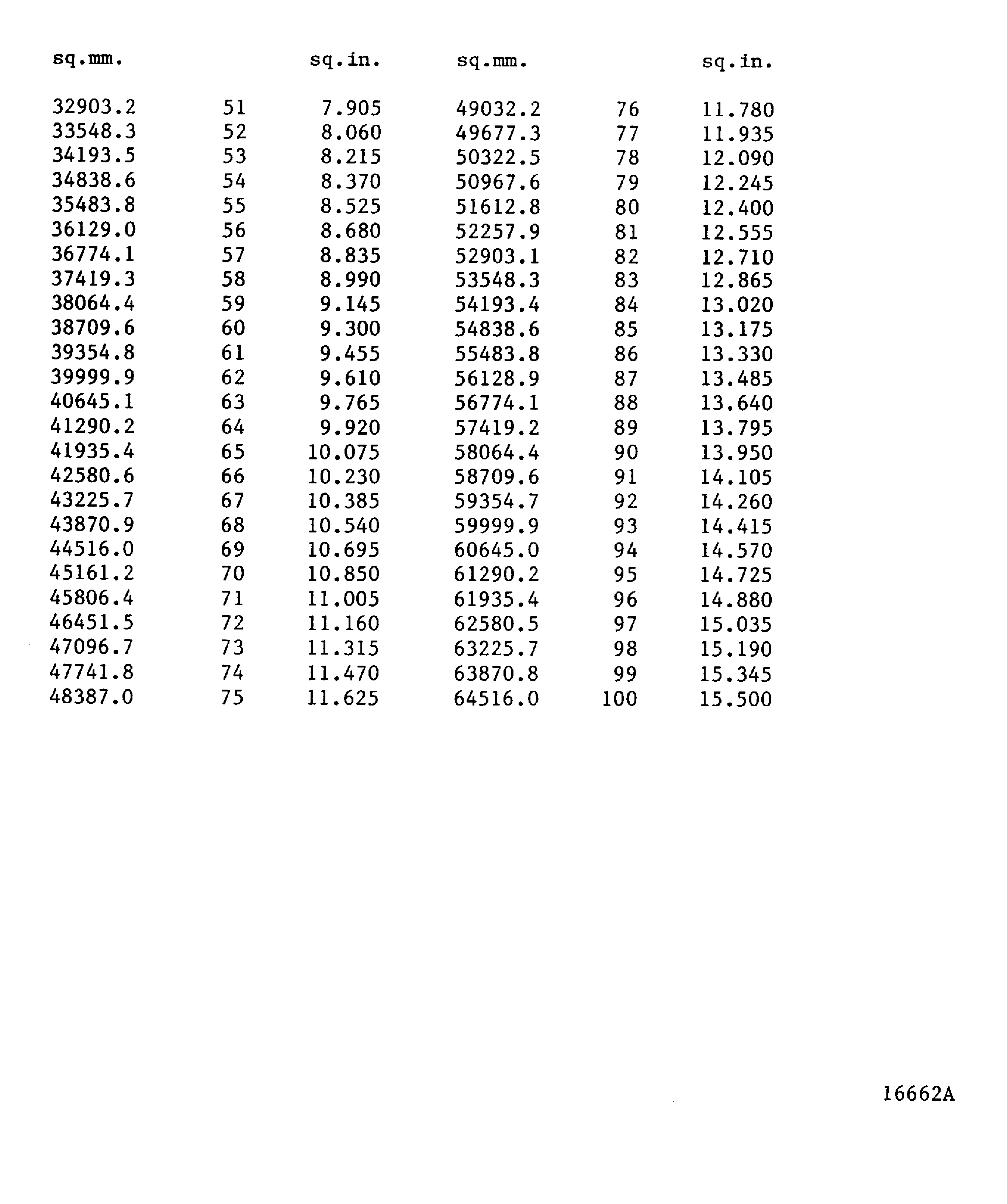

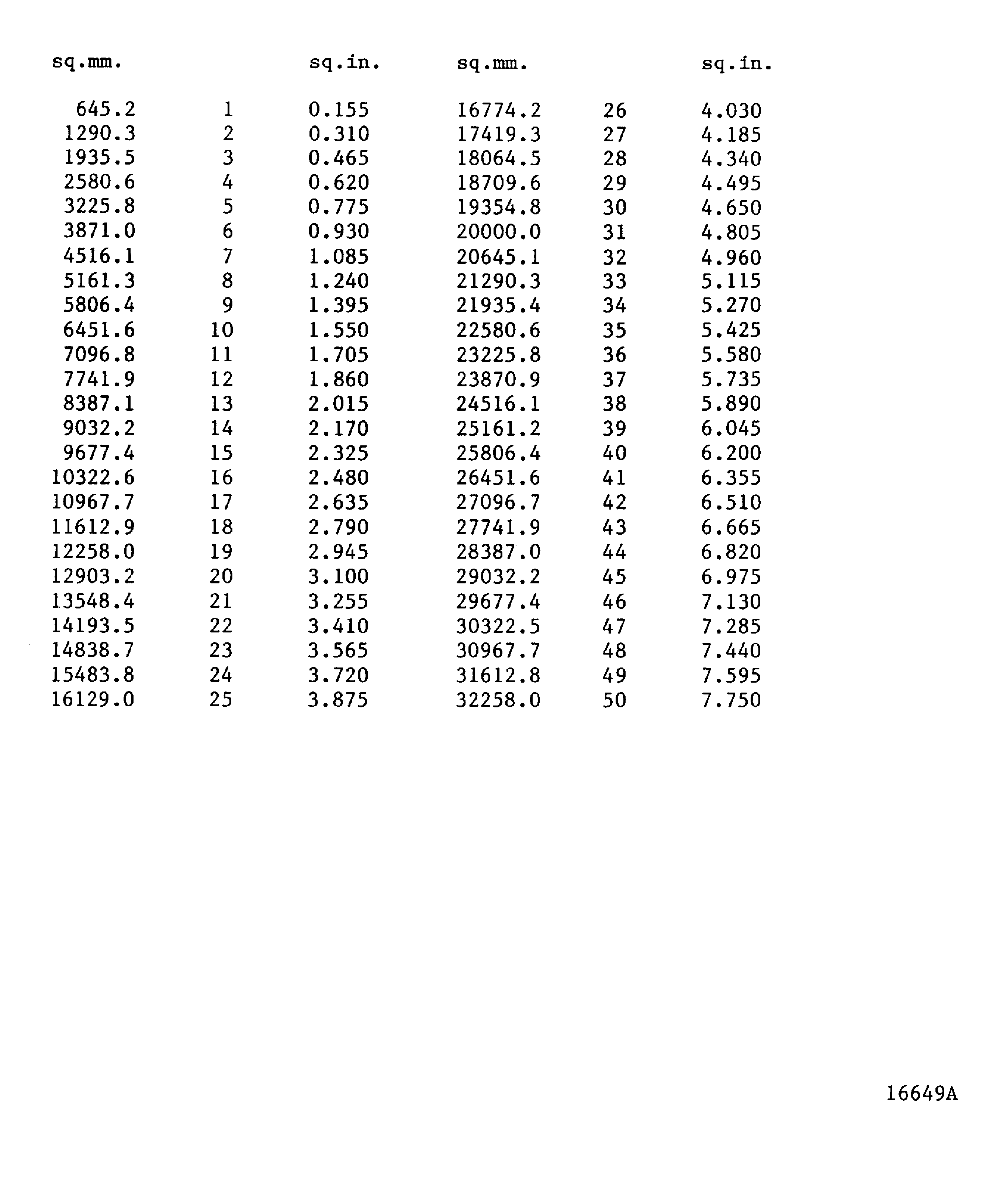

  3. Square millimeters - Square inches, Figure.

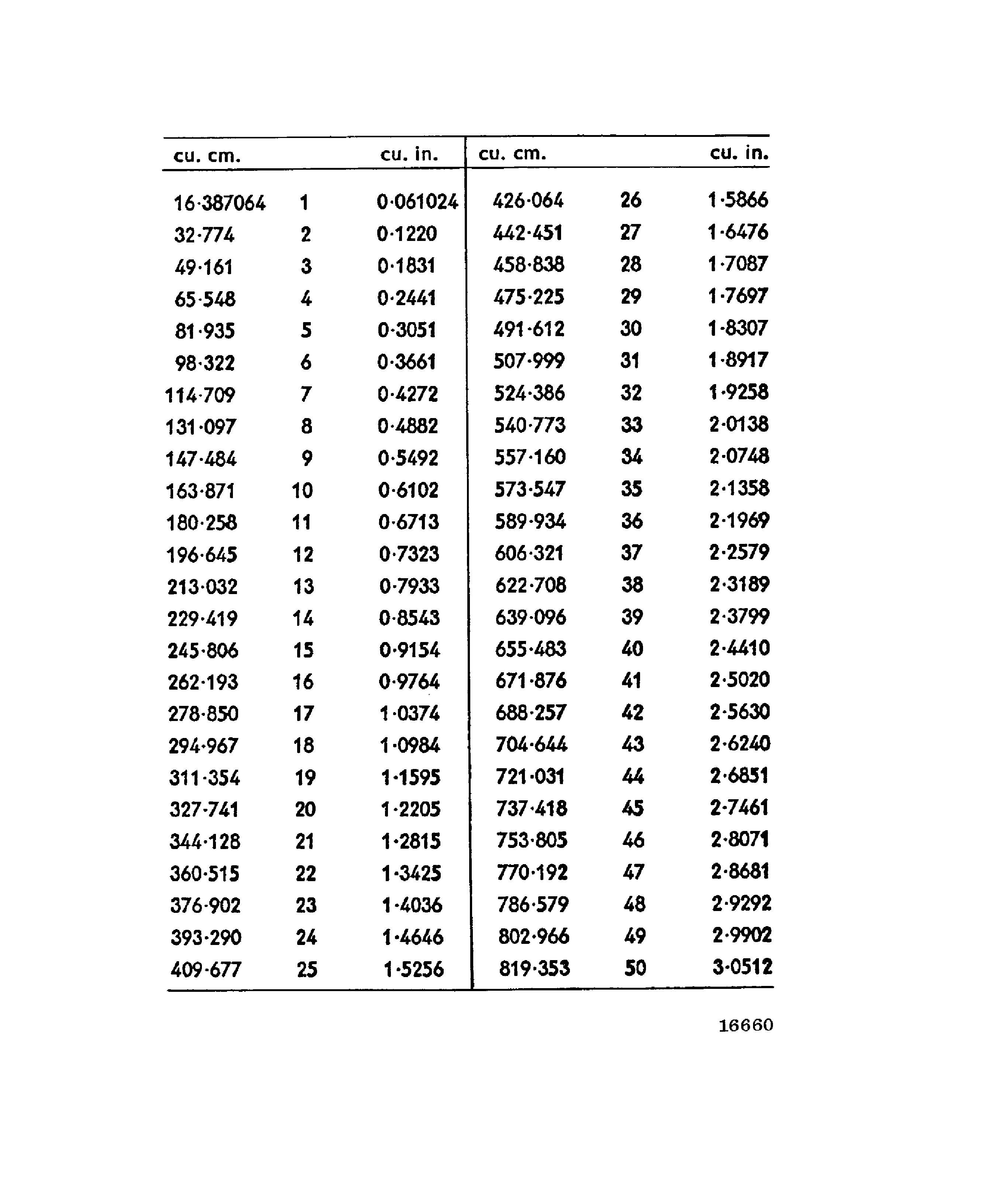

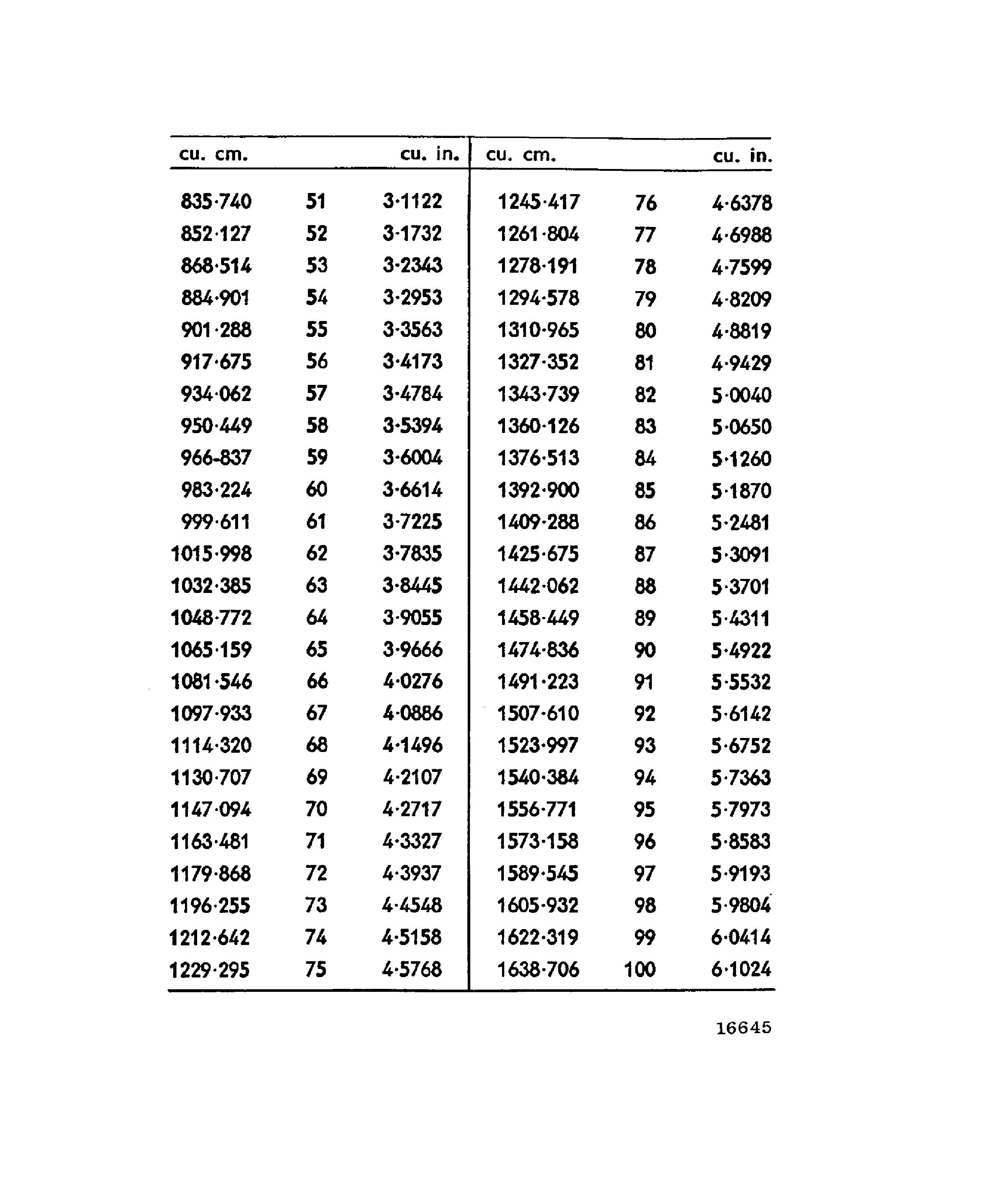

  4. Cubic centimeters - Cubic inches, Figure.

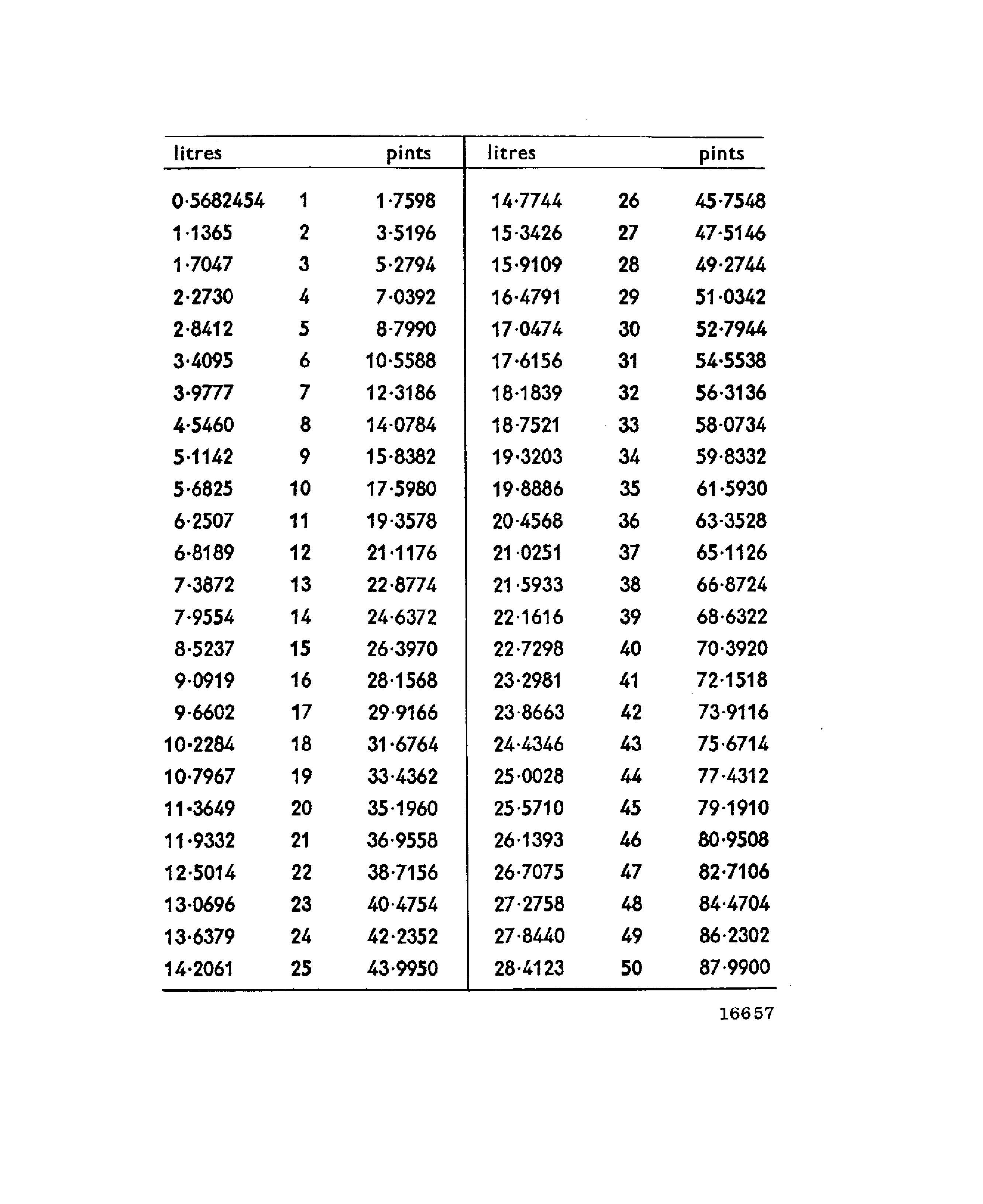

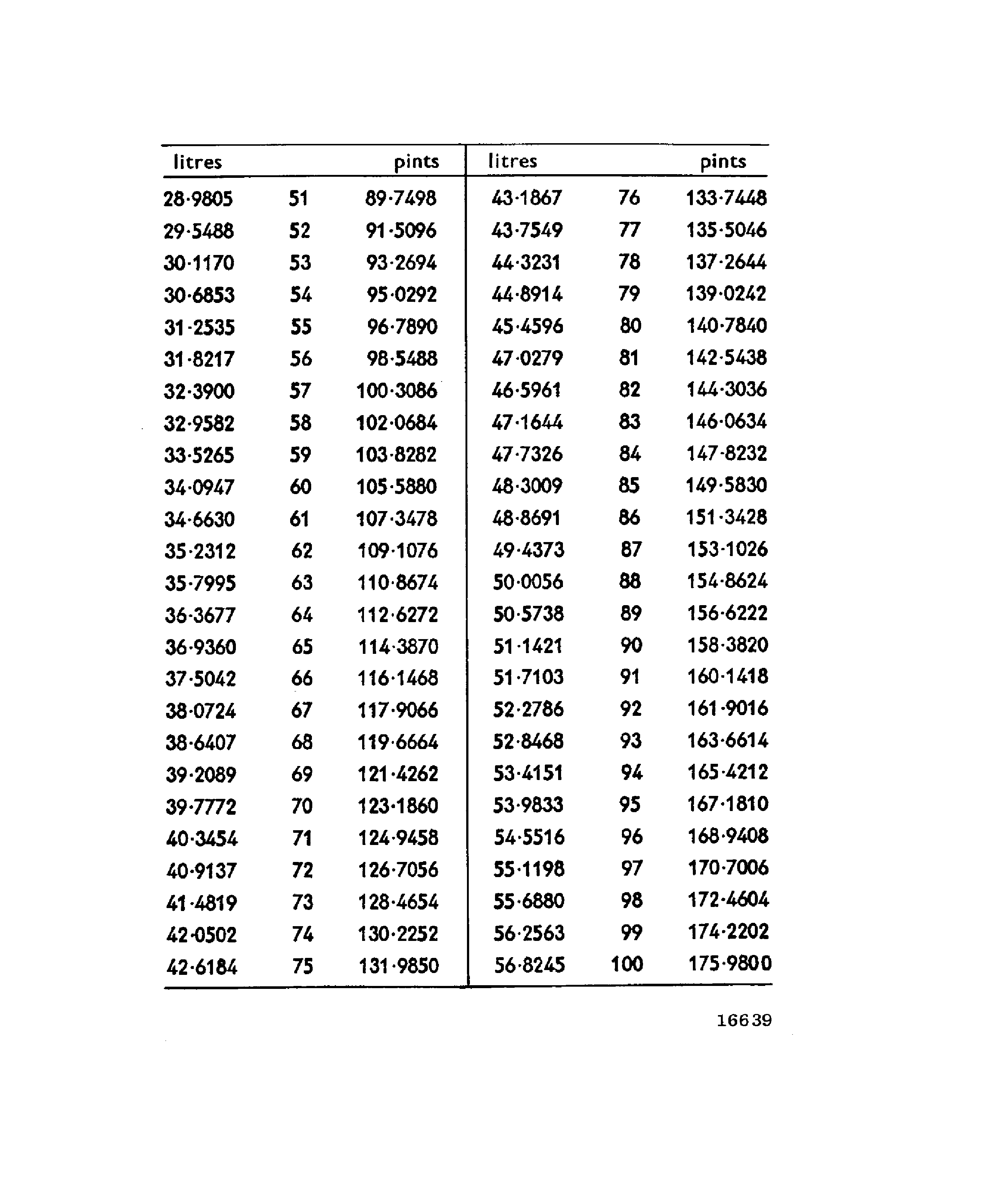

  5. Liters - Pints, Figure.

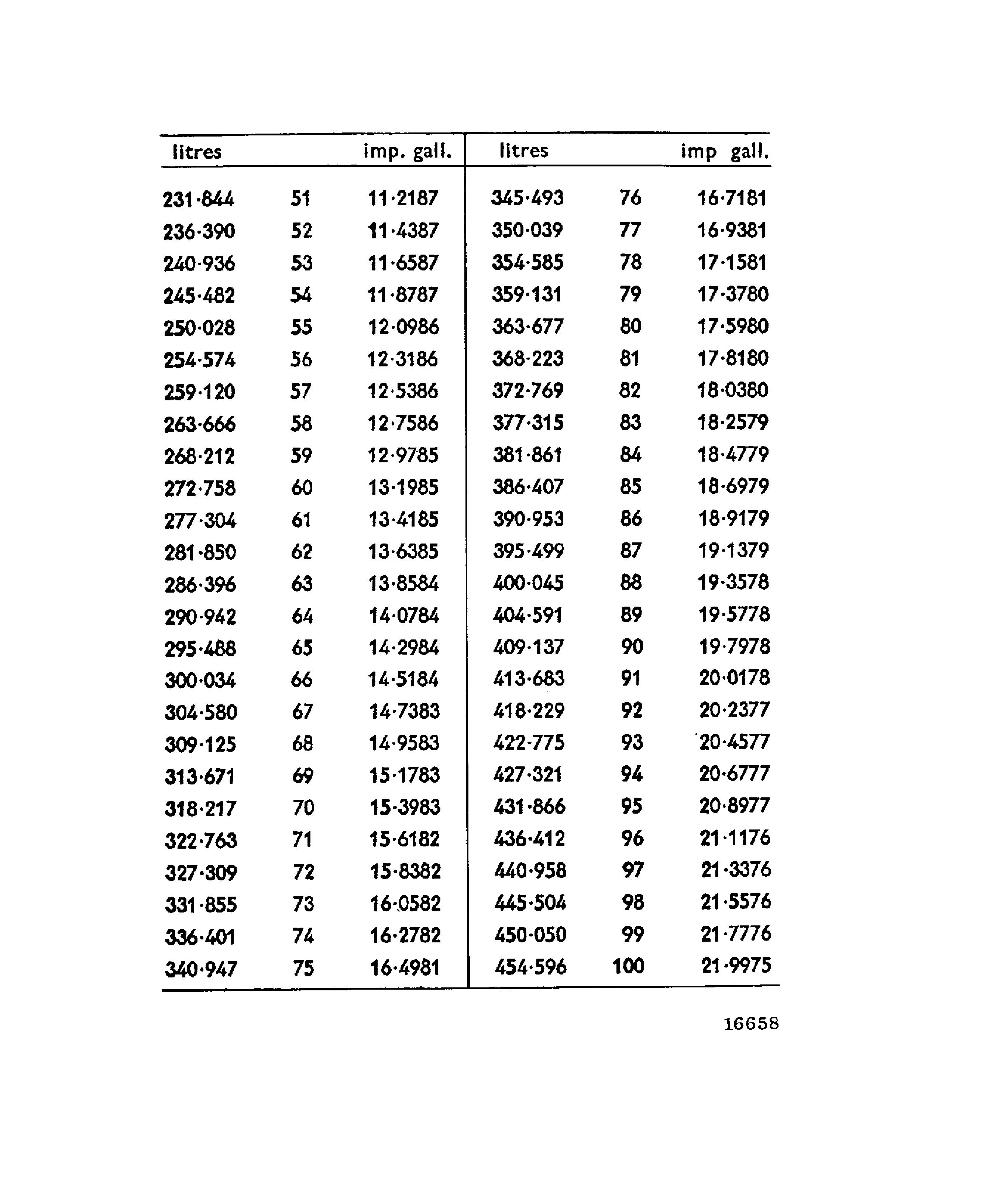

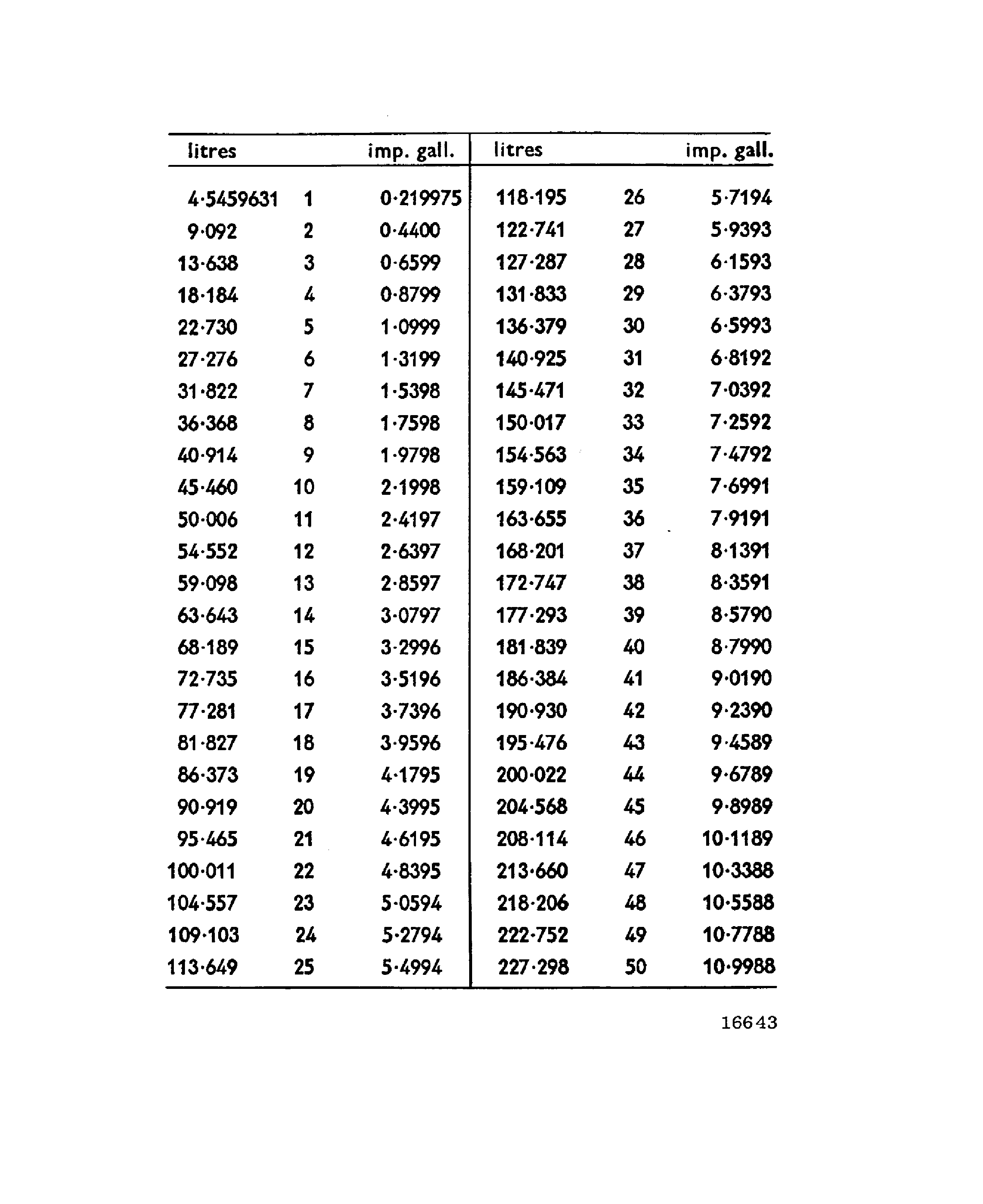

  6. Liters - Imperial gallons, Figure.

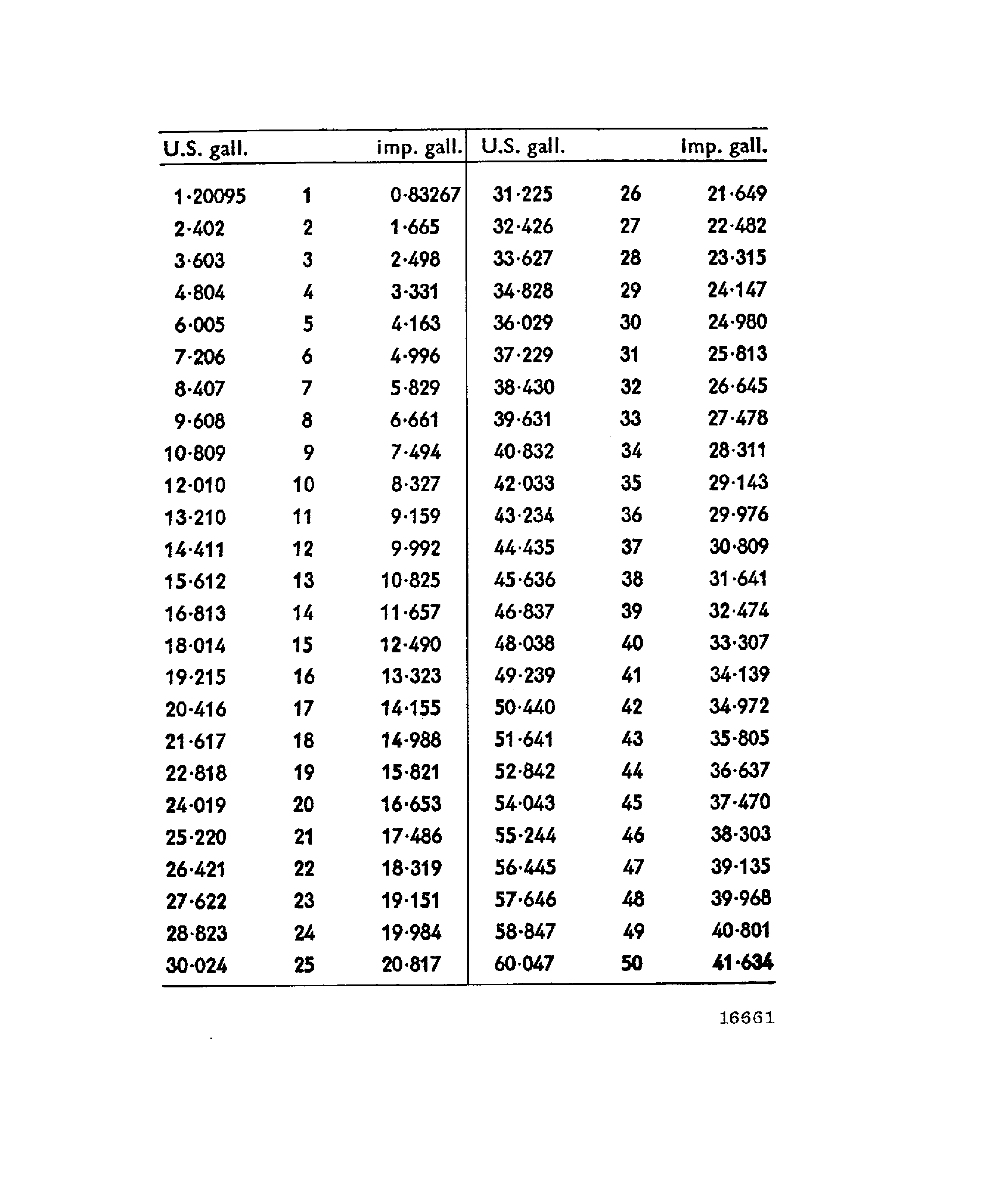

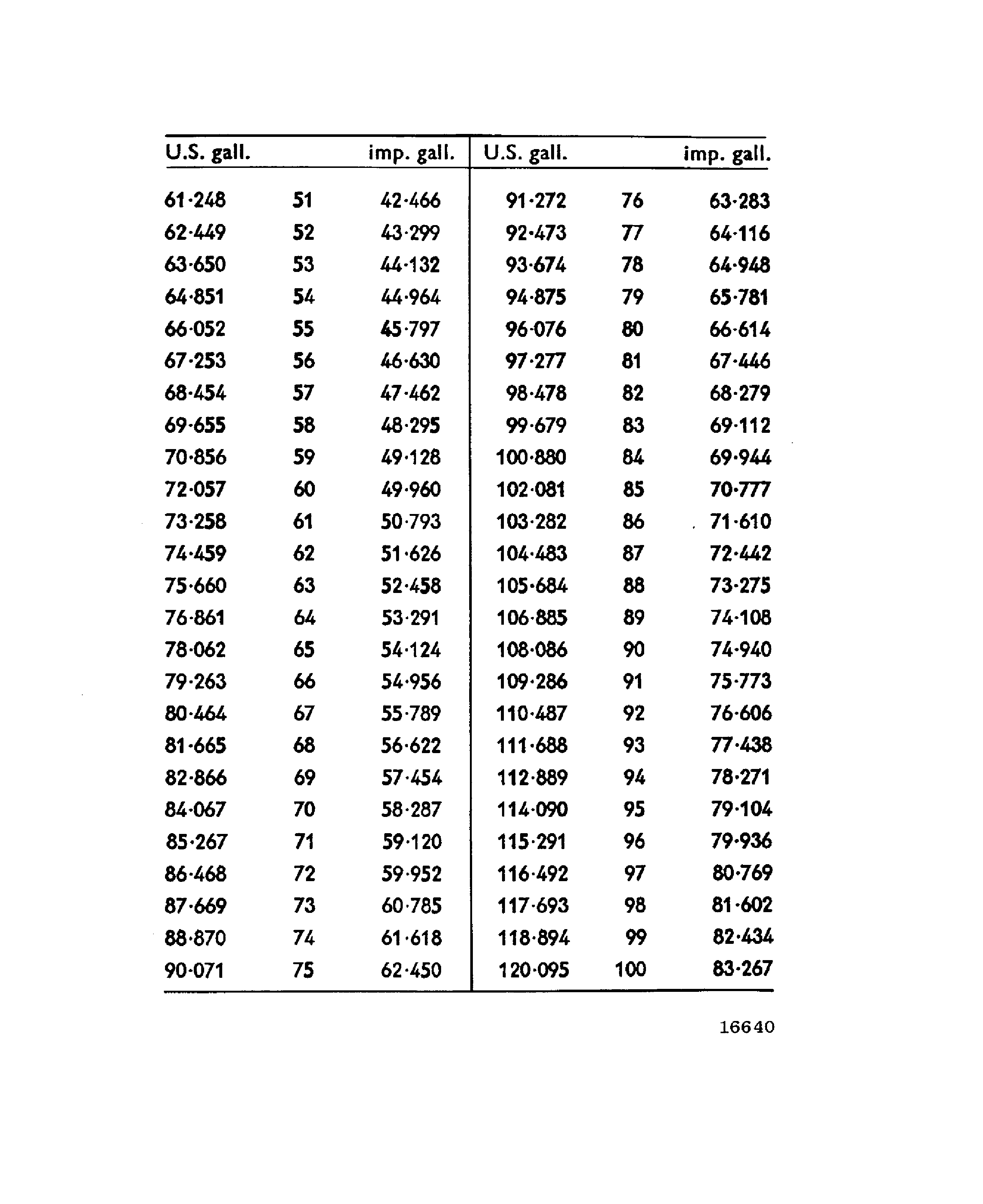

  7. U.S. gallons - Imperial gallons, Figure.

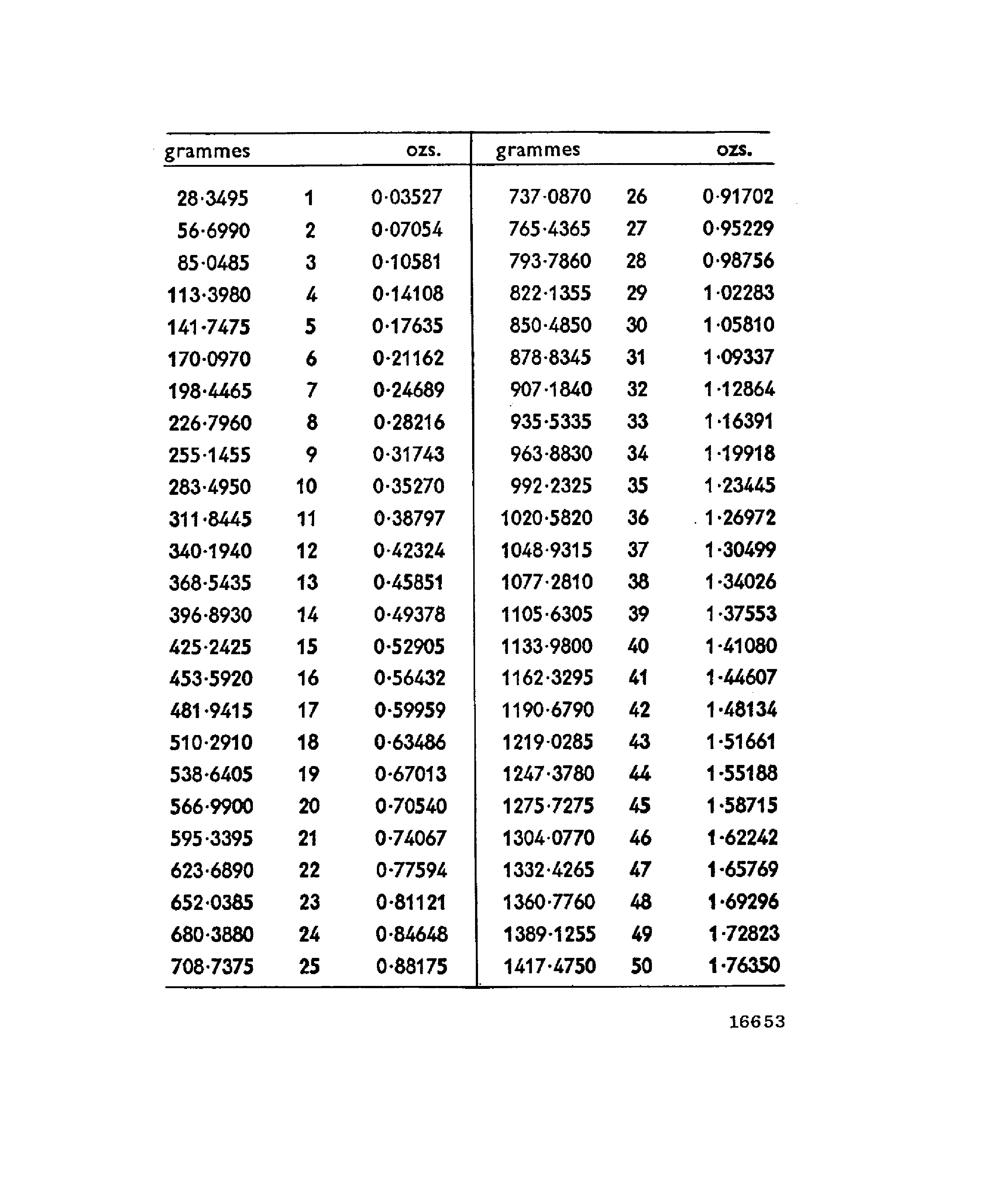

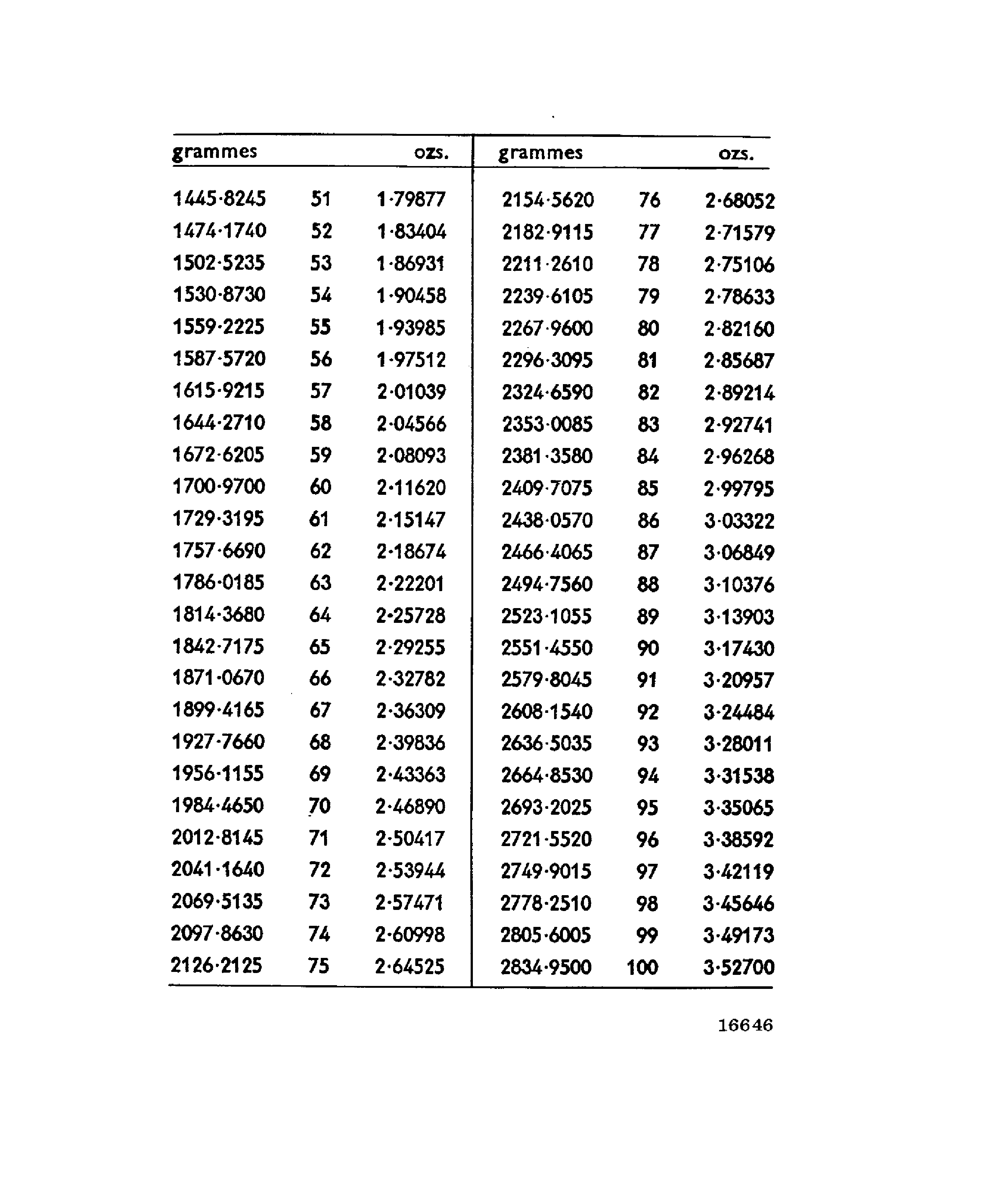

  8. Grams - Ounces, Figure.

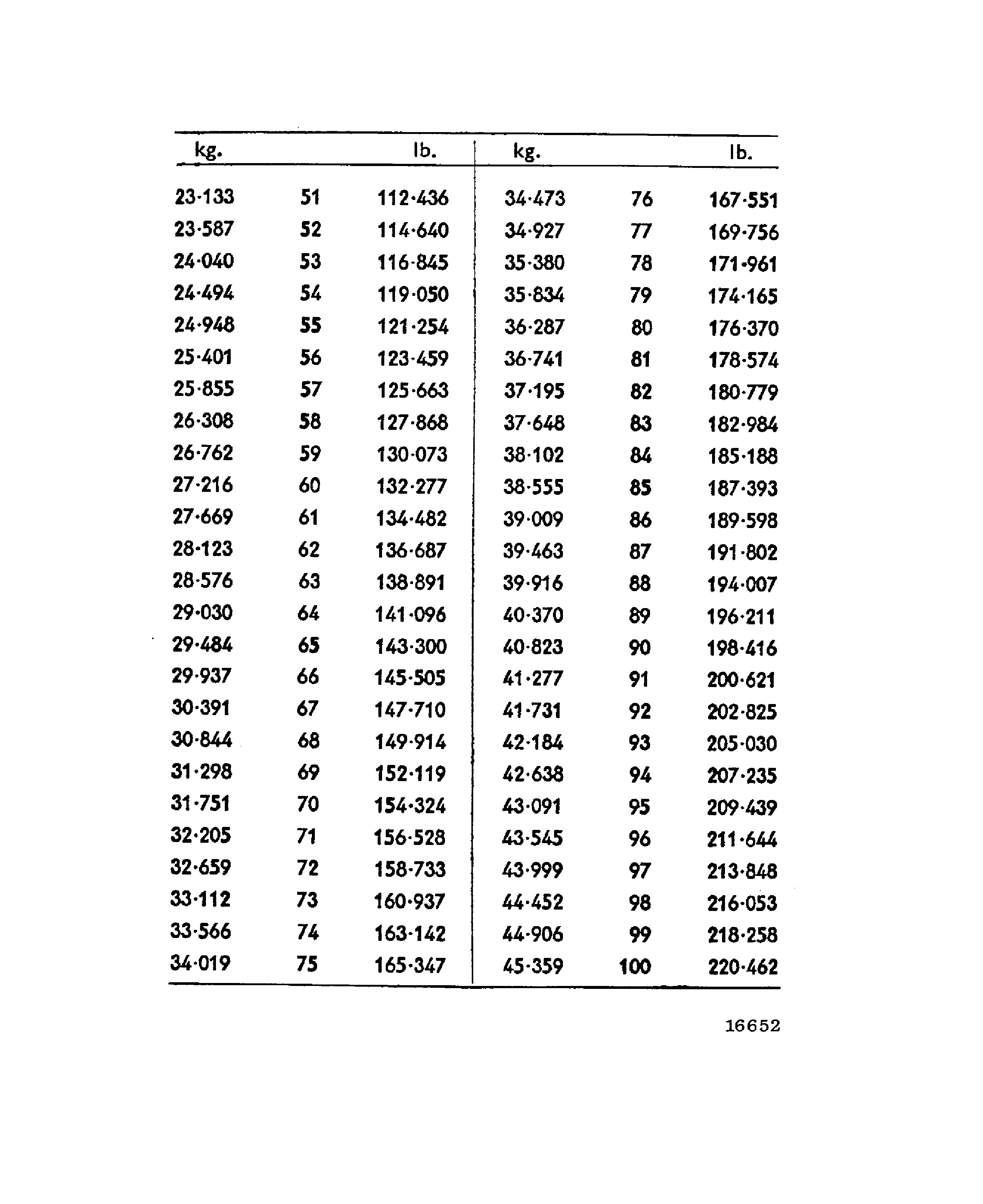

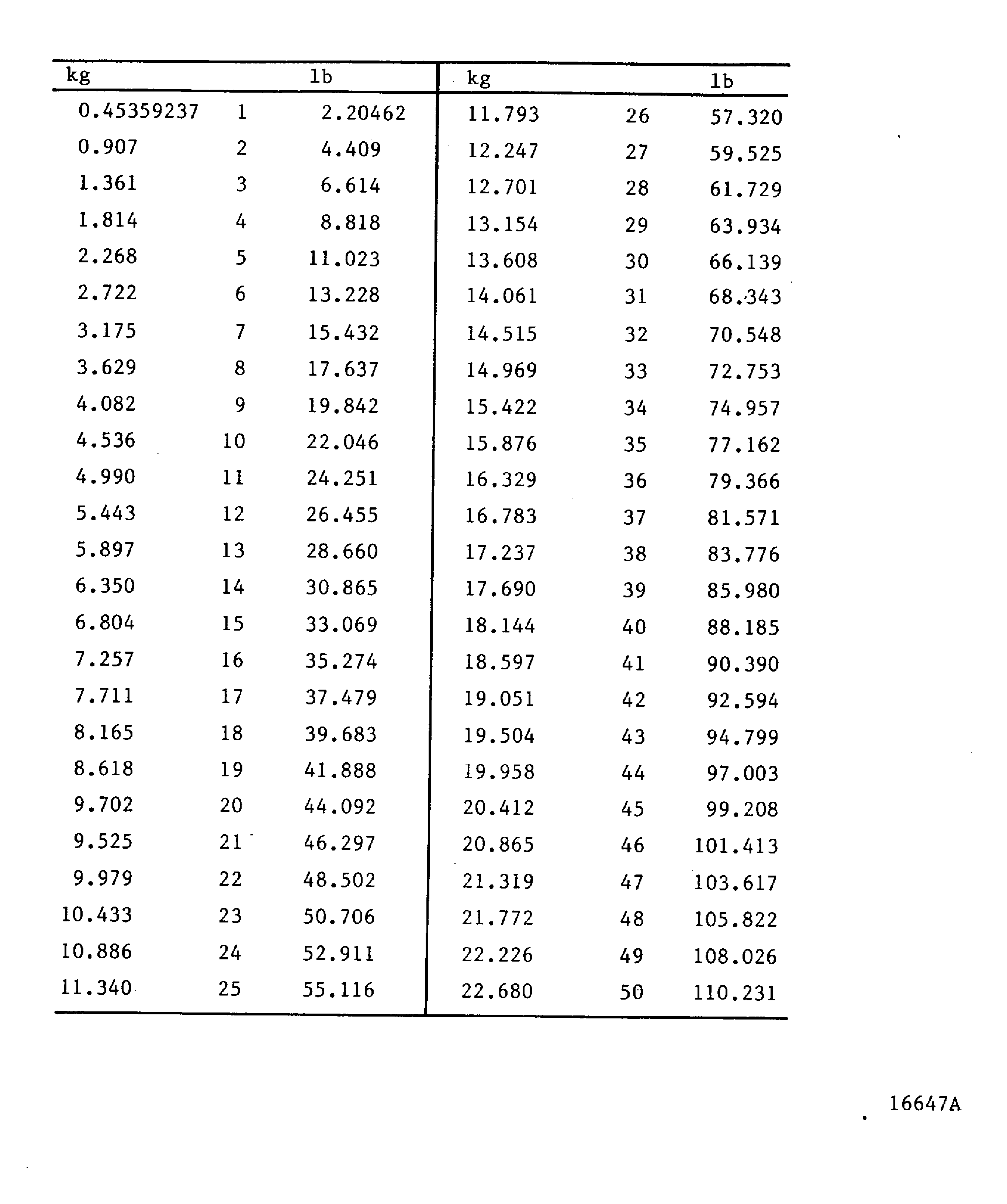

  9. Kilograms - Pounds, Figure.

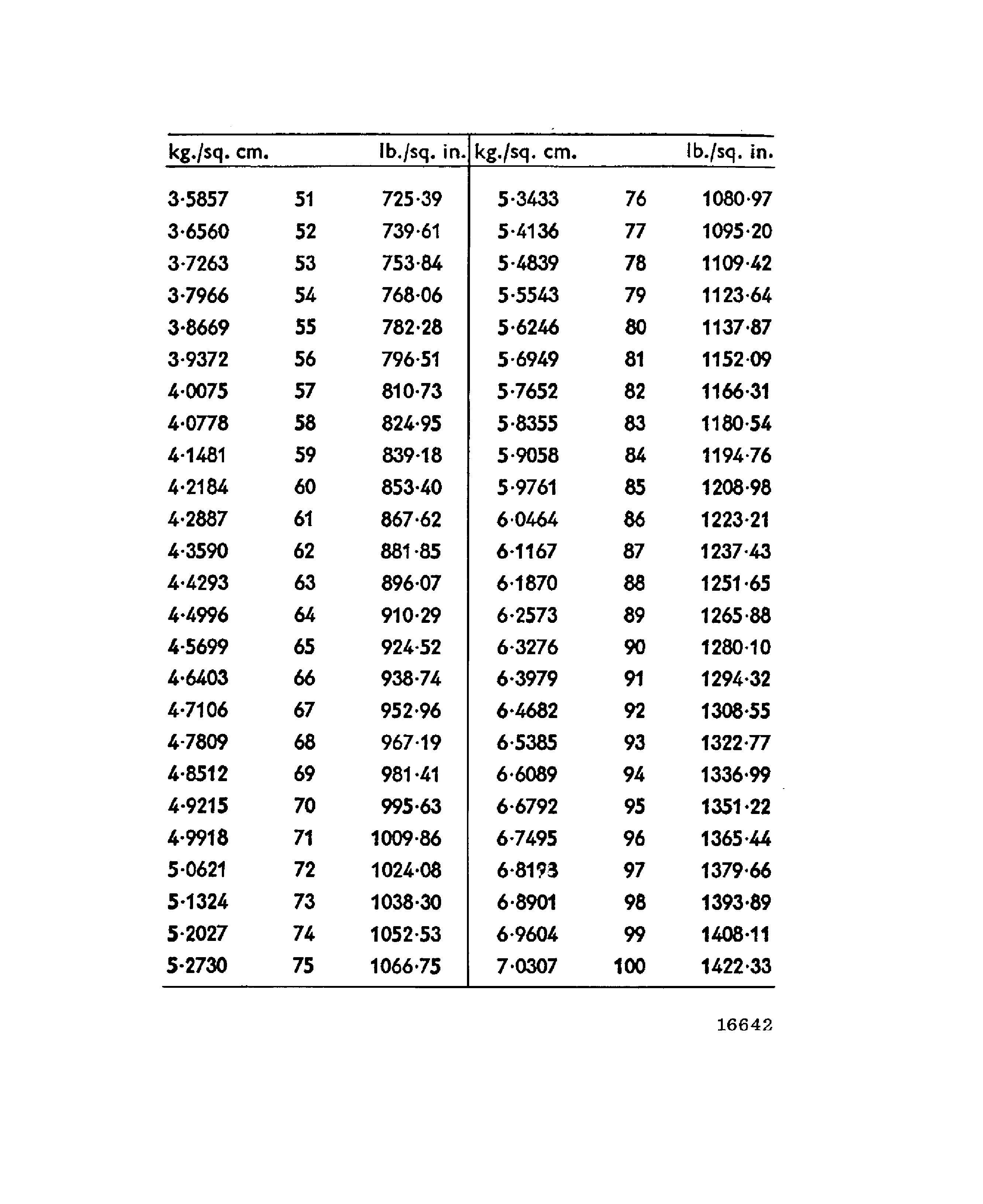

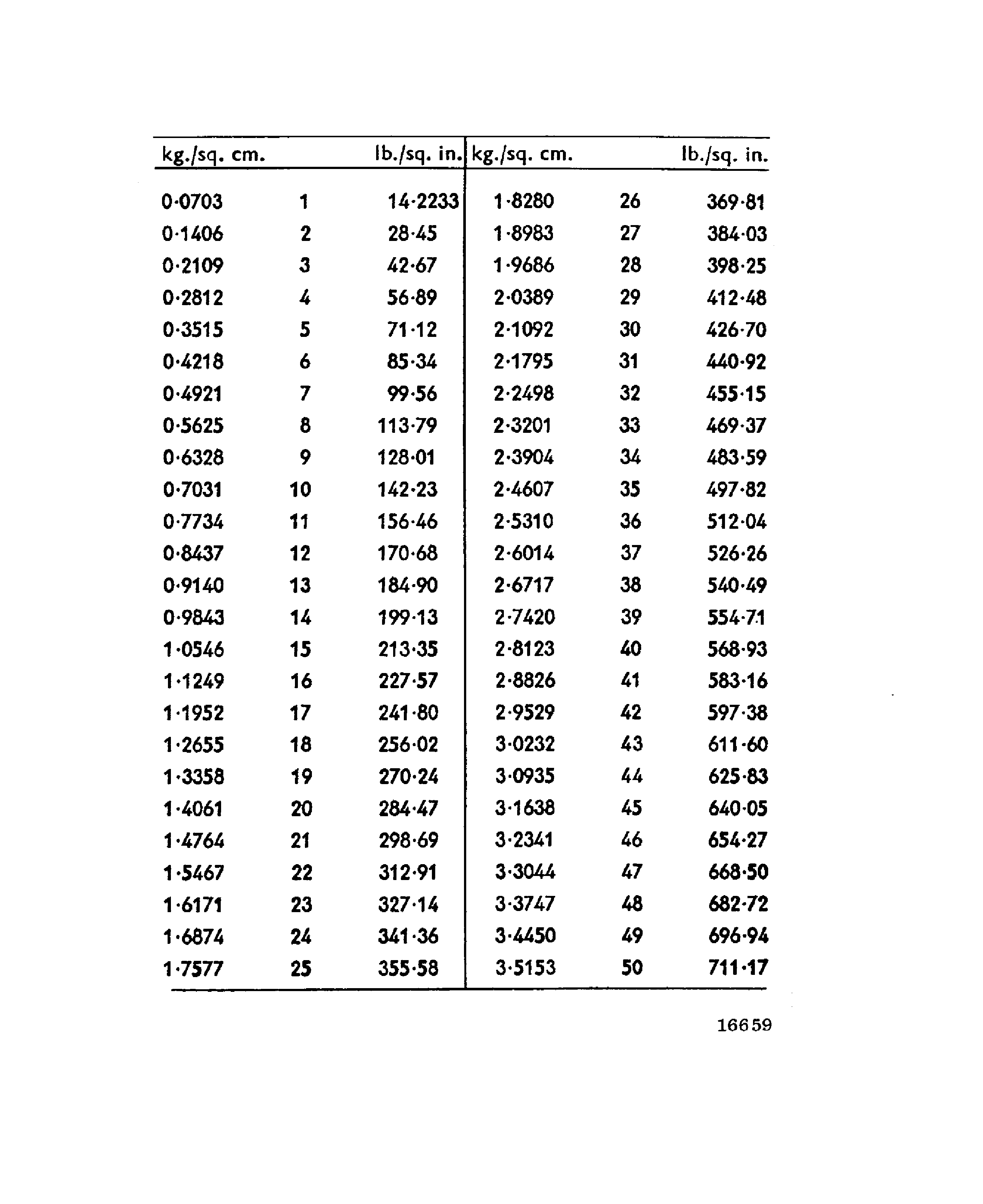

  10. Kilograms square centimeters - Pounds/square inch, Figure.

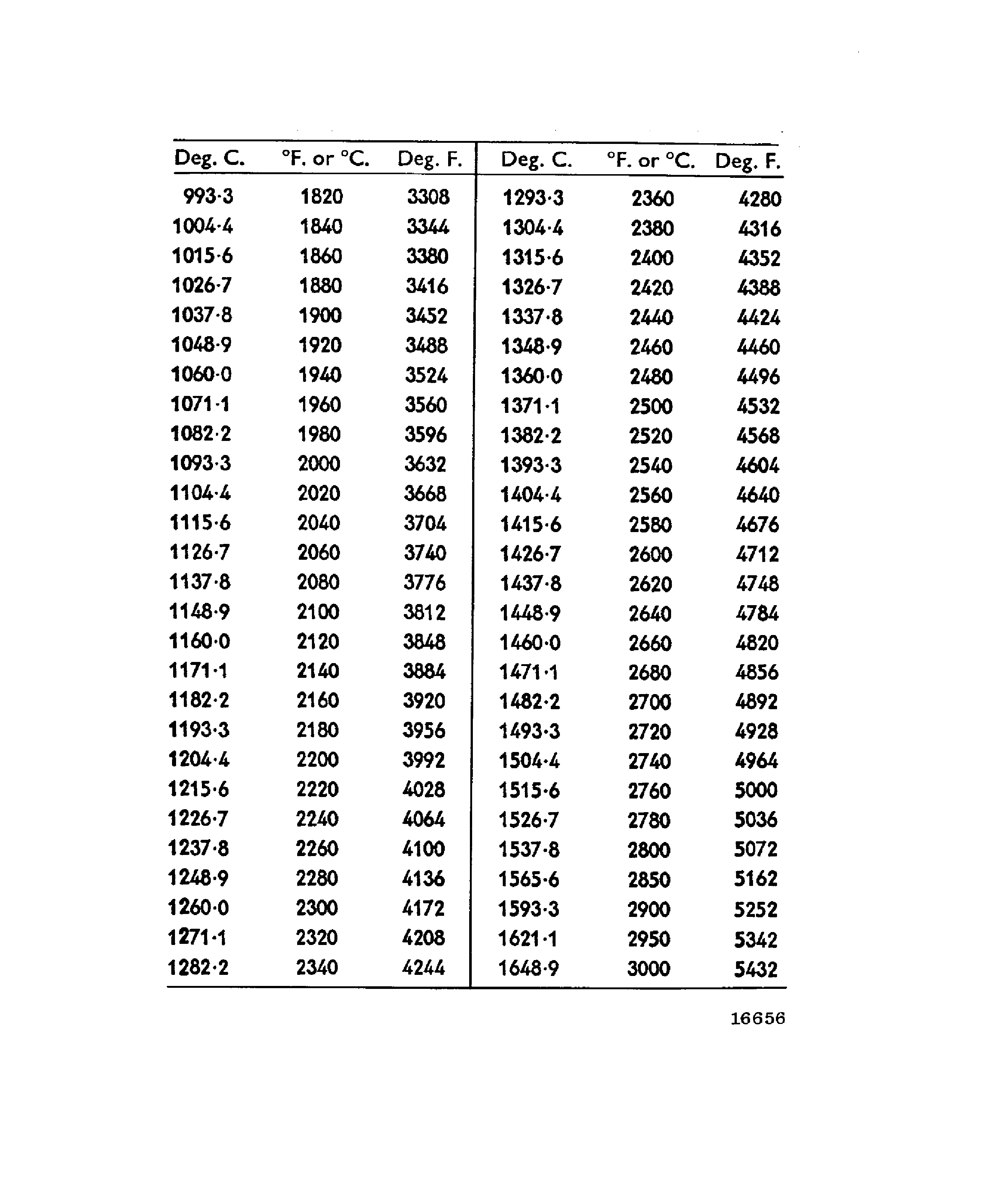

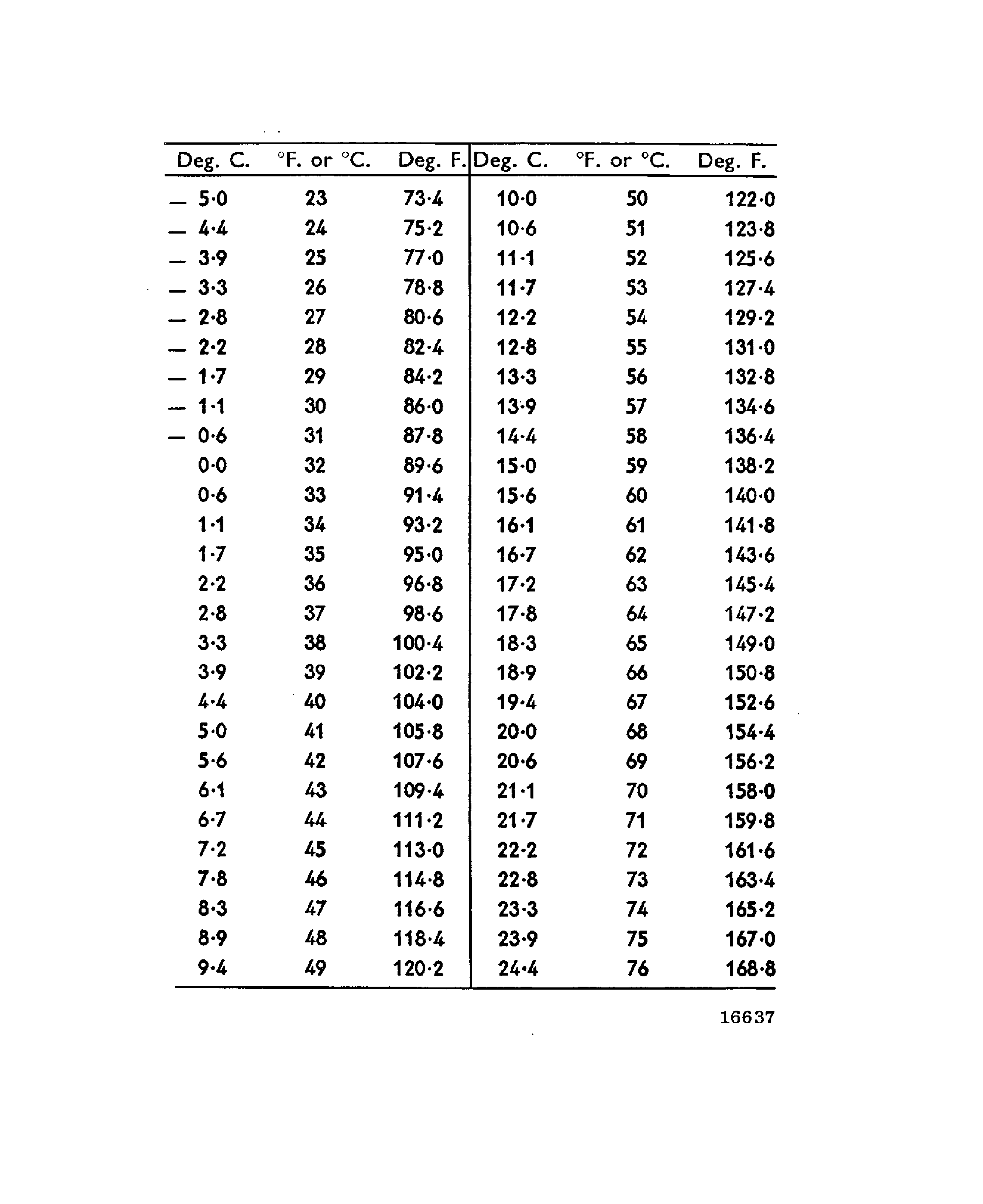

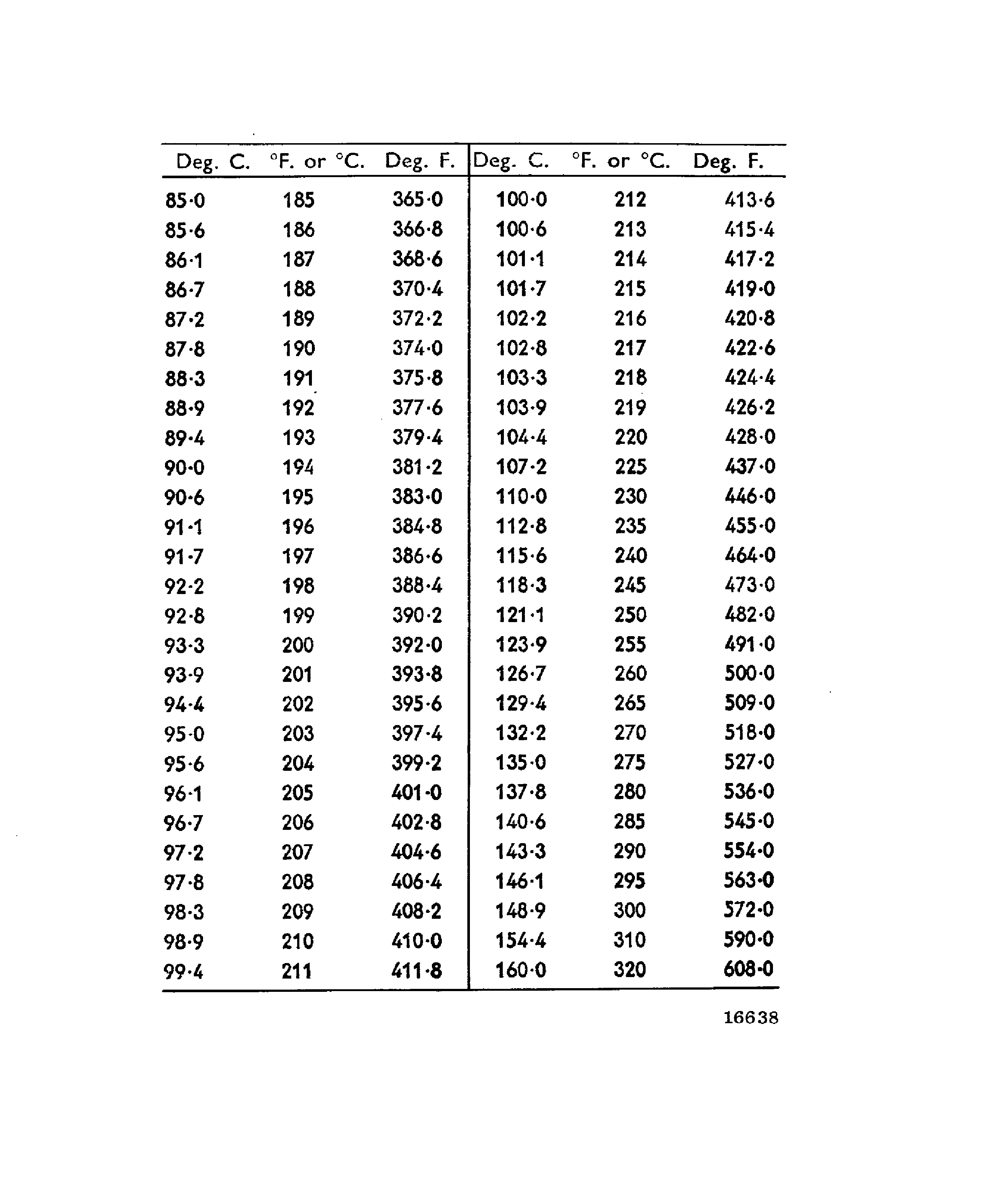

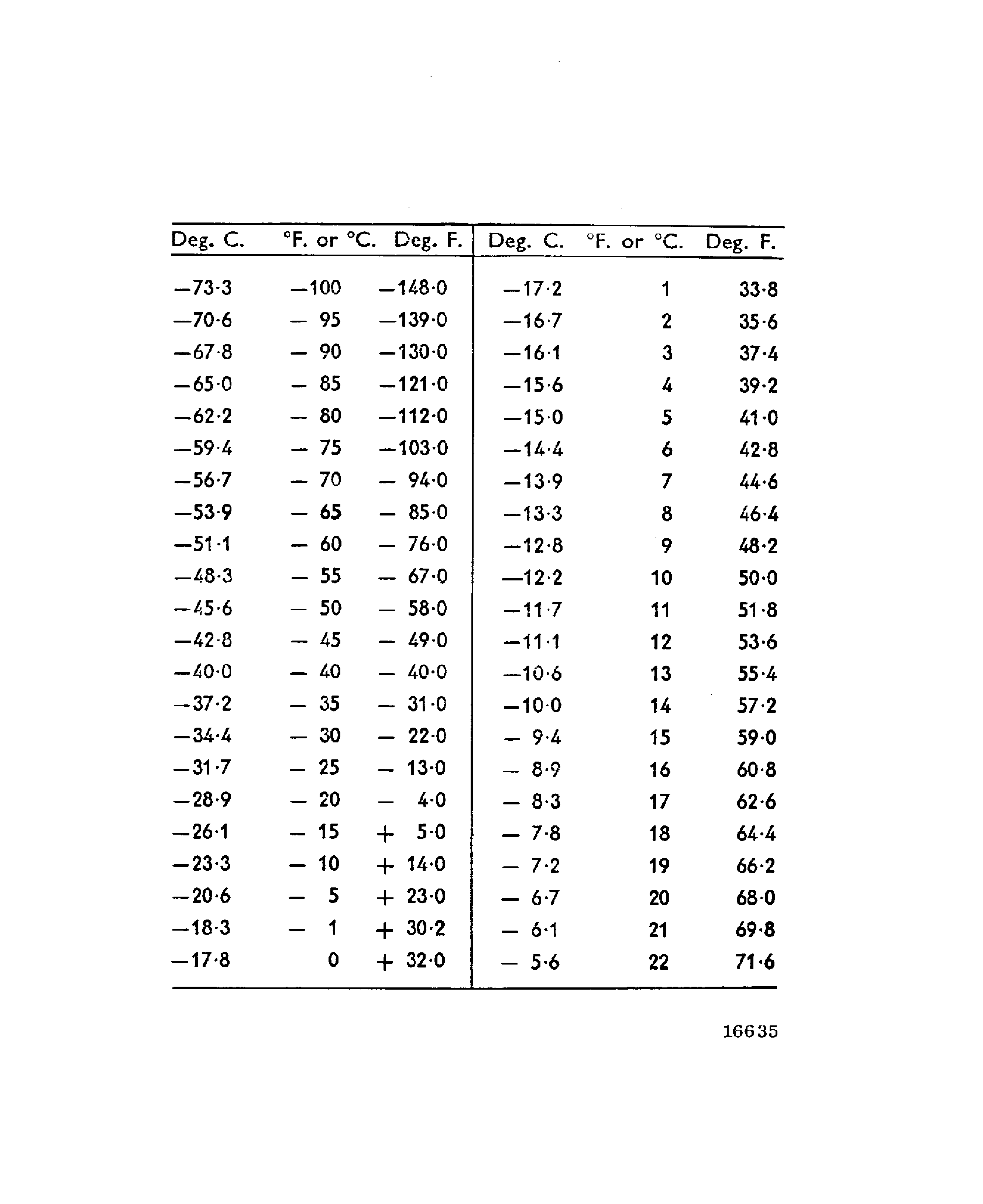

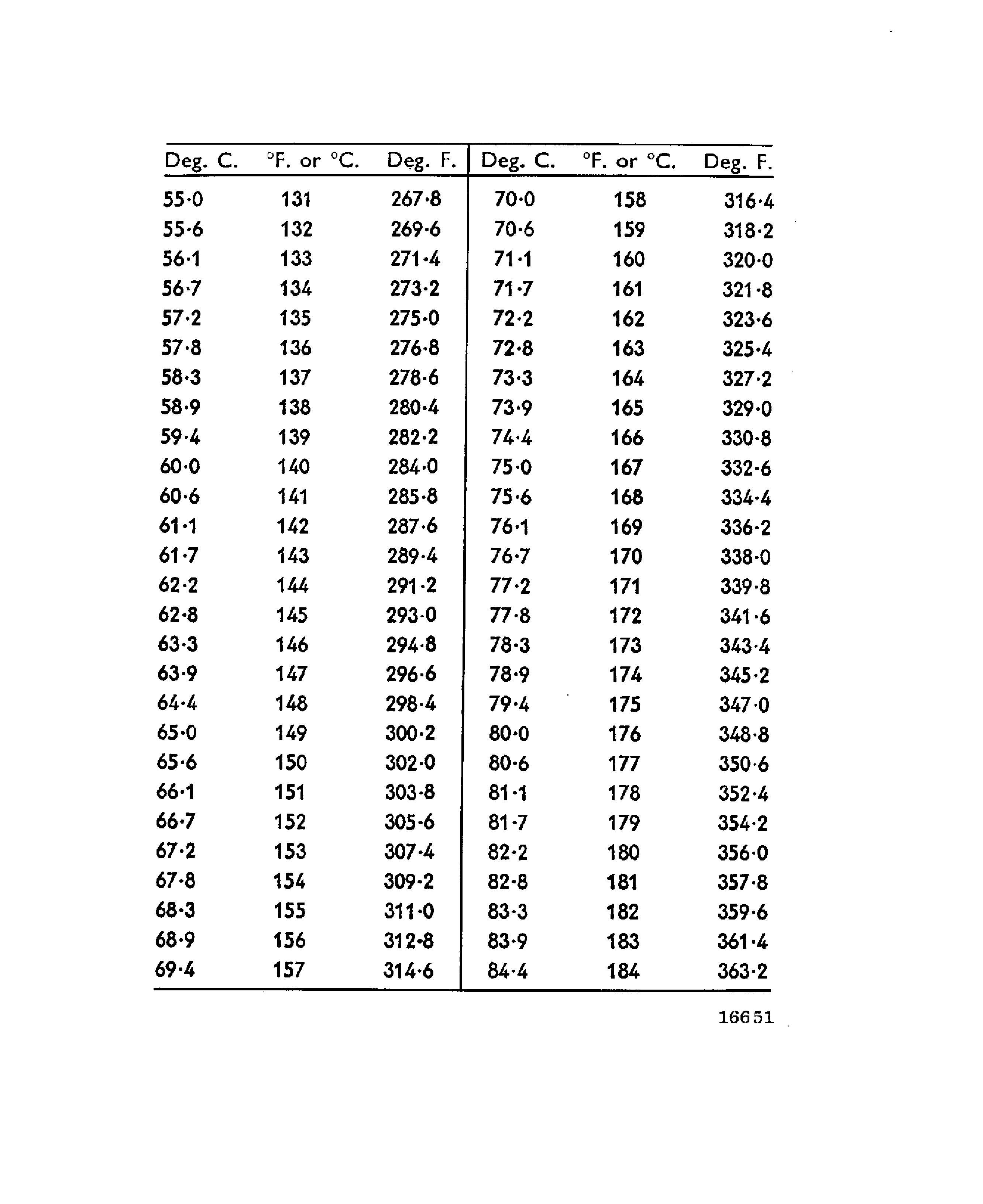

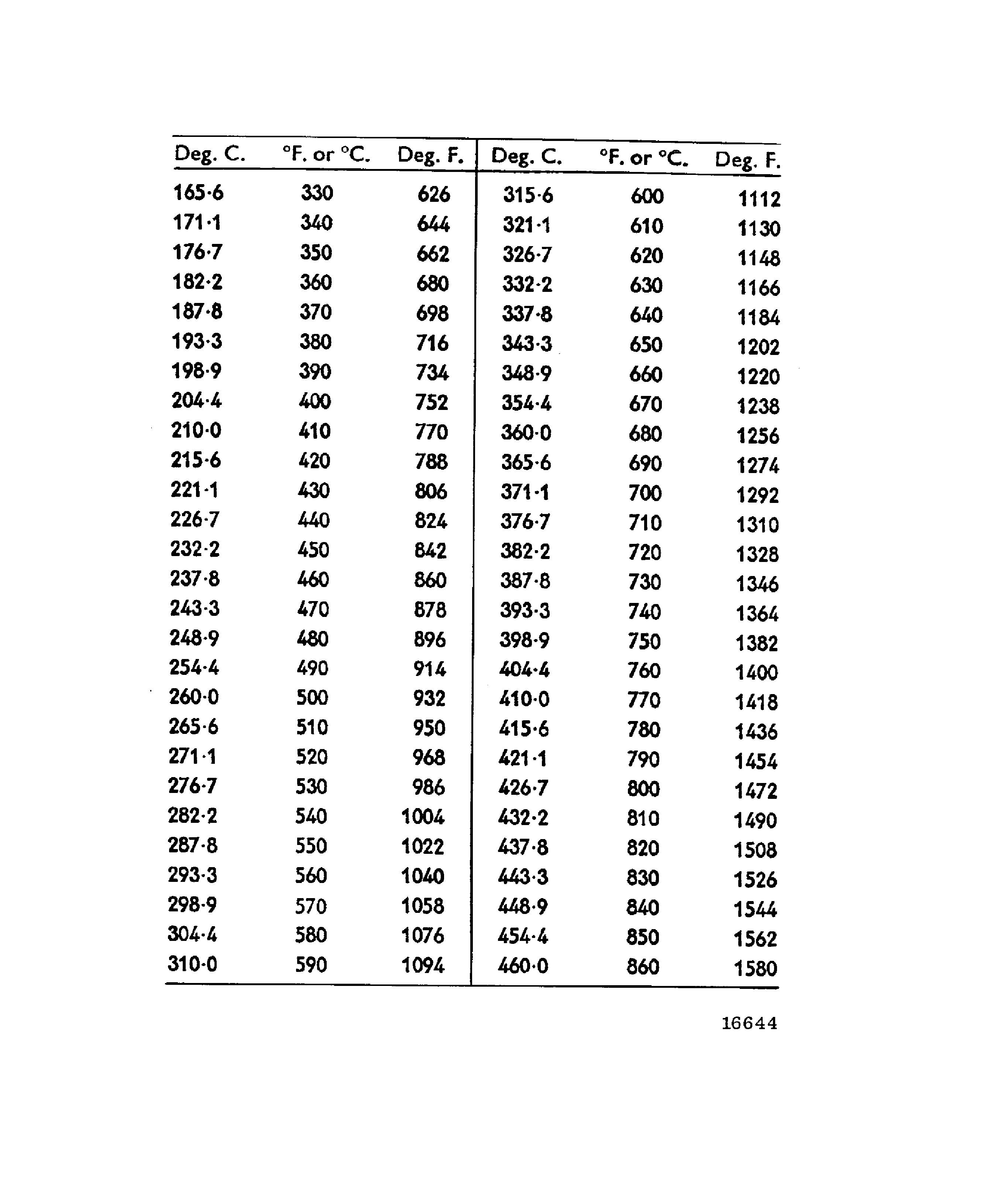

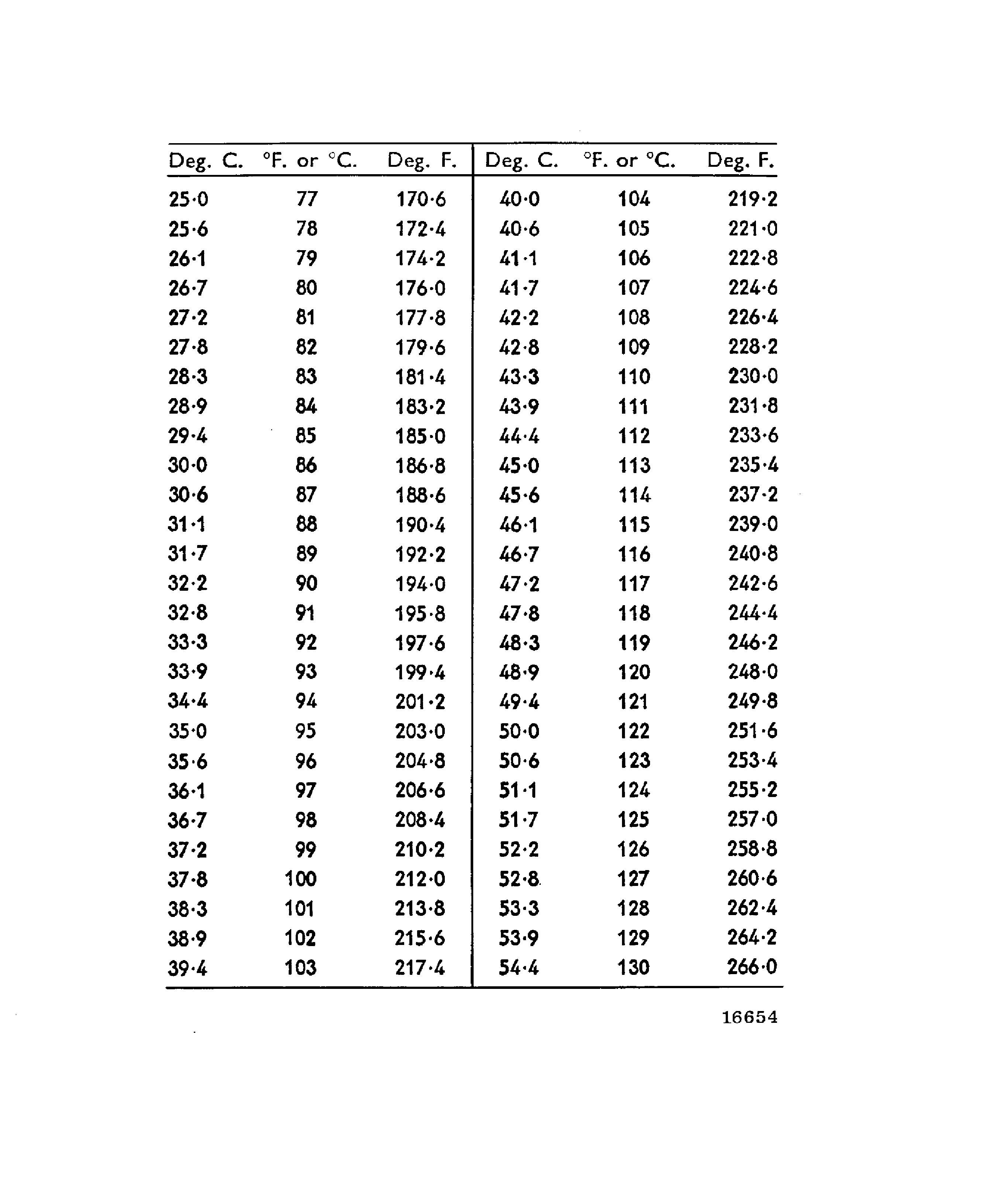

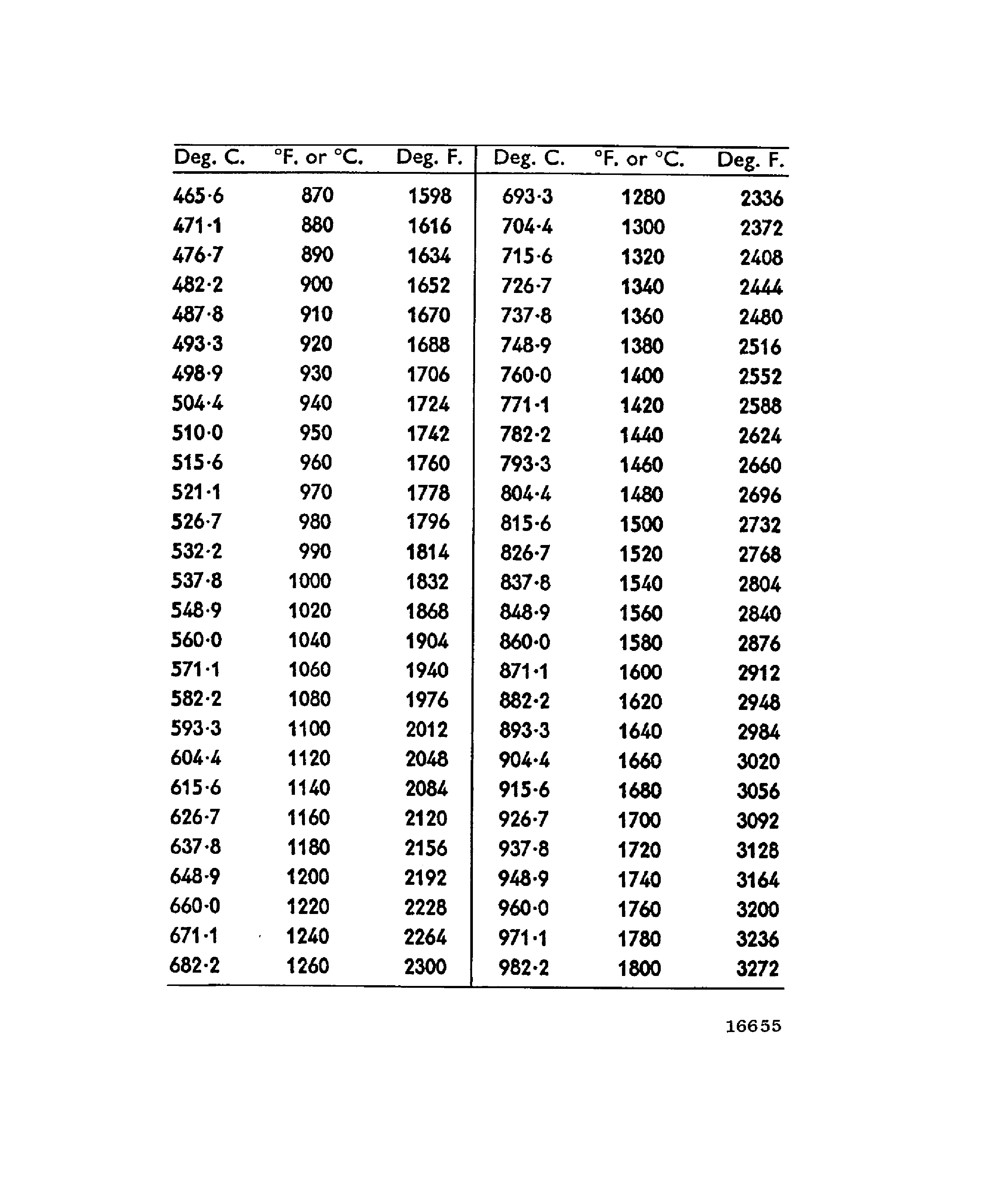

  11. Temperature Centigrade - Fahrenheit, Figure.
2. How to Use
  The tables are formatted in three columns. To make a conversion, enter the relevant table using the center column in the units to be converted and read the conversions in either side column as necessary.
  eg. Centimeters - Inches
  cm in.
  25.40 10 3.9370
  10in. = 25.40cm or 10cm = 3.9370in.
