TASK 70-35-11-300-501 Repair Shank Nuts

General

Price and Availability

Repair of spares - Refer to IAE.

Engine parts - Refer to IAE.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

Name	Manufacturer	Part Number / Identification
Standard workshop equipment	LOCAL	Standard workshop equipment
IAE 1R19662 Peening Tool No. 10-32 UNJF	0AM53	IAE 1R19662
IAE 1R19663 Peening Tool No. 10-32 UNJF	0AM53	IAE 1R19663
IAE 1R19664 Peening Tool 0.250in-28 UNJF	0AM53	IAE 1R19664
IAE 1R19665 Peening Tool 0.250in-28 UNJF	0AM53	IAE 1R19665
IAE 1R19666 Peening Tool 0.250in-28 UNJF	0AM53	IAE 1R19666
IAE 1R19667 Peening Tool 0.250in-28 UNJF	0AM53	IAE 1R19667
IAE 1R19668 Peening Tool 0.250-28 UNJF	0AM53	IAE 1R19668
IAE 1R19669 Peening Tool 0.250in-28 UNJF	0AM53	IAE 1R19669
IAE 1R19670 Peening Tool 0.250in-28 UNJF	0AM53	IAE 1R19670
IAE 1R19671 Peening Tool 0.3125in-24 UNJF	0AM53	IAE 1R19671
IAE 1R19672 Peening Tool 0.3125in-24 UNJF	0AM53	IAE 1R19672
IAE 1R19673 Peening Tool 0.3125in-24 UNJF	0AM53	IAE 1R19673
IAE 1R19675 Peening Tool 0.3125in-24 UNJF	0AM53	IAE 1R19675
IAE 1R19676 Peening Tool 0.3125in-24 UNJF	0AM53	IAE 1R19676
IAE 1R19677 Peening Tool 0.3125in-24 UNJF	0AM53	IAE 1R19677
IAE 1R19678 Peening Tool 0.375in-24 UNJF	0AM53	IAE 1R19678
IAE 1R19679 Peening Tool 0.375in-24 UNJF	0AM53	IAE 1R19679
IAE 1R19680 Peening Tool 0.500in-20 UNJF	0AM53	IAE 1R19680

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

1. Refer to Figure.
2. With the use of a drilling machine, drill the flare of the shank nut until the flare twists.
3. Remove sharp edges around the nut location hole.
4. Clean the hole with a soft, clean cloth and blast with air.
5. Visually inspect the nut location hole.
6. Fit a new shank nut in to the location hole. Make sure the shank nut is installed correctly.
7. Select the applicable peening tool.
8. Hold the shank nut in position and make the flare.

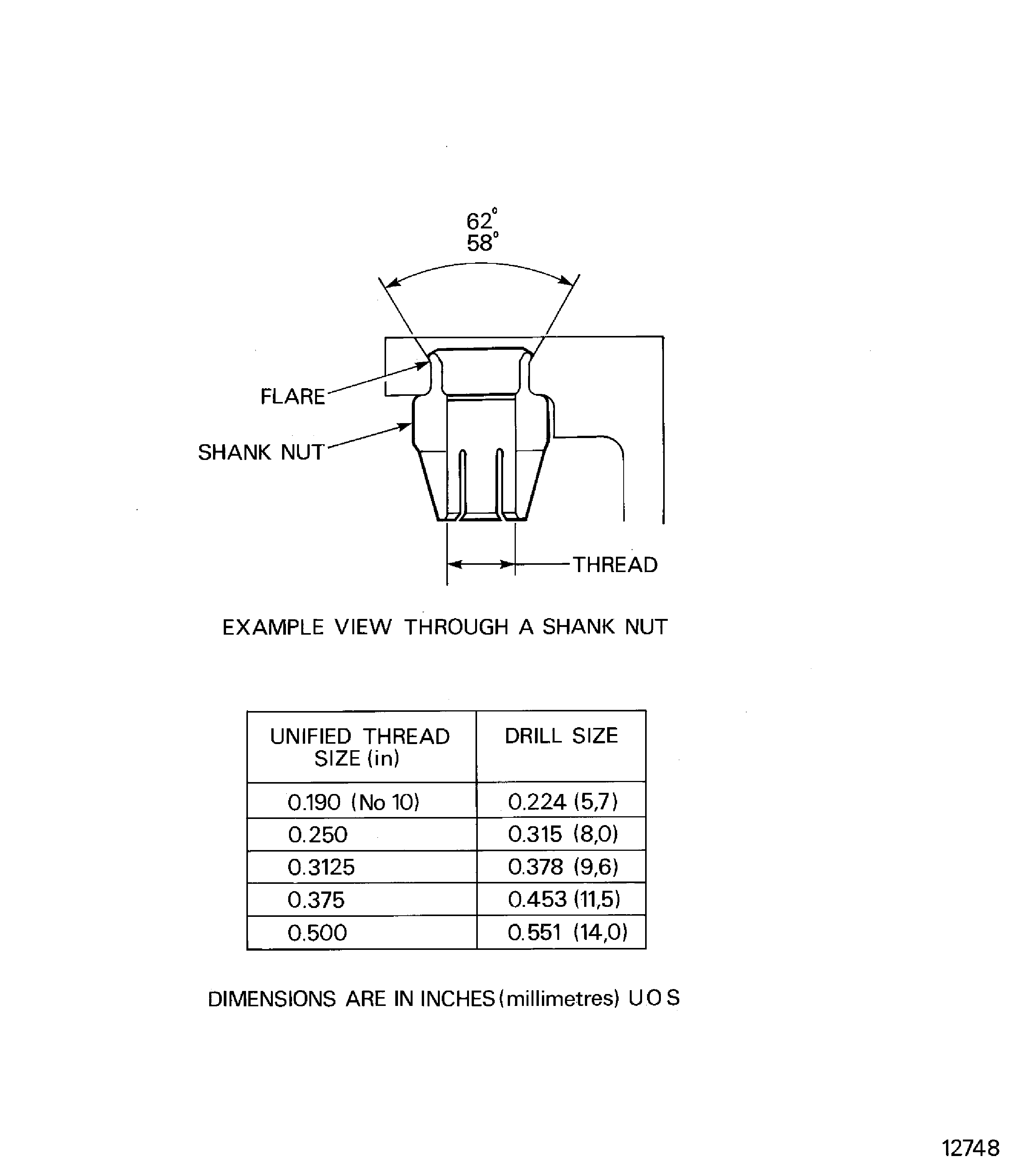

Example view through a shank nut

Requirements After Job Completion

Follow-On Conditions

NONE
