TASK 30-21-49-700-101 Anti-Ice Ducts - Do A Test, Testing-001

DMC:V2500-A0-30-21-4901-00A-362A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 30-21-49-700-101 Anti-Ice Ducts - Do A Test, Testing-001

Effectivity

FIG/ITEM

PART NO.

01-070

745-5151-501

01-070

745-5151-503

02-100

740-5152-507

02-100

745-5152-501

02-100

745-5152-503

02-500

740-5153-507

01-010

740-5172-505

01-050

740-5173-507

01-070

740-5183-501

01-070

740-5183-503

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

The ducts must be cleaned and inspected before this pressure test, Refer to Cleaning-000 TASK 30-21-49-100-100 and Inspection-000 TASK 30-21-49-200-100.

NOTE

Special tools are identified in the procedure by the tool primary number.

The Test Equipment Specification

To do the test on the ducts use equipment equivalent to that shown in Figure and Figure.

Expendable parts

-

206-354 Seal, Dowty

1 off

-

206-356 Seal, Dowty

2 off

-

206-366 Seal, Dowty

1 off

-

206-367 Seal, Dowty

1 off

-

206-368 Seal, Dowty

1 off

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Hydraulic pressure testing rigLOCALHydraulic pressure testing rig
Pneumatic pressure testing rigLOCALPneumatic pressure testing rig
Coupling, Aeroquip0AM536299242-0250
Coupling, Aeroquip0AM536299257-0200
6299257-0250 Coupling, Aeroquip0AM536299257-0250
IAE 1N20411 Blanking adapter0AM53IAE 1N20411 1 off
IAE 1N20412 Pressurizing adapter0AM53IAE 1N20412 1 off
IAE 1N20413 Pressurizing adapter0AM53IAE 1N20413 1 off
IAE 1N20414 Blanking adapter0AM53IAE 1N20414 1 off
IAE 1N20415 Pressurizing adapter0AM53IAE 1N20415 1 off
IAE 1N20416 Blanking adapter0AM53IAE 1N20416 1 off
IAE 1N20417 Pressurizing adapter0AM53IAE 1N20417 1 off
IAE 1N20418 Blanking adapter0AM53IAE 1N20418 1 off

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 30-21-49-780-051 Prepare the Ducts (01-070, 02-100, 02-500, 01-010 and 01-050) for the Hydraulic Pressure-Test

    1. Install the IAE 1N20415 Pressurizing adapter 1 off and the 206- 368 dowty seal 1 off to the duct (01-010). Safety the components with an applicable aeroquip coupling.

    2. Install the IAE 1N20416 Blanking adapter 1 off and the 206-367 dowty seal 1 off to the duct (01-010). Safety the components with an applicable aeroquip coupling.

    3. Install the IAE 1N20413 Pressurizing adapter 1 off and 206-368 dowty seal 1 off to the duct (01-050). Safety the components with an applicable aeroquip coupling.

    4. Install the IAE 1N20414 Blanking adapter 1 off and the 206-366 dowty seal 1 off to the duct (01-050). Safety the components with 0.250in. (6,4 mm) bolts, washers and nuts.

    5. Install the IAE 1N20412 Pressurizing adapter 1 off and the 206- 354 dowty seal 1 off to the duct (01-070). safety the components with an applicable aeroquip coupling.

    6. Install the IAE 1N20411 Blanking adapter 1 off and the 206-368 dowty seal 1 off to the duct (01-070). Safety the components with an applicable aeroquip coupling.

    7. Install the IAE 1N20417 Pressurizing adapter 1 off and the 206- 356 dowty seal 1 off to the duct (02-100). Safety the components with an applicable aeroquip coupling.

    8. Install the IAE 1N20418 Blanking adapter 1 off and the 206-356 dowty seal 1 off to the duct (02-100). Safety the components with an applicable aeroquip coupling.

    9. Install the IAE 1N20417 Pressurizing adapter 1 off and the 206-356 dowty seal 1 off to the duct (02-500). Safety the components with an applicable aeroquip coupling.

    10. Install the IAE 1N20418 Blanking adapter 1 off and the 206-356 dowty seal 1 off to the duct (02-500). Safety the components with an applicable aeroquip coupling.

    2. SUBTASK 30-21-49-780-052 Do the Hydraulic Pressure Test of the Ducts (01-070, 02-100, 02-500, 01- 010 and 01-050)

    1. Connect the duct to the outlet of the Hydraulic pressure testing rig.

    2. Make sure that the bleed screw is at the highest position and open.

    3. Make sure that the pressure control valve is set to zero.

    5. Slowly turn the pressure control valve until the fluid comes out of the bleed screw.

    6. Close the bleed screw.

    7. CAUTION

      DO NOT GO PAST THE TEST PRESSURE SHOWN BELOW. IT CAN CAUSE DAMAGE TO THE DUCT. IF THE PRESSURE IN THE DUCT GETS TO MORE THAN THAT SHOWN BELOW, REJECT THE DUCT.

      Increse the pressure in the ducts (01-010, 01-050, 01-070, 02-100 and 02-500) to 195 psi (1345 kPa).

    8. Let the pressure stay in the duct for 2 minutes.

    9. Make sure that the duct has no leaks. If the duct has leaks, reject the duct, Refer to Inspection-000 TASK 30-21-49-200-100.

    10. Decrease the pressure in the duct to zero.

    12. Open the bleed screw.

    13. Disconnect the duct from the outlet of the Hydraulic pressure testing rig.

    14. Remove the couplings, the adapters and the seals from the duct.

    15. WARNING

      BE CAREFUL WHEN YOU USE COMPRESSED AIR. PUT ON PROTECTIVE CLOTHING AND GOGGLES.

      Remove unwanted fluid from the duct with clean, dry compressed air.

    3. SUBTASK 30-21-49-780-053 Prepare the Ducts (01-070, 02-100, 02-500, 01-010 and 01-050) for the Pneumatic Pressure Test

    1. Do again the procedure to prepare the duct for the hydraulic pressure test, refer to Step

    4. SUBTASK 30-21-49-780-054 Do the Pneumatic Pressure Test of the Ducts (01-070, 01-100, 02-500, 01- 010 and 01-050)

    1. Make sure that the bleed screw is closed.

    2. Connect the duct to the outlet of the Pneumatic pressure testing rig.

    3. Put a pressure of 14.5 psi (100 kPa) in the duct.

    4. Put the duct in the water tank.

    5. Let the pressure stay in the duct for 1 minute.

    6. Make sure that the duct has no leaks. If the duct has leaks, reject the duct, Refer to Inspection-000 TASK 30-21-49-200-100.

    7. Decrease the pressure in the duct to zero.

    8. Disconnect the duct from the outlet of the Pneumatic pressure testing rig.

    9. Remove the couplings, the adapters and the seals from the duct.

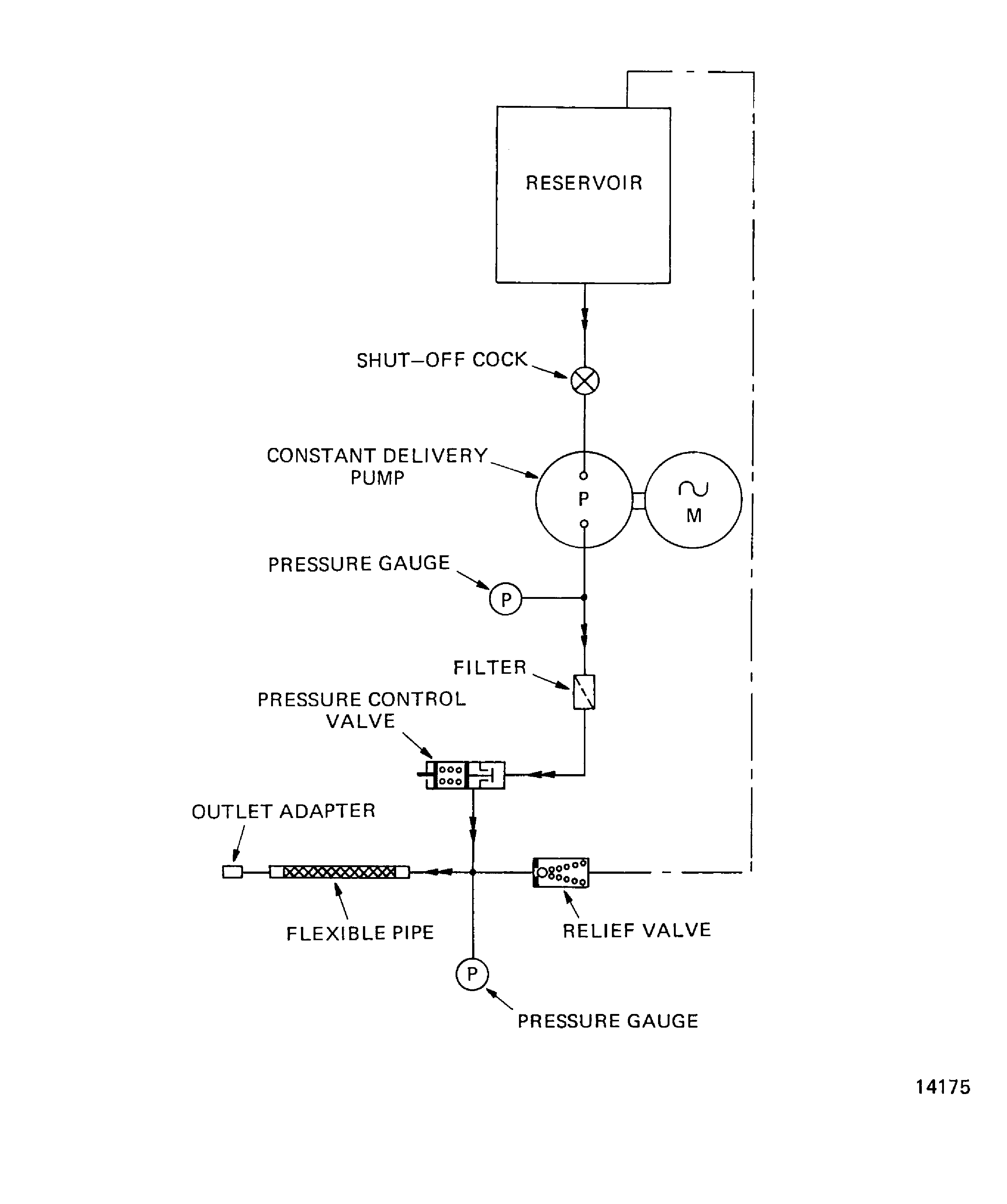

    5. Figure: Hydraulic Pressure Testing Rig

    Hydraulic Pressure Testing Rig

    Figure: Pneumatic Pressure Testing Rig

    Pneumatic Pressure Testing Rig

Requirements After Job Completion

Follow-On Conditions

NONE
