TASK 36-11-47-300-003 HP Bleed Control Air Tubes - Replace The Tube Coupling Nuts, Repair-003 (VRS6401)

DMC:V2500-A0-36-11-4700-00A-720A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 36-11-47-300-003 HP Bleed Control Air Tubes - Replace The Tube Coupling Nuts, Repair-003 (VRS6401)

Effectivity

FIG/ITEM

PART NO.

01-100

6A2136

01-100

6A5391

02-100

6A2140

02-500

6A2138

03-100

6A2137

Material of component

PART IDENT

SYMBOL

MATERIAL

Nut

-

CR steel BSS62 or 80

Thrust wire

-

CR steel DTD 189

General

This Repair must only be done when the instruction to do so is given in Inspection-001 TASK 36-11-47-200-101.

Price and availability.

Refer to International Aero Engines.

NOTE

A locally made threaded adaptor for the applicable coupling nut thread. It is necessary that the adaptor has an extension piece to secure the tool in a vise.

Repair parts

FIG/ITEM

PART NO.

PART IDENT

QTY

01-200

AS15777

Thrust wire (Assy A)

1

01-240

AS15777

Thrust wire (Assy A)

1

02-200

AS15777

Thrust wire (Assy A)

1

02-600

AS15777

Thrust wire (Assy A)

2

03-240

AS15778

Thrust wire (Assy B)

1

01-201

AS15701

Tube coupling nut (Assy A)

1

01-241

AS15701

Tube coupling nut (Assy A)

1

02-201

AS15701

Tube coupling nut (Assy A)

1

02-601

AS15701

Tube coupling nut (Assy A)

2

03-241

AS15702

Tube coupling nut (Assy B)

1

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Standard workshop toolsLOCALStandard workshop tools

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 36-11-47-350-057 Remove the Damaged Tube Coupling Nut

    1. Refer to Figure.

      2. Attach the nut to the adaptor, make sure the nut is held so that it does not move.

      1. Use a locally made adaptor.

      3. Cut through the coupling nut, make the cut so that the cut radially aligns with the thrust wire.

      1. Use standard workshop tools.

      4. Remove the thrust wire and the parts that remain of the coupling nut.

      1. Do not cause damage to the thrust wire seating.

    2. SUBTASK 36-11-47-220-060 Examine the Seating

      1. Make a visual inspection of the thrust wire seating.

      1. Damage is not permitted.

    3. SUBTASK 36-11-47-350-058 Install the New Nut

    1. Refer to Figure.

      2. Attach the nut on the adaptor.

      1. Refer to Table Table Repair parts Use a locally made adaptor.

      3. Install the new thrust wire.

      1. Refer to Table Table Repair parts Assemble the tube into the nut Move or push the thrust wire through the entry hole.

    4. SUBTASK 36-11-47-220-061 Examine the Nut

      1. Examine the nut.

      1. Make sure the nut turns freely.

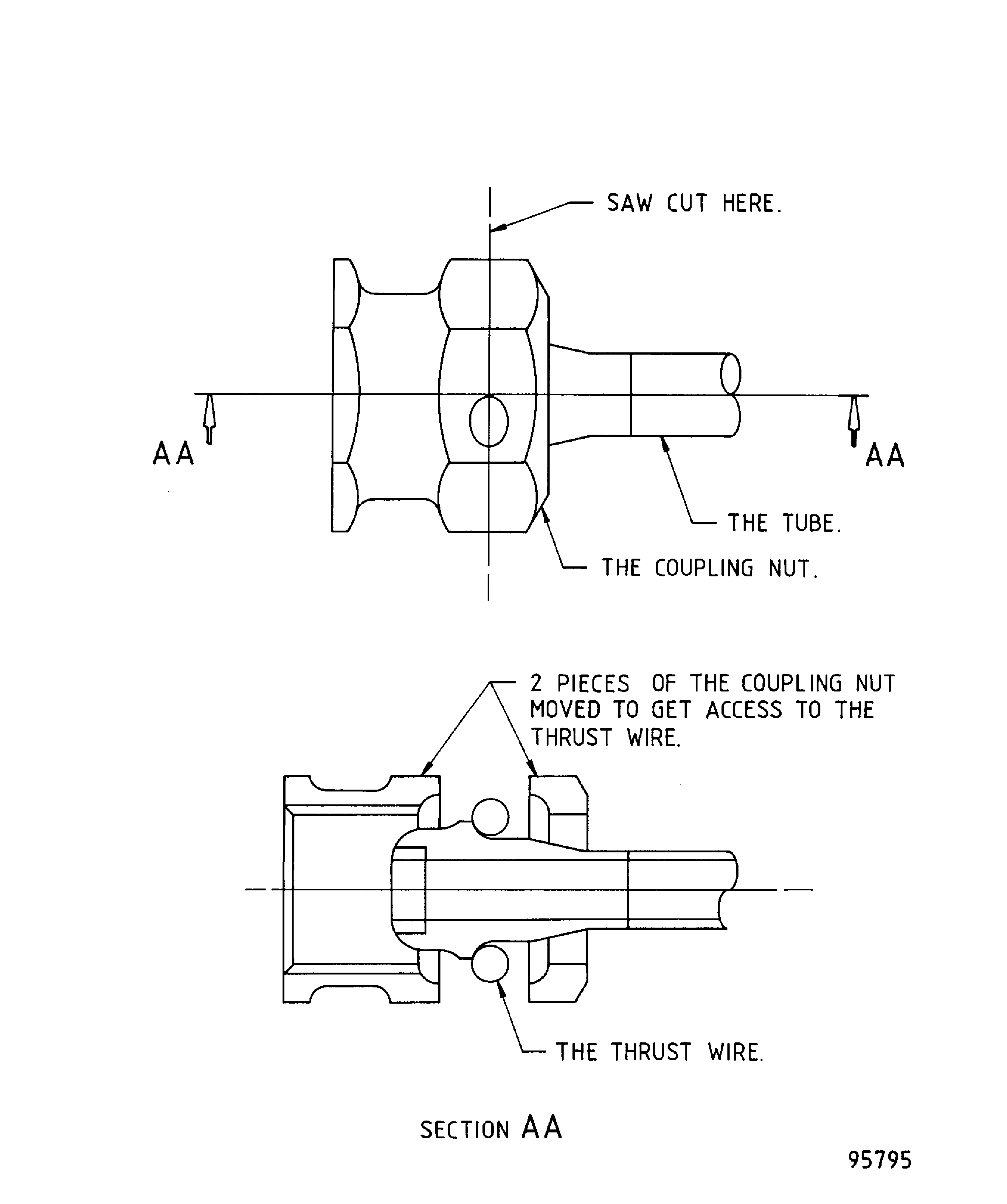

    5. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:LOCAL
Tool Number:Standard workshop tools
Tool Name:Standard workshop tools
