TASK 71-00-00-810-010 The Fault Isolation Procedure For Low Oil Pressure Switch Indication, Fault Isolation-010

DMC:V2500-A0-71-00-0000-01A-421A-B|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 71-00-00-810-010 The Fault Isolation Procedure For Low Oil Pressure Switch Indication, Fault Isolation-010

General

The fault isolation procedure is shown in Figure. Each step in the procedure is identified with a number. The steps on the left hand side give the fault sequence to be followed. The steps on the right hand side give the maintenance work that must be done to correct the fault.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

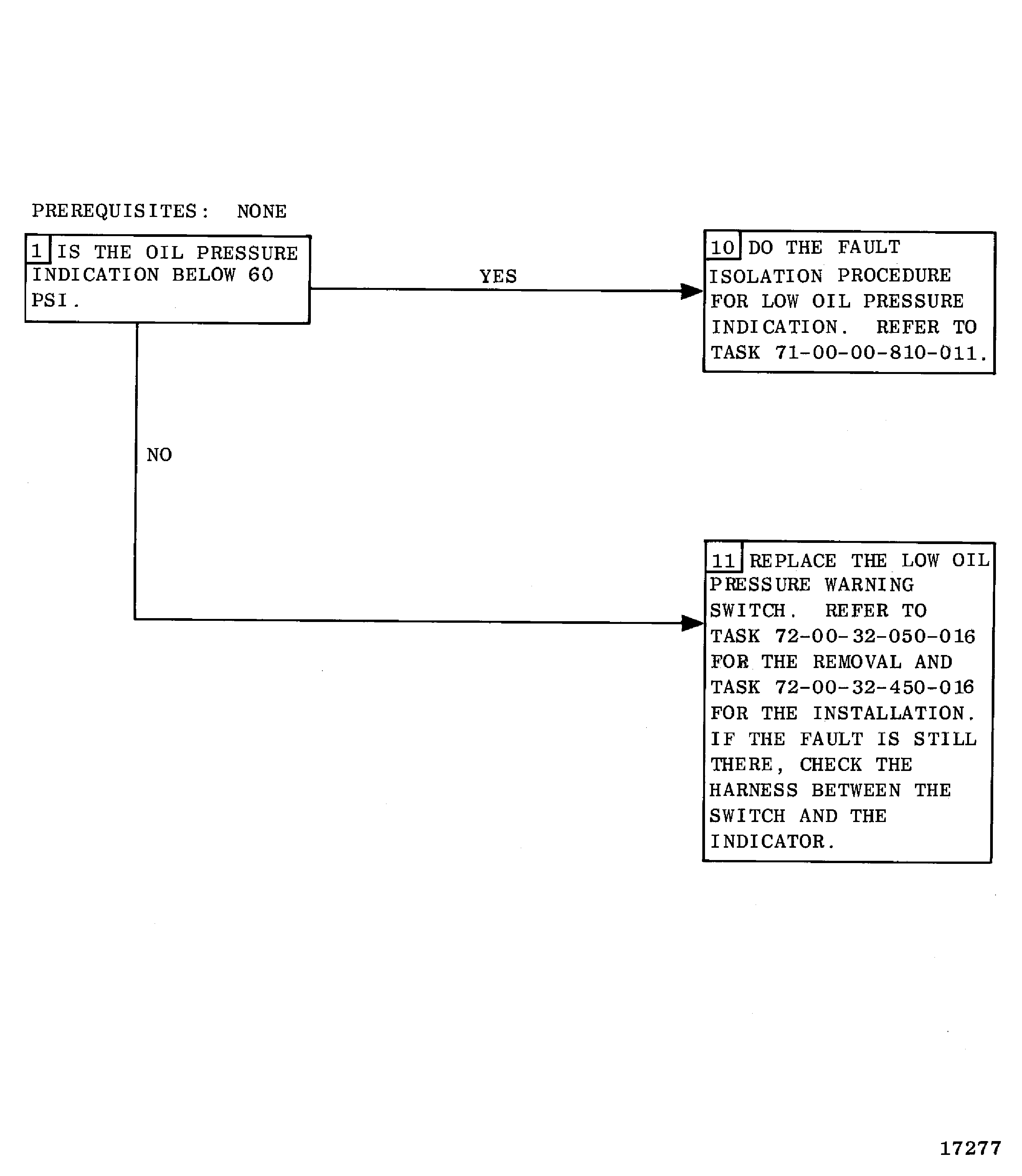

    2. Figure: Low oil pressure switch indication

    Low oil pressure switch indication

Requirements After Job Completion

Follow-On Conditions

NONE
