Common Information
TASK 71-00-00-810-015 The Fault Isolation Procedure For High Oil Temperatures, Fault Isolation-015
General
The fault isolation procedure is shown in Figure, Figure and Figure. Each step in the procedure is identified with a number. The steps on the left hand side give the fault sequence to be followed. The steps on the right hand side give the maintenance work that must be done to correct the fault.
In this TASK it is necessary to refer from one illustration to other illustrations. The other illustrations are identified by the 4th, 5th and 6th element numbers only - for example Fig 990-017-002.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure

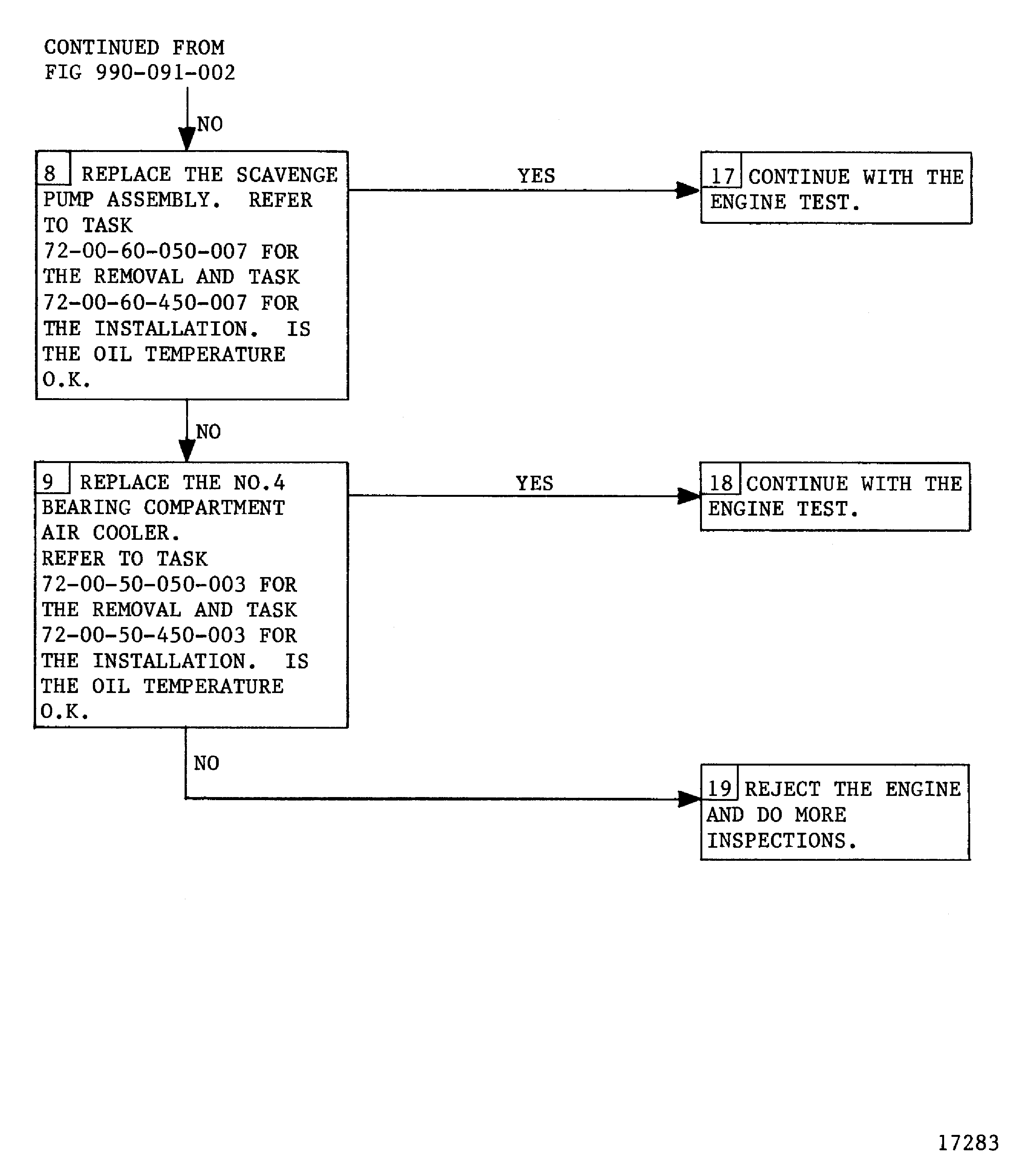

Figure: High oil temperature
High oil temperature
Figure: High oil temperature
High oil temperature
Figure: High oil temperature
High oil temperature
