TASK 71-00-00-810-016 The Fault Isolation Procedure For A Clogged Fuel Filter, Fault Isolation-016

DMC:V2500-A0-71-00-0000-07A-421A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Description

  1. TASK 71-00-00-810-016 The Fault Isolation Procedure For A Clogged Fuel Filter, Fault Isolation-016

    1. General

      The fault isolation procedure is shown in Figure and Figure. Each step in the procedure is identified with a number. The steps on the left hand side give the fault sequence to be followed. The steps on the right hand side give the maintenance work that must be done to correct the fault.

      In this TASK it is necessary to refer from one illustration to other illustrations. The other illustrations are identified by the 4th, 5th and 6th element numbers only - for example Fig 990-017-002.

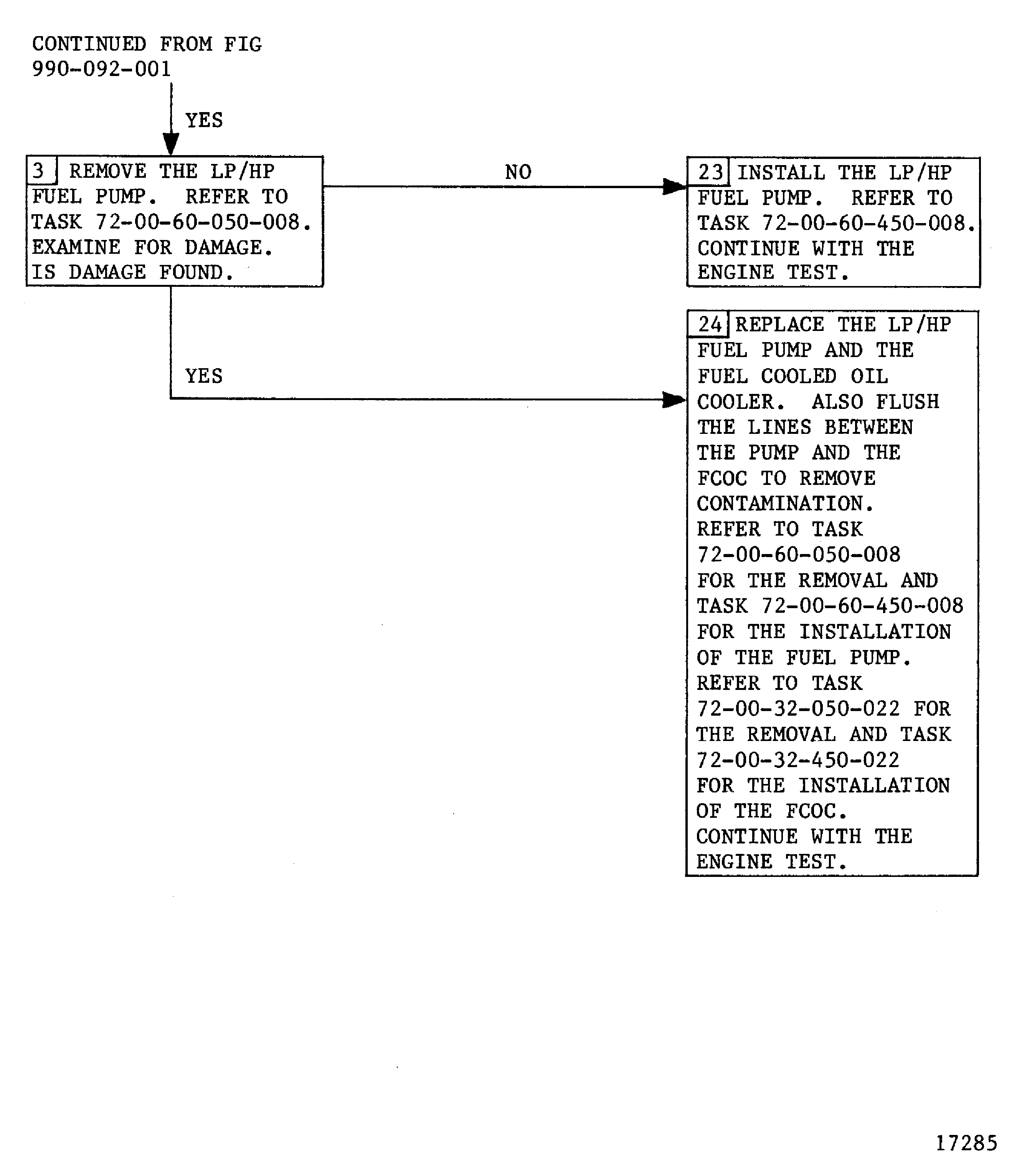

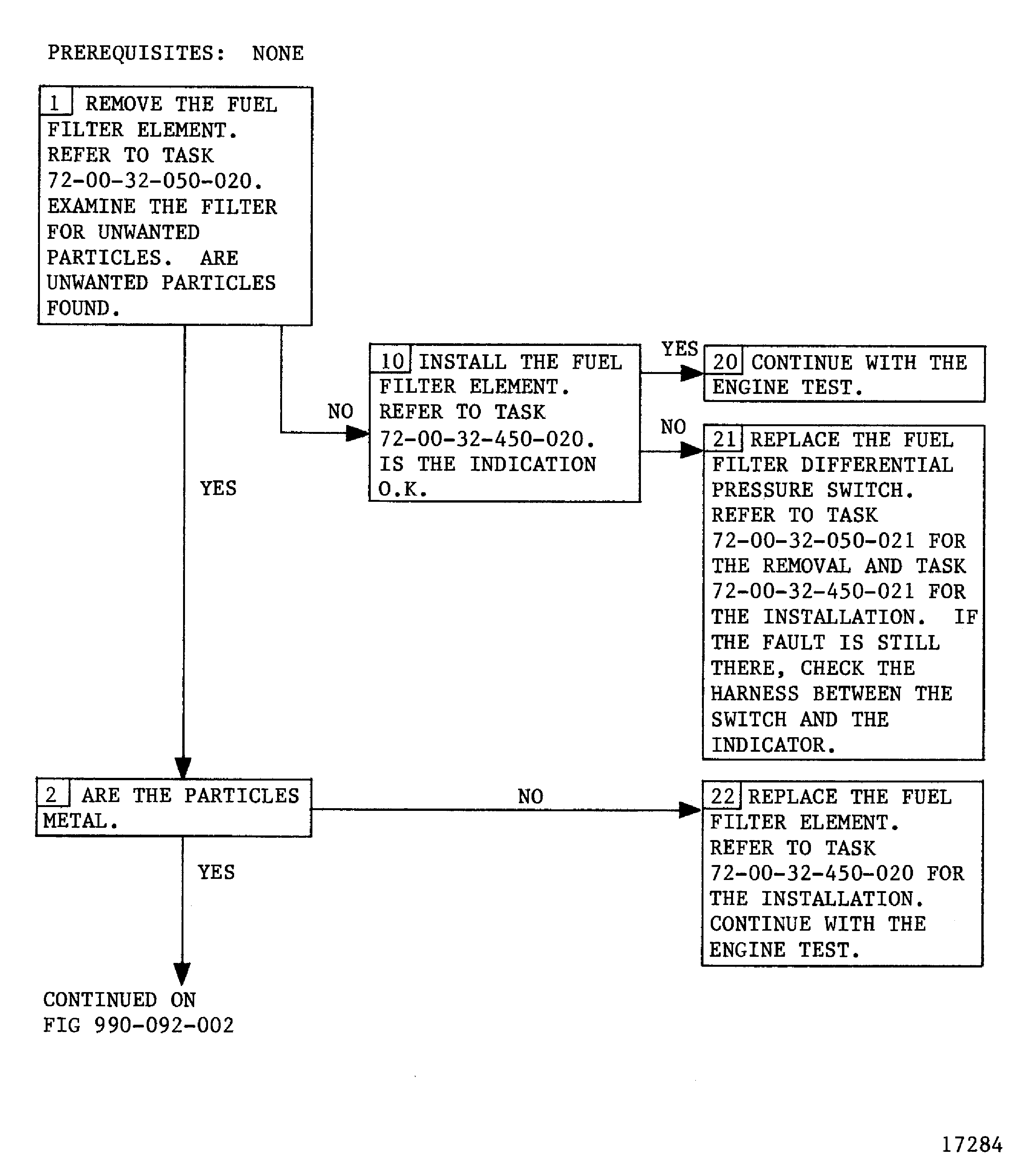

    2. Figure: Clogged fuel filter

    Clogged fuel filter

    Figure: Clogged fuel filter

    Clogged fuel filter
