TASK 71-00-21-400-001 Install The Forward Hold-Open Rod Support Brackets, Installation-001

DMC:V2500-A0-71-00-2100-00A-720A-B|Issue No:002.00|Issue Date:2015-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 71-00-21-400-001 Install The Forward Hold-Open Rod Support Brackets, Installation-001

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For standard torque data and procedures, refer to the SPM TASK 70-41-00-400-501.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-039 ENGINE OIL, unless other lubricants are referred to in the procedure.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

Transportation covers/blanks must be removed immediately before the installation of the components.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 10-039 ENGINE OILLOCALCoMat 10-039

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 71-00-21-450-051 Install the Forward Right-Hand Hold-Open Rod Support Bracket (01-020)

    1. Refer to Figure.

    2. Remove the three existing bolts and washers from the fan case at 144 degrees radial.

    3. Install the three bolts and washers (existing hardware) that attach the forward hold-open rod support bracket (01-020) to the fan case at 144 degrees radial.

    4. Torque the nuts to between 180 and 220 lbf.in (20 and 25 Nm).

    2. SUBTASK 71-00-21-450-052 Install the Forward Left-Hand Hold-Open Rod Support Bracket (01-010)

    1. Refer to Figure.

    2. Remove the three existing bolts and washers from the fan case at 216 degrees radial.

    3. Install the three bolts and washers (existing hardware) that attach the forward hold-open rod support bracket (01-010) to the fan case at 216 degrees radial.

    4. Torque the nuts to between 180 and 220 lbf.in (20 and 25 Nm).

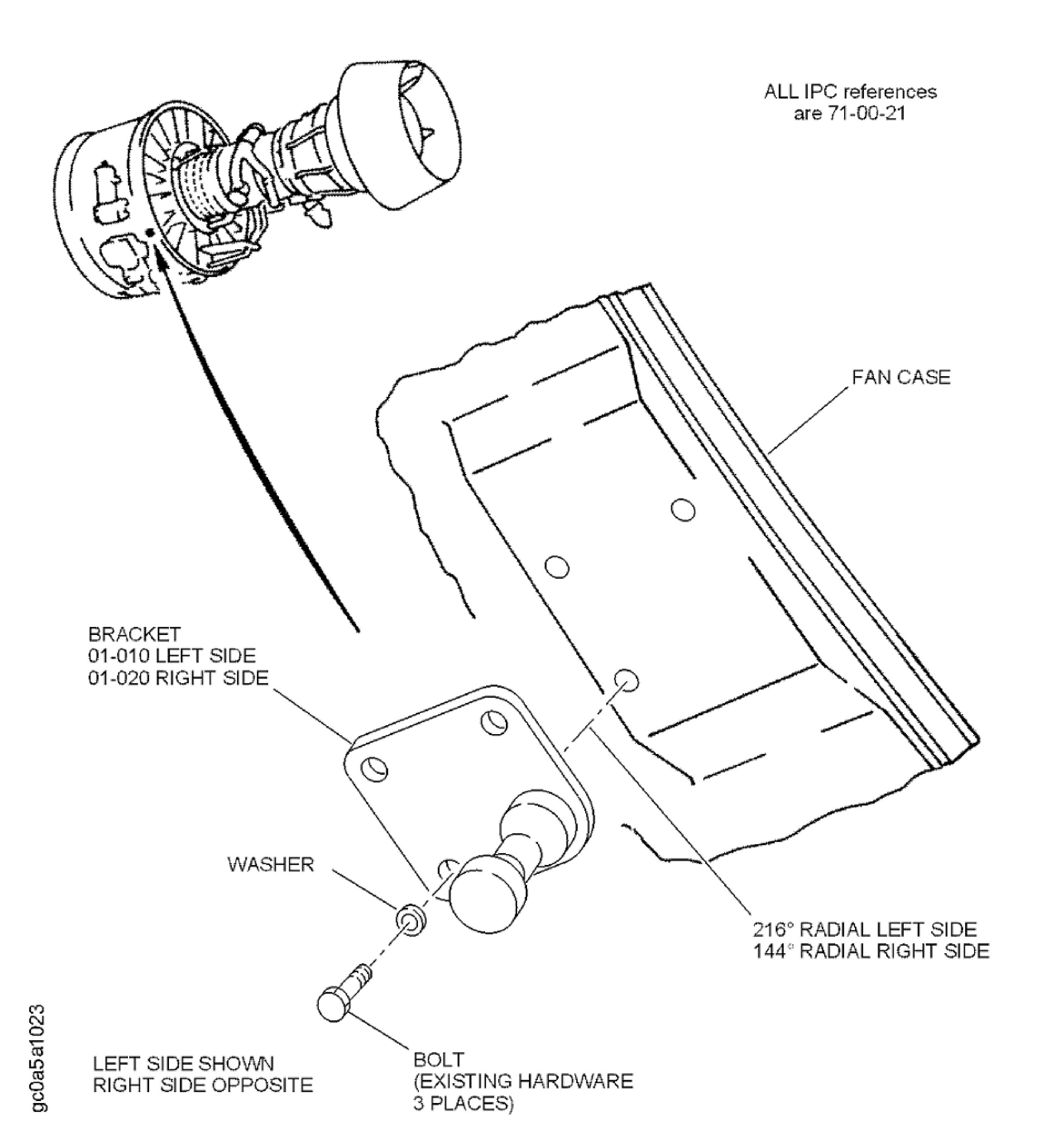

    3. Figure: Forward Hold-Open Rod Support Bracket

    Forward Hold-Open Rod Support Bracket

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Replaced Figure 1 with correct figure. (editorial change)
