TASK 71-00-32-350-001 Remove The Forward Engine Mount, Removal-001

DMC:V2500-A0-71-00-3200-00A-520A-B|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 71-00-32-350-001 Remove The Forward Engine Mount, Removal-001

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

Apply the approved CoMat 10-058 PENETRATING OIL before the removal of threaded parts and parts with an interface fit. Let the parts soak before removal.

Remove and discard the lockwire before parts are disconnected or removed.

NOTE

To identify consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1N20014 Forward engine mount sling0AM53IAE 1N200141

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 10-058 PENETRATING OIL0AM53CoMat 10-058

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 71-00-32-050-051 Attach the Forward Mount Sling and Moving Plate

    1. Refer to Figure.

    2. Attach the IAE 1N20014 Forward engine mount sling 1 off to a hoist and hang the sling above the forward engine mount.

    3. Remove the four nuts and two washers from the sling mounting plate.

    4. Insert the four bolts of the sling mounting plate through the side holes of the forward engine mount and put the sling mounting plate on the forward engine mount so the two locating pins hold it straight.

    5. Attach the sling mounting plate to the forward engine mount with two washers on the two rear bolts and the four nuts. Tighten the nuts.

    6. Raise the hoist to straighten the sling.

    2. SUBTASK 71-00-32-050-052 Remove the Forward Engine Mount (71-21-12, 01-010)

    1. Refer to Figure, Figure and Figure.

    2. Remove the bolts Front Mount Support Assembly And Mount Brackets (71-21-12, 01-050), the nuts Front Mount Support Assembly And Mount Brackets (71-21-12, 01-020), the washers Front Mount Support Assembly And Mount Brackets (71-21-12, 01-030), the washers Front Mount Support Assembly And Mount Brackets (71-21-12, 01-040), the retainers Front Mount Support Assembly And Mount Brackets (71-21-12, 01-060) and the pins Front Mount Support Assembly And Mount Brackets (71-21-12, 01-070) which attach the forward engine mount link assemblies Front Mount Support Assembly And Mount Brackets (71-21-12, 01-270) and Front Mount Support Assembly And Mount Brackets (71-21-12, 01-300) to the brackets.

    3. Remove the six bolts Front Mount Support Assembly And Mount Brackets (71-21-12, 01-080) and washers Front Mount Support Assembly And Mount Brackets (71-21-12, 01-090) that attach the forward engine mount Front Mount Support Assembly And Mount Brackets (71-21-12, 01-010) to the mount tube.

    4. Raise the hoist and sling and move the forward engine mount away from the engine.

    3. SUBTASK 71-00-32-450-053 Remove the Forward Engine Mount Sling and Mounting Plates

    1. Refer to Figure.

    2. Remove the four bolts, the nuts and the washers which attach the sling mounting plate to the forward engine mount.

    3. Remove the IAE 1N20014 Forward engine mount sling 1 off and mounting plate from the engine mount.

    4. Replace the bolts, the washers, and the nuts on the sling for storage.

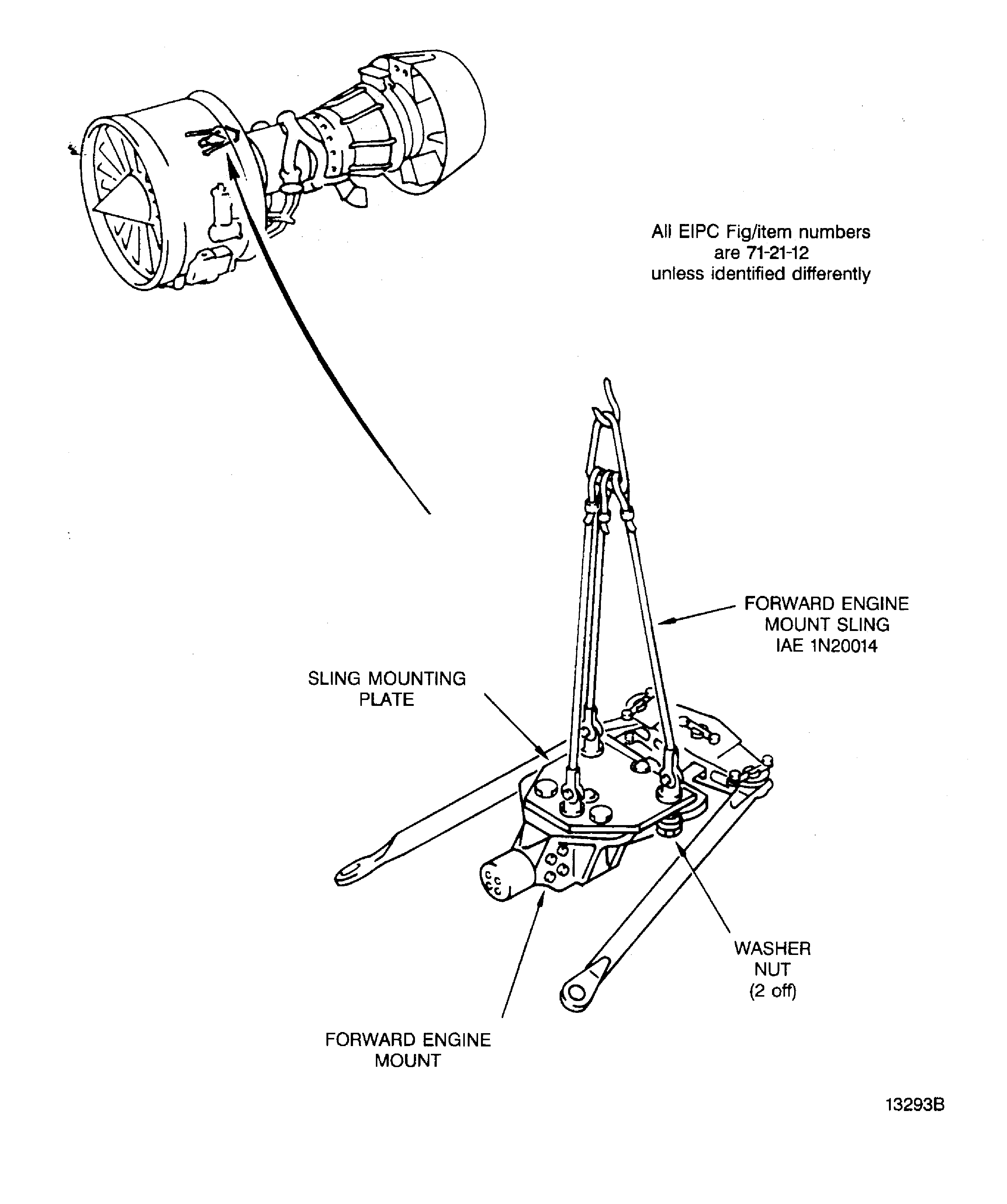

    4. Figure: Forward Engine Mount Sling Attachment

    Forward Engine Mount Sling Attachment

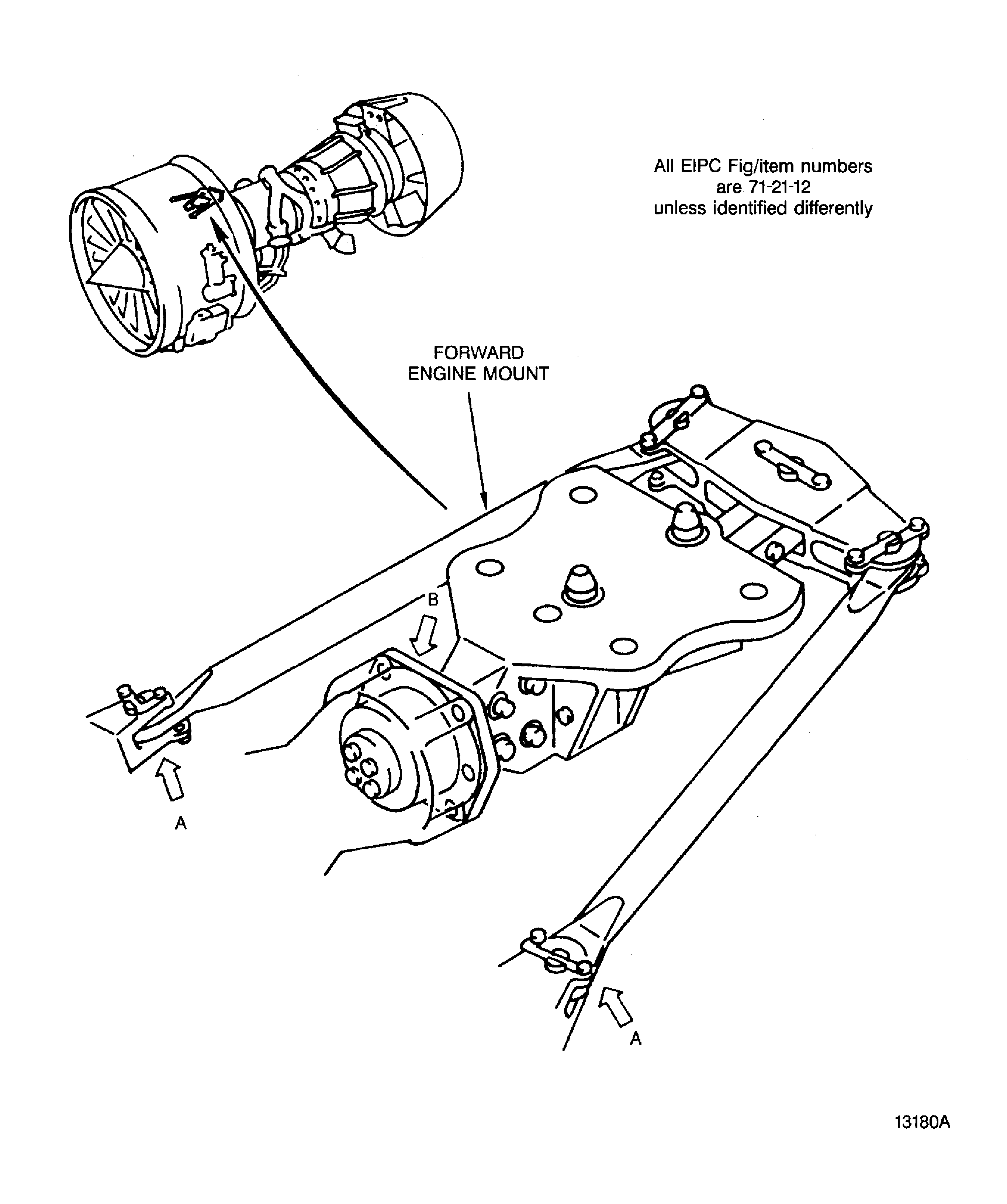

    Figure: Forward Engine Mount

    Forward Engine Mount

    Figure: V2500-A1 Forward Engine Mount

    V2500-A1 Forward Engine Mount

    Figure: V2500-A5 Forward Engine Mount

    V2500-A5 Forward Engine Mount

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:X222X
Supply Number:CoMat 10-058
Type:sp01
Supply Short Name:CoMat 10-058 PENETRATING OIL
Supply Name:CoMat 10-058 PENETRATING OIL
Suppliers:
ManufacturerRemarks
X222X
Manufacturer Code:0AM53
Tool Number:IAE 1N20014
Tool Name:IAE 1N20014 Forward engine mount sling
