TASK 71-21-11-300-001 Thrust Mount Brackets - Replace The Dry Film Lubricant, Repair-001 (VRS1104)

DMC:V2500-A0-71-21-1103-00A-240A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 71-21-11-300-001 Thrust Mount Brackets - Replace The Dry Film Lubricant, Repair-001 (VRS1104)

Effectivity

FIG/ITEM

PART NO.

01-500

5A0390

01-500

5A1422

01-500

5A1431

01-500

5A8695

01-700

5A0391

01-700

5A1423

01-700

5A1432

01-700

5A8696

Material of component

PART IDENT

SYMBOL

MATERIAL

Thrust mount bracket

Titanium alloy

General

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-124 ISOPROPYL ALCOHOLLOCALCoMat 01-124
CoMat 02-001 ADHESIVE TAPE (MASKING)LOCALCoMat 02-001
CoMat 02-005 ADHESIVE TAPE (MASKING)LOCALCoMat 02-005
CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING94960CoMat 02-019
CoMat 05-003 ABRASIVE MEDIUM ALUMINUM OXIDE, 120/220 GRADELOCALCoMat 05-003
CoMat 07-009 THINNERLOCALCoMat 07-009
CoMat 10-004 DRY FILM LUBRICANTLOCALCoMat 10-004

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 71-21-11-120-051 Abrasive Blast the Thrust Mount Bracket

      1. Apply the masking tape.

        1. Refer to Figure and Figure.

        1. Refer to the SPM TASK 70-38-03-380-501.

        2. Apply the masking tape to the area which is not to be given a layer of the dry film lubricant.

      2. Abrasive blast.

        1. Refer to the SPM TASK 70-38-03-380-501.

        2. Use an air pressure of 40 psi (275 Kpa).

    3. Remove the masking tape.

      4. Remove the abrasive grit.

        1. Use a dry blast or a soft brush.

        1. Use a vacuum assisted brush to make sure all the grits are removed.

      5. Remove the grease with liquid.

        1. Use a clean cloth which is moist with degreasing fluid and make clean the coating area.

    2. SUBTASK 71-21-11-380-051 Apply the Dry Film Lubricant to the Thrust Mount Bracket

      2. Apply the dry film lubricant.

        1. Refer to the SPM TASK 70-38-03-380-501.

        2. The thickness of the dry film lubricant is to be 0.0001 to 0.0003 in. (0.003 to 0.008 mm).

    3. Remove the masking tape.

      4. Stove the thrust mount bracket assembly.

      1. Stove for two hours between 365 and 383 deg F (185 and 195 deg C).

      5. Examine the layer of the dry film lubricant.

        1. Refer to the SPM TASK 70-38-03-380-501.

        1. Refer to Figure and Figure.

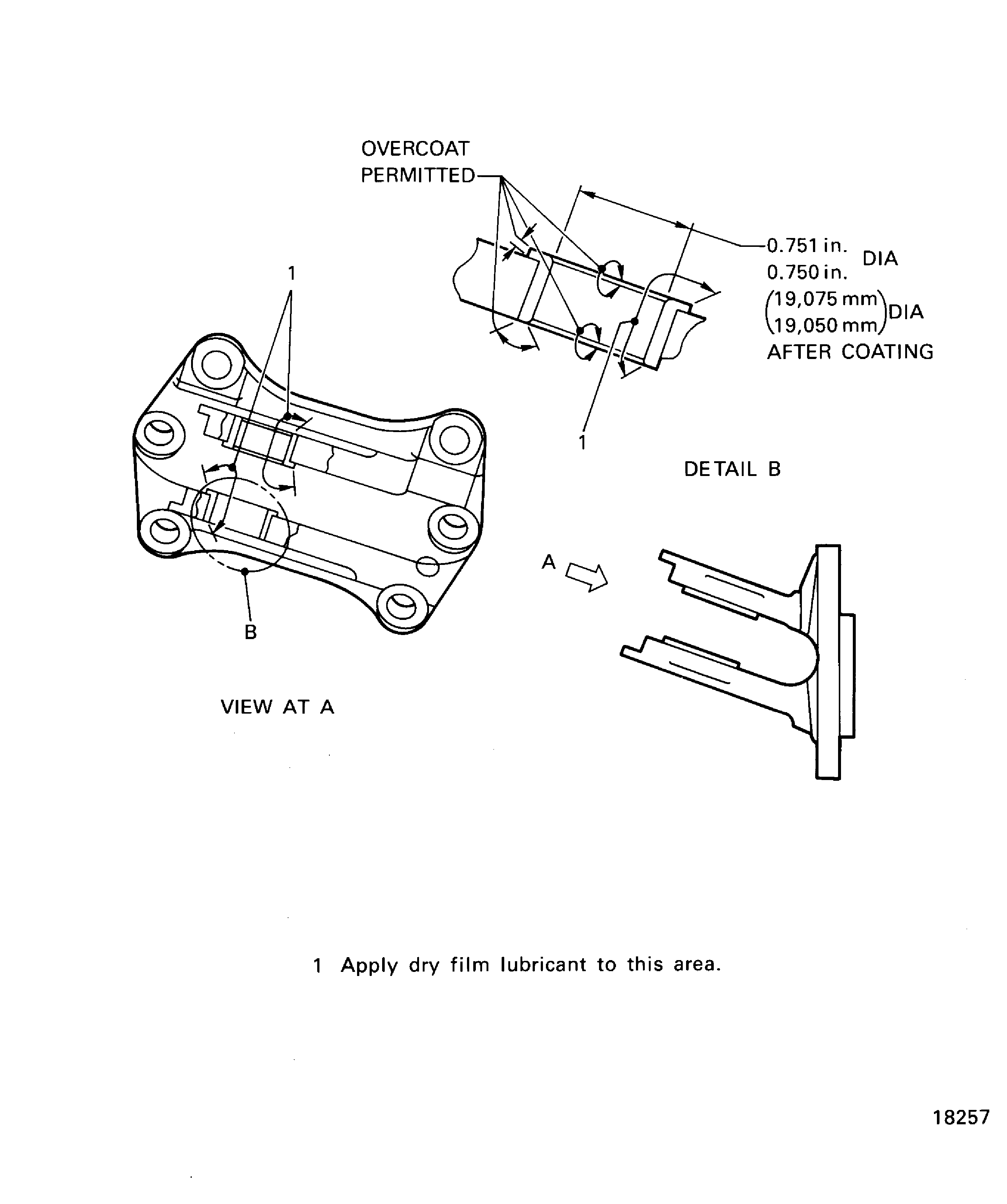

    3. Figure: Apply the dry film lubricant to the area and location of No. 2 strut thrust mount bracket assembly

    Apply the dry film lubricant to the area and location of No. 2 strut thrust mount bracket assembly

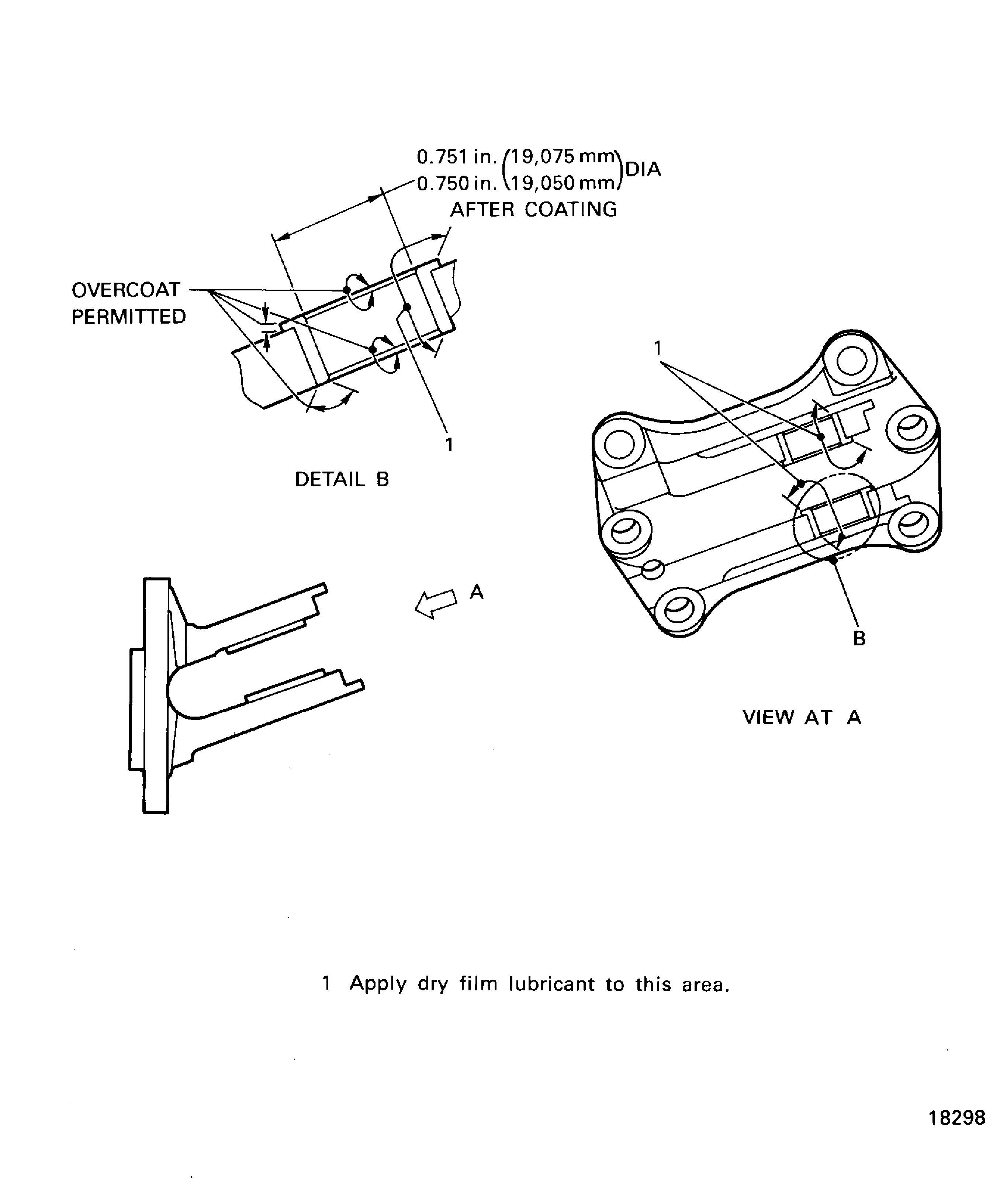

    Figure: Apply the dry film lubricant to the area and location of No. 10 strut thrust mount bracket assembly

    Apply the dry film lubricant to the area and location of No. 10 strut thrust mount bracket assembly
