TASK 71-51-41-300-003 EEC Fan Harness - Repair The Chafed Jacket, Repair-003 (VRS1033)
General
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-148 ADHESIVE TAPE (ELECTRICAL) | LOCAL | CoMat 02-148 |
Spares
NONESafety Requirements
NONEProcedure
Remove the lacing tape adjacent to the chafed area. Refer to Figure.
Remove the harness cable ties
SUBTASK 71-51-41-350-060 Remove the Harness Cable Ties
Wrap CoMat 02-148 ADHESIVE TAPE (ELECTRICAL) around the cable and chafed area of the cable jacket.
Make an overlap of tape approximately 1.0 in. (25 mm) on each side of the repair area.
Repair the chafed jacket
SUBTASK 71-51-41-350-061 Repair the Chafed Jacket
Use the applicable color lacing tape to lace the ties.
The lacing positions are the same as the previous positions. Refer to Figure.
Install the harness cable ties
SUBTASK 71-51-41-350-062 Install the Harness Cable Ties

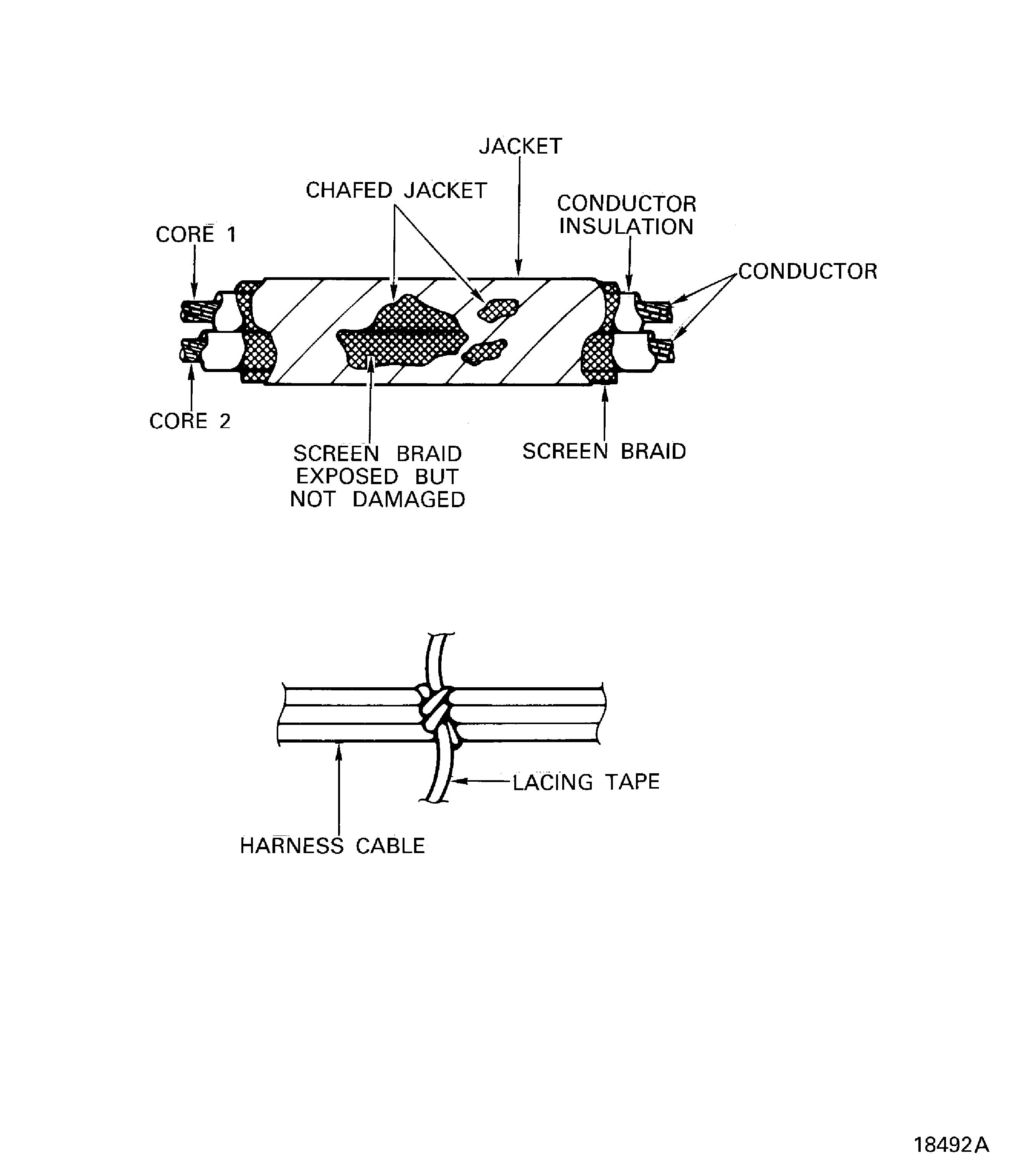

Figure: Repair the Fan EEC Harness
Repair the Fan EEC Harness
