TASK 71-52-43-300-005 EEC Core Harness And Voltage Divider Harness Assembly - Replace The Sleeve Markers Of The EEC Core Harness, Repair-005 (VRS1077)
General
The practices and processes referred to in the procedure by the TASK number are in the SPM.
For the method to clean the parts, refer to Cleaning-001 TASK 71-52-43-100-301.
Repair parts
FIG/ITEM | PART NO. | PART IDENT | QTY |
|---|---|---|---|
03-768 | RT1146 (1/8 inch) | Tube, heat shrinkable | |
03-772 | RT1146 (3/8 inch) | Tube, heat shrinkable | |
03-774 | RT1146 (1/4 inch) | Tube, heat shrinkable | |
03-776 | RT1146 (1/2 inch) | Tube, heat shrinkable | |
03-778 | RT1146 (3/4 inch) | Tube, heat shrinkable | |
03-780 | RT1146 (1 inch) | Tube, heat shrinkable | |
03-781 | RT1146 (1-1/4 inch) | Tube, heat shrinkable | |
03-782 | RT1146 (1-1/2 inch) | Tube, heat shrinkable |
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Hot air gun | LOCAL | Hot air gun | ||
| Hot-marker | LOCAL | Hot-marker |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-197 COLOR FOIL | IAE81 | CoMat 02-197 |
Spares
NONESafety Requirements
NONEProcedure
Use a knife.
Cut off the damaged sleeve marker and protective sleeve remove
SUBTASK 71-52-43-350-054 Remove the Damaged Sleeve Marker and Protective Sleeve
CAUTION
DO NOT CUT THE CABLE.Refer to Figure.
Use a Hot-marker and CoMat 02-197 COLOR FOIL.
Write the cable identification code for cables.
Write the connector and terminal code for connector and terminals respectively.
Write the part number and serial number for harness assembly.
Trim the heat shrinkable tube and write the identification code
Install the heat shrinkable tube on the cable.
Use a Hot air gun.
Set to deliver air between 480 and 570 deg F (250 and 300 deg C).
Heat the heat shrinkable tube
SUBTASK 71-52-43-350-055 Install the New Sleeve Marker for the Cable Identification
Refer to Figure.
Trim the heat shrinkable tube.
Install the heat shrinkable tube on the cable.
Use a Hot air gun.
Set to deliver air between 480 and 570 deg F (250 and 300 deg C).
Heat the heat shrinkable tube
SUBTASK 71-52-43-350-056 Install Protective Sleeve

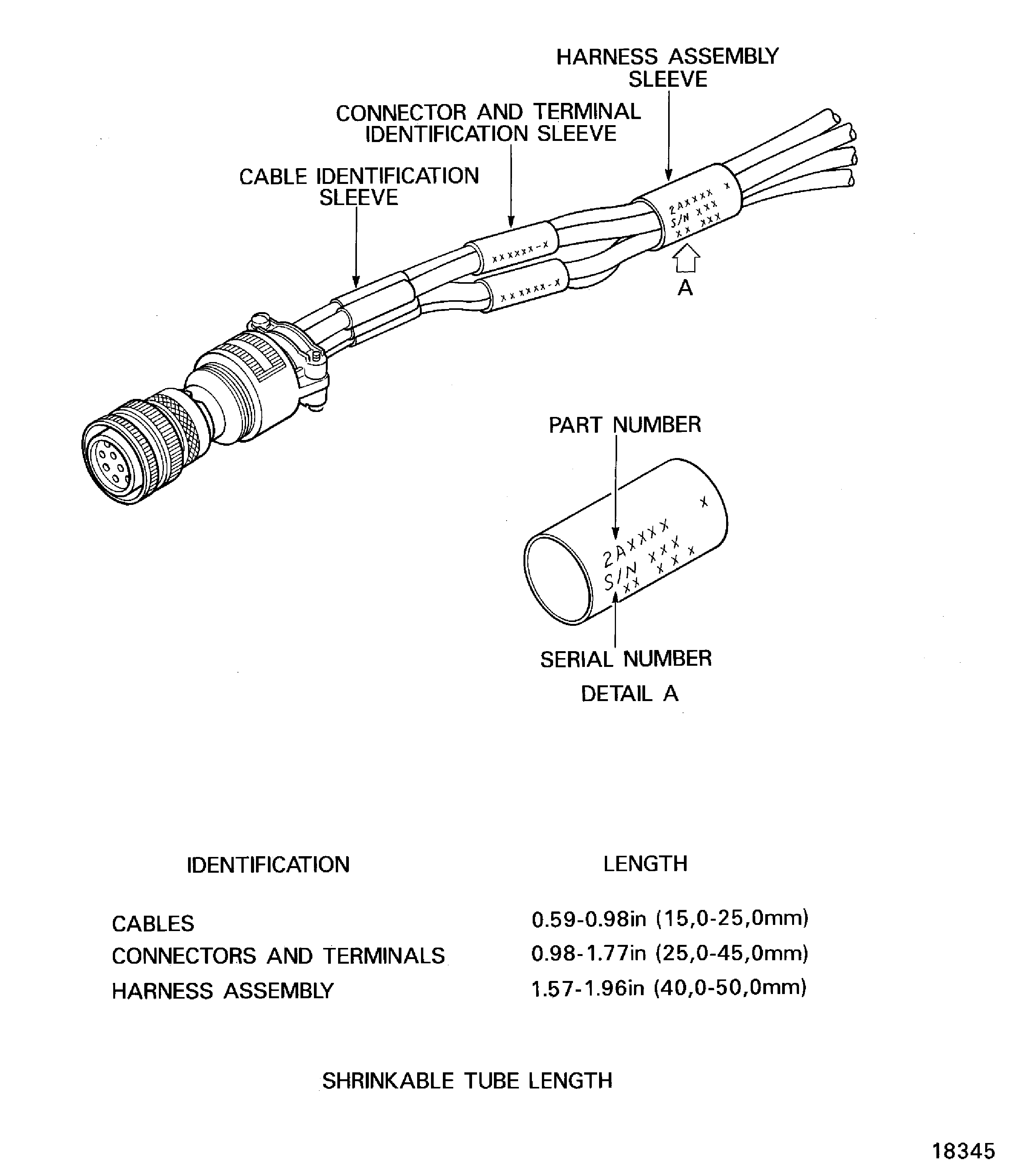

Figure: Replacement Of The Sleeve Marker
Replacement Of The Sleeve Marker

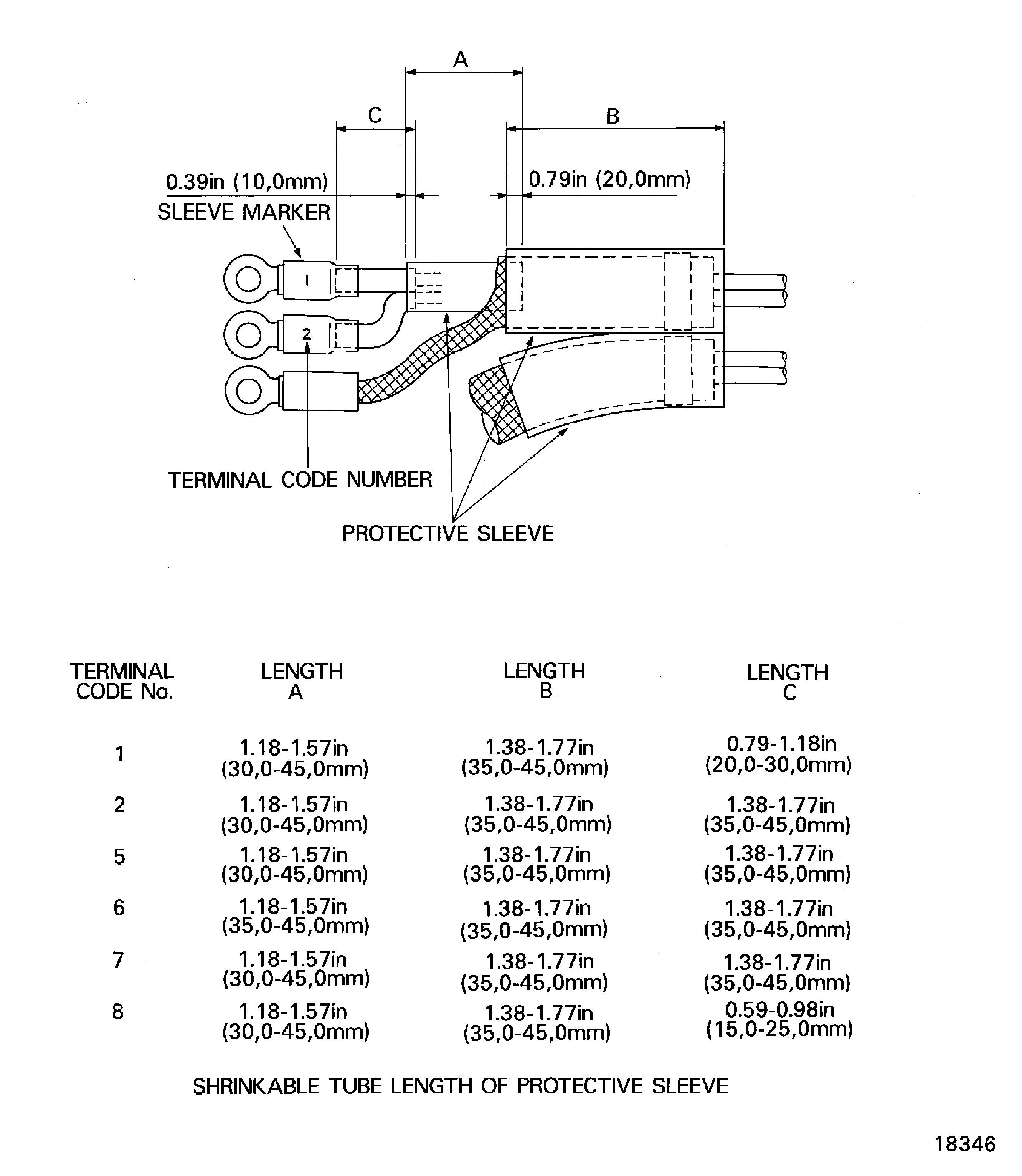

Figure: Replacement Of The Protective Sleeve
Replacement Of The Protective Sleeve
