TASK 71-52-44-300-003 EEC Link Core Harness - Replace The Sleeve Markers And Sleeve, Repair-003 (VRS1085)

DMC:V2500-A0-71-52-4400-02A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 71-52-44-300-003 EEC Link Core Harness - Replace The Sleeve Markers And Sleeve, Repair-003 (VRS1085)

Effectivity

FIG/ITEM

PART NO.

01-005

2A1491

01-005

6A4719

01-005

6A5877

General

The practices and processes referred to in the procedure by the TASK number are in the SPM.

For the method to clean the parts, refer to Cleaning-001 TASK 71-52-44-100-301.

Repair parts

FIG/ITEM

PART NO.

PART IDENT

QTY

03-722

2A1422

I/band

2

03-776

RT1146 (1/2 inch)

Tube, heat shrinkable

1

03-784

6A5465

Identification Band (post SB70-0374)

2

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Hot air gunLOCALHot air gun
Hot markerLOCALHot marker

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-197 COLOR FOILIAE81CoMat 02-197

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 71-52-44-350-051 Remove the Damaged Sleeve Marker and Sleeve

      1. CAUTION

        DO NOT CUT THE CABLE.

        Remove the damaged sleeve marker and sleeve.

      1. Use a knife.

    2. SUBTASK 71-52-44-350-052 Install the Connector and Terminal Identification Marker for the Cable Identification

    1. Refer to Figure.

      2. Trim the heat shrinkable tube and write the identification code.

      2. Write the connector code for connector and/or terminal.

    3. Install the heat shrinkable tube on the cable.

      4. Heat the heat shrinkable tube.

      2. Set to deliver air between 480 and 570 deg F (250 and 300 deg C).

    3. SUBTASK 71-52-44-350-053 Install the New Harness Assembly Identification Sleeve for the Cable Identification

    1. Refer to Figure.

      2. Write the identification code

      1. Use a die or suitable engraving equipment.

      2. Write the harness assembly Part No. and Serial No. for identification.

      3. Install the I/band

      1. Use a pincer to install the sleeve within approximately 2 in. (50 mm) of connector 4006VC ensuring adequate clearance with adjacent clipping point (C5554).

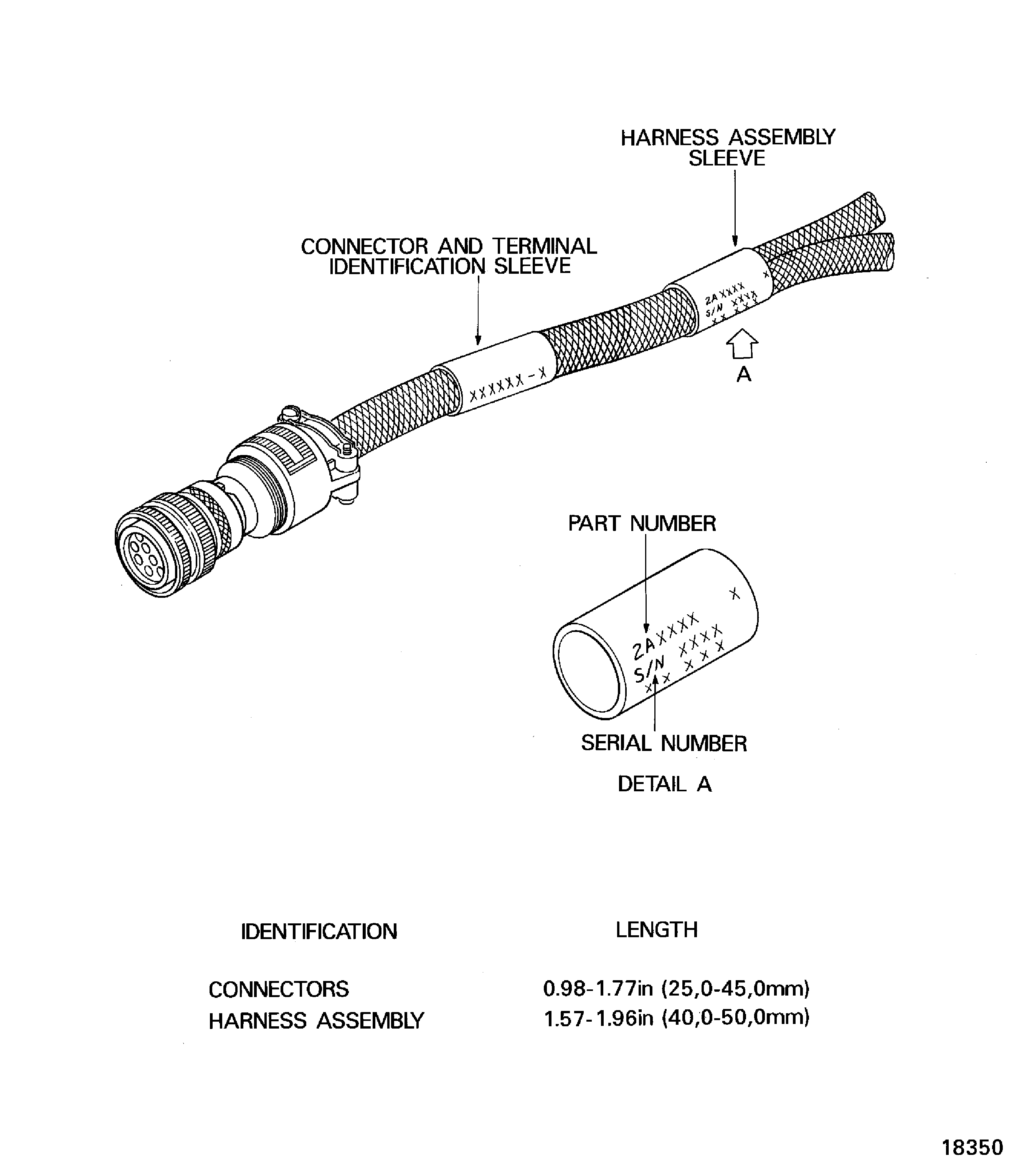

    4. Figure: Replacement Of The Sleeve Marker

    Replacement Of The Sleeve Marker

Requirements After Job Completion

Follow-On Conditions

NONE
