TASK 71-71-42-040-001 Drains Mast And Related Parts - Remove The Drains Mast And Related Parts, Removal-001

DMC:V2500-A0-71-71-4200-00A-520A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 71-71-42-040-001 Drains Mast And Related Parts - Remove The Drains Mast And Related Parts, Removal-001

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

Apply the approved CoMat 10-058 PENETRATING OIL before the removal of threaded parts and parts with an interference fit. Let the parts soak before removal.

Remove and discard the lockwire before the parts are disconnected or removed.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-076 METHYL ETHYL KETONELOCALCoMat 01-076
CoMat 10-058 PENETRATING OIL0AM53CoMat 10-058

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 71-71-42-040-051-A00 Remove the Drains Mast (Pre SBE 72-0193)

    1. Refer to Figure and Figure.

    2. Disconnect the nine drain tubes at the connections on the collector plate assembly (01-050).

    3. Remove the four bolts (01-020) from the drains mast (01-010).

    4. Remove the drains mast (01-010) and the collector plate assembly (01-050).

    2. SUBTASK 71-71-42-040-051-B00 Remove the Drains Mast (SBE 72-0193)

    1. Refer to Figure and Figure.

    2. Remove the drains mast (01-010) from the collector plate assembly (01-050) with the use of a non-metallic scraper.

    3. Remove the old jointing compound from the mating surfaces on the drains mast (01-010) and the mating surfaces on the collector plate (01-050) with the use of a non metallic scraper and a clean lint free cloth made moist with CoMat 01-076 METHYL ETHYL KETONE. Remove all traces of old jointing compound.

    3. Figure: V2500 A1: Drains Mast

    V2500 A1: Drains Mast

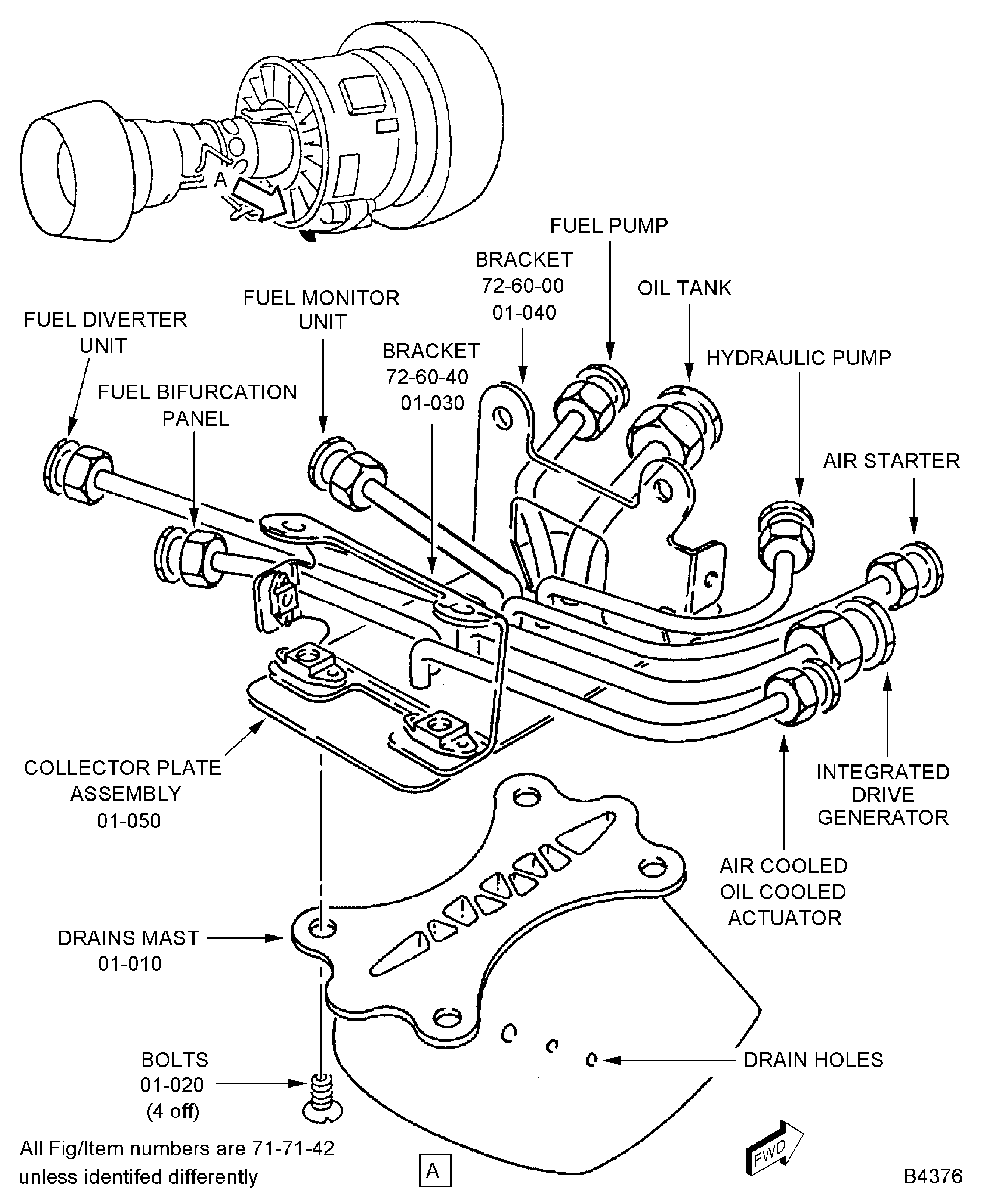

    Figure: V2500-A5: Drains Mast

    V2500-A5: Drains Mast

Requirements After Job Completion

Follow-On Conditions

NONE
