TASK 72-00-00-450-001 Engine General - Install The Magnetic Chip Detector (MCD) Probes, Installation-001

DMC:V2500-A0-72-00-0000-00A-720A-B|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-00-00-450-001 Engine General - Install The Magnetic Chip Detector (MCD) Probes, Installation-001

General

Fig/item number in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used.

To identify, lubricate and install packing refer to TASK 70-44-01-400-501.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 10-077 APPROVED ENGINE OILSLOCALCoMat 10-077

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Packing2
Seal Ring1
Seal Ring1
Seal Ring1
Seal Ring1

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-00-00-450-054-A01 Install the Master MCD Probe (Pre SBE 79-0042)

    1. Refer to Figure.

    2. Make sure the MCD is clean.

    3. Lightly lubricate two new Magnetic Chip Detector (79-22-45, 01-030) packing 2 off with CoMat 10-077 APPROVED ENGINE OILS. Put the packings on the MCD probe.

      4. Install the MCD probe at position 1.

      1. Carefully put the MCD probe in to the housing. At the same time align the bayonet pins with the slots in the housing.

      2. NOTE

        The spring pressure will keep the MCD probe in position.

        Push the MCD probe into the housing and turn it clockwise, until it stops. Release the MCD, probe.

        3. Make sure the MCD probe is installed correctly.

        1. Lightly pull the MCD probe and try to turn it clockwise and counterclockwise. The MCD probe must stay locked.

        2. Make sure that the aligment marks on the MCD probe and its housing are aligned.

    2. SUBTASK 72-00-00-450-054-B01 Install the Master MCD Probe (SBE 79-0042)

    1. Refer to Figure.

    2. Make sure the MCD is clean.

    3. Lightly lubricate two new Magnetic Chip Detector (79-22-45, 01-053) seal ring1 off with CoMat 10-077 APPROVED ENGINE OILS. Put the seal ring on the MCD probe.

      4. Install the MCD probe at position 1.

      1. Carefully put the MCD probe in to the housing. At the same time align the bayonet pins with the slots in the housing.

      2. NOTE

        The spring pressure will keep the MCD probe in position.

        Push the MCD probe into the housing and turn it clockwise, until it stops. Release the MCD, probe.

        3. Make sure the MCD probe is installed correctly.

        1. Lightly pull the MCD probe and try to turn it clockwise and counterclockwise. The MCD probe must stay locked.

        2. Make sure that the aligment marks on the MCD probe and its housing are aligned.

    3. SUBTASK 72-00-00-450-055 Install the remaining MCD Probes

    1. Refer to Figure and Figure.

    2. Do steps given in Step and Step for the MCD probes positions 2 thru 7.

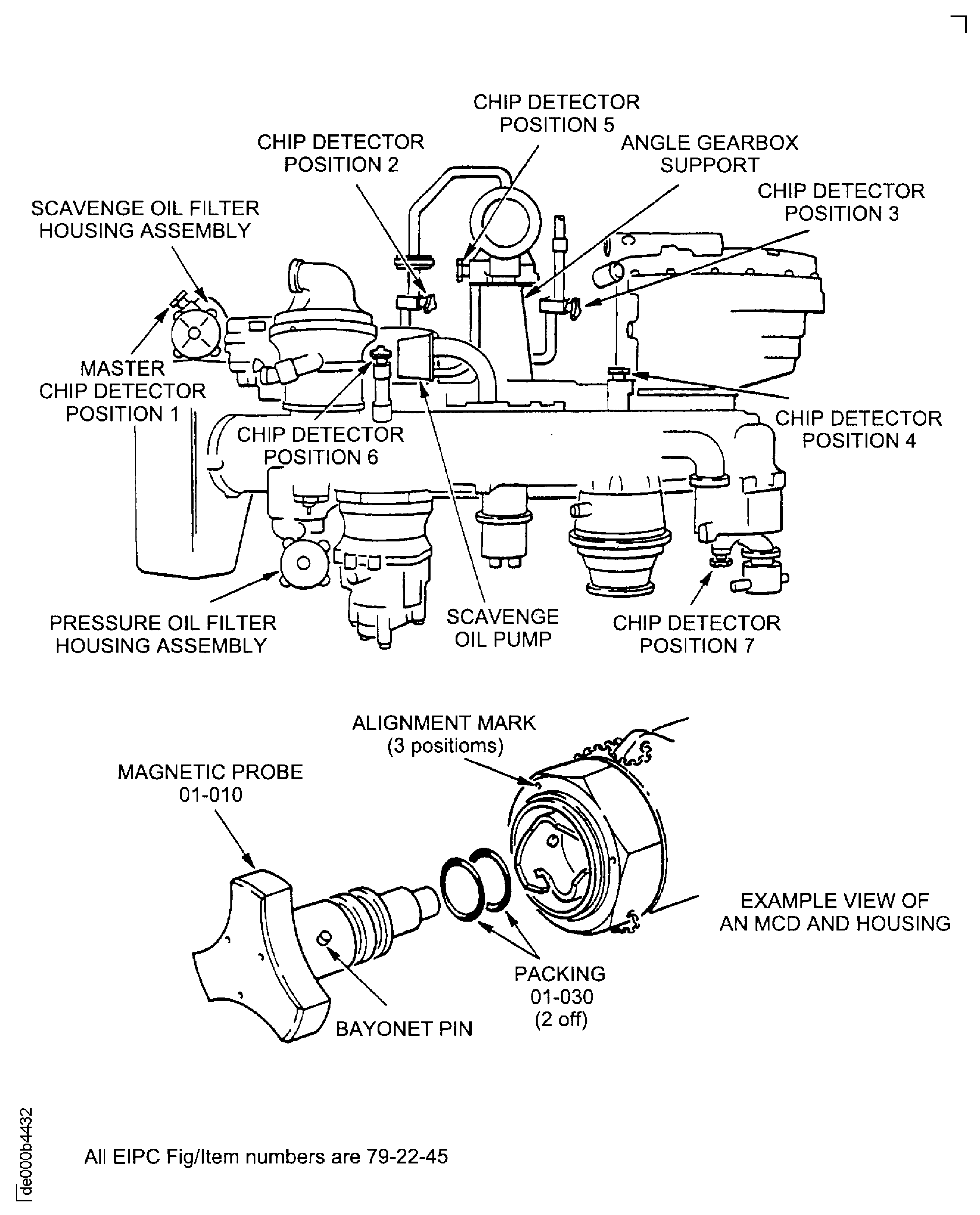

    4. Figure: Pre SBE 79-0042: Install the MCD probes

    Pre SBE 79-0042: Install the MCD probes

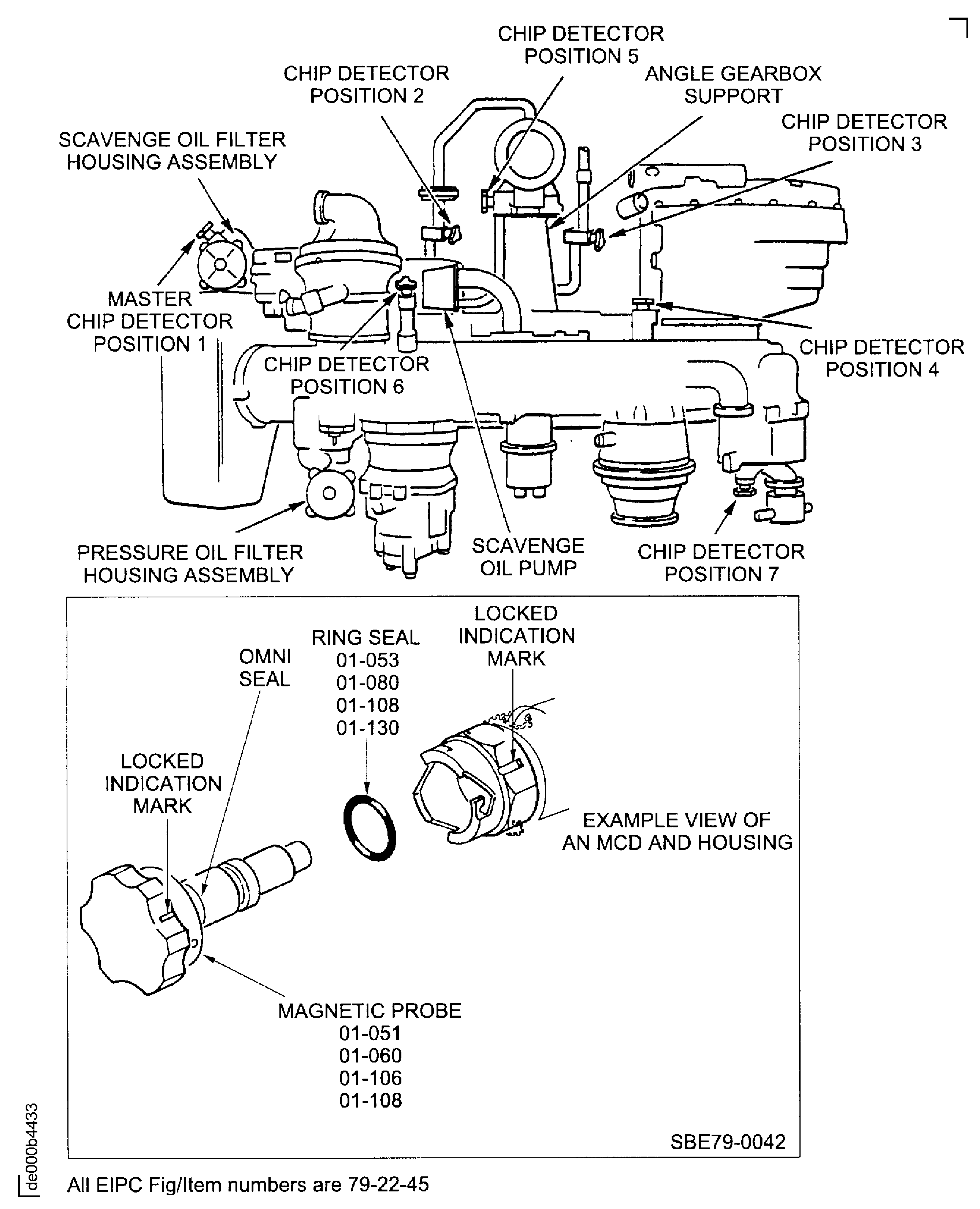

    Figure: SBE 79-0042: Install the MCD probes

    SBE 79-0042: Install the MCD probes
