TASK 72-00-32-560-002 LPC/Intermediate Case Module - Turn The LPC/Intermediate Case Module From Vertical To Horizontal, Installation-007

DMC:V2500-A0-72-00-3200-07A-720A-B|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-00-32-560-002 LPC/Intermediate Case Module - Turn The LPC/Intermediate Case Module From Vertical To Horizontal, Installation-007

General

All the bolts, the nuts and the washers referred in this TASK are part of the special tools.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1F10028 Support Pedestal0AM53IAE 1F100284
IAE 1F10051 Two cable sling0AM53IAE 1F100511
IAE 1J12000 Lift bracket0AM53IAE 1J120001
IAE 1J12008 Trunnion0AM53IAE 1J120081
IAE 1J13001 Trunnion assembly0AM53IAE 1J130011
IAE 1J13003 Turnover bracket0AM53IAE 1J130031

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-00-32-560-051 Install the Rear Brackets and the Rear Trunnions on to the LP Compressor/Intermediate Case Module

    1. Refer to Figure.

    2. Put the LP compressor/intermediate case module with the storage stand on a work area.

      3. Attach the two adapters (part of IAE 1J12000 Lift bracket 1 off) to the LP compressor/intermediate case module.

      1. Attach the adapter to the flanges FD and FE LP compressor/intermediate case module at the 3 o'clock and the 9 o'clock positions.

      2. Safety the adapter with the four bolts and nuts. Tighten the nuts.

      4. Attach the two beams (part of IAE 1J12008 Trunnion 1 off) to the rear brackets.

      1. Attach the beam to the rear brackets with the eight bolts and washers.

      2. Tighten the bolts.

    2. SUBTASK 72-00-32-560-052 Install the Sling on to the LP Compressor/Intermediate Case Module

    1. Refer to Figure.

      2. Install IAE 1F10051 Two cable sling 1 off on to the LP compressor/intermediate case module.

      1. Make sure that the eye plate (part of the two cable sling) is at the center of gravity. If necessary, turn the handle of the sling to put the eye plate in to the identified position.

      2. Attach the eye plate to a hoist.

      3. Lift the sling and attach to the rear trunnion on the LP compressor/intermediate case module. Safety the sling with the safety clips of the sling.

      4. Make the hoist rope tighter.

    3. SUBTASK 72-00-32-560-053 Install the Front Bracket and the Turnover Bracket on to the LP Compressor/Intermediate Case Module

    1. Refer to Figure.

    2. Remove the bolts which safety the LP compressor/intermediate case module to the storage stand.

    3. Slowly lift the LP compressor/intermediate case module with the two cable sling until it is clear of the storage stand.

    4. Install IAE 1J13001 Trunnion assembly 1 off on to the front flange of the LP compressor/intermediate case module. Safety with the 20 bolts and tighten the bolts.

    5. Attach IAE 1J13003 Turnover bracket 1 off to the front bracket at the top position with the four bolts and tighten the bolts.

    4. SUBTASK 72-00-32-560-054 Turn the LP Compressor/Intermediate Case Module Vertical to Horizontal

    1. Refer to Figure.

    2. Engage the turnover bracket to a hoist.

    3. Adjust the two hoists to turn the LP compressor/intermediate case module from vertical to horizontal.

    5. SUBTASK 72-00-32-560-055 Install the LP Compressor/Intermediate Case Module on to the Pedestals

    1. Refer to Figure.

    2. Put IAE 1F10028 Support Pedestal 4 off below the two trunnions of the front bracket and the two beams of rear trunnions.

    3. Lower the LP compressor/intermediate case module and put it on the four pedestals.

    6. SUBTASK 72-00-32-560-056 Remove the Slinging Tools from the LP Compressor/Intermediate Case Module

    1. Refer to Figure.

      2. Remove the sling.

      1. Lower the hoist and loosen the hoist rope.

      2. Open the clips and remove the hooks of the sling from the rear trunnions.

      3. Disconnect the sling from the hoist.

      3. Remove the turnover bracket.

      1. Lower the hoists and loosen the hoist rope.

      2. Disengage the turnover bracket from the hoist.

      3. Release and remove the four bolts and remove the turnover bracket from the front bracket.

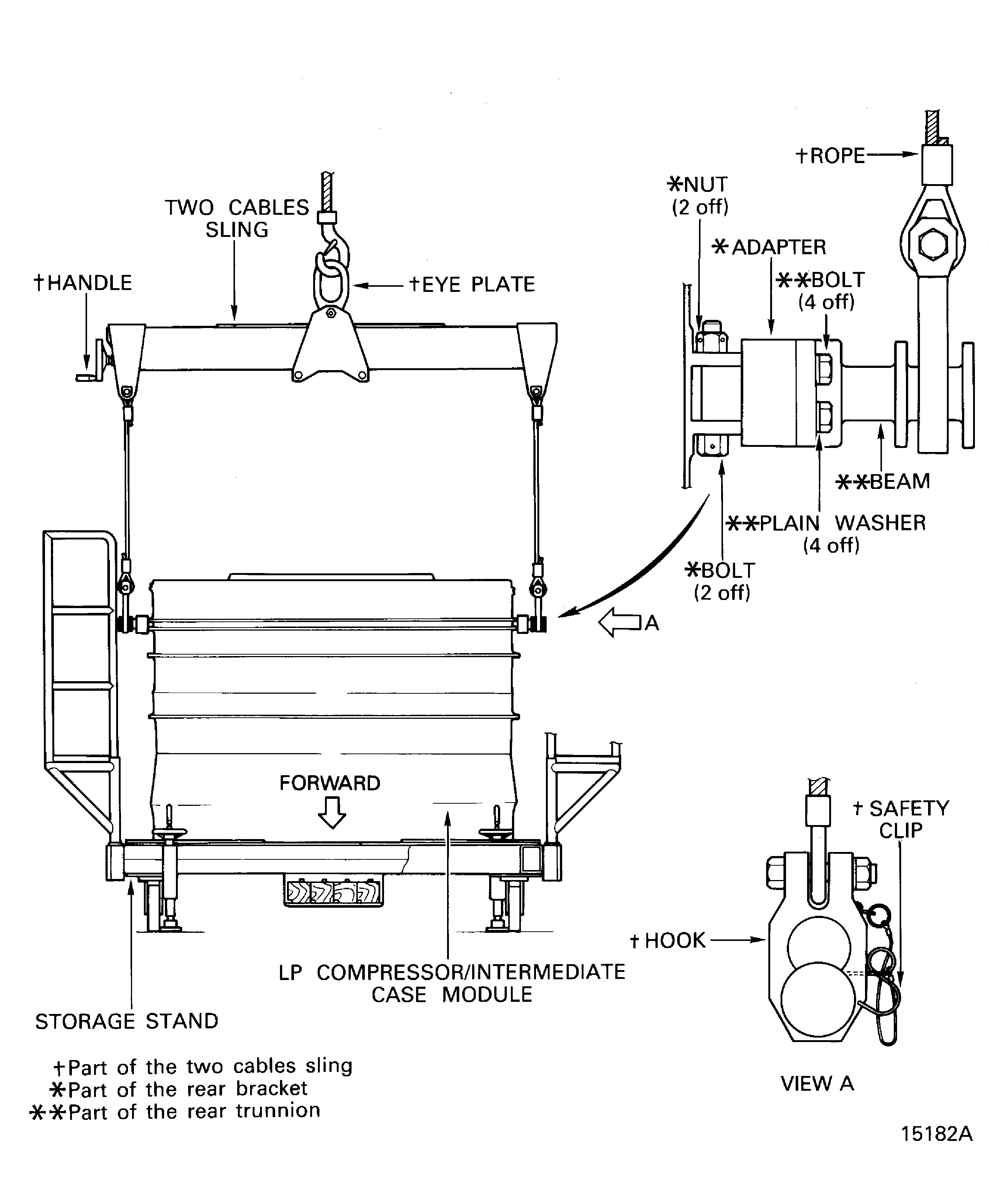

    7. Figure: Install the rear brackets and the rear trunnions on to the LP compressor/intermediate case module

    Install the rear brackets and the rear trunnions on to the LP compressor/intermediate case module

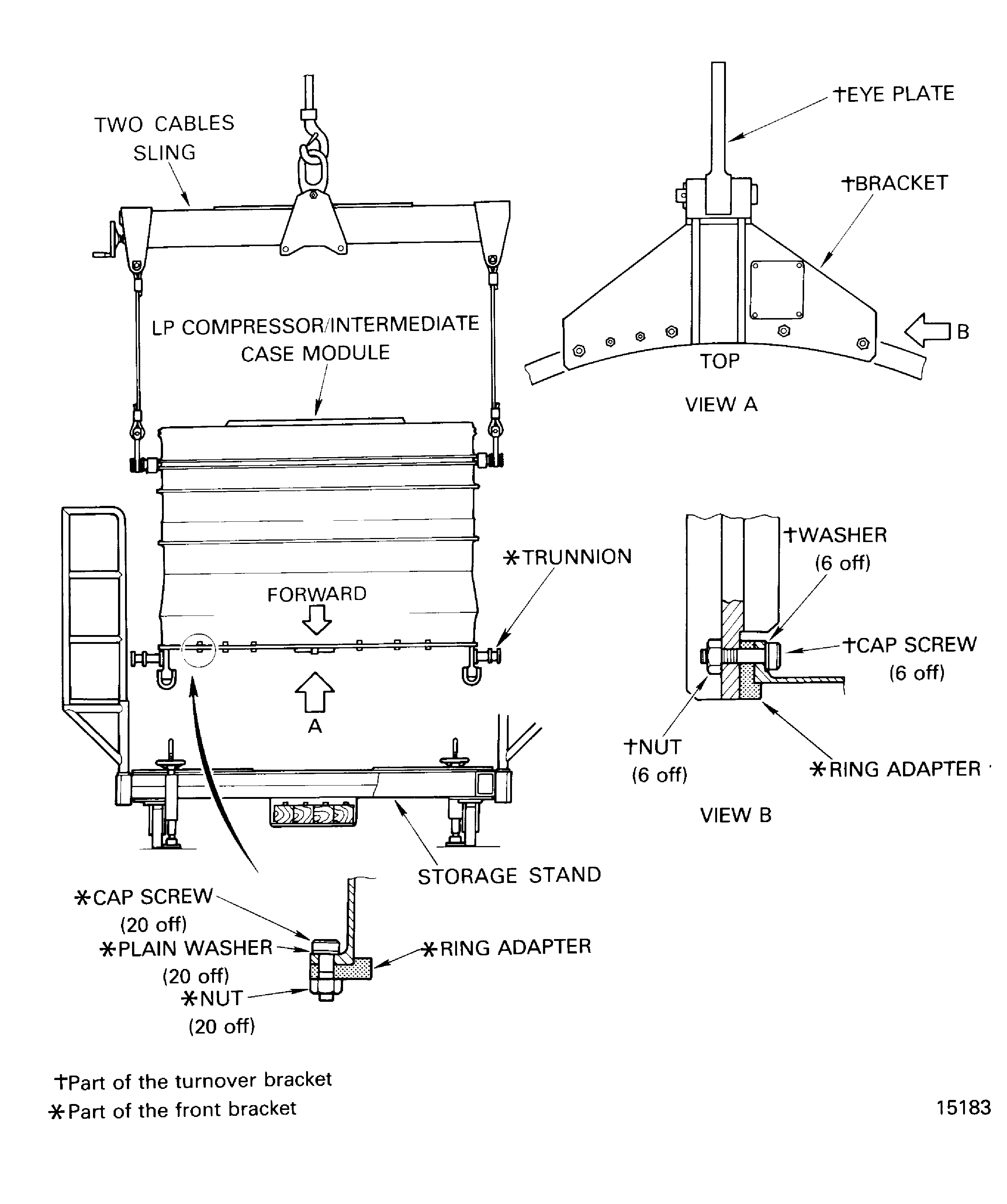

    Figure: Install the front bracket and the turnover bracket on to the LP compressor/intermediate case module

    Install the front bracket and the turnover bracket on to the LP compressor/intermediate case module

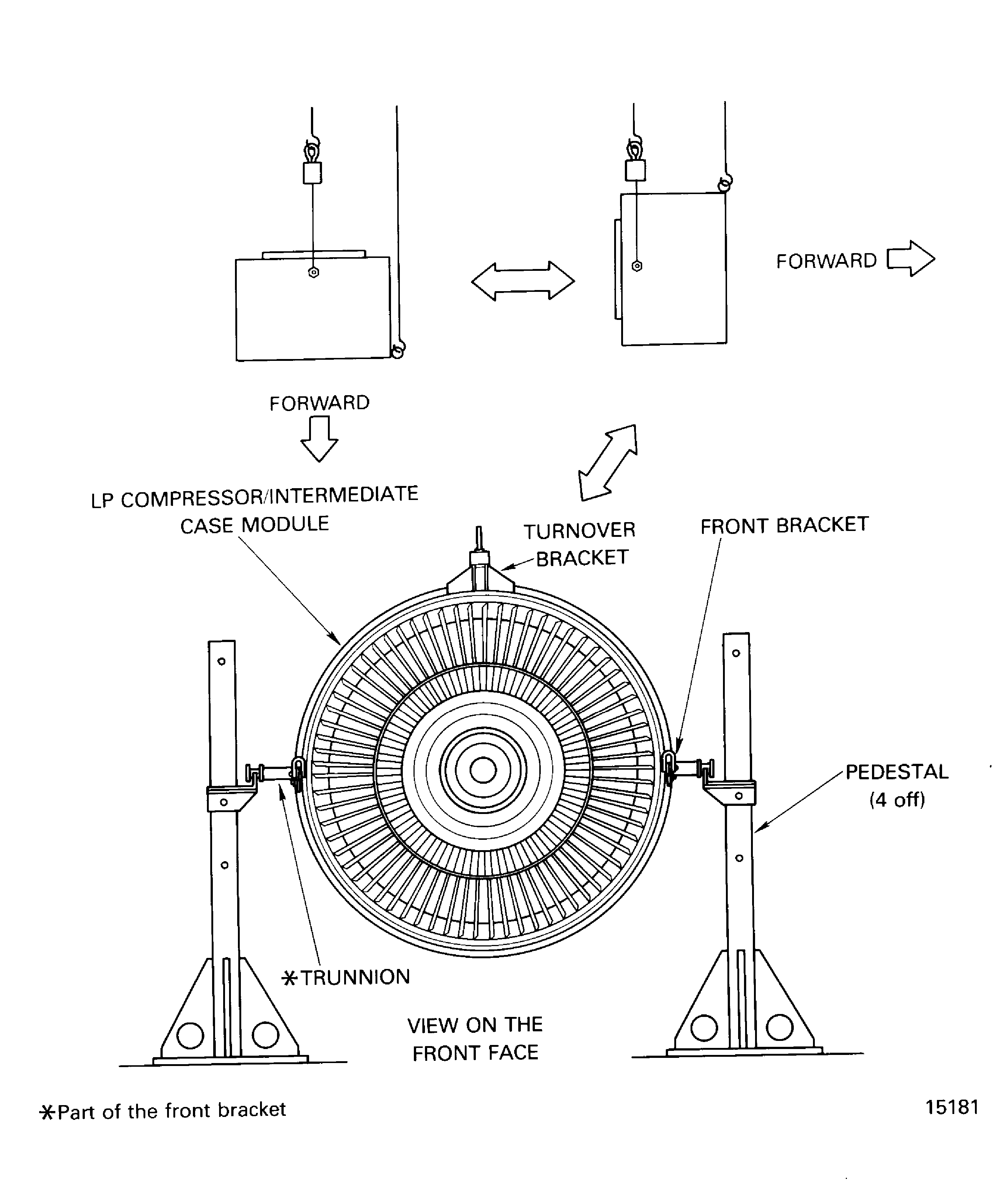

    Figure: Turn and install the LP compressor/intermediate case module on to pedestals

    Turn and install the LP compressor/intermediate case module on to pedestals

Requirements After Job Completion

Follow-On Conditions

NONE
