TASK 72-00-32-050-001 LPC/Intermediate Case Module Components - Remove The Electronic Engine Control (EEC), Removal-008

DMC:V2500-A0-72-00-3250-00A-520A-B|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-00-32-050-001 LPC/Intermediate Case Module Components - Remove The Electronic Engine Control (EEC), Removal-008

General

This TASK gives the procedure to remove the electronic engine control (EEC) from the LP compressor/intermediate case module.

Remove and discard the lockwire before parts are disconnected or removed.

Discard all rubber seal rings and packings removed in this procedure.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants, refer to the IPC.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1R19416 EEC harness wrench0AM53IAE 1R194161

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-00-32-050-066 Disconnect the EEC

    1. Refer to Figure and Figure.

    2. Disconnect the electrical connectors from the front and rear sides of the EEC. Use theIAE 1R19416 EEC harness wrench 1 off.

    3. CAUTION

      MAKE SURE YOU DISCONNECT THE DATA ENTRY PLUG FROM THE EEC. DO NOT REMOVE OR CUT THE BACKSHELL CONNECTING CHAIN/CABLE THAT ATTACHES THE DATA ENTRY PLUG ASSEMBLY TO THE LP COMPRESSOR/INTERMEDIATE CASE FLANGE. DAMAGE TO THE PARTS COULD RESULT.

      NOTE

      The data entry plug assembly is permanently attached to the LP compressor/intermediate case flange by its connecting chain/cable. The data entry plug is an engine part and must stay with the engine. The connecting chain/cable is not an earth strap.

      Disconnect the data entry plug from the rear side of the EEC. Use the IAE 1R19416 EEC harness wrench 1 off.

    4. Disconnect the flexible hoses from the adapters and union on the bottom of the EEC.

    5. Install the protective covers in all the flexible hose openings.

    6. Remove the vent plug assembly.

    2. SUBTASK 72-00-32-050-067 Remove the EEC

    1. Refer to Figure and Figure.

    2. WARNING

      BE CAREFUL DURING THE REMOVAL OF THE EEC. IT WEIGHS APPROXIMATELY 41 LBS (18.6 KG).

      Remove the bolt which holds the ground cable to the EEC.

    3. Remove the bolts and the washers from the four shock mounts and remove the EEC from the engine.

    3. SUBTASK 72-00-32-050-068 Remove the Adapters and Unions from the EEC

    1. Refer to Figure.

    2. Remove the adapters and unions from the EEC and discard the seal rings.

    4. SUBTASK 72-00-32-050-069 Install the Protective Covers

    1. Install the protective covers on to all the openings on the EEC.

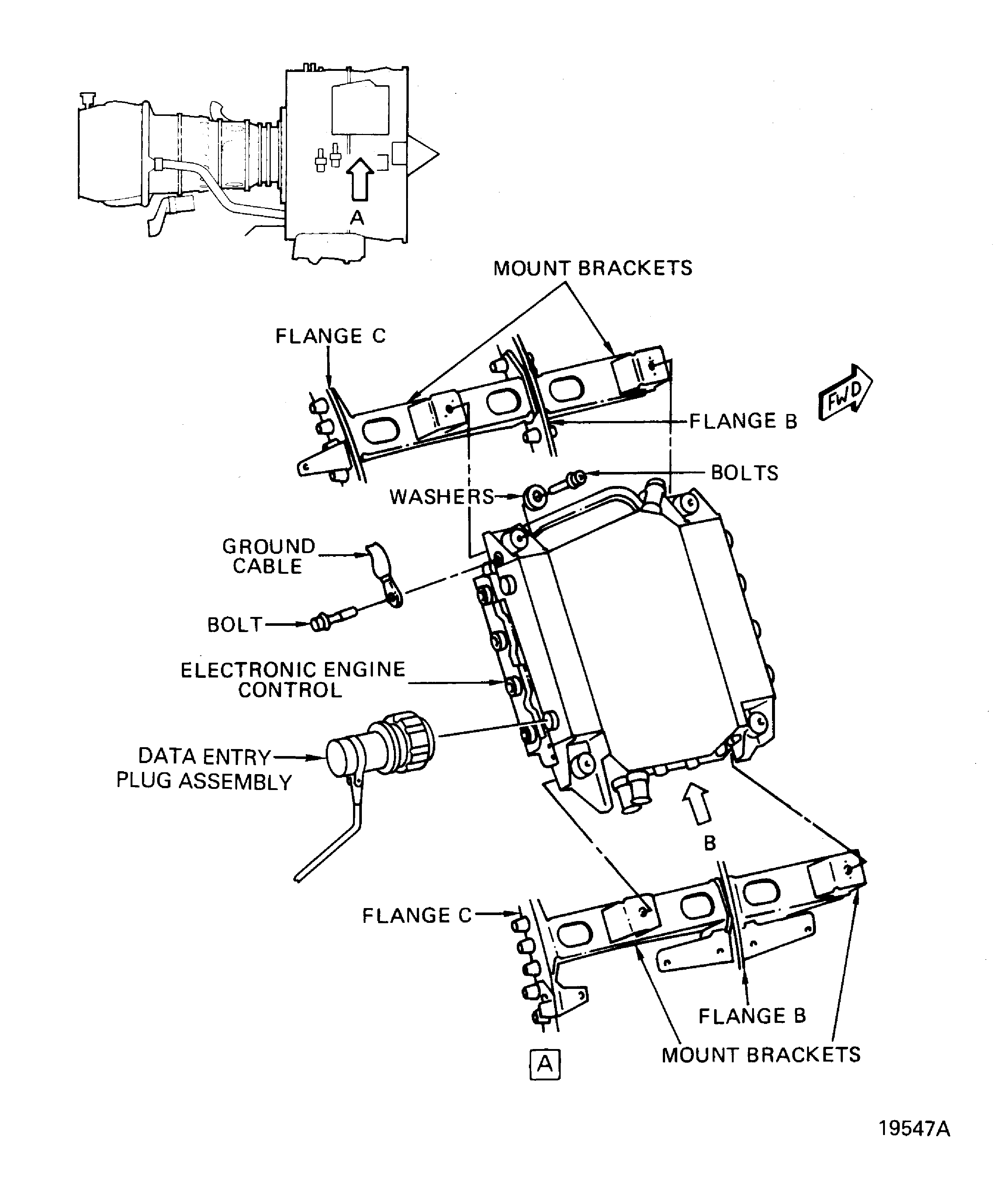

    5. Figure: Removal of the electronic engine control (EEC)

    Removal of the electronic engine control (EEC)

    Figure: Removal of the electronic engine control (EEC)

    Removal of the electronic engine control (EEC)

Requirements After Job Completion

Follow-On Conditions

NONE
