TASK 72-00-32-050-010 LPC/Intermediate Case Module Components - Remove The Stage 10 Air Solenoid Valve 4028KS, Removal-017

DMC:V2500-A0-72-00-3250-10A-520A-B|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-00-32-050-010 LPC/Intermediate Case Module Components - Remove The Stage 10 Air Solenoid Valve 4028KS, Removal-017

General

This TASK gives the procedure to remove the stage 10 air solenoid valve from the engine.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha-variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the item number.

The engine must be isolated from starting air supply, fuel supply and electrical power source while you do this procedure.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-00-32-050-070 Disconnect the Air Tubes and the Electrical Connector from the Stage 10 Air Solenoid Valve

    1. Refer to Figure and Figure.

    2. Cut and discard the lockwire and disconnect the HP3 air outlet tube from the valve.

      3. Remove the HP3 air inlet tube.

      1. Cut and discard the lockwire and disconnect the HP3 air inlet tube from the valve.

      2. Cut and discard the lockwire and disconnect the HP3 air inlet tube from the HP3 air tube.

      3. Remove the HP3 air inlet tube.

    4. Disconnect the electrical connector 4028KS-A from the valve.

    2. SUBTASK 72-00-32-050-071 Remove the Valve

    1. Refer to Figure.

    2. Remove the three bolts and washers which attach the valve to the bracket.

    3. Remove the valve from the bracket.

    4. Install the applicable covers/caps/plugs to all the openings of the valve, the tubes and the electrical connector.

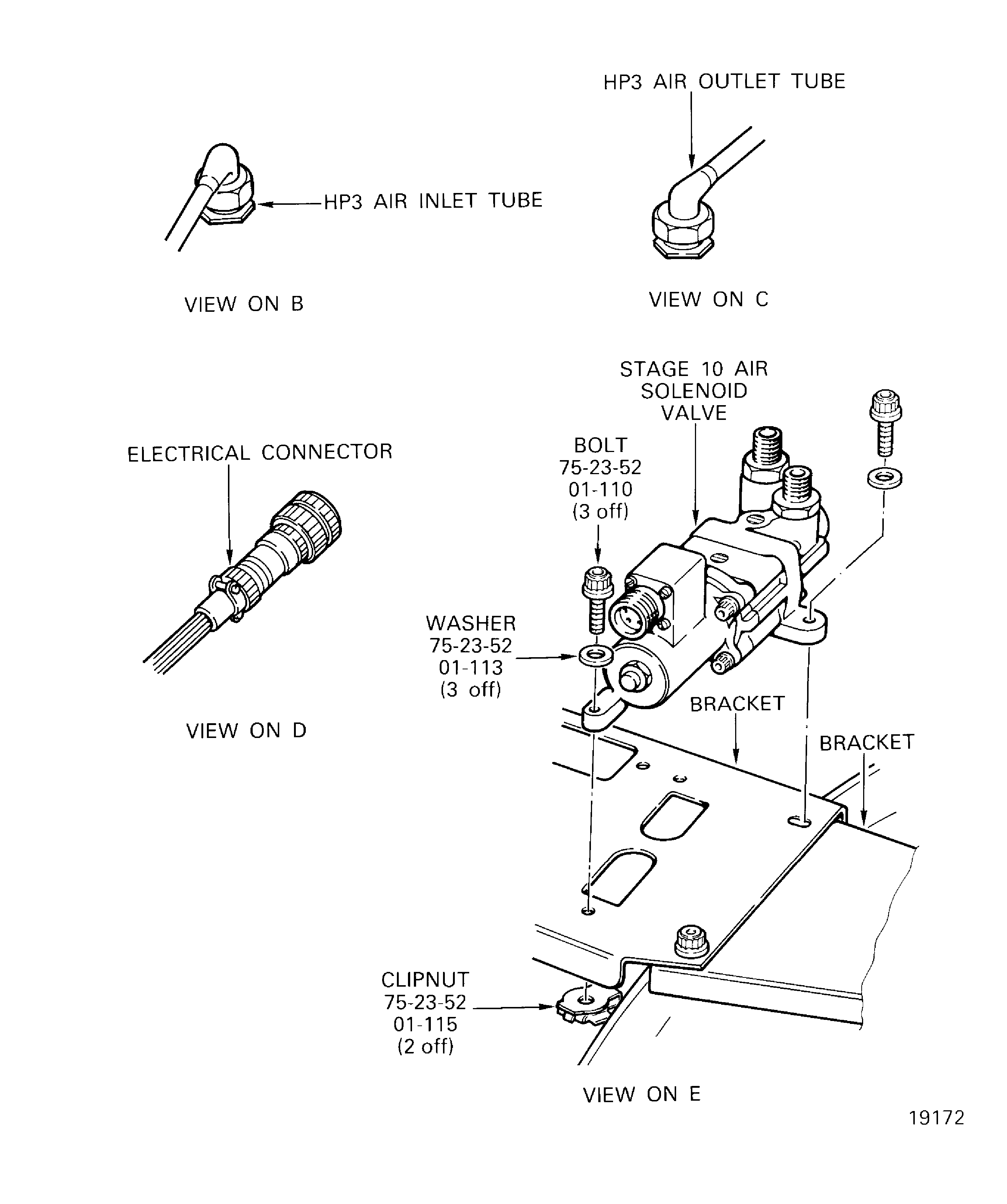

    3. Figure: Remove the stage 10 air solenoid valve

    Remove the stage 10 air solenoid valve

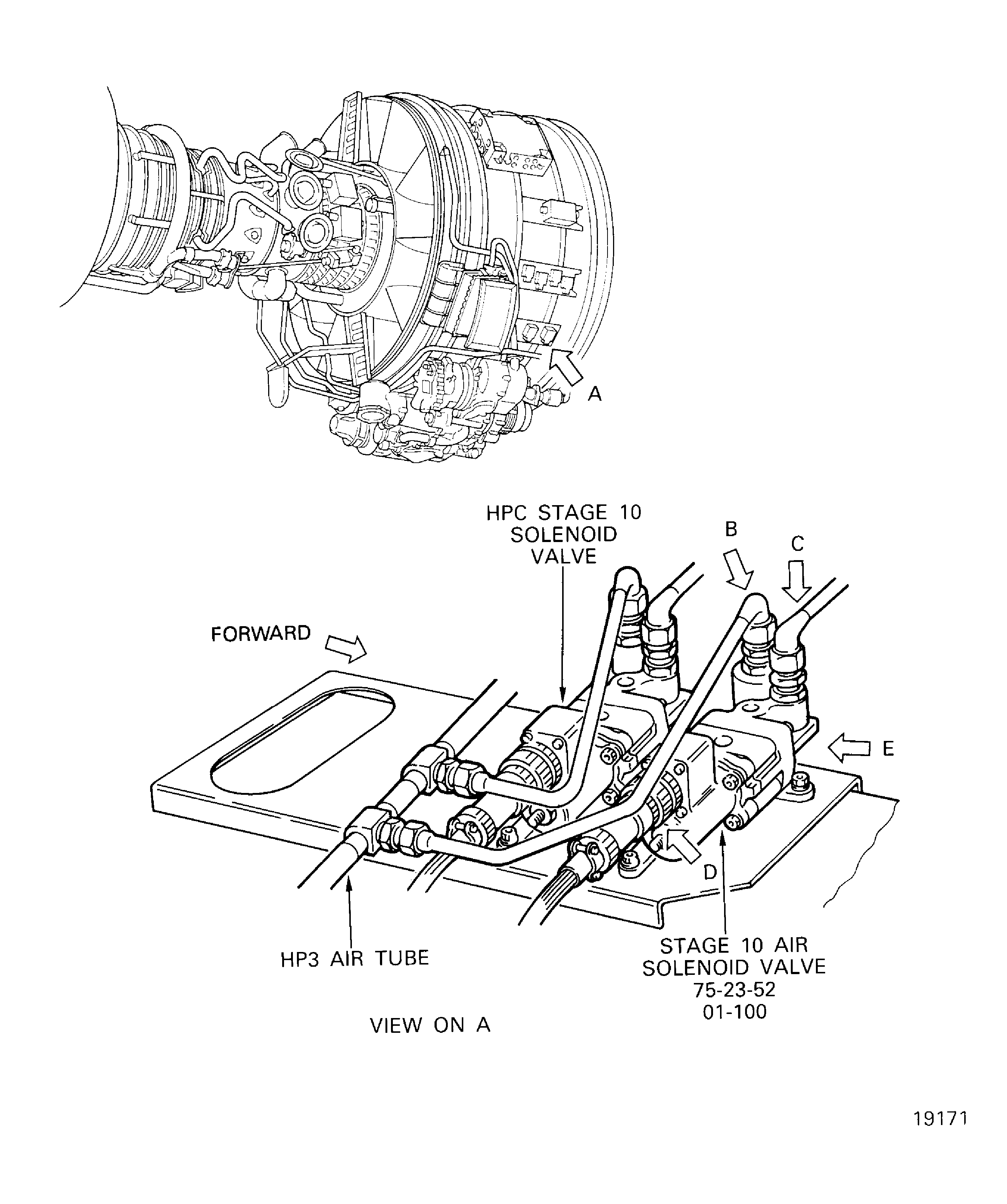

    Figure: Remove the stage 10 air solenoid valve

    Remove the stage 10 air solenoid valve

Requirements After Job Completion

Follow-On Conditions

NONE
