TASK 72-00-32-050-011 LPC/Intermediate Case Module Components - Remove The Stage 10 Solenoid Valve, Removal-018

DMC:V2500-A0-72-00-3250-11A-520A-B|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-00-32-050-011 LPC/Intermediate Case Module Components - Remove The Stage 10 Solenoid Valve, Removal-018

General

Fig/item numbers in parenthesis in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

Remove and discard the lockwire before the component is disconnected.

Apply the approved CoMat 10-058 PENETRATING OIL before the removal of threaded parts. Let the parts soak before removal.

During the removal procedure make sure that the harnesses are held temporarily along their different lengths. This is to prevent too much strain on the harnesses, cables and electrical connectors.

During the removal procedure put the special plastic caps on the electrical connectors and receptacles. This is to give protection from unwanted fluids or materials.

Seal all openings when the tubes or components are disconnected to prevent contamination from unwanted material.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 06-086 TIES18992CoMat 06-086
CoMat 10-058 PENETRATING OIL0AM53CoMat 10-058

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-00-32-050-055 Remove the Stage 10 Solenoid Valve (75-32-53,01-400)

    1. Refer to Figure, Figure and Figure.

    2. Disconnect the electrical connector 4023KS-A from the solenoid valve.

    3. Attach the electrical connector to the primary harness bundle (so the harness does not bend) with the CoMat 06-086 TIES.

    4. Disconnect the tubes 147 and 164 from the solenoid valve. Disconnect and remove the tube 147 from the branch tube.

    5. NOTE

      The solenoid valve removed in this procedure must have its maintenance completed, as given in the Dunlop Component Maintenance Manual (75-32-53).

      Remove the three bolts and the three washers which attach the solenoid valve to the bracket. Remove the solenoid valve.

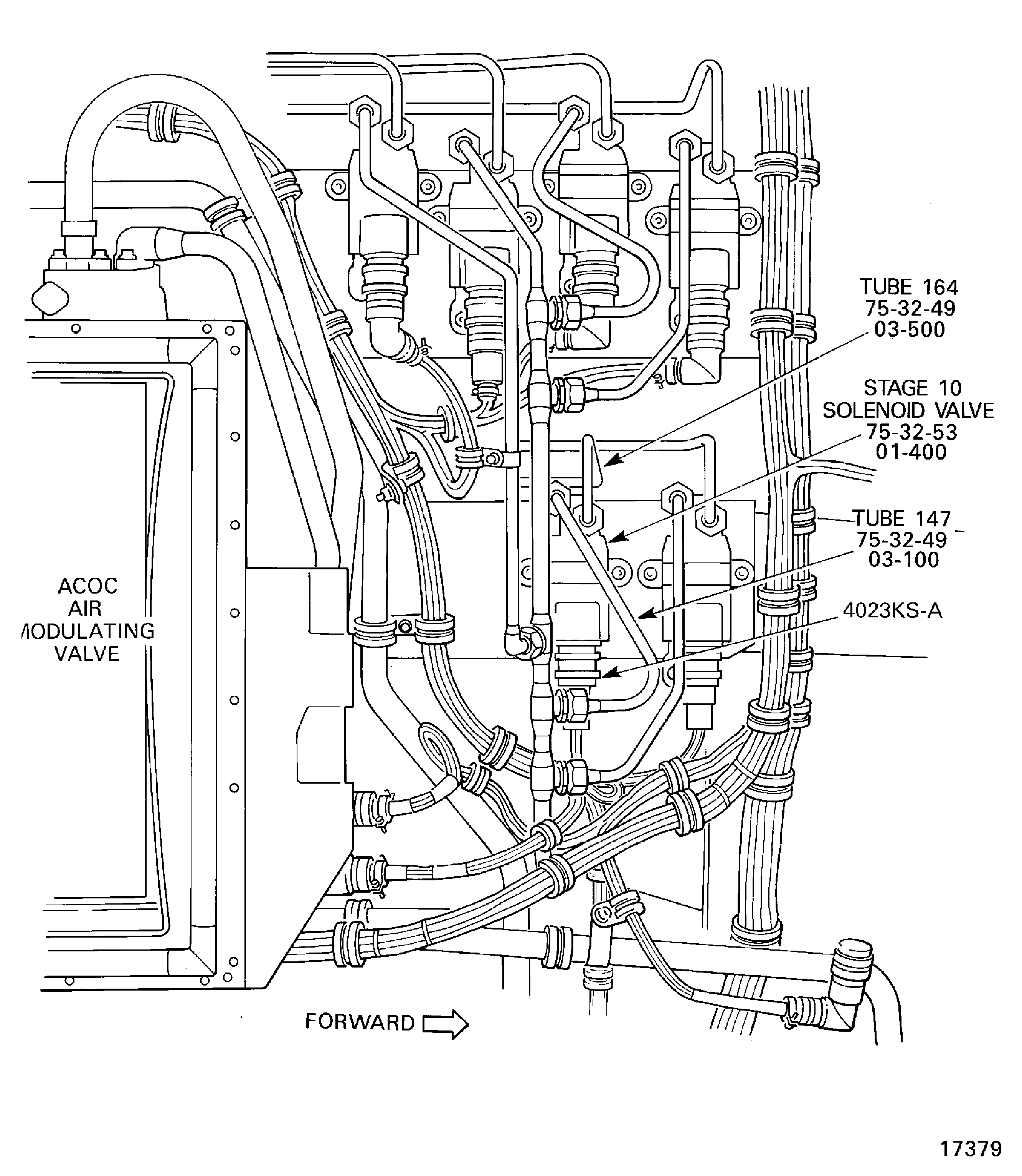

    2. Figure: Remove the stage 10 solenoid valve

    Remove the stage 10 solenoid valve

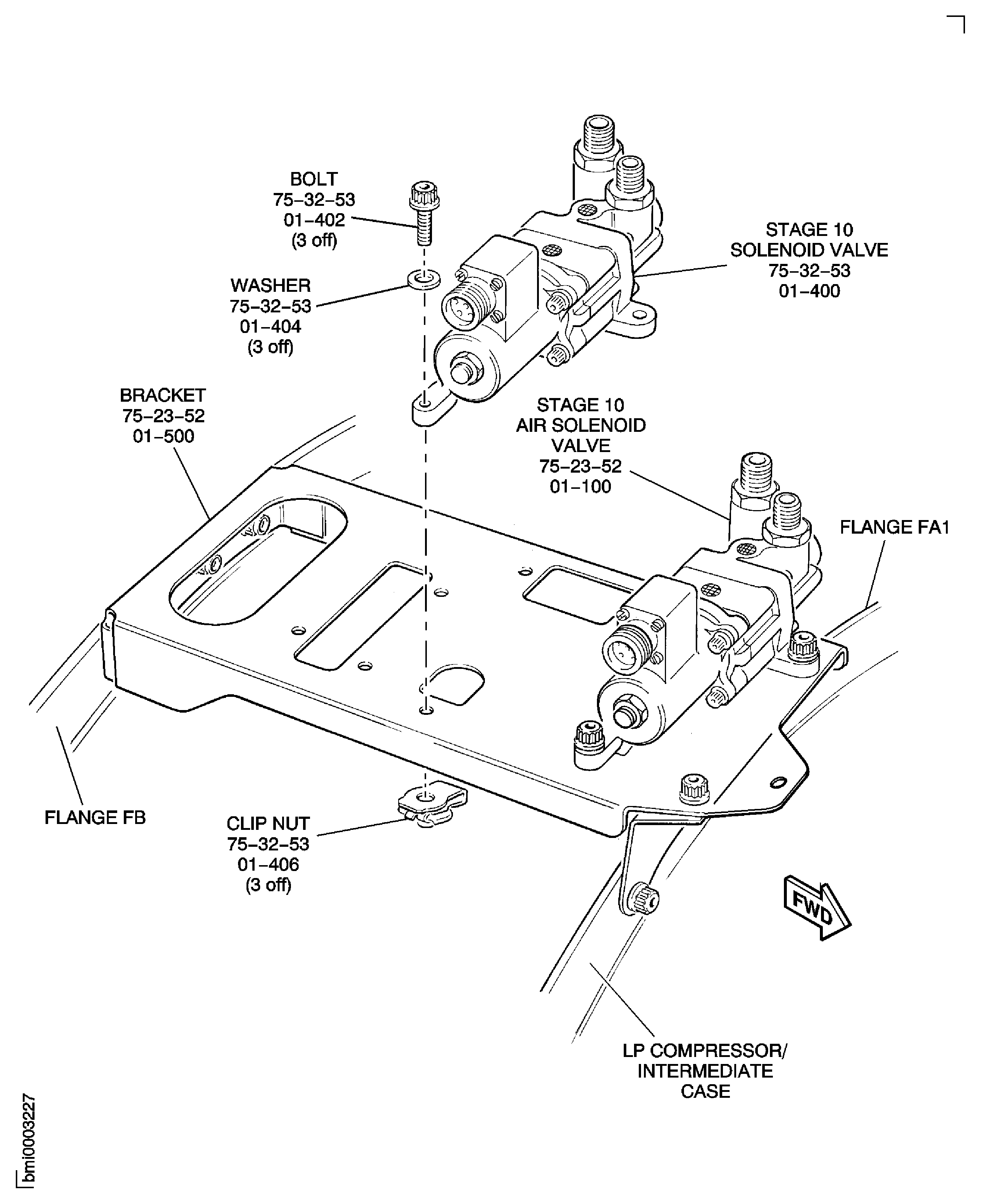

    Figure: Pre SBE 75-0003: Remove the Stage 10 Solenoid Valve

    Pre SBE 75-0003: Remove the Stage 10 Solenoid Valve

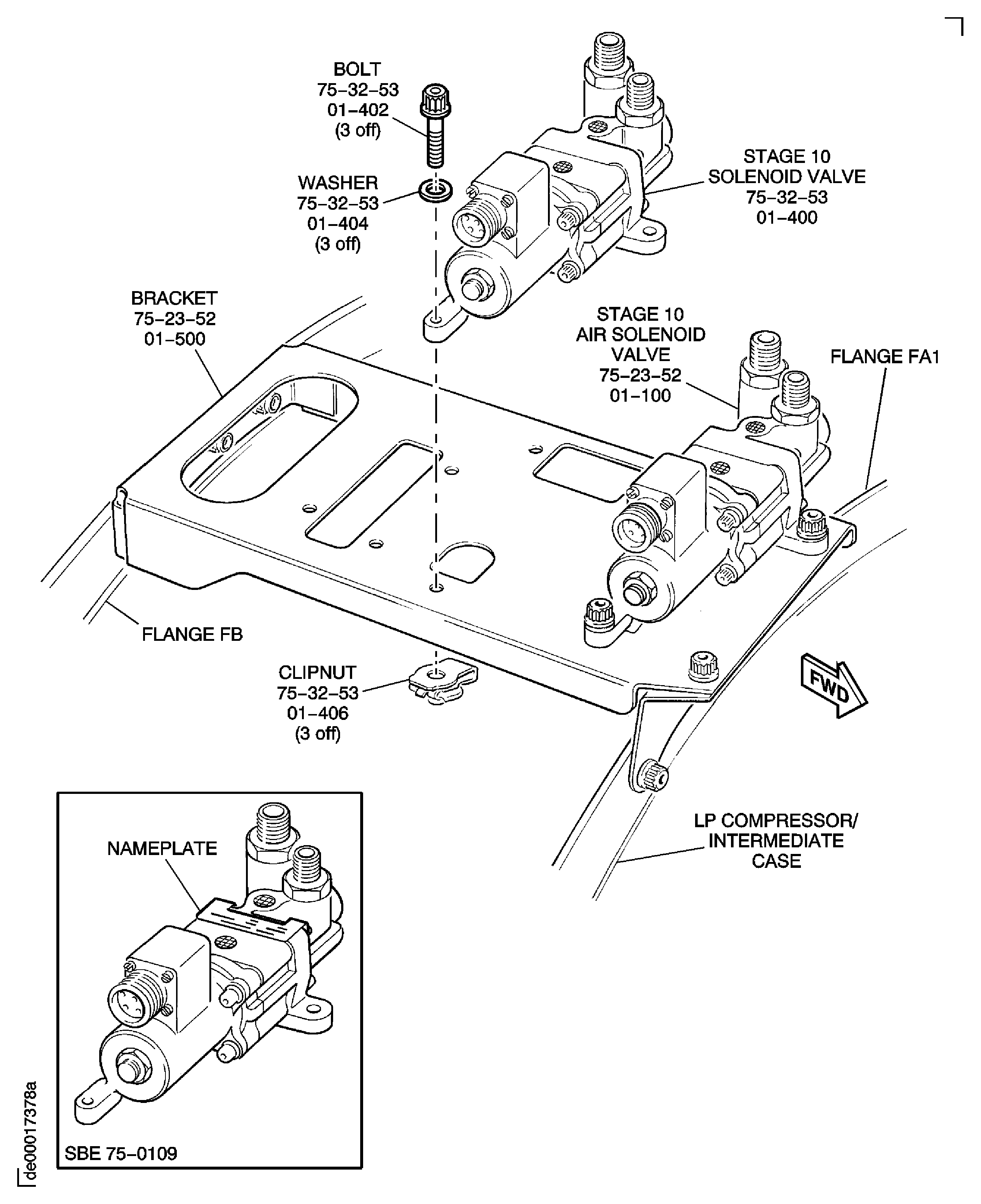

    Figure: SBE 75-0003: Remove the Stage 10 Solenoid Valve

    SBE 75-0003: Remove the Stage 10 Solenoid Valve

Requirements After Job Completion

Follow-On Conditions

NONE
