TASK 72-00-32-050-017 LPC/Intermediate Case Module Components - Remove The Oil Pressure Transmitter, Removal-024

DMC:V2500-A0-72-00-3250-16A-520A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-00-32-050-017 LPC/Intermediate Case Module Components - Remove The Oil Pressure Transmitter, Removal-024

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha-variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the item number.

Apply the approved CoMat 10-058 PENETRATING OIL before the removal of threaded parts. Let the parts soak before removal.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 10-058 PENETRATING OIL0AM53CoMat 10-058

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-00-32-040-062 Remove the Oil Pressure Transmitter

    1. Refer to Figure.

    2. WARNING

      DO NOT LET ENGINE OIL STAY ON YOUR SKIN FOR A LONG TIME. FLUSH THE OIL FROM YOUR SKIN WITH WATER. THE OIL IS POISONOUS AND CAN GO THROUGH YOU SKIN AND IN TO YOUR BODY.

      CAUTION

      DO NOT LET ENGINE OIL FALL ON THE ENGINE. UNWANTED OIL MUST BE REMOVED IMMEDIATELY WITH A CLEAN CLOTH. THE OIL CAN CAUSE DAMAGE TO THE SURFACE PROTECTION AND TO SOME PARTS.

      Disconnect the electrical connector from the oil pressure transmitter OIL-OIL PRESSURE TRANSMITTER (79-33-15, 01-010). Put blanking caps on the electrical connector and the electrical receptacle.

    3. Make a note of the position of the oil pressure transmitter OIL-OIL PRESSURE TRANSMITTER (79-33-15, 01-010), it must be put in the same position on installation.

    4. Disconnect the two oil tubes from the oil pressure transmitter OIL-OIL PRESSURE TRANSMITTER (79-33-15, 01-010).

    5. Hold the oil pressure transmitter OIL-OIL PRESSURE TRANSMITTER (79-33-15, 01-010). Remove the 4 bolts OIL-OIL PRESSURE TRANSMITTER (79-33-15, 01-020) from the bracket General Services Harness (71-51-43, 05-990) and the oil pressure transmitter OIL-OIL PRESSURE TRANSMITTER (79-33-15, 01-010).

    6. Remove the oil pressure transmitter OIL-OIL PRESSURE TRANSMITTER (79-33-15, 01-010) from the bracket V2500-A5-79-33-43-05A-941A-D (79-33-43, 05-990). Put blanking caps on the oil pressure transmitter OIL-OIL PRESSURE TRANSMITTER (79-33-15, 01-010) and the oil tubes.

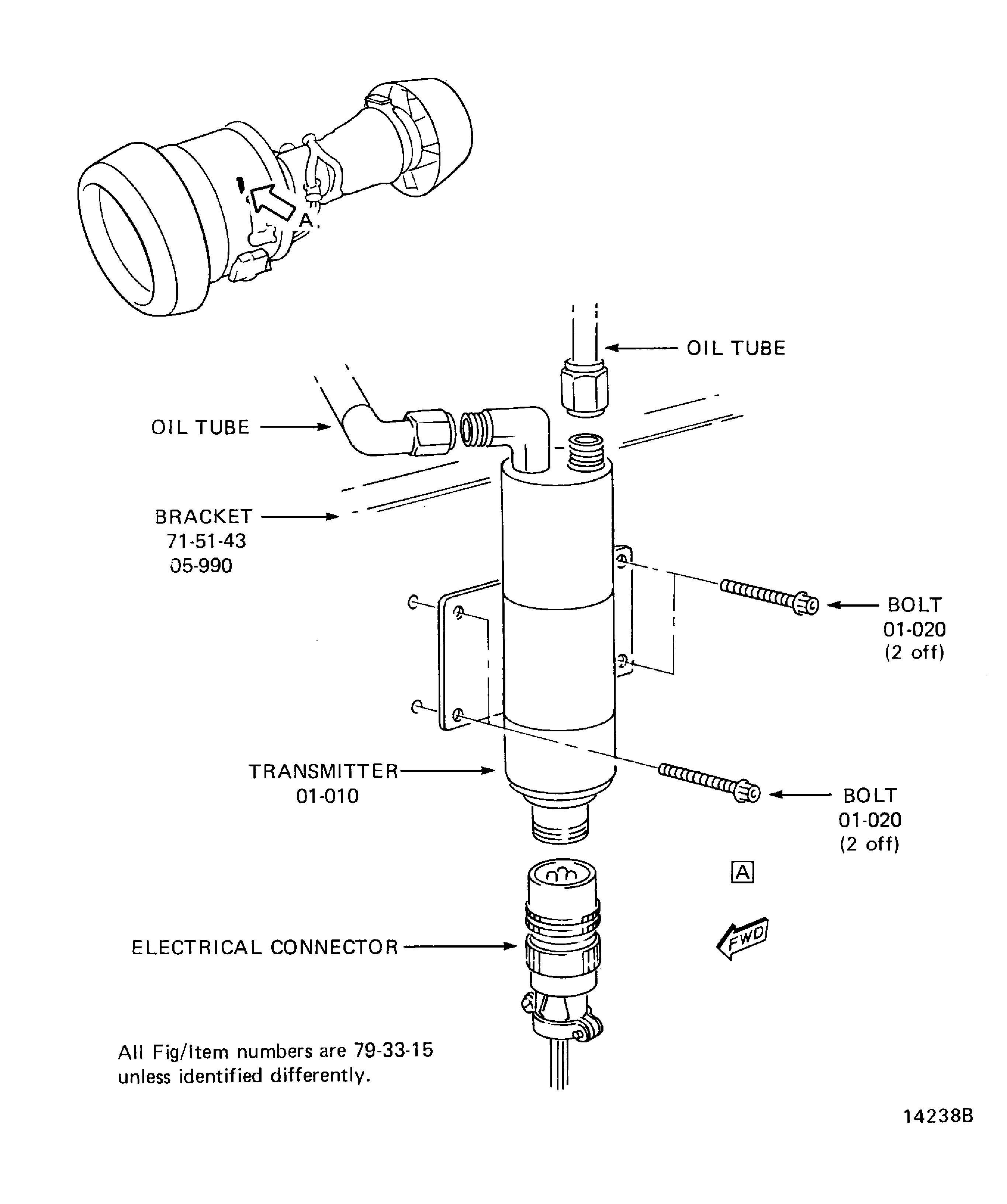

    2. Figure: Oil pressure transmitter

    Oil pressure transmitter

Requirements After Job Completion

Follow-On Conditions

NONE
