TASK 72-31-11-300-005 Annulus Filler - Replace The Locating Pin, Repair-005 (VRS1010)

DMC:V2500-A0-72-31-1102-01A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-31-11-300-005 Annulus Filler - Replace The Locating Pin, Repair-005 (VRS1010)

Effectivity

FIG/ITEM

PART NO.

01-100

5A1611

01-100

5A1710

01-100

5A1638

01-100

5A0353

01-100

5A6533

01-100

5A1459

01-100

5A1750

01-100

5A1752

01-100

5A1753

01-100

5A1854

Material of component

PART IDENT

SYMBOL

MATERIAL

Annulus filler

-

Aluminum alloy

General

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Price and availability - not applicable

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUMLOCALCoMat 01-275
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 03-026 LIQUID NITROGENLOCALCoMat 03-026
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Locating pin5A11161

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-31-11-350-057 Remove the Defective Locating Pin from the Annulus Filler Assembly

    1. Refer to Figure.

    2. Examine and identify the defective locating pin.

      3. Press out the defective locating pin.

      1. Use hand tools.

      4. Examine for damage in the bore.

      1. Remove the burrs.

      3. Refer to the SPM TASK 70-35-03-300-501.

      5. Dimensionally examine the pin hole.

      1. Make sure the interference is correct.

    2. SUBTASK 72-31-11-230-056 Examine the Annulus Filler Assembly for Cracks

      1. Fluorescent penetrant examine the pin hole.

      1. Make sure there are no cracks in the pin hole.

      2. Refer to the SPM TASK 70-23-05-230-501.

      3. Use fluorescent penetrant inspection equipment.

    3. SUBTASK 72-31-11-350-058 Apply the Surface Protection to the Annulus Filler Assembly

      1. Apply chromate conversion coating to the pin hole, if necessary.

      1. Refer to the SPM TASK 70-38-02-300-503.

    4. SUBTASK 72-31-11-380-056 Install the New Locating Pin

    1. Refer to Figure.

      2. Clean the locating pin and the pin hole.

      1. Use clean dry air blast or CoMat 02-099 LINT-FREE CLOTH.

      3. Freeze the locating pin.

      1. Freeze the locating pin to aid replacement into pin hole.

      4. Install and press the locating pin into the pin hole.

      1. Use hand tools.

    5. SUBTASK 72-31-11-350-059 Examine the Pin Seating

    1. Refer to Figure.

      2. Visually examine the pin seating.

      1. Pin shoulder must be located against the flange face.

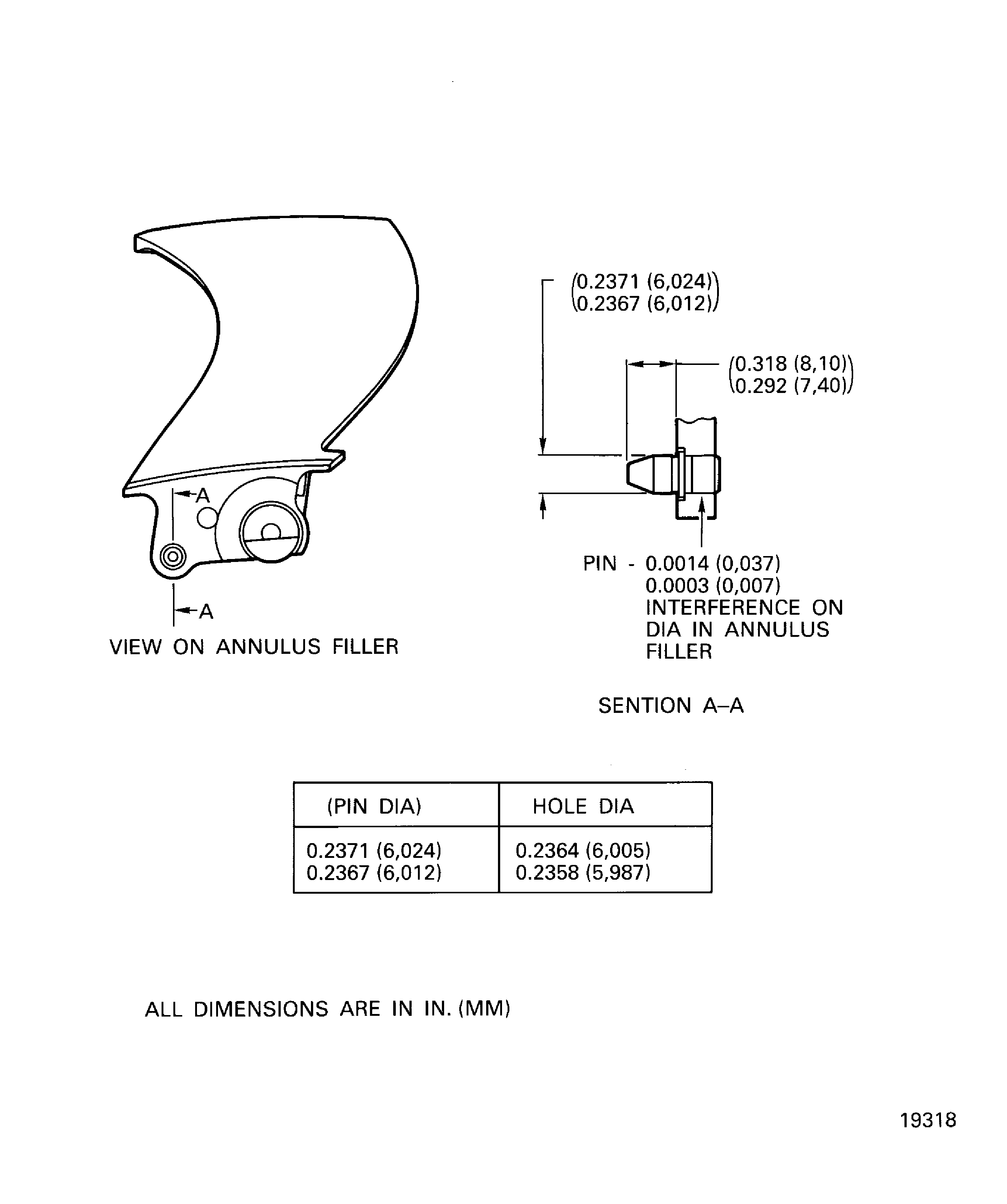

    6. Figure: Replace the locating pin in the annulus fillers

    Replace the locating pin in the annulus fillers
