TASK 72-31-12-300-011 LPC Fan Disk - Replace The Dry Film Lubricant, Repair-011 (VRS1154)

DMC:V2500-A0-72-31-1201-00A-240A-C|Issue No:002.00|Issue Date:2015-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-31-12-300-011 LPC Fan Disk - Replace The Dry Film Lubricant, Repair-011 (VRS1154)

Effectivity

FIG/ITEM

PART NO.

01-200

5A0269

01-200

5A0337

01-200

5A1757

01-200

5A1948

Material of component

DESCRIPTION

SYMBOL

MATERIAL

Stage 1 fan disk

-

Titanium alloy

General

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Price and availability - not applicable

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
OvenLOCALOven

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-124 ISOPROPYL ALCOHOLLOCALCoMat 01-124
CoMat 02-002 ADHESIVE TAPE GENERALPURPOSE PAPERLOCALCoMat 02-002
CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING94960CoMat 02-019
CoMat 07-009 THINNERLOCALCoMat 07-009
CoMat 10-004 DRY FILM LUBRICANTLOCALCoMat 10-004

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-31-12-350-053 Remove the Rear Ramp and Plate Washer

      1. Remove the rear ramp.

      1. Refer to VRS1164, TASK 72-31-12-300-009 (REPAIR-009).

      2. Remove the plate washer.

      1. Refer to VRS1159, TASK 72-31-12-300-008 (REPAIR-008).

    2. SUBTASK 72-31-12-110-052 Remove the Dry Film Lubricant

      1. Remove the dry film lubricant.

      1. Refer to TASK 72-31-12-100-000 (CLEANING-000) for the applicable cleaning TASK.

    3. SUBTASK 72-31-12-110-053 Remove the Remaining Adhesive

      1. Remove the remaining adhesive.

      1. Refer to TASK 72-31-12-100-000 (CLEANING-000) for the applicable cleaning TASK.

    4. SUBTASK 72-31-12-380-052 Apply the Dry Film Lubricant to the Stage 1 Fan Disk Assembly

    1. Refer to Figure.

      2. Remove the grease with fluid.

      1. Use a clean cloth which is moist with degreasing fluid and clean the coating area.

      3. Apply the masking tape.

      1. Apply the masking tape to surfaces marked AE, DQ, and AB.

      3. Refer to the SPM TASK 70-38-03-380-501.

      4. Apply the dry film lubricant.

      1. Apply three coats of dry film lubricant to a total thickness of 0.001 to 0.002 in. (0.025 to 0.051 mm) to surfaces marked BJ.

      2. Apply 2 coats of dry film lubricant to a total thickness of 0.00031 to 0.0011 in. (0.008 to 0.030 mm) to surfaces marked DP.

      3. Refer to the SPM TASK 70-38-03-380-501.

    5. Remove the masking tape.

      6. Stove the stage 1 fan disk.

      1. Stove for two hours between 365 to 383 deg F (185 to 195 deg C).

      2. Use an applicable oven.

      7. Examine the layer of dry film lubricant.

      1. Refer to the SPM TASK 70-38-03-380-501.

      8. Vibro engrave VRS1154 adjacent to the part number.

      1. Raised metal and burrs produced by marking must be removed.

    5. SUBTASK 72-31-12-360-051 Assemble the Rear Ramp and Plate Washer to the Stage 1 Fan Disk Assembly

      1. Bond the rear ramp to the stage 1 fan disk assembly.

      1. Refer to VRS1164, TASK 72-31-12-300-009 (REPAIR-009).

      2. Bond the plate washer to the stage 1 fan disk.

      1. Refer to VRS1159, TASK 72-31-12-300-008 (REPAIR-008).

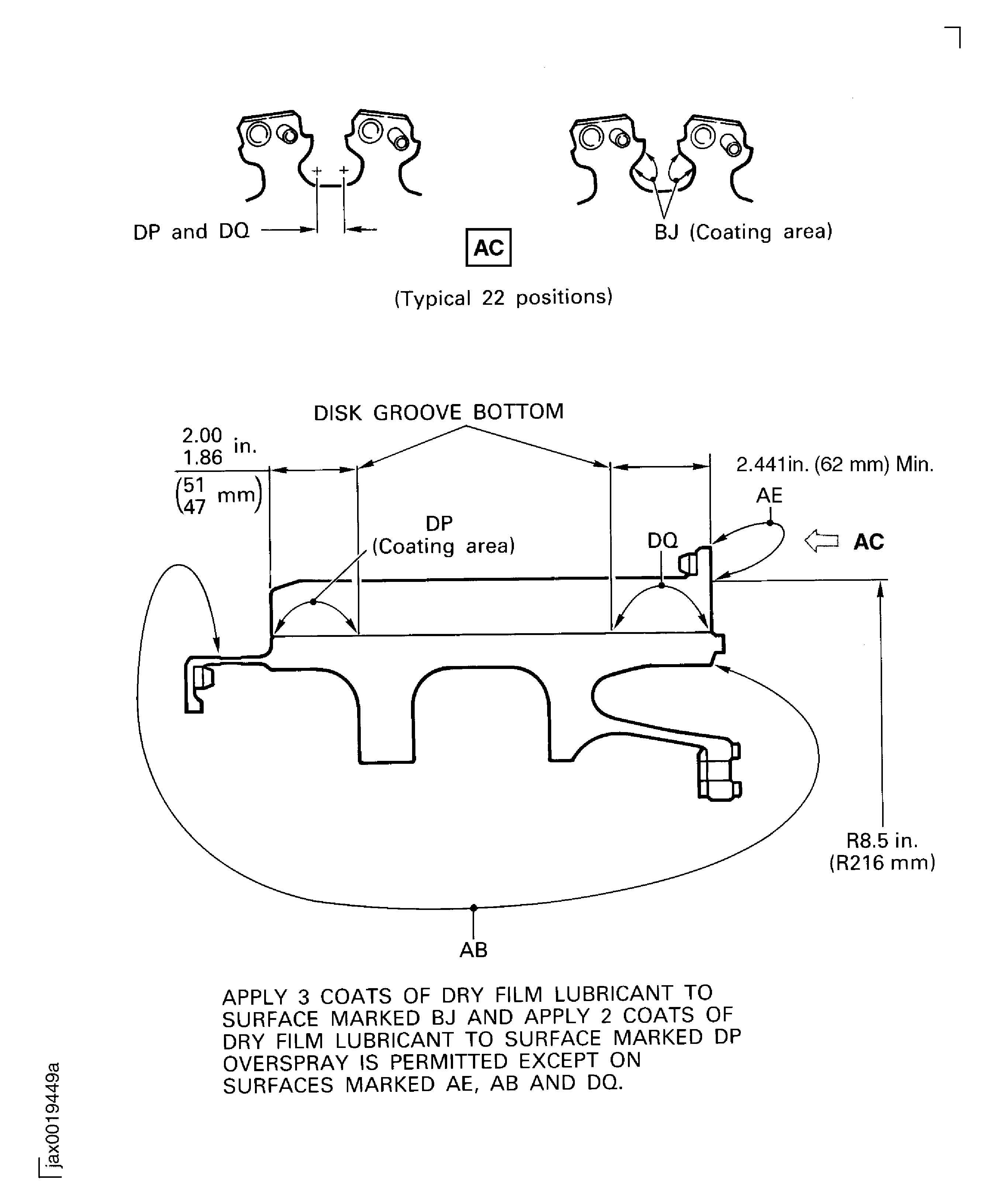

    6. Figure: Apply dry film lubricant to the stage 1 fan disk

    Apply dry film lubricant to the stage 1 fan disk

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:
