TASK 72-32-00-300-002 LPC/Intermediate Module Special Bolt - Repair Surface Damage, Repair-002 (VRS1602)

DMC:V2500-A0-72-32-0003-00A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-00-300-002 LPC/Intermediate Module Special Bolt - Repair Surface Damage, Repair-002 (VRS1602)

Effectivity

FIG/ITEM

PART NO.

01-377

5A0803

01-377

5A0849

01-377

5A4122

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Special bolt

Corrosion and heat

resistant steel

(AMS5643)

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-00-350-055 Remove the Damage of the Special Bolt

    1. Refer to Figure.

      2. Make smooth and/or hand polish to remove the damage, pickup and raised metal.

      1. Use honing stone or CoMat 05-019 WATERPROOF SILICON CARBIDE, CoMat 05-020 WATERPROOF SILICON CARBIDE and CoMat 05-021 WATERPROOF SILICON CARBIDE and/or fine file to remove thread pick up, high metal.

      2. Surface finish of the repair must be the same as the adjacent area.

      3. Refer to the SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-32-00-220-098 Examine the Special Bolt

      1. Visually examine the repaired area.

      1. Visually examine the repaired area for nicks, galls, scores and/or pick-up using 10X magnifying glass.

        Refer to TASK 72-32-00-200-000 (INSPECTION-000).

    3. SUBTASK 72-32-00-230-058 Examine the Special Bolt

      1. Fluorescent penetrant examine the repaired area.

      1. Make sure there are no cracks in the repaired area.

      2. Refer to TASK 72-32-00-200-000 (INSPECTION-000).

      3. Refer to the SPM TASK 70-23-05-230-501.

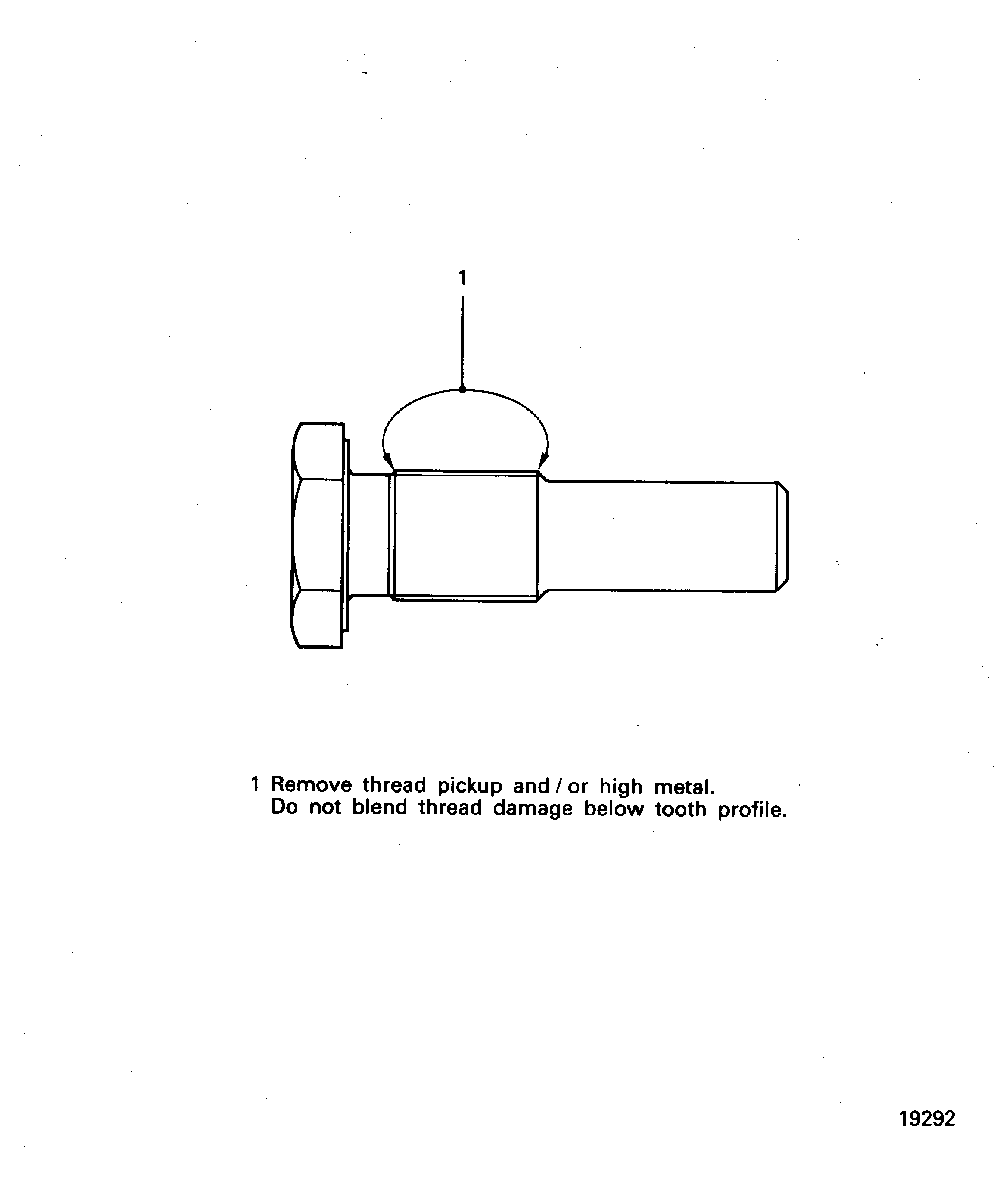

    4. Figure: Special bolt - repair limit

    Special bolt - repair limit
