TASK 72-32-00-300-014 Bleed Valve Actuating Rod Pin - Repair Surface Damage, Repair-014 (VRS1606)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK number are in the SPM.
NOTE
To identify the consumable materials, refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Crack test equipment | LOCAL | Crack test equipment |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-019 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-019 | ||
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Use abrasive stone or CoMat 05-019 WATERPROOF SILICON CARBIDE , CoMat 05-020 WATERPROOF SILICON CARBIDE and CoMat 05-021 WATERPROOF SILICON CARBIDE.
The surface finish of the repair must be same as the adjacent area.
Refer to the SPM TASK 70-35-03-300-501.
Make smooth and/or hand polish to remove the raised metals.
SUBTASK 72-32-00-350-051 Remove the Damage of the Pin
Refer to TASK 72-32-00-200-000 (INSPECTION-000).
Visually examine the repaired area.
SUBTASK 72-32-00-220-152 Examine the Pin
Refer to TASK 72-32-00-200-000 (INSPECTION-000).
Examine the diameter, if the surface has been repaired.
SUBTASK 72-32-00-220-153 Examine the Pin
Refer to TASK 72-32-00-200-000 (INSPECTION-000).
Do a penetrant crack test on the repaired area.
SUBTASK 72-32-00-230-069 Examine the Pin for Cracks

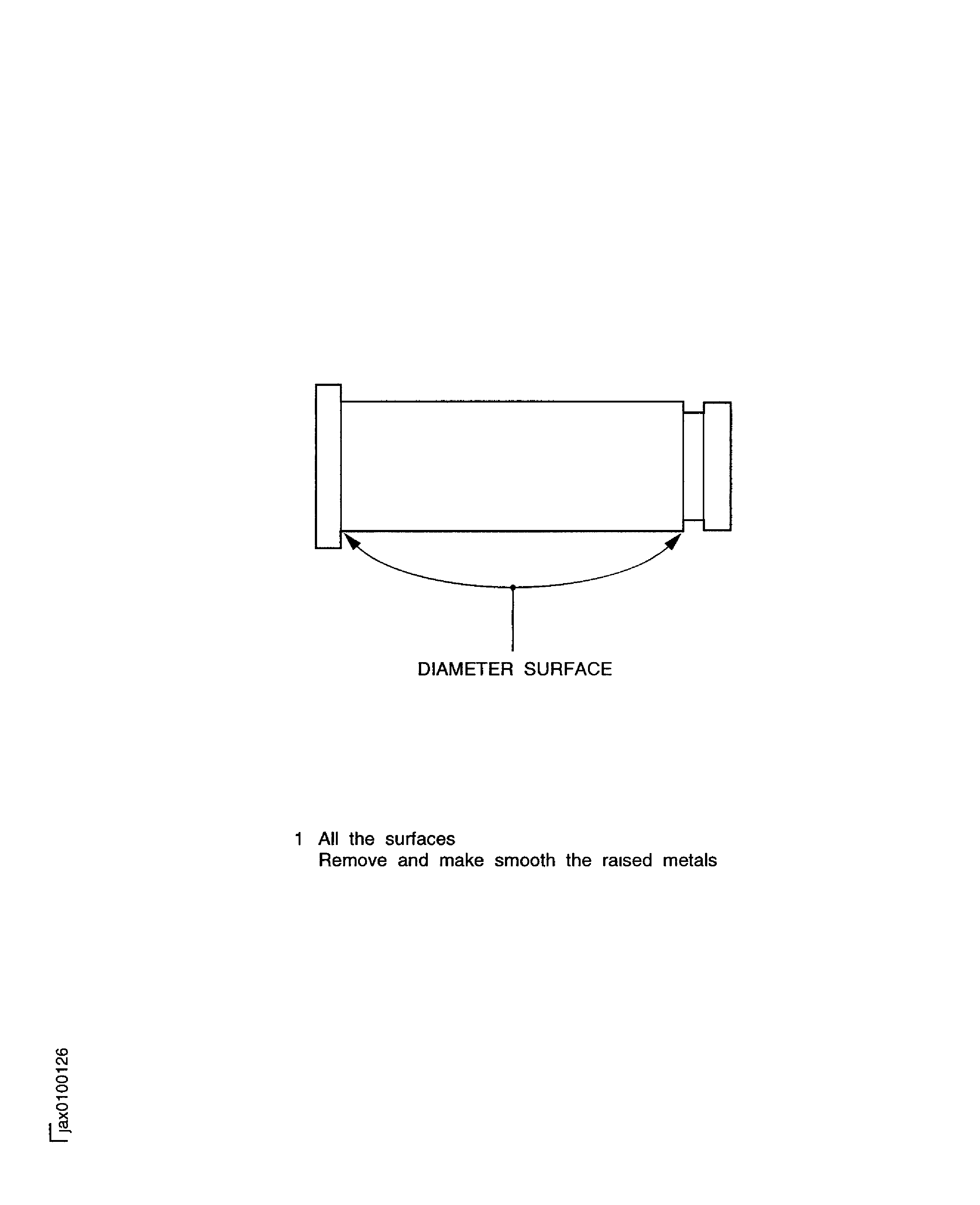

Figure: Pin repair limit
Pin repair limit
