TASK 72-32-00-300-012 NF Brackets - Repair Surface Damage, Repair-012 (VRS1176)
General
Price and availability - none.
The practices and processes referred to in the procedure by SPM number are in SPM.
NOTE
To identify the consumable materials, refer to the Consumable Materials Index.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Fluorescent penetrant inspection equipment | LOCAL | Fluorescent Penetrant Inspection Equipment |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 | ||
| CoMat 05-107 ABRASIVE STONE | K6835 | CoMat 05-107 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Use hand held pneumatic grinder and CoMat 05-107 ABRASIVE STONE.
The surface finish of the repair must be the same as the adjacent area. Refer to SPM TASK 70-35-03-300-501.
Make smooth and/or hand polish to remove the nicks, scratches and/or burrs.
SUBTASK 72-32-00-350-052 Remove the Damage from the NF Bracket
Refer to TASK 72-32-00-200-006 (INSPECTION-006).
Visually examine the repaired area for nicks and/or scratches using 10X magnifying glass.
Visually examine the repaired area.
SUBTASK 72-32-00-220-096 Visually Examine the NF Bracket
Refer to TASK 72-32-00-200-006 (INSPECTION-006).
Refer to SPM TASK 70-23-05-230-501.
Make sure there are no cracks in the repaired area.
Fluorescent penetrant examine the repaired area.
SUBTASK 72-32-00-230-056 Examine the NF Bracket for Cracks

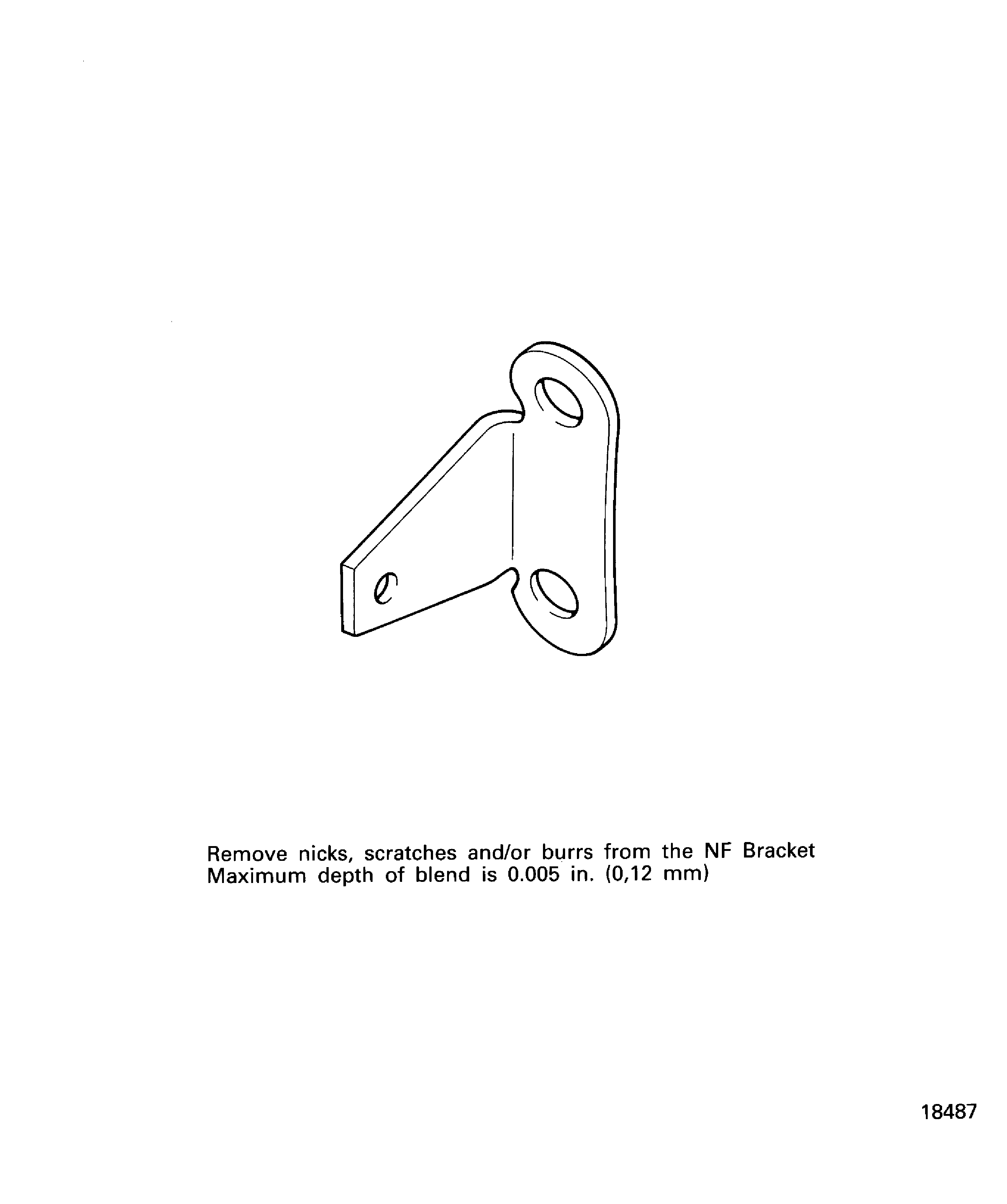

Figure: NF bracket repair limit
NF bracket repair limit
