TASK 72-32-00-300-005 Bracket Assemblies - Replace The Floating Nut, Repair-005 (VRS1165)

DMC:V2500-A0-72-32-0009-00A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-00-300-005 Bracket Assemblies - Replace The Floating Nut, Repair-005 (VRS1165)

Effectivity

FIG/ITEM

PART NO.

02-700

5A3466

02-710

5A3467

02-720

5A3468

02-730

5A3469

02-880

5A0025

02-890

5A0030

02-900

5A0028

02-910

5A0027

02-920

5A0032

02-930

5A0026

02-940

5A0031

02-950

5A0029

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Bracket

Corrosion and heat resistant

steel

General

Price and availability - none

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Drilling machineLOCALDrilling machine
Rivet squeezerLOCALRivet squeezer

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
RivetAM164462
Floating nutMS21060L41
RivetAS164462
Floating nutMS21060L41
RivetAS164468
Floating nutMS21060L44
RivetAS164468
Floating nutMS21060L44
RivetAN1249718
Floating nutMS21060L44
RivetAS1249718
Floating nutMS21060L44
RivetAN1249718
Floating nutMS21060L44
RivetAN1249718
Floating nutMS21060L44
RivetAN1249712
Floating nutMS21060L41
RivetAN1249718
Floating nutMS21060L44
RivetAN1249712
Floating nutMS21060L41
RivetAN1249712
Floating nutMS21060L41

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-00-350-057 Remove the Damaged Floating Nuts of the Bracket Assembly

      1. Remove the floating nuts.

      1. Use drilling machine.

      2. Center punch rivet head to spot drilling location.

      3. Drill through the head of the rivets.

      4. Use drill 0.089 in. (2.26 mm) (No. 43).

      5. Drive out the rivet bodies using a small hammer and punch.

      2. Remove the sharp edge around the rivet hole.

      1. Use a fine file.

    3. Clean the hole with a soft clean cloth and blast with air.

    2. SUBTASK 72-32-00-220-100 Examine the Rivet Hole of the Bracket Assembly

      1. Visually inspect the rivet hole.

      1. No cracks and burrs are permitted.

    3. SUBTASK 72-32-00-350-058 Install New Floating Nut to the Bracket Assembly

    1. Refer to Figure.

      2. Install new floating nut to the bracket.

      1. Put the new floating nut in position on the flange of the bracket, aligning the rivet holes.

      3. Install the rivets through the bracket and floating nut and using continuous squeezing action, make rivets.

      1. Use rivet squeezer.

    4. SUBTASK 72-32-00-220-101 Examine the Floating Nut of the Bracket Assembly

    1. Refer to Figure.

      2. Visually and dimensionally inspect the formed rivet head.

      1. The rivet must be tight.

      2. Both rivet heads should be correctly seated.

      3. The formed rivet heads should have no cracks or sign of bursting at the periphery.

      4. The formed rivet heads shall not be offset from the stem.

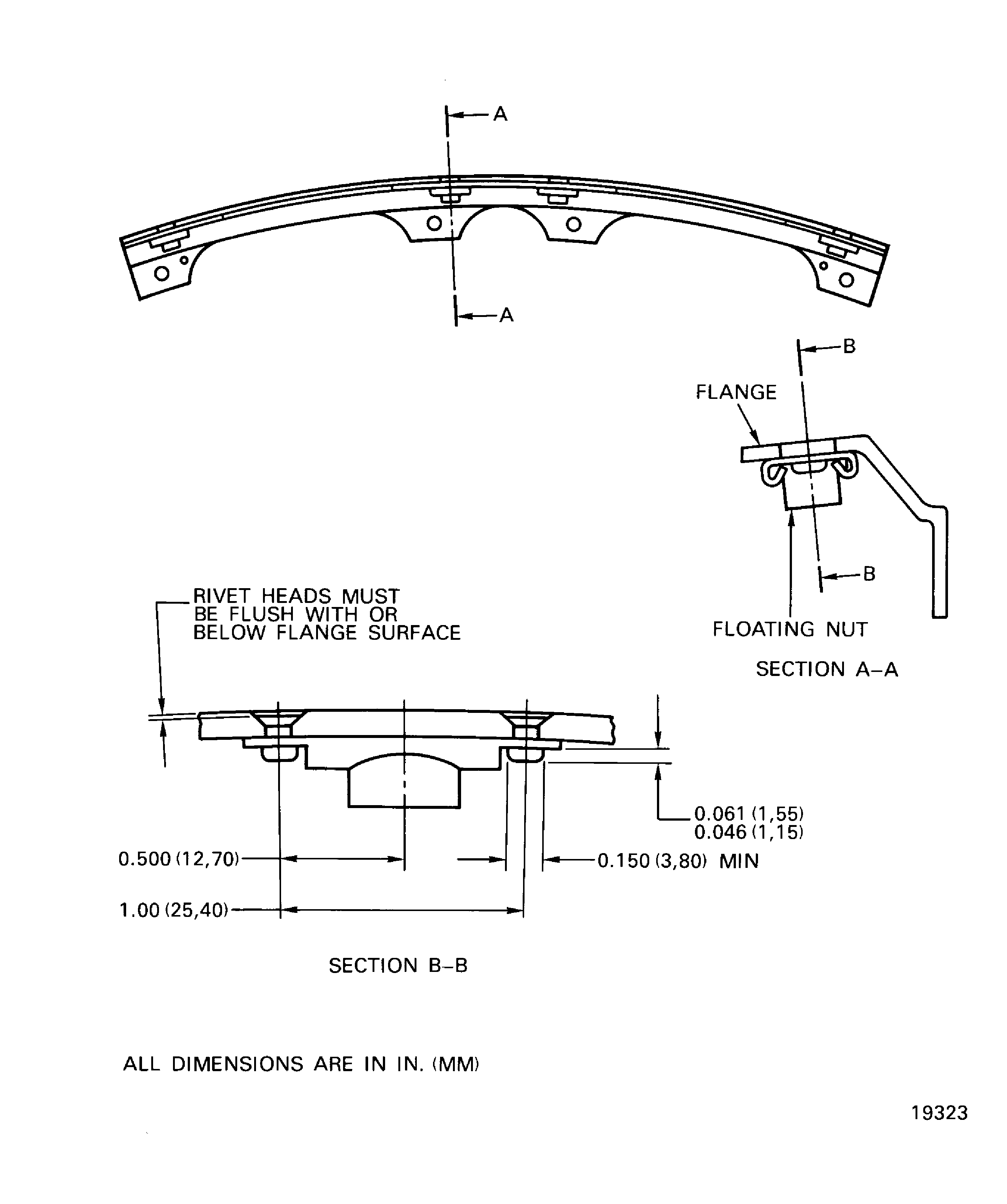

    5. Figure: Replace floating nut of the splitter fairing assembly

    Replace floating nut of the splitter fairing assembly
