TASK 72-32-00-300-006 Bracket Assemblies - Replace The Locating Pins, Repair-006 (VRS1166)

DMC:V2500-A0-72-32-0009-01A-920A-C|Issue No:002.00|Issue Date:2019-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-00-300-006 Bracket Assemblies - Replace The Locating Pins, Repair-006 (VRS1166)

Effectivity

FIG/ITEM

PART NO.

02-700

5A3466

02-710

5A3467

02-720

5A3468

02-730

5A3469

02-880

5A0025

02-890

5A0030

02-900

5A0028

02-910

5A0027

02-920

5A0032

02-930

5A0026

02-940

5A0031

02-950

5A0029

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Bracket

Corrosion and heat resistant

steel

General

Price and availability - none.

The practices and processes referred to in the procedure by the TASK numbers are in SPM.

NOTE

To identify the consumable materials, refer to the Consumable Materials Index.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent penetrant inspection equipmentLOCALFluorescent Penetrant Inspection Equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 03-026 LIQUID NITROGENLOCALCoMat 03-026
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Pin77445AS448002
Pin77445AS448002
Pin77445AS448002
Pin77445AS448002
PIN0AM535A54372
PIN0AM535A54372
PIN0AM535A54372
PIN0AM535A54372
PIN0AM535A54372
PIN0AM535A54372
PIN0AM535A54372
PIN0AM535A54372

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-00-350-059 Remove the Defective Locating Pins from the Bracket Assembly

      1. Inspect and identify defective locating pins.

      1. Refer to Figure and Figure.

      2. Press out defective locating pins.

        1. Use hand tools.

        1. Refer to Figure and Figure.

      3. Examine for damage in the bores.

        1. Scratches are permitted but remove raised metal.

        1. Refer to SPM TASK 70-35-03-300-501.

      4. Dimensionally inspect the pin holes.

        1. Ensure correct interference.

        1. Refer to Figure and Figure.

    2. SUBTASK 72-32-00-230-051 Examine the Bracket Assembly for Cracks

      1. Fluorescent penetrant examine the pin holes.

        1. Make sure there are no cracks in the pin holes.

        1. Refer to SPM TASK 70-23-05-230-501.

    3. SUBTASK 72-32-00-380-052 Install the New Locating Pins

      1. Clean the locating pins and the pin holes.

      1. Use clean dry air blast or CoMat 02-099 LINT-FREE CLOTH.

      2. Freeze the locating pins.

        1. Freeze the locating pin to aid replacement into pin hole.

      3. Install and press the locating pins into the holes.

      1. Use hand tools.

      2. Refer to Figure and Figure.

    4. SUBTASK 72-32-00-350-060 Examine the Pin Seating

      1. Visually examine the pin seating.

        1. Pin shoulder must be located against flange face.

        1. Refer to Figure and Figure.

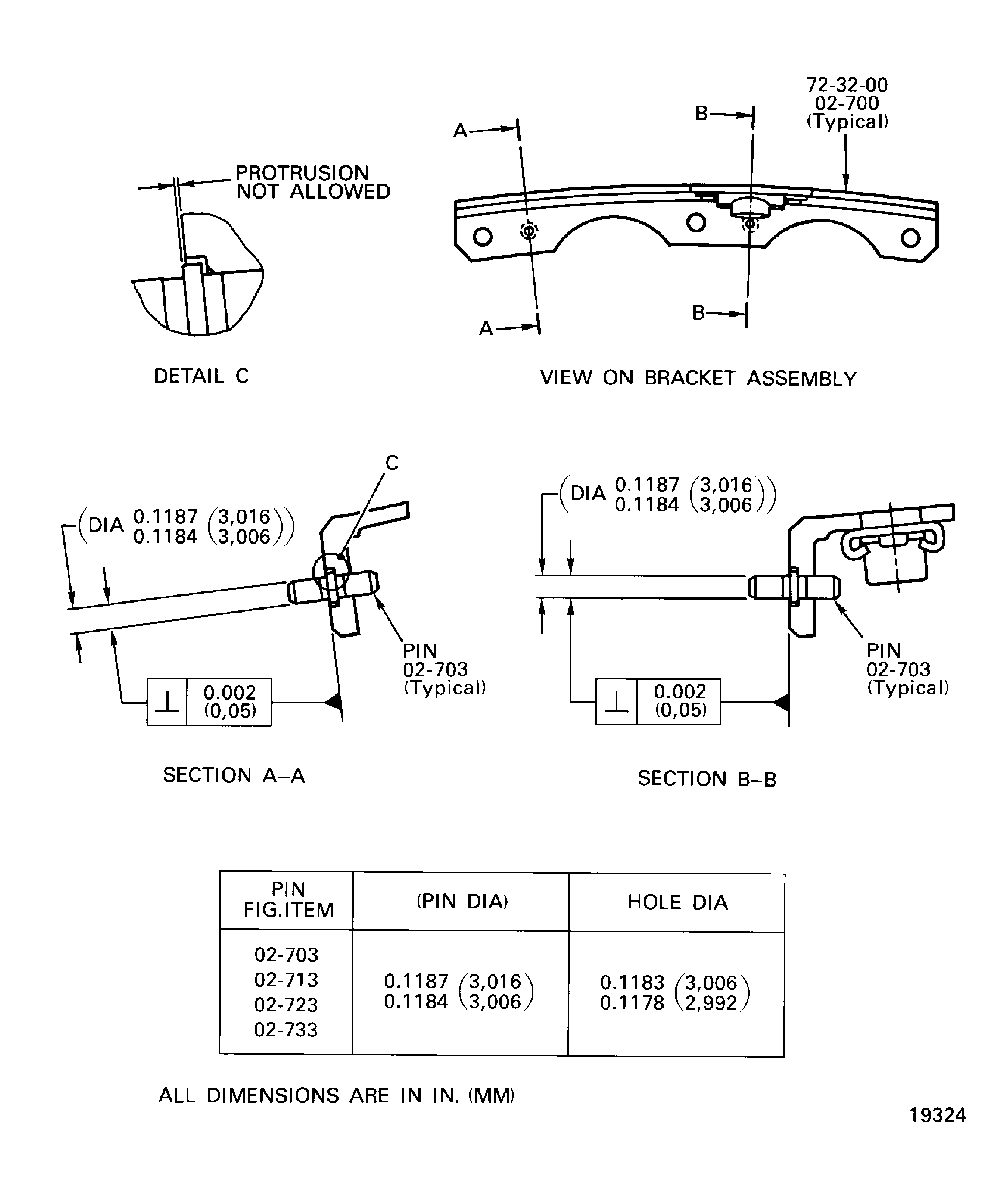

    5. Figure: Bracket Assembly - Replace the locating pins

    Bracket Assembly - Replace the locating pins

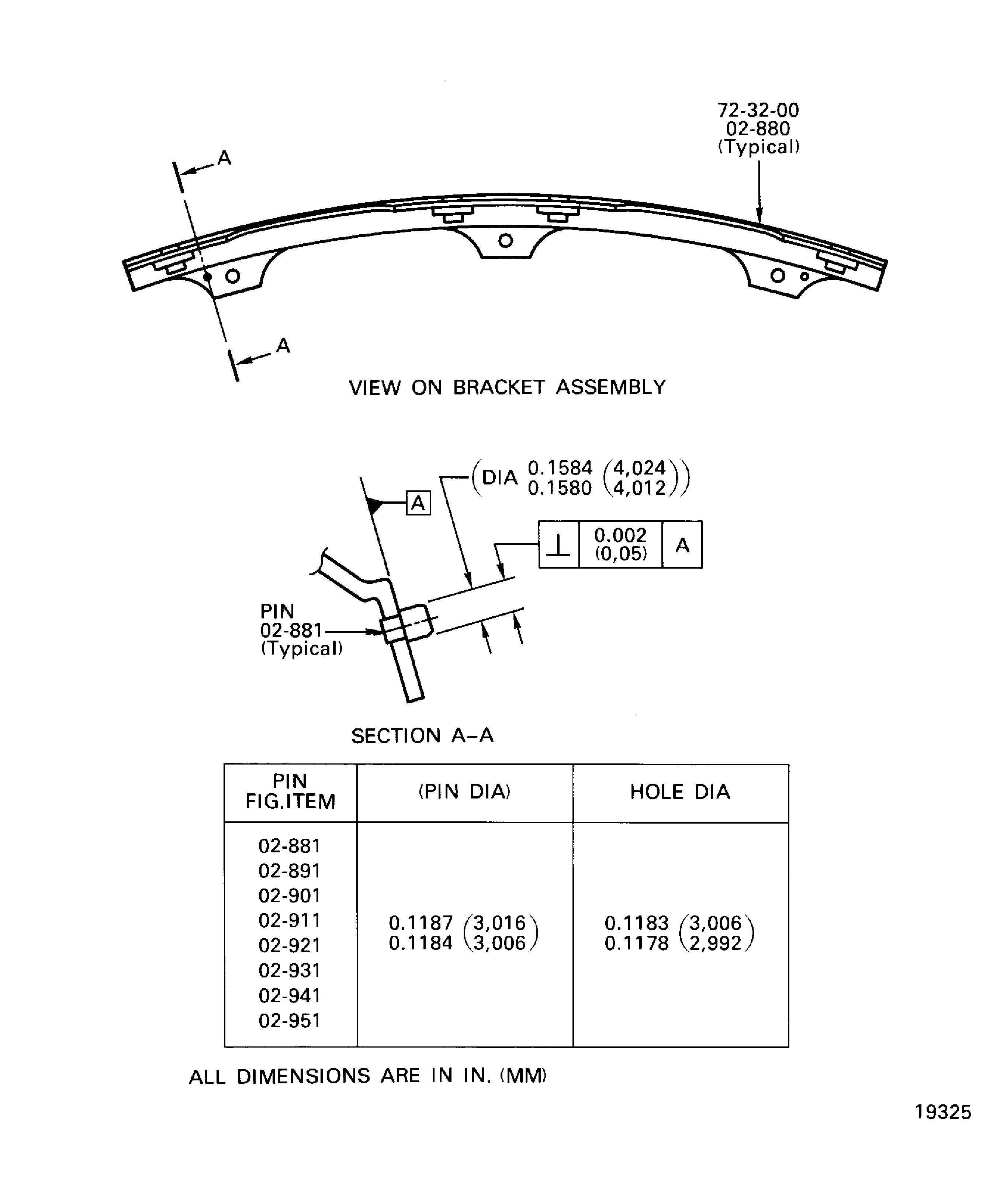

    Figure: Bracket Assembly - Replace the locating pins

    Bracket Assembly - Replace the locating pins
