TASK 72-32-03-300-004 Fan Frame - Blend Repair, Repair-004 (VRS1180)

DMC:V2500-A0-72-32-0301-00A-649A-C|Issue No:003.00|Issue Date:2020-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-03-300-004 Fan Frame - Blend Repair, Repair-004 (VRS1180)

Effectivity

FIG/ITEM

PART NO.

03-100

5A6592

03-100

5A0256

03-100

5A6596

03-100

5A0395

03-100

5A0397

03-100

5A0399

03-100

5A0856

03-100

5A0401

03-100

5A0366

03-100

5A0365

03-100

5A0364

03-100

5A0363

03-100

5A0362

03-100

5A0349

03-100

5A0403

03-100

5A0405

03-100

5A0407

03-100

5A0409

03-100

5A0230

03-100

5A0267

03-100

5A1047

03-100

5A1087

03-100

5A1448

03-100

5A0423

03-100

5A1424

03-100

5A1654

03-100

5A1049

03-100

5A1062

03-100

5A1064

03-100

5A1066

03-100

5A1068

03-100

5A1167

03-100

5A1652

03-100

5A1377

03-100

5A0083

03-100

5A0359

03-100

5A1070

03-100

5A1072

03-100

5A1074

03-100

5A1763

03-100

5A1764

03-100

5A1765

03-100

5A1766

03-100

5A1767

03-100

5A1768

03-100

5A1769

03-100

5A1770

03-100

5A1771

03-100

5A1772

03-100

5A1773

03-100

5A1774

03-100

5A1775

03-100

5A1776

03-100

5A1777

03-100

5A1778

03-100

5A1779

03-100

5A1780

03-100

5A1781

03-100

5A1782

03-100

5A1783

03-100

5A1784

03-100

5A1785

03-100

5A1786

03-100

5A1787

03-100

5A1788

03-100

5A1789

03-100

5A1790

03-100

5A1791

03-100

5A1792

03-100

5A1828

03-100

5A1824

Material of component

PART IDENT

SYMBOL

MATERIAL

Fan frame assembly

Titanium alloy

General

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Price and availability - none

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-03-350-068 Remove the Damage from the Fan Frame Assembly

    1. Refer to Figure, Figure, Figure and Figure.

      2. CAUTION

        THE WHEELS, STONES AND ABRASIVE PAPERS USED TO DRESS, MAKE SMOOTH OR POLISH A TITANIUM COMPONENT MUST BE OF THE SILICON CARBIDE TYPE. ALUMINIUM OXIDE TYPES MUST NOT BE USED.

        CAUTION

        IF MECHANICAL CUTTERS ARE USED, ONLY SMALL CUTS MUST BE MADE TO PREVENT TOO MUCH HEAT.

        Make smooth and/or hand polish to remove nicks, dents, scores and galls.

      1. Use abrasive stones and/or fine file and paper.

      3. Refer to the SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-32-03-220-112 Examine the Fan Frame Assembly

      1. Visually examine the repaired area.

      1. Visually examine the repaired area for nicks, dents, scores and galls.

      2. Use a 10X magnifying glass.

      3. Refer to TASK 72-32-03-200-000 (INSPECTION-000).

    3. SUBTASK 72-32-03-230-065 Examine the Fan Frame Assembly for Cracks

      1. Fluorescent penetrant examine the repaired area.

      1. Make sure that there are no cracks in the repaired area.

      2. Refer to the SPM TASK 70-23-05-230-501.

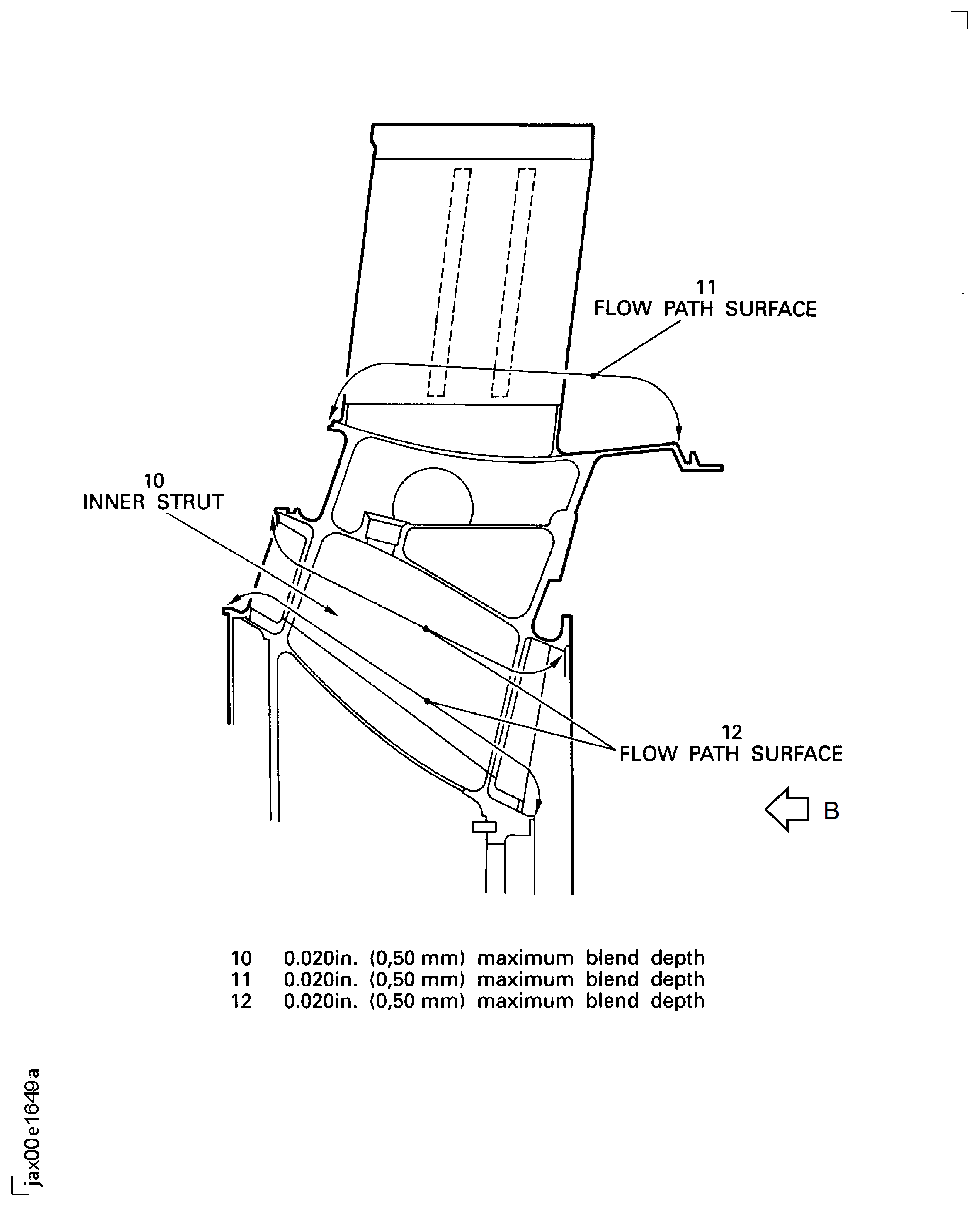

    4. Figure: Fan frame assembly - repair limits

    Fan frame assembly - repair limits

    Figure: Fan frame assembly - repair limits

    Fan frame assembly - repair limits

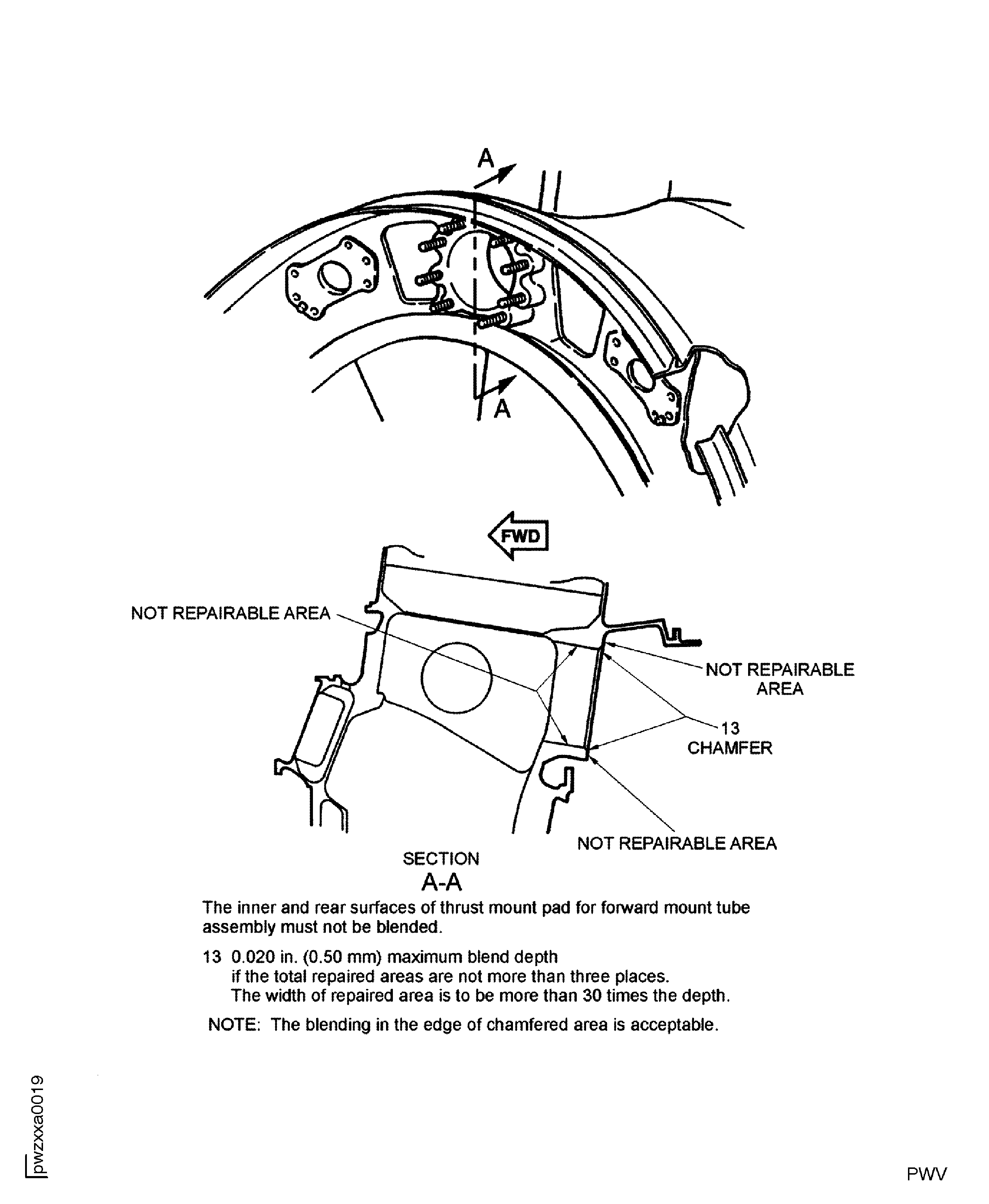

    Figure: Fan Frame Assembly - Repair Limits

    Fan Frame Assembly - Repair Limits

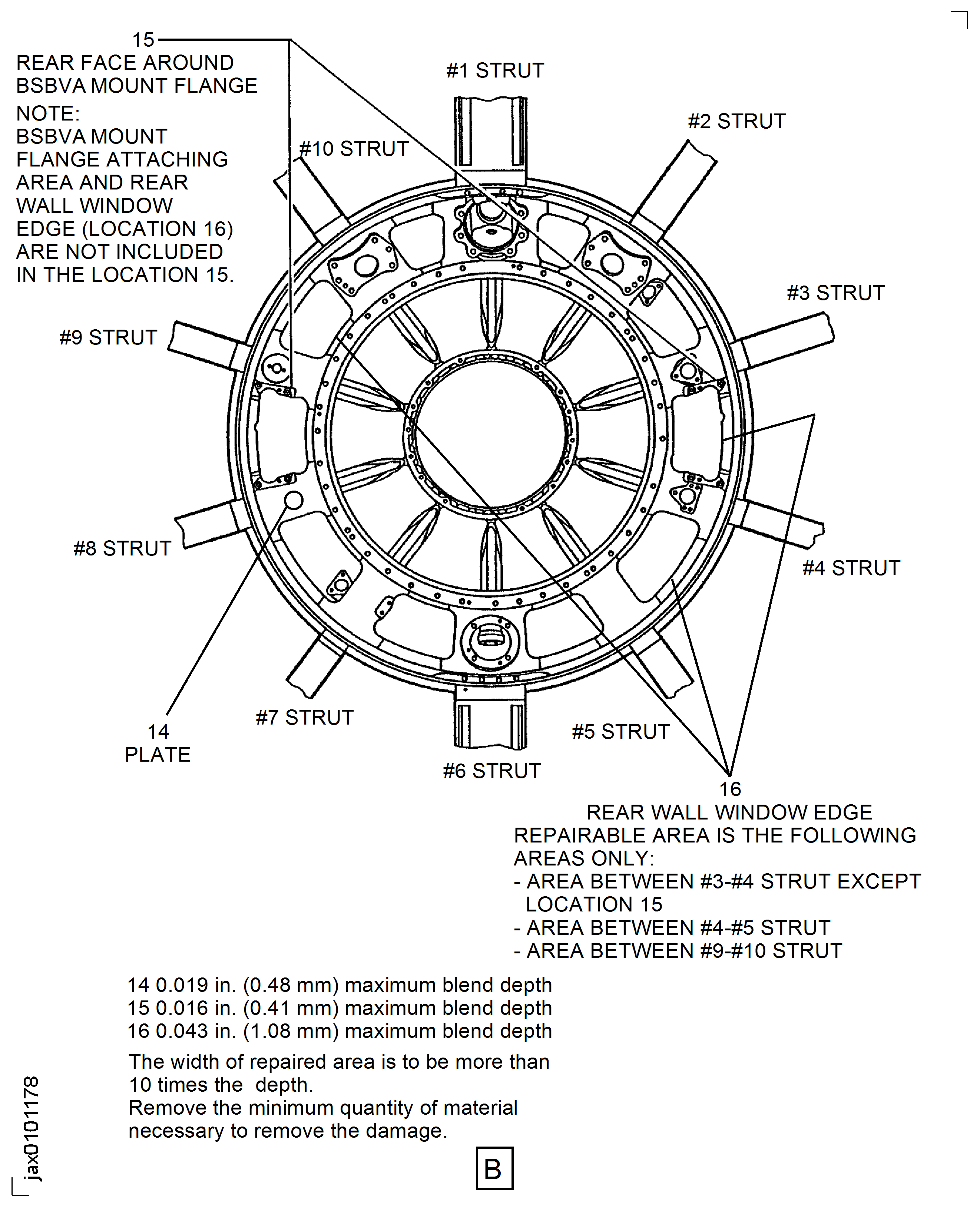

    Figure: Fan Frame Assembly - Repair Limits At Rear Face

    Fan Frame Assembly - Repair Limits At Rear Face

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised step, figure and added figure. (87VJ853G)

Manufacturer Code:44197
Enterprise Name:SAINT-GOBAIN INDUSTRIAL CERAMICS INC.
BU Name:SAINT-GOBAIN ABRASIVES, INC
Street:ONE NEW BOND STREET
P.O. Box:PO BOX 15008
City:WORCESTER
State:MA
Zip Code:01615-0008
Country:USA
Phone Number:1-508-795-5000
Fax Number:1-508-795-2828
Internet:www.saint-gobain-northamerica.com
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:1E1X8
Supply Number:CoMat 05-020
Type:sp01
Supply Short Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/33 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 320 (ANSI B74.18)
JCR-027 (JAEC REF)
JCR-186 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
LOCAL
K6835
Manufacturer Code:1E1X8
Supply Number:CoMat 05-021
Type:sp01
Supply Short Name:CoMat 05-021 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-021 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/35 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 240 (ANSI B74.18 )
JCR-188 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
K6835
LOCAL
