TASK 72-32-03-300-007 Fan Frame - Replace The Plate Nut, Repair-007 (VRS1184)

DMC:V2500-A0-72-32-0301-01A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-03-300-007 Fan Frame - Replace The Plate Nut, Repair-007 (VRS1184)

Effectivity

FIG/ITEM

PART NO.

03-100

5A0083

Assembly A

03-100

5A0256

Assembly A

03-100

5A0362

Assembly A

03-100

5A0363

Assembly A

03-100

5A0364

Assembly A

03-100

5A0366

Assembly A

03-100

5A0395

Assembly A

03-100

5A0397

Assembly A

03-100

5A0399

Assembly A

03-100

5A0401

Assembly A

03-100

5A0403

Assembly A

03-100

5A0405

Assembly A

03-100

5A0409

Assembly A

03-100

5A1062

Assembly A

03-100

5A1064

Assembly A

03-100

5A1066

Assembly A

03-100

5A1068

Assembly A

03-100

5A6592

Assembly A

03-100

5A0349

Assembly B

03-100

5A0365

Assembly B

03-100

5A0407

Assembly B

03-100

5A6596

Assembly B

03-100

5A0856

Assembly B

03-100

5A1047

Assembly B

03-100

5A1049

Assembly B

03-100

5A1167

Assembly B

03-100

5A1087

Assembly B

03-100

5A1448

Assembly B

03-100

5A1652

Assembly B

03-100

5A0423

Assembly B

03-100

5A1377

Assembly B

03-100

5A1424

Assembly B

03-100

5A1654

Assembly B

03-100

5A0359

Assembly A

03-100

5A1070

Assembly A

03-100

5A1072

Assembly A

03-100

5A1074

Assembly A

03-100

5A1763

Assembly A

03-100

5A1764

Assembly A

03-100

5A1769

Assembly A

03-100

5A1770

Assembly A

03-100

5A1771

Assembly A

03-100

5A1772

Assembly A

03-100

5A1775

Assembly A

03-100

5A1776

Assembly A

03-100

5A1777

Assembly A

03-100

5A1778

Assembly A

03-100

5A1781

Assembly A

03-100

5A1782

Assembly A

03-100

5A1783

Assembly A

03-100

5A1784

Assembly A

03-100

5A1785

Assembly A

03-100

5A1786

Assembly A

03-100

5A1787

Assembly A

03-100

5A1788

Assembly A

03-100

5A1789

Assembly A

03-100

5A1790

Assembly A

03-100

5A1791

Assembly A

03-100

5A1792

Assembly A

03-100

5A1765

Assembly B

03-100

5A1766

Assembly B

03-100

5A1767

Assembly B

03-100

5A1768

Assembly B

03-100

5A1773

Assembly B

03-100

5A1774

Assembly B

03-100

5A1779

Assembly B

03-100

5A1780

Assembly B

03-100

5A1828

Assembly B

03-100

5A1824

Assembly B

Material of component

PART IDENT

SYMBOL

MATERIAL

Fan frame

Titanium alloy

General

Price and availability - none

NOTE

Riveting tools can be obtained from;

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Drilling machineLOCALDrilling machine
Power riveter (G702)LOCALPower riveter (G702)
Pulling head (H702-3NPR)LOCALPulling head (H702-3NPR)
Power riveter (G784)LOCALPower riveter (G784)
Pulling head (H681-3C)LOCALPulling head (H681-3C)
pulling head (H681-4C)LOCALpulling head (H681-4C)
Pulling head (H9055-4)LOCALPulling head (H9055-4)

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 06-064 FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY)LOCALCoMat 06-064

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Plate nut4W0039AR

(Assembly A only)

RivetCCR264CS3-3AR

(Assembly A only)

RivetCR2662-4-5AR
RivetCR2562M4-05AR
RivetCR2572-4-05AR
Plate nutF1968C5AR
Plate nutNAS1473C5AR

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-03-350-064 Remove the Damaged Plate Nuts of the Fan Frame Assembly

      1. Remove the plate nuts.

      1. Center punch rivet head to spot drilling.

        Drill through the head of rivet.

        Use drill as follows,

        A drill of 0.086 in. (2.2 mm) diameter for Fig/item 03-114, Part No.CCR264CS3-3.

        A drill of 0.118 in. (3.0 mm) diameter for Fig/item 03-148, Part No.CR2662-4-5, CR2562M4-05 or CR2572-4-05.

        Drive out rivet bodies using a small hammer and punch.

      2. Remove sharp edge around the rivet hole.

      1. Refer to the SPM TASK 70-35-03-300-501.

    3. Clean the hole with a soft clean cloth and blast with air.

    2. SUBTASK 72-32-03-220-092 Examine the Rivet Hole of the Fan Frame Assembly

    1. Refer to Figure.

      2. Visually examine the rivet hole.

      1. Cracks, nicks, scratches and burrs are not permitted.

    3. Dimensionally examine the rivet hole.

    3. SUBTASK 72-32-03-230-078 Examine the Rivet Hole of the Fan Frame Assembly

      1. Do a crack test for the rivet holes.

    4. SUBTASK 72-32-03-350-065 Fit New Plate Nut to the Fan Frame Assembly

    1. Refer to: Figure, Figure and Figure

      2. Install new plate nut to the flange of the frame.

      1. Put new plate nut in position on the flange of the frame, aligning rivet holes.

      3. Install rivet through the flange and the plate nut from rivet.

      1. Use G702 power riveter and H702-3NPR pulling head for 03-110 plate nut and 03-114 rivet.

        Use G784 power riveter and H681-3C pulling head for (for CR2662-4-5) and H681-4C pulling head (for CR256M4-05) and H9055-4 pulling head (for CR2572-4-05) for 03-149 plate nut and 03-148 rivet.

    5. SUBTASK 72-32-03-220-093 Examine the Plate Nut of the Fan Frame Assembly

    1. Refer to Figure, Figure and Figure .

      2. Visually and dimensionally examine the formed rivet head.

      1. The rivet must be tight.

        Both rivet heads should be correctly seated.

        The formed rivet head should have no cracks or sign of bursting at the periphery.

        The formed rivet head shall not be offset from stem.

      3. Visually and dimensionally examine the plate nut.

      1. The plate nut must be tight.

        The seal of plate nut must be correctly seated.

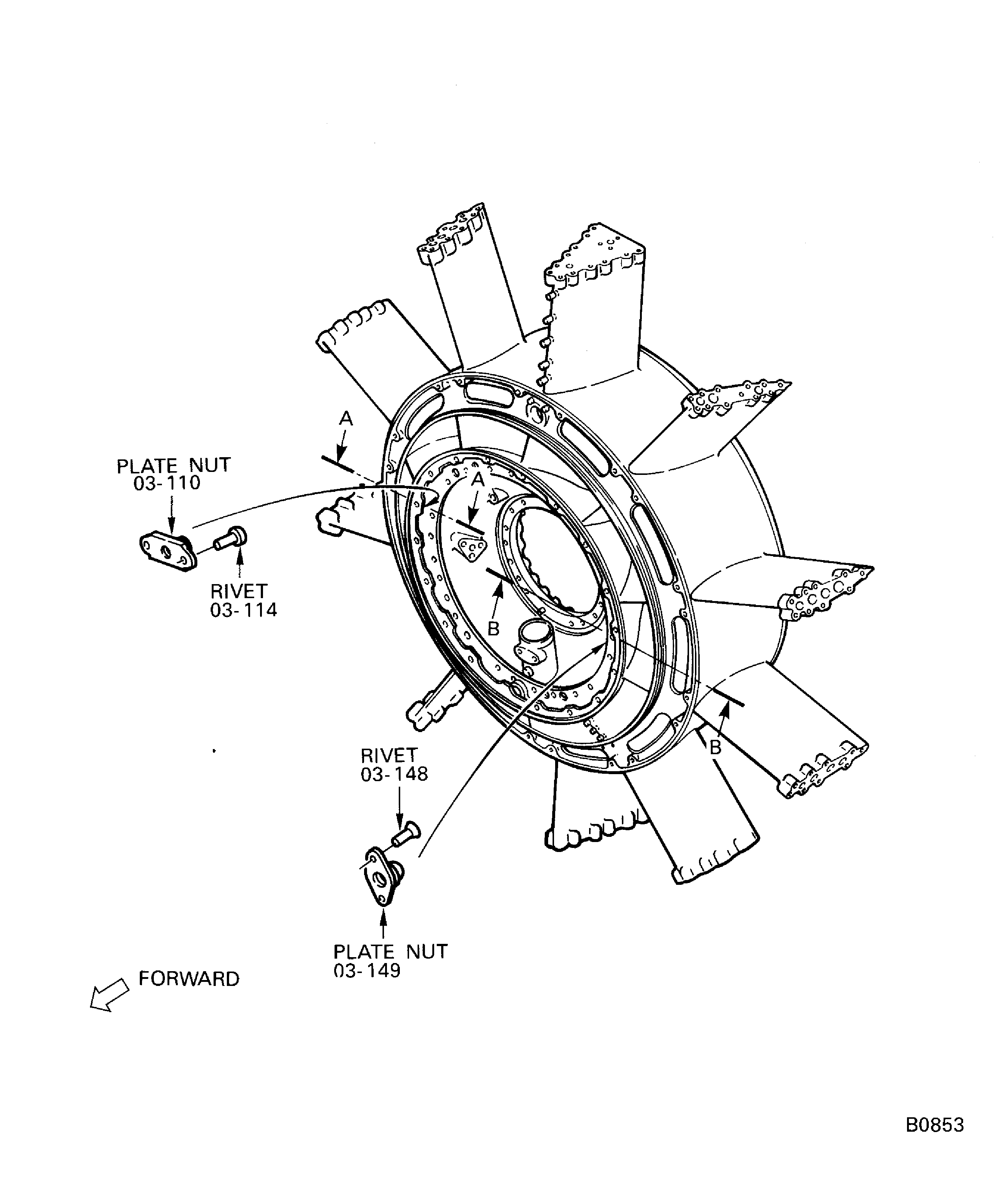

    6. Figure: Replace the plate nut of the fan frame assembly

    Replace the plate nut of the fan frame assembly

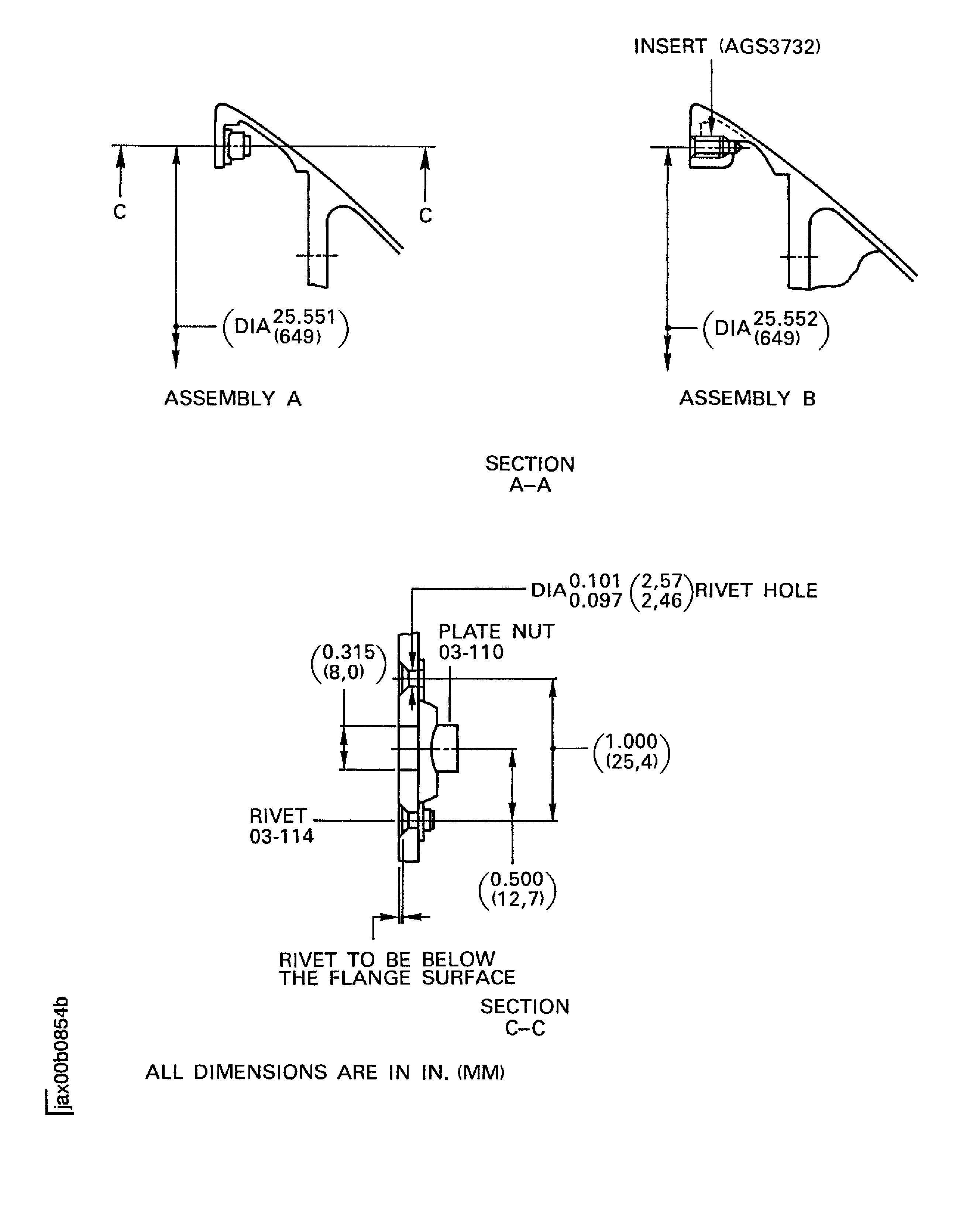

    Figure: Replace the plate nut of the fan frame assembly

    Replace the plate nut of the fan frame assembly

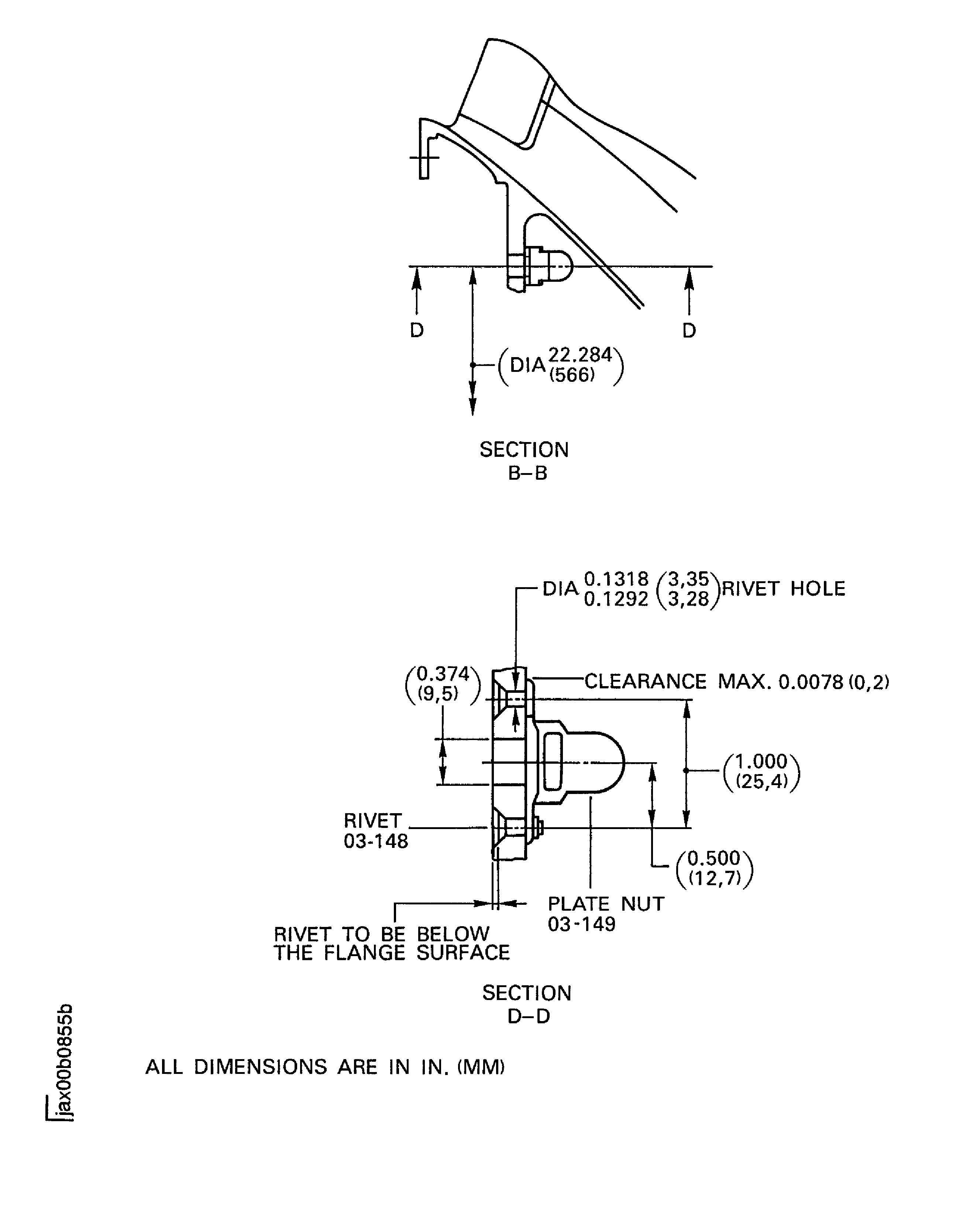

    Figure: Replace the plate nut of the fan frame assembly

    Replace the plate nut of the fan frame assembly

Requirements After Job Completion

Follow-On Conditions

NONE
