TASK 72-32-03-300-009 Fan Frame - Replace The Locating Pins, Repair-009 (VRS1190)

DMC:V2500-A0-72-32-0301-03A-920A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-03-300-009 Fan Frame - Replace The Locating Pins, Repair-009 (VRS1190)

Effectivity

FIG/ITEM

PART NO.

03-100

5A6592

Assembly A

03-100

5A0256

Assembly A

03-100

5A0349

Assembly A

03-100

5A0362

Assembly A

03-100

5A0363

Assembly A

03-100

5A0364

Assembly A

03-100

5A0365

Assembly A

03-100

5A0366

Assembly A

03-100

5A0401

Assembly A

03-100

5A0403

Assembly A

03-100

5A0405

Assembly A

03-100

5A0407

Assembly A

03-100

5A0409

Assembly A

03-100

5A6596

Assembly A

03-100

5A0395

Assembly A

03-100

5A0397

Assembly A

03-100

5A0399

Assembly A

03-100

5A0856

Assembly A

03-100

5A1047

Assembly A

03-100

5A1049

Assembly A

03-100

5A1062

Assembly A

03-100

5A1064

Assembly A

03-100

5A1066

Assembly A

03-100

5A1068

Assembly A

03-100

5A1167

Assembly A

03-100

5A1087

Assembly B

03-100

5A1448

Assembly B

03-100

5A1652

Assembly B

03-100

5A0423

Assembly B

03-100

5A1377

Assembly B

03-100

5A1424

Assembly B

03-100

5A1654

Assembly B

03-100

5A0083

Assembly A

03-100

5A0359

Assembly A

03-100

5A1070

Assembly A

03-100

5A1072

Assembly A

03-100

5A1074

Assembly A

03-100

5A1763

Assembly A

03-100

5A1764

Assembly A

03-100

5A1765

Assembly A

03-100

5A1766

Assembly A

03-100

5A1767

Assembly A

03-100

5A1768

Assembly A

03-100

5A1769

Assembly A

03-100

5A1770

Assembly A

03-100

5A1771

Assembly A

03-100

5A1772

Assembly A

03-100

5A1773

Assembly A

03-100

5A1774

Assembly A

03-100

5A1775

Assembly A

03-100

5A1776

Assembly A

03-100

5A1777

Assembly A

03-100

5A1778

Assembly A

03-100

5A1779

Assembly A

03-100

5A1780

Assembly A

03-100

5A1781

Assembly A

03-100

5A1782

Assembly A

03-100

5A1783

Assembly A

03-100

5A1784

Assembly A

03-100

5A1785

Assembly A

03-100

5A1786

Assembly A

03-100

5A1787

Assembly A

03-100

5A1788

Assembly A

03-100

5A1789

Assembly A

03-100

5A1790

Assembly A

03-100

5A1791

Assembly A

03-100

5A1792

Assembly A

03-100

5A1828

Assembly B

03-100

5A1824

Assembly B

Material of component

PART IDENT

SYMBOL

MATERIAL

Fan frame

Titanium alloy

General

Price and availability - none

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Hand toolsLOCALTools, hand

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 03-026 LIQUID NITROGENLOCALCoMat 03-026
CoMat 06-064 FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY)LOCALCoMat 06-064

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Pin5A1456A/R

(assembly B)

Pin5A1195A/R
PinAS44806A/R
PinAS44814A/R

(assembly A)

PinAS44806A/R
Pin5A1222A/R
Pin5A1222A/R
PinAS44806A/R
PinAS44806A/R
PinAS44814A/R

(assembly A)

Pin5A1456A/R

(assembly B)

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-03-350-061 Remove the Defective Locating Pins from the Frame Assembly

    1. Refer to Figure, Figure and Figure.

    2. Examine and identify defective locating pins.

      3. Push out or pull out defective locating pins.

      1. Use hand tools.

      4. Examine for damage in bores.

      1. Scratches are permitted but remove raised metal.

        Refer to the SPM TASK 70-35-03-300-501.

      5. Dimensionally examine the pin holes.

      1. Ensure correct interference.

    2. SUBTASK 72-32-03-230-060 Examine the Frame Assembly for Cracks

    1. Refer to Figure, Figure and Figure.

      2. Fluorescent penetrant examine the pin holes.

      1. Make sure there are no cracks in the pin holes.

        Refer to the SPM TASK 70-23-05-230-501.

    3. SUBTASK 72-32-03-350-103 Install the New Locating Pins

      1. Clean the locating pins and the pin holes.

      1. Use clean dry air blast or CoMat 02-099 LINT-FREE CLOTH.

      2. Freeze the locating pins.

      1. Freeze the locating pins to aid replacement into pin hole.

      3. Install and push the locating pins into the holes.

      1. Use hand tools.

    4. SUBTASK 72-32-03-220-144 Examine the Pin Seating

    1. Refer to Figure, Figure and Figure.

      2. Visually examine the pin seating.

      1. Pin shoulder must be located against flange face.

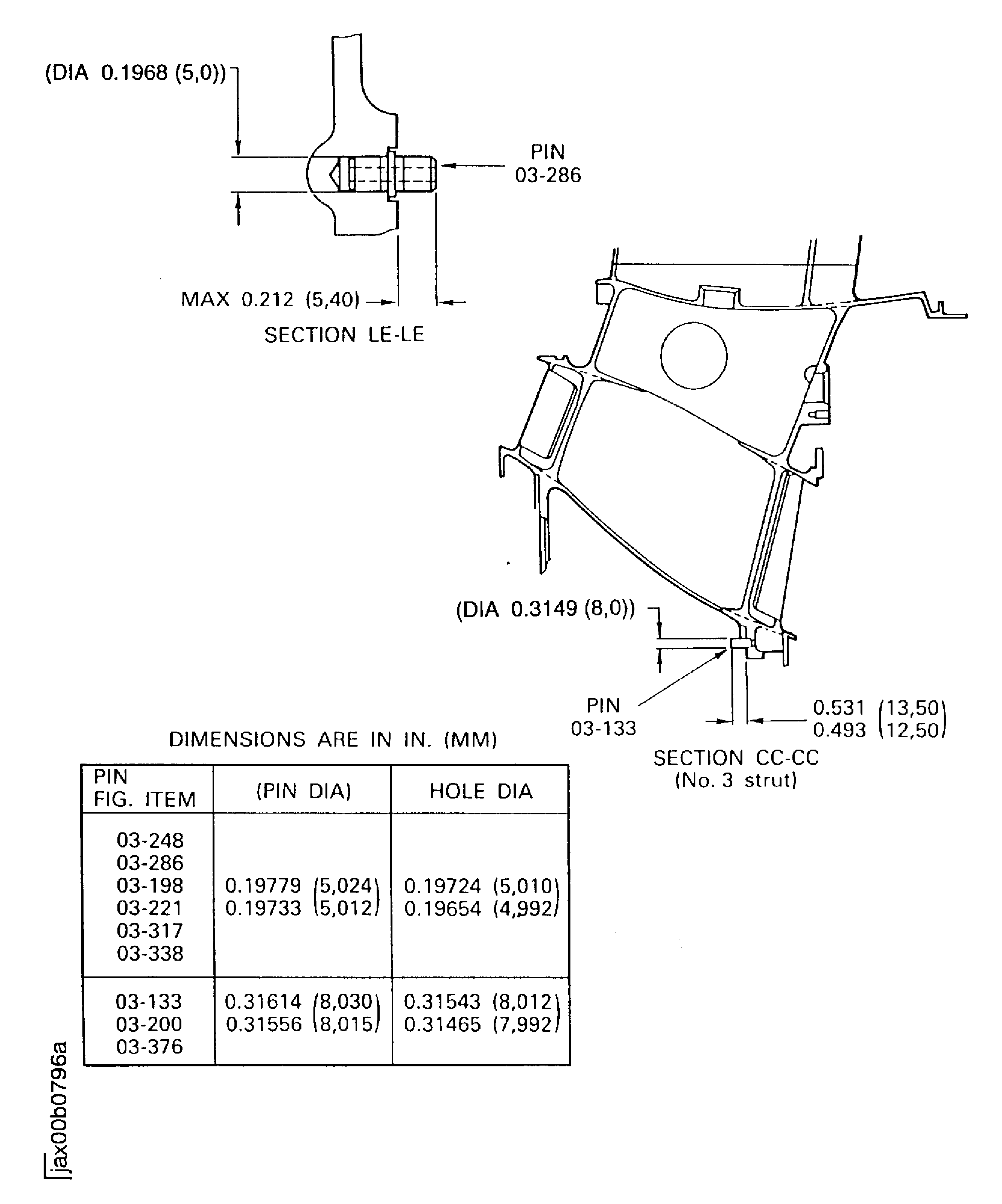

    5. Figure: Replace locating pins of the fan frame assembly

    Replace locating pins of the fan frame assembly

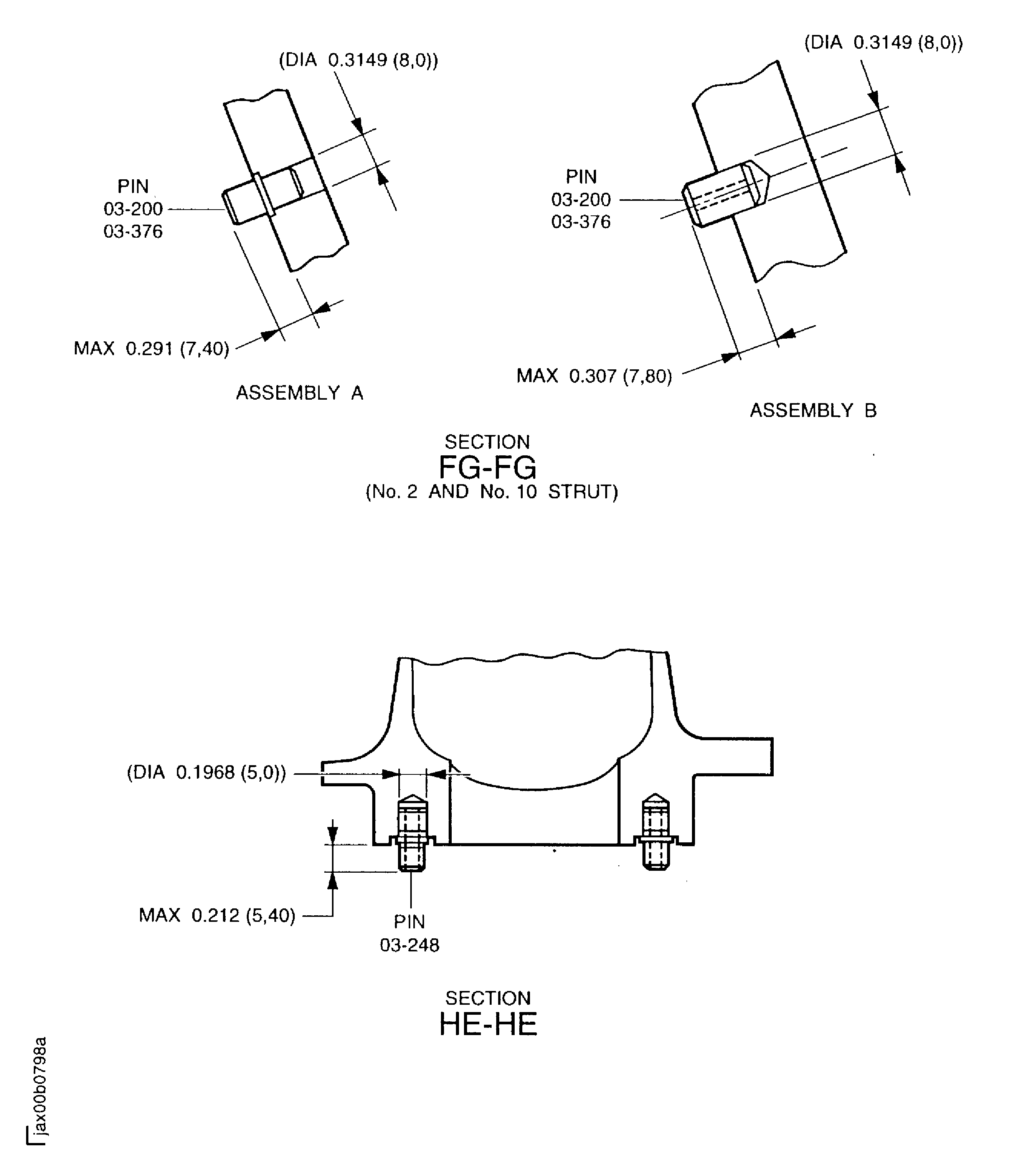

    Figure: Replace locating pins of the fan frame assembly

    Replace locating pins of the fan frame assembly

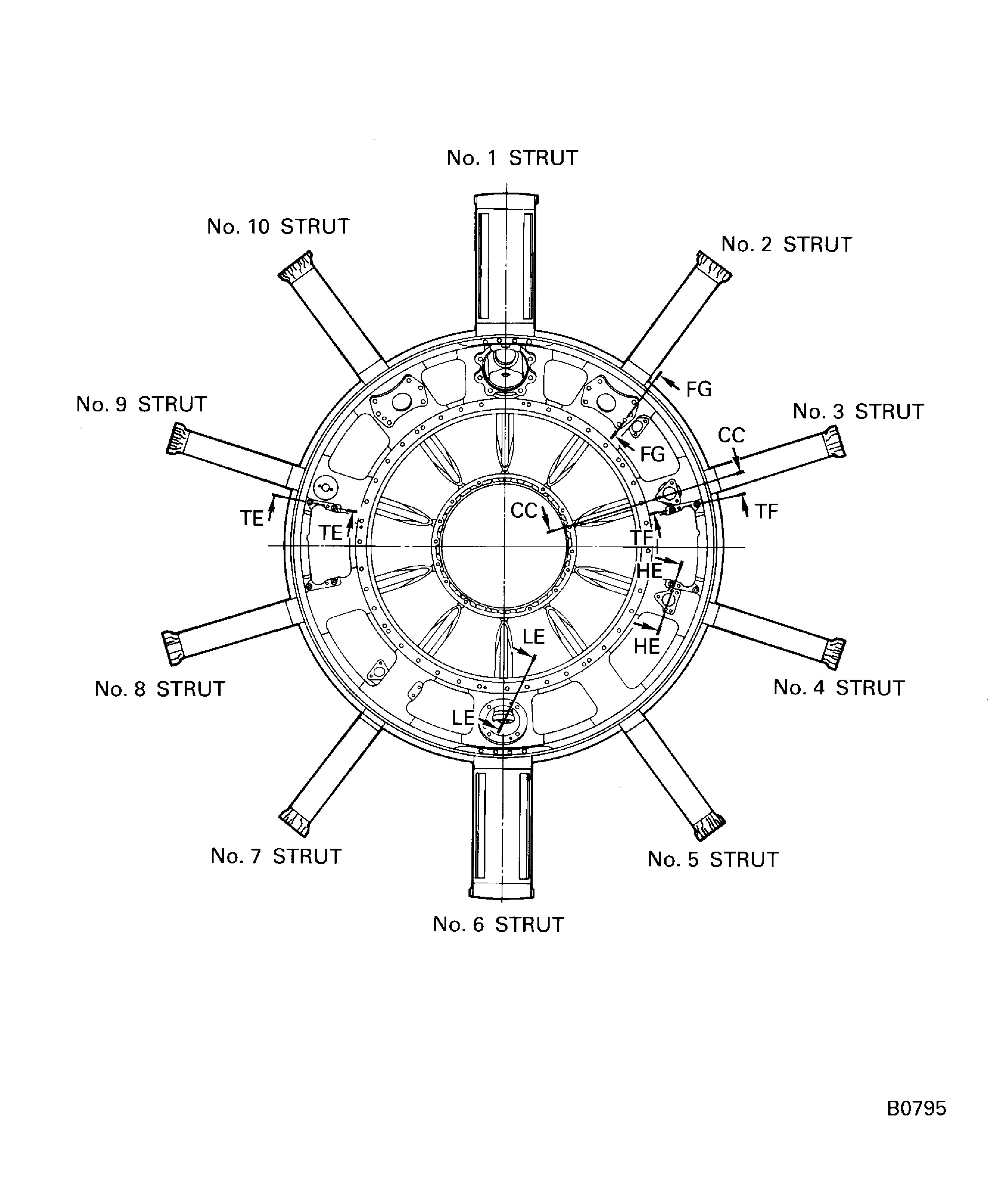

    Figure: Replace locating pins of the fan frame assembly

    Replace locating pins of the fan frame assembly

    Figure: Replace locating pins of the fan frame assembly

    Replace locating pins of the fan frame assembly

Requirements After Job Completion

Follow-On Conditions

NONE
