TASK 72-32-03-300-010 Fan Frame - Replace The Ring Locked Stud For The Mount Tube, Repair-010 (VRS1192)

DMC:V2500-A0-72-32-0301-04A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-03-300-010 Fan Frame - Replace The Ring Locked Stud For The Mount Tube, Repair-010 (VRS1192)

Effectivity

FIG/ITEM

PART NO.

03-100

5A0256

Assembly A

03-100

5A0349

Assembly A

03-100

5A0362

Assembly A

03-100

5A0363

Assembly A

03-100

5A0364

Assembly A

03-100

5A0365

Assembly A

03-100

5A0366

Assembly A

03-100

5A0395

Assembly A

03-100

5A0397

Assembly A

03-100

5A0399

Assembly A

03-100

5A0401

Assembly A

03-100

5A0403

Assembly A

03-100

5A0405

Assembly A

03-100

5A0407

Assembly A

03-100

5A0409

Assembly A

03-100

5A6592

Assembly A

03-100

5A6596

Assembly A

03-100

5A0856

Assembly A

03-100

5A1047

Assembly A

03-100

5A1049

Assembly A

03-100

5A1062

Assembly A

03-100

5A1064

Assembly A

03-100

5A1066

Assembly A

03-100

5A1068

Assembly A

03-100

5A1167

Assembly A

03-100

5A1087

Assembly B

03-100

5A1448

Assembly B

03-100

5A1652

Assembly B

03-100

5A0423

Assembly B

03-100

5A1377

Assembly B

03-100

5A1424

Assembly B

03-100

5A1654

Assembly B

03-100

5A0083

Assembly A

03-100

5A0359

Assembly A

03-100

5A1070

Assembly A

03-100

5A1072

Assembly A

03-100

5A1074

Assembly A

03-100

5A1763

Assembly A

03-100

5A1764

Assembly A

03-100

5A1765

Assembly A

03-100

5A1766

Assembly A

03-100

5A1767

Assembly A

03-100

5A1768

Assembly A

03-100

5A1769

Assembly A

03-100

5A1770

Assembly A

03-100

5A1771

Assembly A

03-100

5A1772

Assembly A

03-100

5A1773

Assembly A

03-100

5A1774

Assembly A

03-100

5A1775

Assembly A

03-100

5A1776

Assembly A

03-100

5A1777

Assembly A

03-100

5A1778

Assembly A

03-100

5A1779

Assembly A

03-100

5A1780

Assembly A

03-100

5A1781

Assembly A

03-100

5A1782

Assembly A

03-100

5A1783

Assembly A

03-100

5A1784

Assembly A

03-100

5A1785

Assembly A

03-100

5A1786

Assembly A

03-100

5A1787

Assembly A

03-100

5A1788

Assembly A

03-100

5A1789

Assembly A

03-100

5A1790

Assembly A

03-100

5A1791

Assembly A

03-100

5A1792

Assembly A

03-100

5A1828

Assembly B

03-100

5A1824

Assembly B

Material of component

PART IDENT

SYMBOL

MATERIAL

Fan frame assembly

Titanium alloy

Stud, ring (Assembly A)

Steel alloy

Ring, lock

Steel, corrosion resistant

Stud, ring (Assembly B)

Nickel base alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in SPM.

NOTE

The installation and removal tools above can be obtained from:

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Drilling equipmentLOCALDrilling equipment
Step drillLOCALSDC515JF1
WrenchLOCALR1107XW1
Locking drive toolLOCALSF5902-5D1
Removal toolLOCALBT3081

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Stud, ringMS51992A645-14AR

(Assembly A)

Stud, ringMS51992D505D17AR

(Assembly B)

Ring, lockMS51997E105PAR

(Assembly A or B)

Ring, lockMS51997E105PAR

(Assembly A or B)

Stud, ringMS51992A645-14AR

(Assembly A)

Stud, ringMS51992D505D17AR

(Assembly B)

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-03-322-051 Remove the Damaged Stud

      1. Set the fan frame assembly on machine.

      1. Use radial drilling machine.

      2. Install the removal tool in the chuck and lower over the shank before starting motor.

      1. Use removal tool BT308.

        Set spindle speed to 300 to 700 RPM.

    3. Start motor, without raising spindle. Mill the lockring.

      4. Apply removal torque to the stud.

      1. Use wrench R1107XW.

    5. Remove the remaining lockring and stud.

    2. SUBTASK 72-32-03-350-063 Assemble the New Stud

      NOTE

      Replacement of studs and lockring is made with same size parts as those removed. Before driving new lockring, rotate the lockring external serrations to a position aligned with those in parent material.

    1. Refer to Figure and Figure.

    2. Install the new stud in the hole.

    3. Make sure the depth from the parent material surface to the grip end of the stud.

      4. Install and drive the new lockring.

      1. The stud serration and the ring serration must engage.

        The flat side of the lockring must face out.

    5. Make sure the depth from the parent material surface to the lockring surface.

    6. Remove the burr caused by driving the lockring.

    3. SUBTASK 72-32-03-220-091 Examine the Fan Frame Assembly

    1. Refer to Figure and Figure.

    2. Visually and dimensionally examine the lockring assembly.

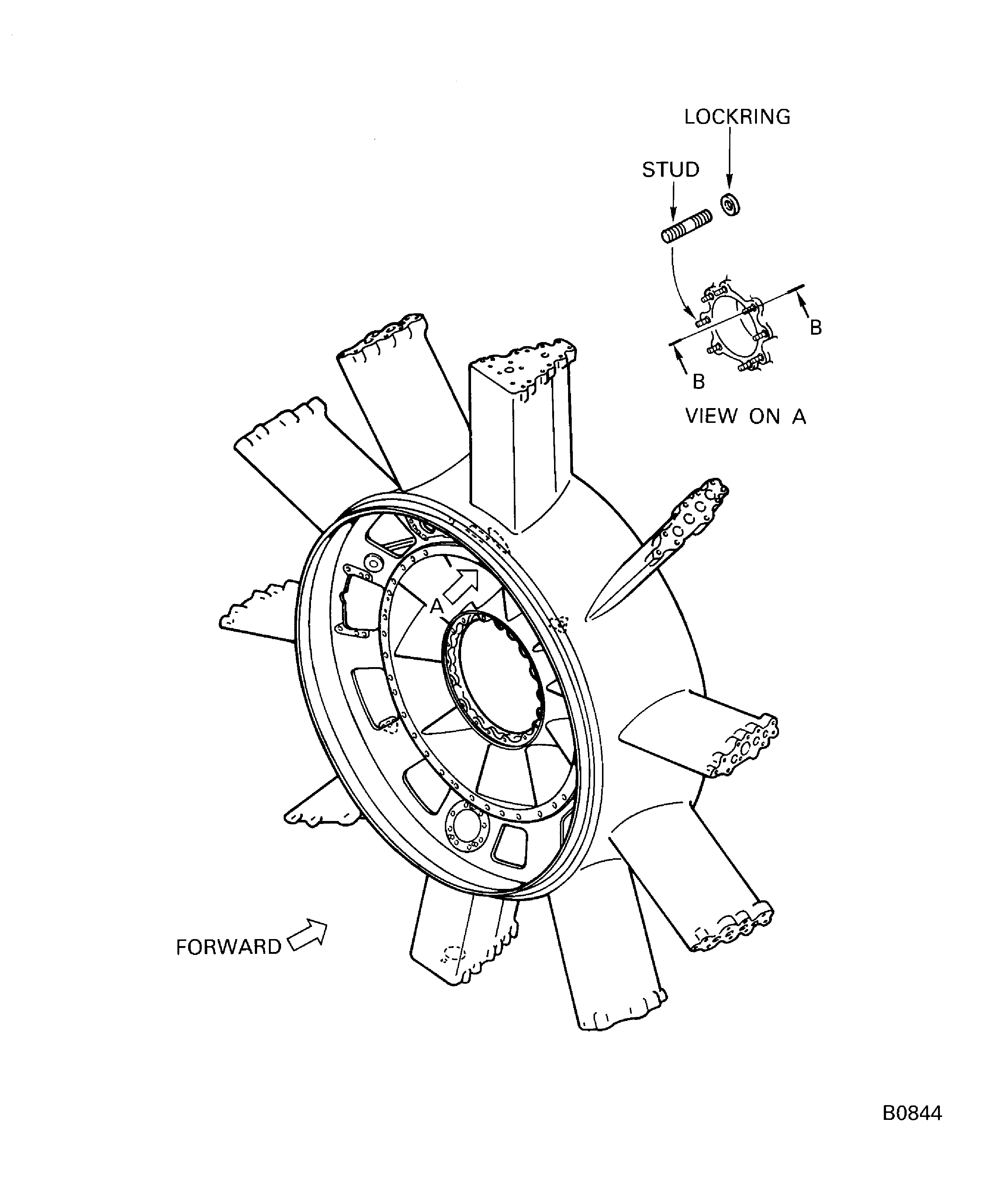

    4. Figure: Fan Frame Assembly - Replace the ring locked stud for the mount tube

    Fan Frame Assembly - Replace the ring locked stud for the mount tube

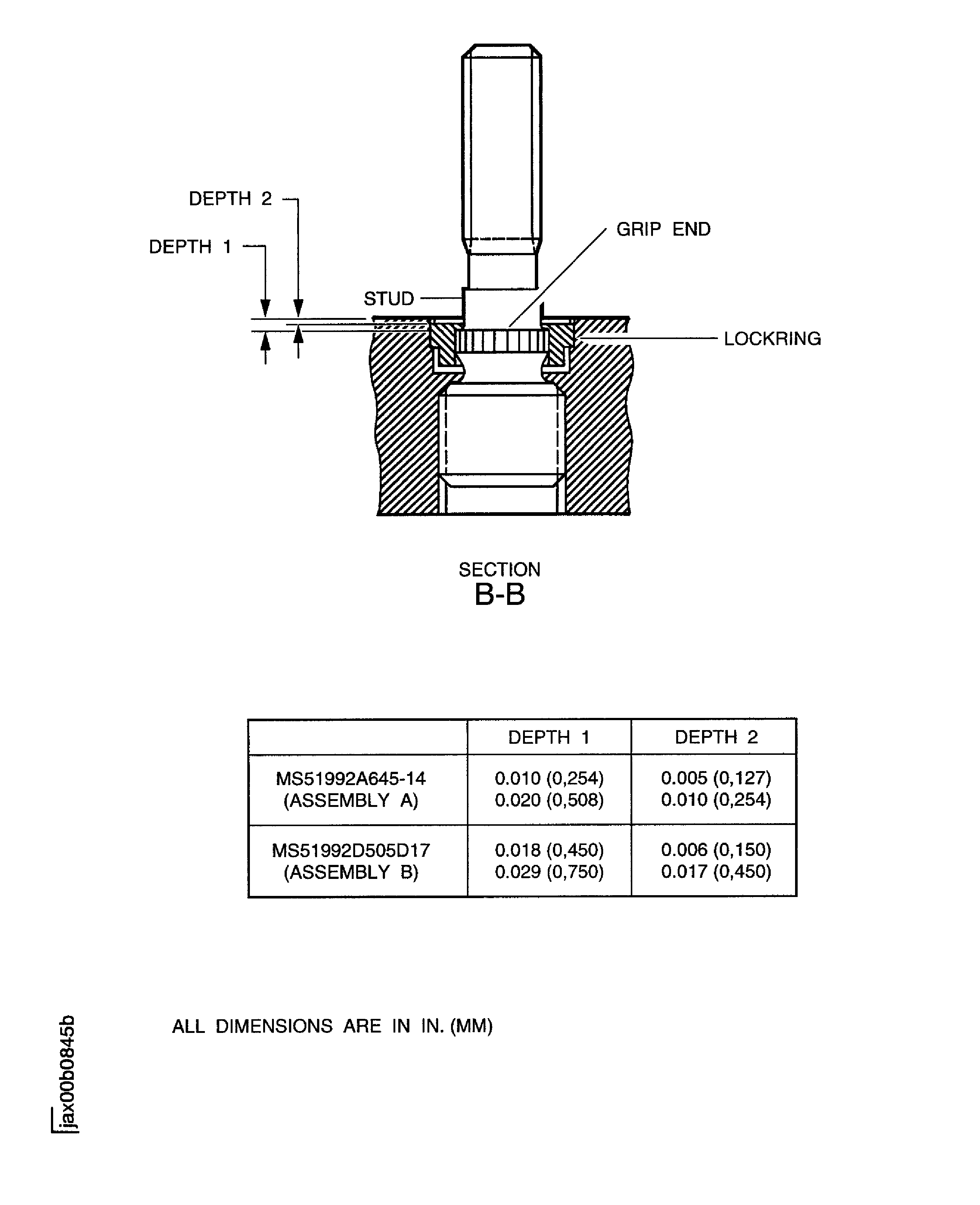

    Figure: Fan Frame Assembly - Replace the ring locked stud for the mount tube

    Fan Frame Assembly - Replace the ring locked stud for the mount tube

Requirements After Job Completion

Follow-On Conditions

NONE
