TASK 72-32-03-300-021 Engine Front Mount Bush - Blend Repair, Repair-021 (VRS1791)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK number are in the SPM.
NOTE
To identify the consumable materials, refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Remove raised metal only.
SUBTASK 72-32-03-350-021 Remove the Damage from the Mount Tube Front Bush
Refer to TASK 72-32-03-200-000 (INSPECTION-000).
Examine the repaired area.
SUBTASK 72-32-03-220-142 Examine the Mount Tube Front Bush

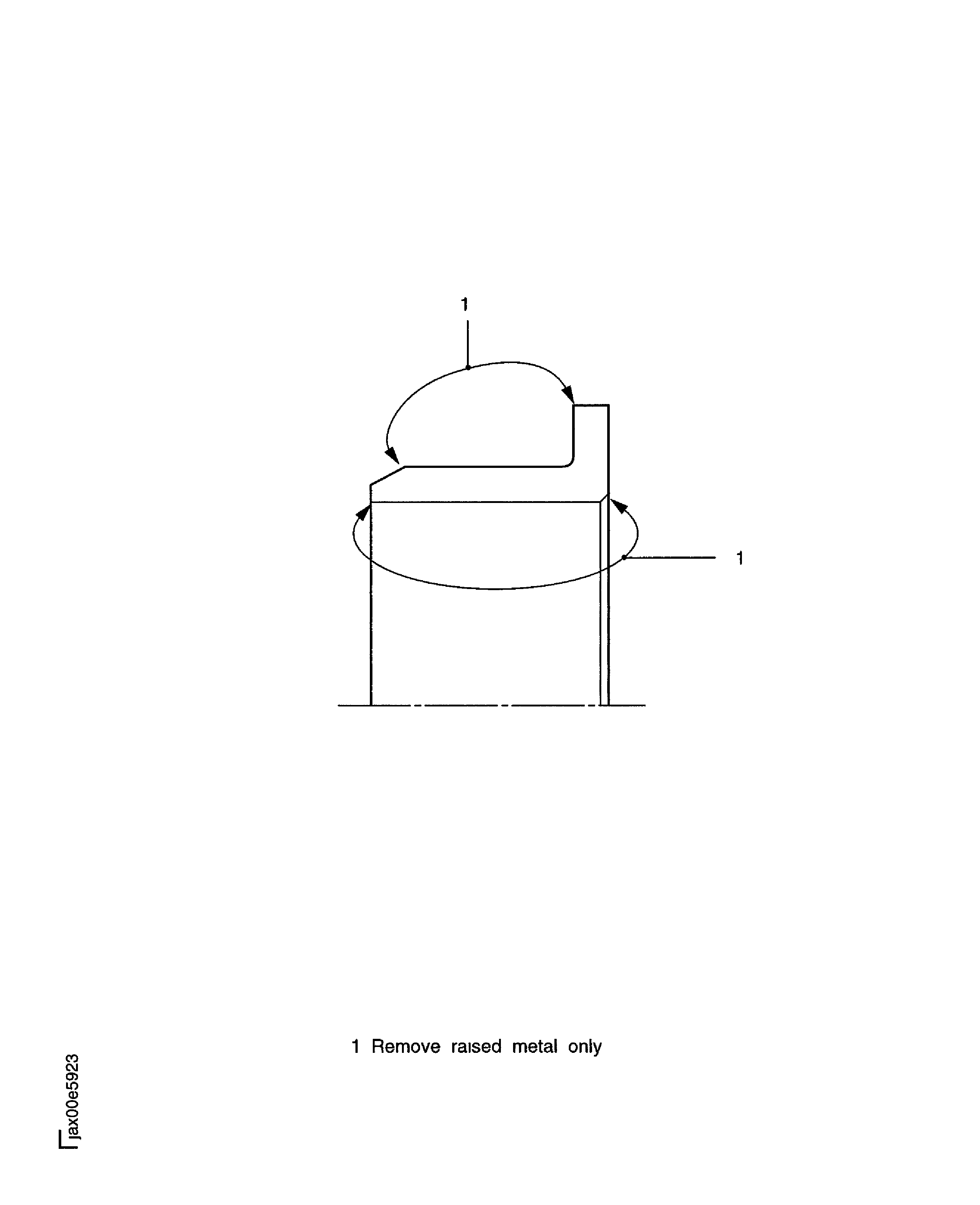

Figure: Mount Tube Front Bush - Repair Limit
Mount Tube Front Bush - Repair Limit
