TASK 72-32-03-300-002 No. 1 And No. 6 Strut Fairing Panel - Replace The Self Locking Plate Nut, Repair-002 (VRS1902)

DMC:V2500-A0-72-32-0313-00A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-03-300-002 No. 1 And No. 6 Strut Fairing Panel - Replace The Self Locking Plate Nut, Repair-002 (VRS1902)

Effectivity

FIG/ITEM

PART NO.

01-200

5A1838

Assembly A

02-100

5A2184

Assembly A

02-100

5A0352

Assembly A

02-100

5A1885

Assembly A

02-100

5A1898

Assembly A

02-300

5A1713

Assembly B

02-300

5A1692

Assembly B

Material of component

PART IDENT

SYMBOL

MATERIAL

No.1 and No.6 strut fairing panel

-

Titanium alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPP.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Hand held pneumatic grinderLOCALHand held pneumatic grinder
Power riveter G784, G702 and G746LOCALPower riveter G784, G702 and G746
Pulling head H681-3C, H890-3, H9055-3 and H955-3LOCALPulling head H681-3C, H890-3, H9055-3 and H955-3
AdapterLOCAL680B46

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Self locking plate nut4W0039AR
Flush head rivetCR2662-3-3AR
RivetCR2672-3-03AR
RivetCR2672-3-03AR
NutMS21076L04NAR
RivetCR2662-3-03AR
RivetCR2672-3-03AR

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-03-350-055-A00 Remove the Damaged Self Locking Plate Nuts of the No.6 Strut Fairing Panel, Assembly A

    1. Refer to Figure.

      2. Grind off upset side of rivets.

      1. Use hand held pneumatic grinder and abrasive wheel.

        Care to be taken that the fairing panel do not become damaged.

      3. Drive out rivet bodies and remove self locking plate nut.

      1. Use a small hammer and punch.

      4. Remove sharp edge around the rivet holes of No. 6 strut fairing panel.

      1. Use fine file.

    5. Clean the hole with a soft clean cloth and blast with air.

    2. SUBTASK 72-32-03-350-055-B00 Remove the Damaged Self Locking Plate Nuts of the No.1 Strut Fairing Panel, Assembly B

    1. Refer to Figure.

      2. Grind off upset side of rivets.

      1. Use Hand held pneumatic grinder and abrasive wheel.

        Care to be taken that the fairing panel do not become damaged.

      3. Drive out rivet bodies and remove self locking plate nut.

      1. Use a small hammer and punch.

      4. Remove sharp edge around the rivet holes of No. 6 strut fairing panel.

      1. Use fine file.

    5. Clean the hole with a soft clean cloth and blast with air.

    3. SUBTASK 72-32-03-220-080-A00 Examine the Rivet Hole of the No. 6 Strut Fairing Panel, Assembly A

      1. Visually examine the rivet holes.

      1. No cracks and burrs are permitted.

    4. SUBTASK 72-32-03-220-080-B00 Examine the Rivet Hole of the No. 1 Strut Fairing Panel, Assembly B

      1. Visually examine the rivet holes.

      1. No cracks and burrs are permitted.

    5. SUBTASK 72-32-03-380-051-A00 Install New Self Locking Plate Nut to the No. 6 Strut Fairing Panel, Assembly A

    1. Refer to Figure and Figure.

    2. Install new self locking plate nut in position on the No. 6 strut fairing panel, aligning rivet holes.

      3. Install the rivet through the No. 6 strut fairing panel and self locking plate nut.

      1. Use power riveter, adapter and pulling head.

    6. SUBTASK 72-32-03-380-051-B00 Install New Self Locking Plate Nut to the No. 1 Strut Fairing Panel, Assembly B

    1. Refer to Figure and Figure.

    2. Install new self locking plate nut in position on the No. 1 strut fairing panel, aligning rivet holes.

      3. Install the rivet through the No. 1 strut fairing panel and self locking plate nut.

      1. Use power riveter, adapter and pulling head.

    7. SUBTASK 72-32-03-220-081-A00 Examine the Self Locking Plate Nut of the No. 6 Strut Fairing Panel, Assembly A

      1. Visually examine the formed rivet head.

      1. The rivet must be tight.

        Both the rivet heads must be correctly seated.

        The formed rivet head has no cracks and no signs of bursting at the periphery.

    8. SUBTASK 72-32-03-220-081-B00 Examine the Self Locking Plate Nut of the No. 1 Strut Fairing Panel, Assembly B

      1. Visually examine the formed rivet head.

      1. The rivet must be tight.

        Both the rivet heads must be correctly seated.

        The formed rivet head has no cracks and no signs of bursting at the periphery.

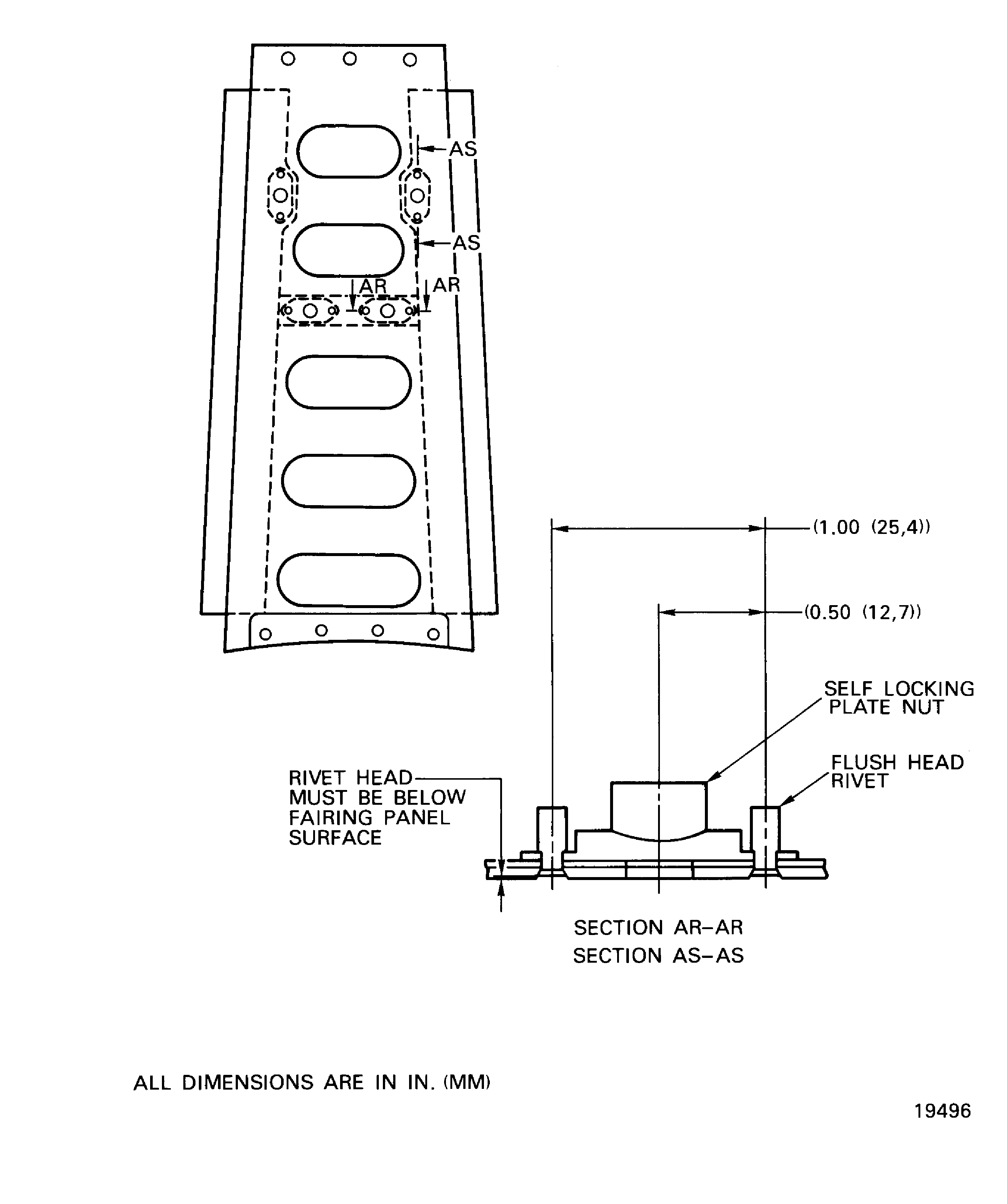

    9. Figure: No.6 strut fairing panel - Replace the self locking plate nut

    No.6 strut fairing panel - Replace the self locking plate nut

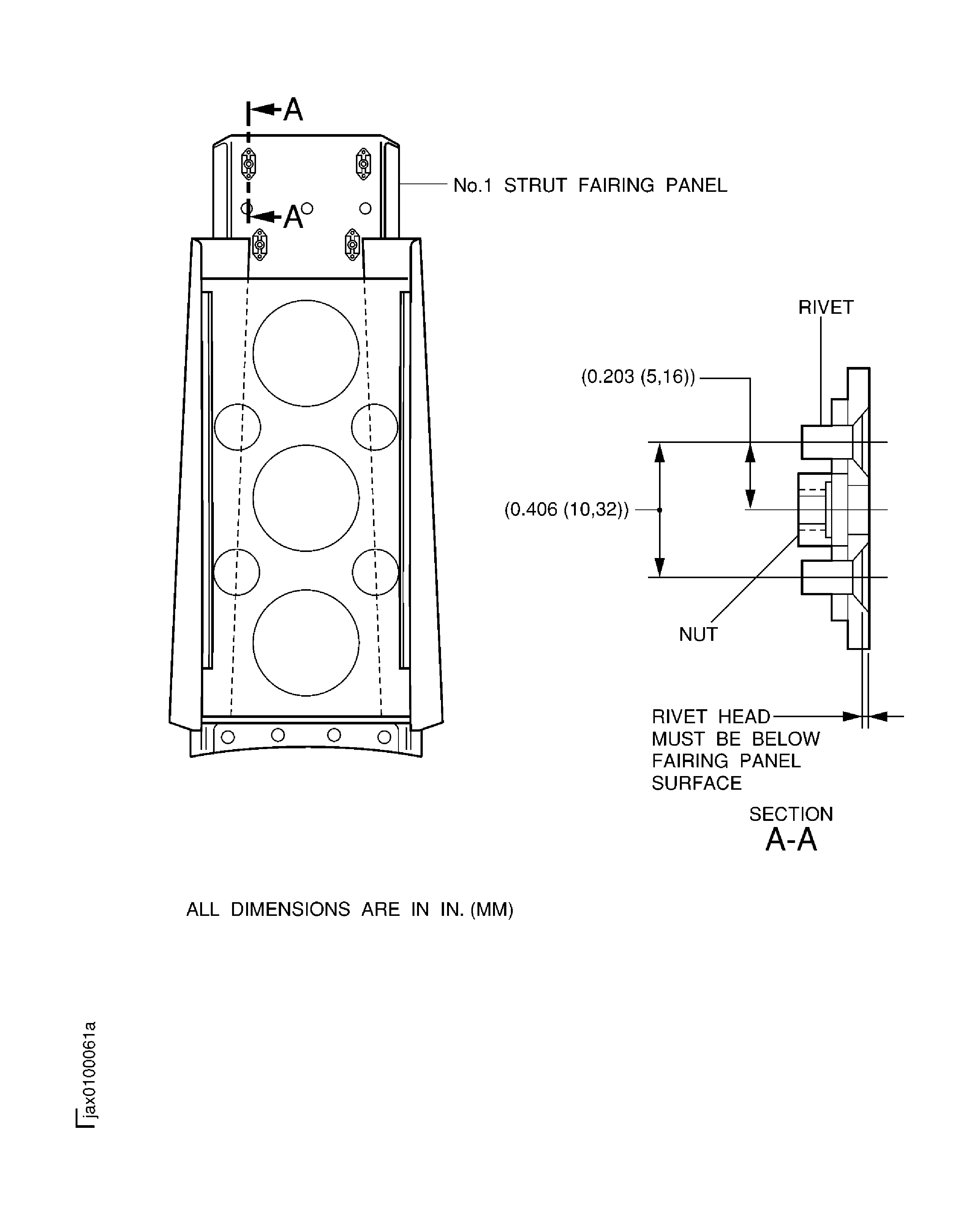

    Figure: No.1 strut fairing panel - Replace the nut

    No.1 strut fairing panel - Replace the nut

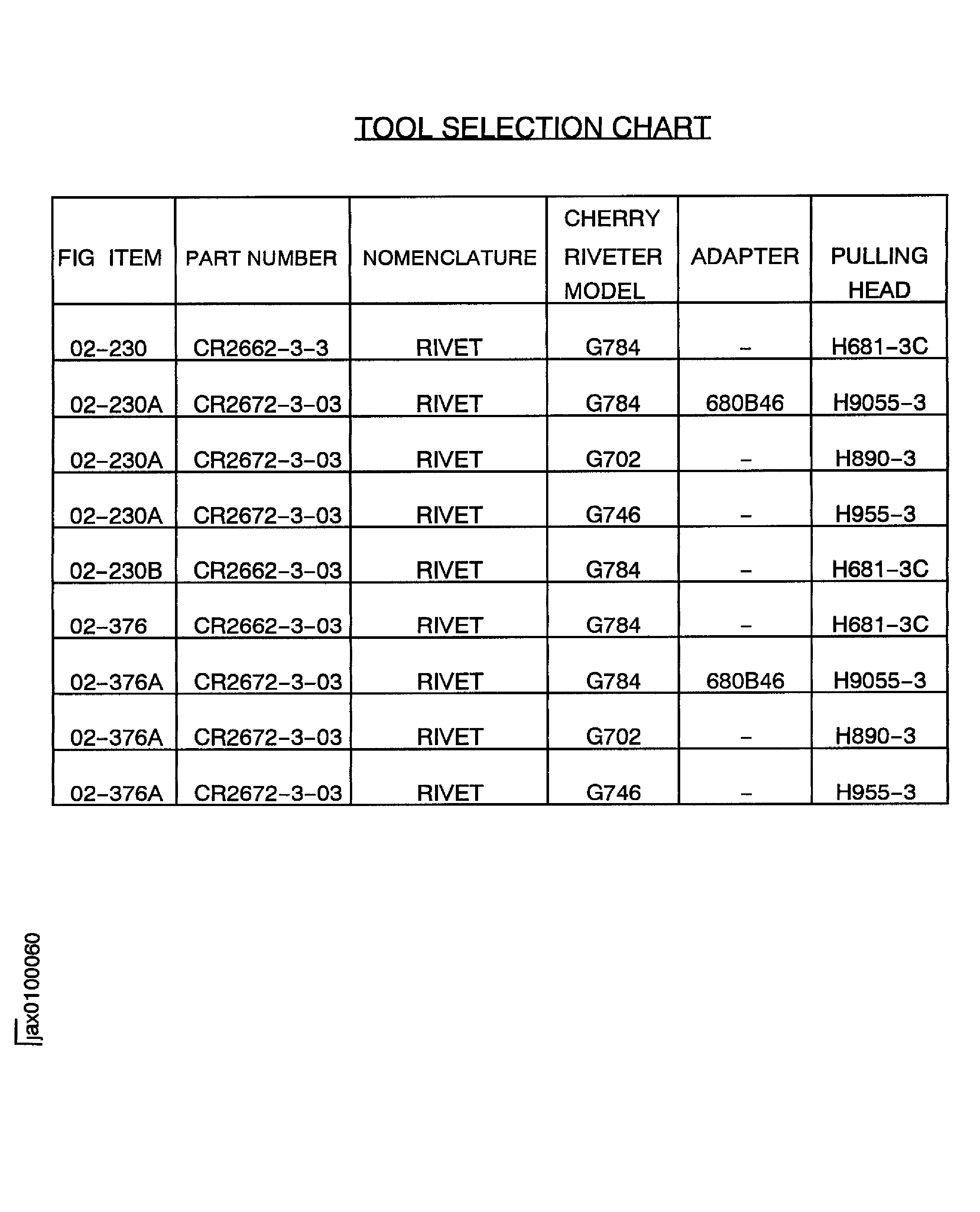

    Figure: Replace the nut on the No.1 and No.6 strut fairing panel assembly

    Replace the nut on the No.1 and No.6 strut fairing panel assembly

Requirements After Job Completion

Follow-On Conditions

NONE
