TASK 72-32-03-300-030 Panel Supporting Brackets - Blend Repair, Repair-030 (VRS1711)

DMC:V2500-A0-72-32-0315-00A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-03-300-030 Panel Supporting Brackets - Blend Repair, Repair-030 (VRS1711)

Effectivity

FIG/ITEM

PART NO.

02-500

5A0046

02-500

5A1749

02-500

5A1886

02-550

5A0046

02-550

5A1749

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Panel supporting bracket

Aluminum alloy

General

Price and availability - not applicable

The practices and processes referred to in the procedure by the TASK number are in the SPP.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-124 ISOPROPYL ALCOHOLLOCALCoMat 01-124
CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUMLOCALCoMat 01-275
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-03-350-072 Remove the Damage from the Panel Supporting Bracket

    1. Refer to Figure.

      2. Scallop, make smooth and/or hand polish to remove the burrs, nicks and/or scores.

      2. The surface finish of the repair area must be the same as the adjacent area.

      3. Refer to the SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-32-03-220-131 Examine the Panel Supporting Bracket

      1. Visually examine the repaired area.

      1. Visually examine the repaired area for burrs, nicks and/or scores.

      2. Use a 10x magnifying glass.

      3. Refer to TASK 72-32-03-200-000 (INSPECTION-000).

    3. SUBTASK 72-32-03-230-072 Examine the Panel Supporting Bracket

      1. Fluorescent penetrant examine the repaired area.

      1. Make sure there are no cracks in the repaired area.

      2. Refer to TASK 72-32-03-200-000 (INSPECTION-000).

      3. Refer to the SPM TASK 70-23-05-230-501.

      4. Use fluorescent penetrant inspection equipment.

    4. SUBTASK 72-32-03-110-065 Remove the Grease from the Panel Support Bracket

      1. Remove the grease.

      2. Use a clean cloth made moist with degreasing fluid and clean the repaired area.

    5. SUBTASK 72-32-03-330-054 Apply Surface Protection to the Panel Supporting Bracket

      1. Apply chromate conversion coating with a brush to the repaired area.

      2. Refer to the SPM TASK 70-38-02-300-503.

    2. Clean the repaired area with cold water and a dry air blast.

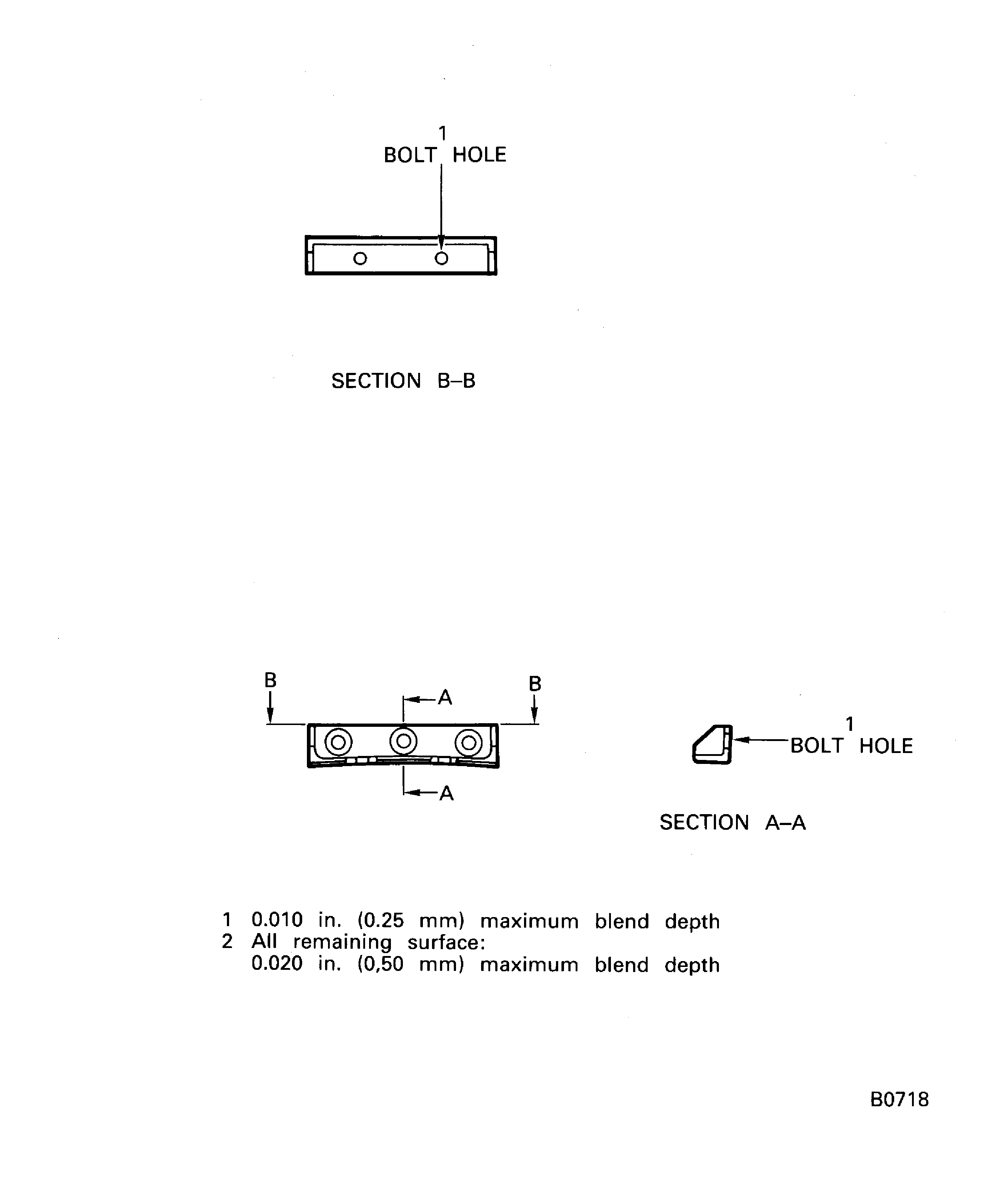

    6. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
