TASK 72-32-03-300-015 P2.5 CM Tube - Repair Surface Damage, Repair-015 (VRS1728)
Material of component
RR | ||
|---|---|---|
DESCRIPTION | SYMBOL | MATERIAL |
P2.5 CM tube assembly | Corrosion and heat resistant | |
steel |
General
Price and availability - none.
The practices and processes referred to in the procedure by the TASK number are in SPM.
NOTE
To identify the consumable materials, refer to the Consumable Materials Index.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Fluorescent penetrant inspection equipment | LOCAL | Fluorescent Penetrant Inspection Equipment |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Use abrasive stones or papers and/or fine file.
Refer to SPM TASK 70-35-03-300-501.
Remove the nicks, galls and/or scores.
SUBTASK 72-32-03-350-056 Remove the Nicks, Galls and/or Scores from the Tube Surface and Tube End Fittings
Refer to SPM TASK 70-23-05-230-501.
Do a crack test on the parts.
SUBTASK 72-32-03-230-058 Examine the P2.5 CM Tube Assembly for Cracks

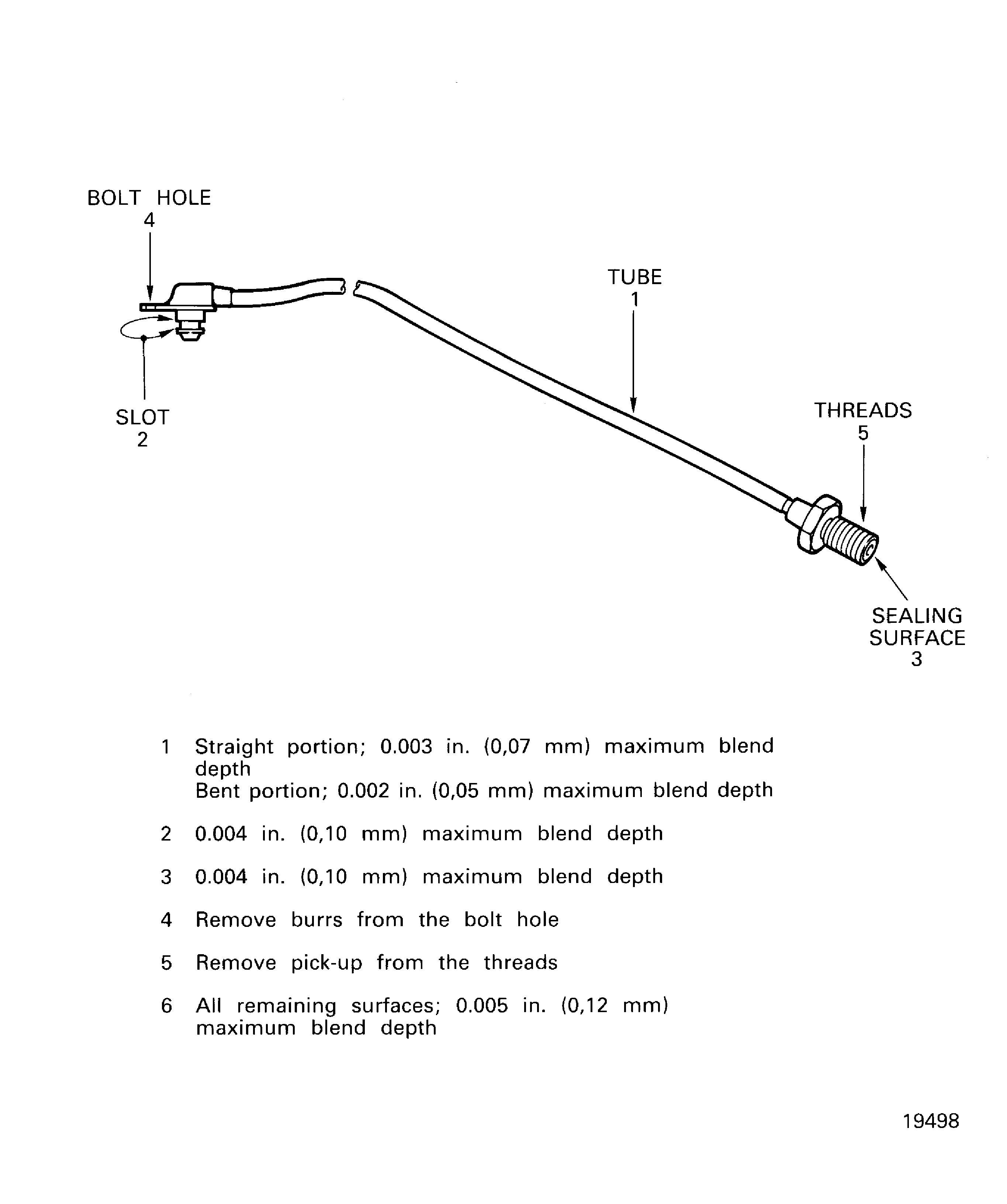

Figure: Repair details and dimensions
Repair details and dimensions
