TASK 72-32-03-300-014 P2.5 CM Bracket - Blend Repair, Repair-014 (VRS1729)
General
Price and availability - none.
The practices and processes referred to in the procedure by the TASK numbers are in SPM.
NOTE
To identify the consumable materials, refer to the Consumable Materials Index.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Hand held pneumatic grinder | LOCAL |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Surface finish of the repair must be the same as the adjacent area.
Refer to SPM TASK 70-35-03-300-501.
Make smooth and/or hand polish to remove the nicks, scratches and/or burrs.
SUBTASK 72-32-03-350-057 Remove the Damage from the P2.5 CM Bracket
Refer to TASK 72-32-03-200-007.
Visually examine the repaired area.
SUBTASK 72-32-03-220-088 Visually Examine the P2.5 CM Bracket
Refer to TASK 72-32-03-200-007.
Refer to SPM TASK 70-23-05-230-501.
Fluorescent penetrant examine the repaired area.
SUBTASK 72-32-03-230-059 Examine the P2.5 CM Bracket for Cracks

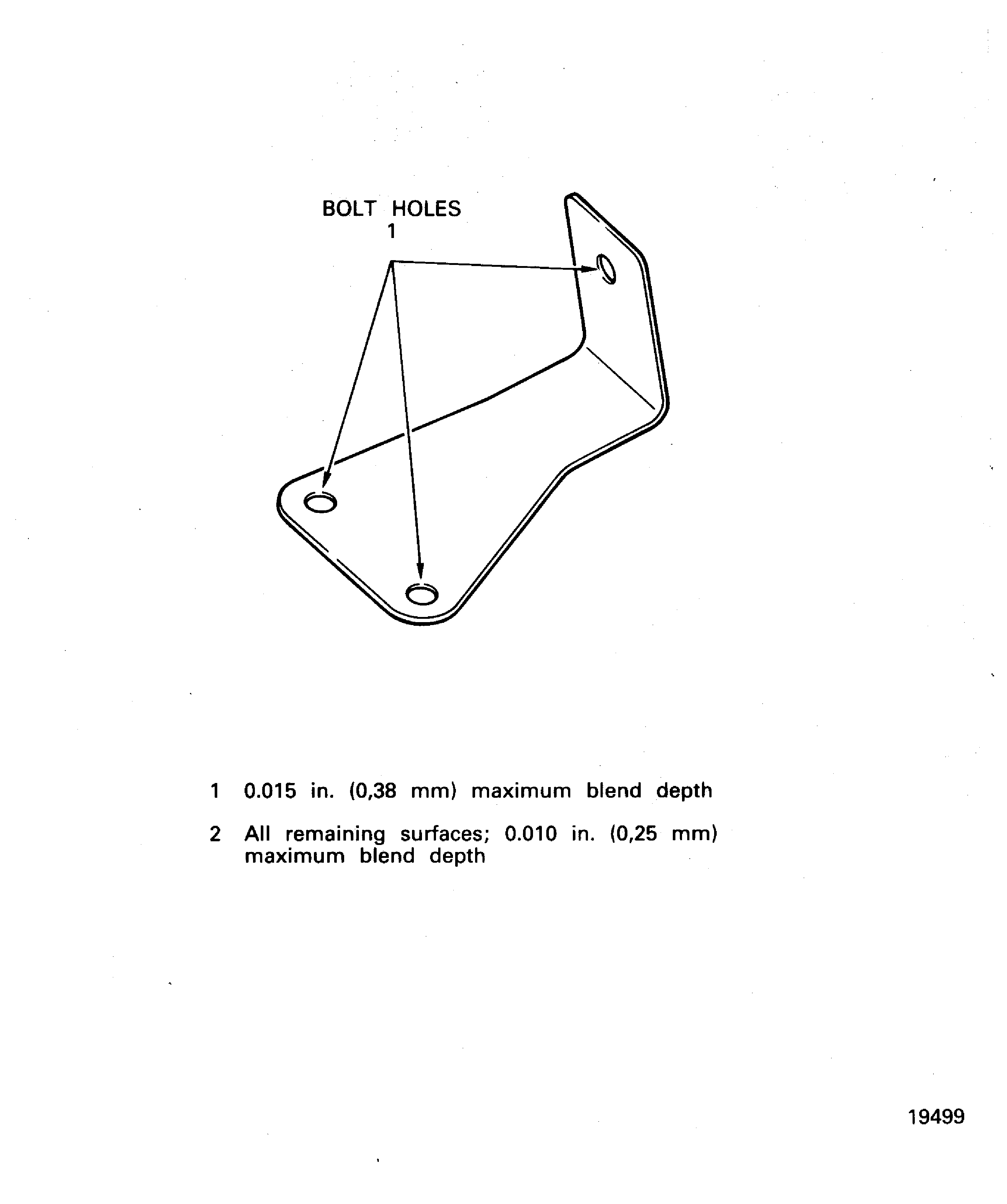

Figure: P2.5 CM Bracket - repair limit
P2.5 CM Bracket - repair limit
