TASK 72-32-16-300-007 Gearbox Driven Gearshaft Round Nut - Blend Repair, Repair-007(VRS1201)
General
The practices and processes referred to in the procedure by the TASK number are in the SPM.
Price and availability - not applicable
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-019 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-019 | ||
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Use abrasive stone or CoMat 05-019 WATERPROOF SILICON CARBIDE, CoMat 05-020 WATERPROOF SILICON CARBIDE and CoMat 05-021 WATERPROOF SILICON CARBIDE, and/or fine file.
Surface finish of the repaired area must be the same as the adjacent surface.
Refer to the SPM TASK 70-35-03-300-501.
Make smooth and/or hand polish to remove the galls, burrs and/or the pick up.
SUBTASK 72-32-16-350-052 Remove the Damage from the Round Plain Nut
Refer to TASK 72-32-16-200-000 (INSPECTION-000) for the applicable Inspection/Check TASK.
Visually examine the repaired area.
SUBTASK 72-32-16-220-081 Examine the Round Plain Nut
Refer to TASK 72-32-16-200-000 (INSPECTION-000) for the applicable Inspection/Check TASK.
Refer to the SPM TASK 70-23-05-230-501.
Fluorescent penetrant examine the repaired area.
SUBTASK 72-32-16-230-055 Examine the Round Plain Nut

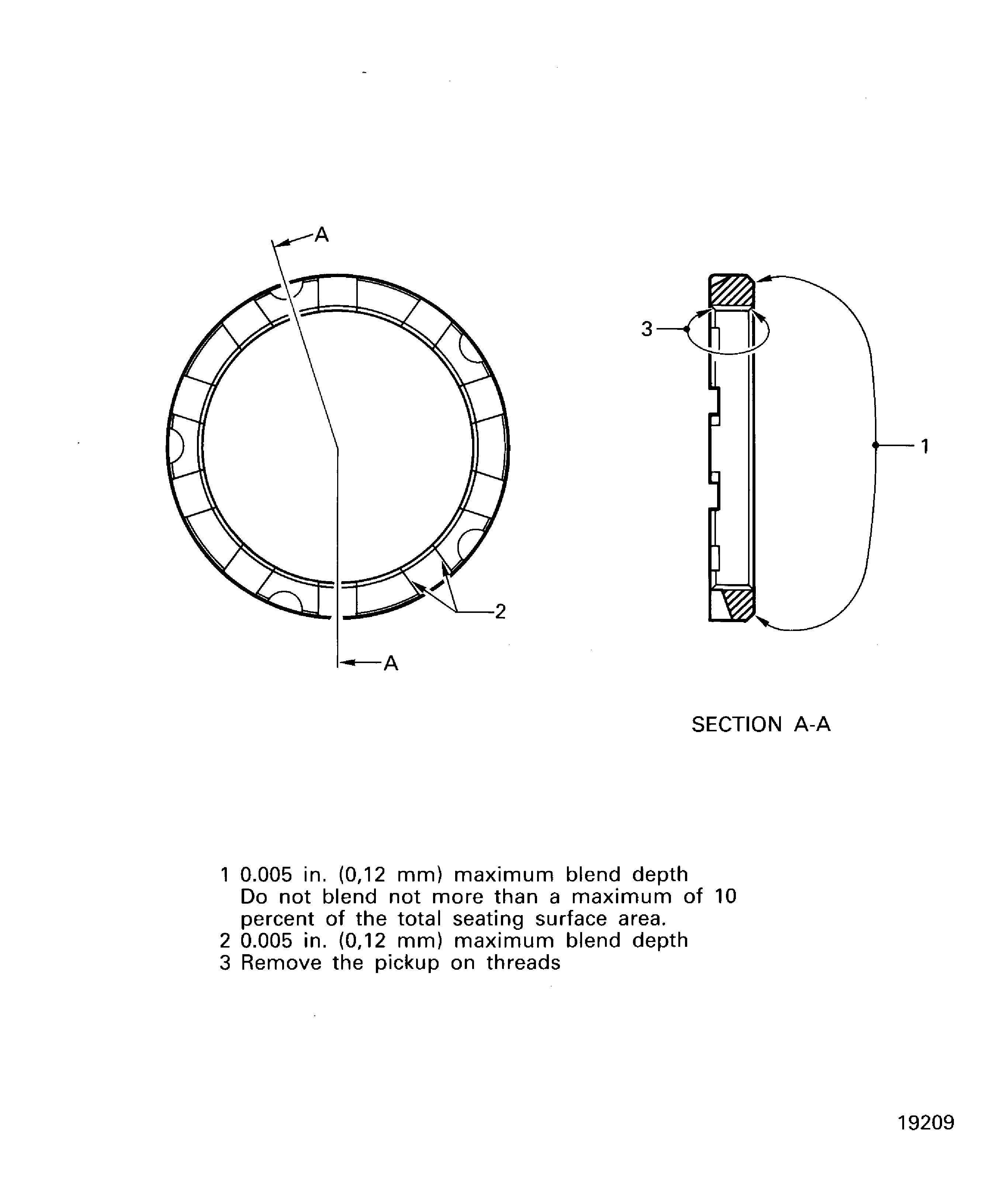

Figure: Round plain nut - repair limits
Round plain nut - repair limits
