TASK 72-32-17-300-002 No. 2 And 3 Bearing Compartment Oil Jets - Blend Repair, Repair-002 (VRS1220)

DMC:V2500-A0-72-32-1703-00A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-17-300-002 No. 2 And 3 Bearing Compartment Oil Jets - Blend Repair, Repair-002 (VRS1220)

Effectivity

FIG/ITEM

PART NO.

01-400

5A1701

01-400

5A5385

01-500

5A1643

01-500

5A5348

01-600

5R0197

01-600

5R0581

01-700

5R0071

01-700

5R0574

01-700

5R0293

Material of component

PART IDENT

SYMBOL

MATERIAL

Oil jet assembly

Corrosion resistant steel

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-17-350-054 Remove the Damage of the Oil Jet Assembly

    1. Refer to Figure.

      2. Scallop, make smooth and/or hand polish to remove the burrs.

      1. Use light pressure to prevent any risk of over heating material.

      3. Surface finish of the repaired area must be the same as the adjacent surface.

      4. Refer to the SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-32-17-220-074 Examine the Oil Jet Assembly

      1. Visually examine the repaired area.

      1. Visually examine the repaired area for burrs.

      2. Refer to TASK 72-32-17-200-004 (INSPECTION-004, CONFIG-001).

    3. SUBTASK 72-32-17-230-053 Examine the Oil Jet Assembly

      1. Fluorescent penetrant examine the repaired area.

      1. Make sure there are no cracks in the repaired area.

      2. Refer to TASK 72-32-17-200-004 (INSPECTION-004, CONFIG-001).

      3. Refer to the SPM TASK 70-23-05-230-501.

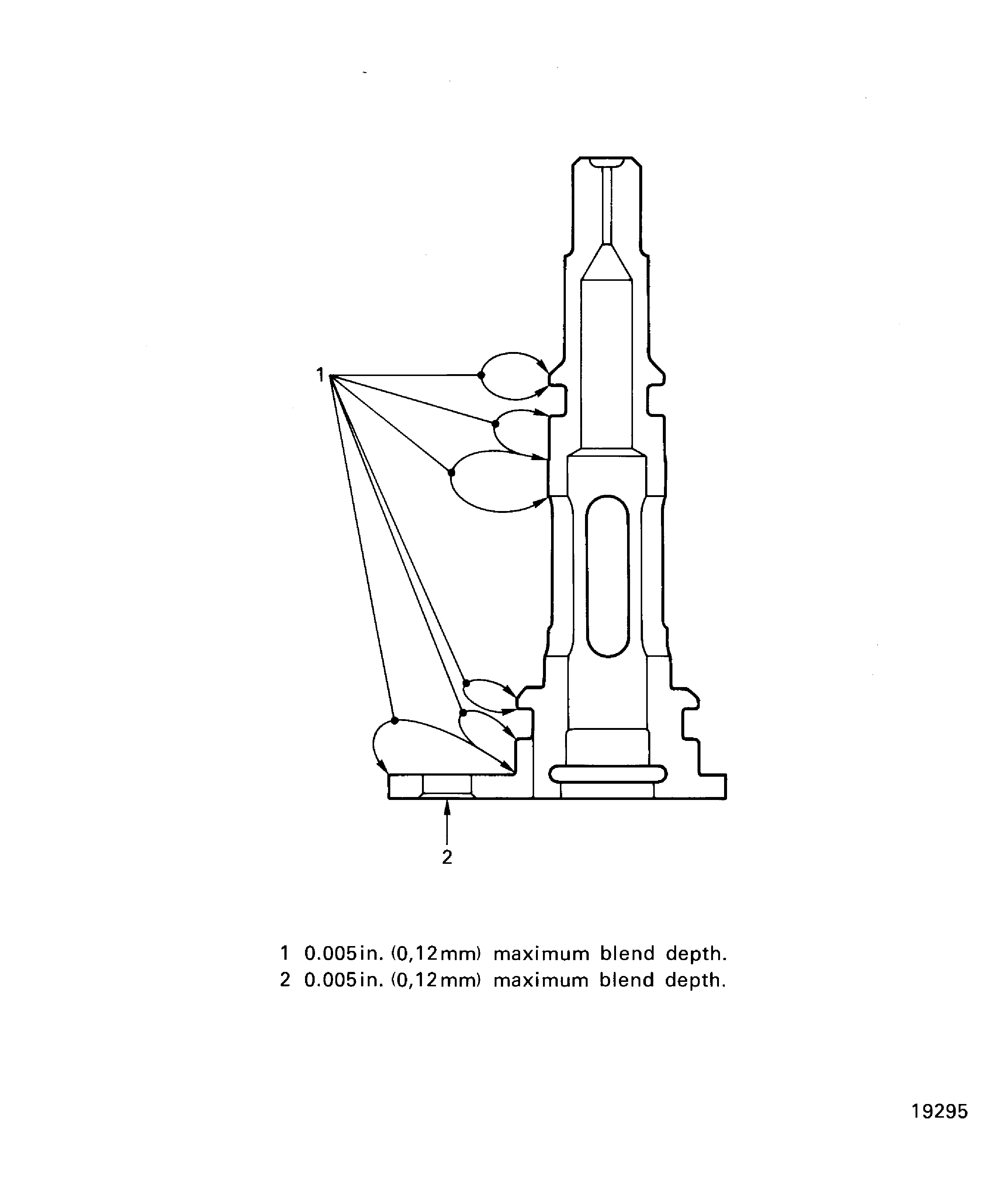

    4. Figure: Oil Jet Assembly - Repair Limit

    Oil Jet Assembly - Repair Limit

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:44197
Enterprise Name:SAINT-GOBAIN INDUSTRIAL CERAMICS INC.
BU Name:SAINT-GOBAIN ABRASIVES, INC
Street:ONE NEW BOND STREET
P.O. Box:PO BOX 15008
City:WORCESTER
State:MA
Zip Code:01615-0008
Country:USA
Phone Number:1-508-795-5000
Fax Number:1-508-795-2828
Internet:www.saint-gobain-northamerica.com
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:1E1X8
Supply Number:CoMat 05-019
Type:sp01
Supply Short Name:CoMat 05-019 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-019 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/31 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 400 (ANSI B74.18)
JCR-184 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
LOCAL
K6835
Manufacturer Code:1E1X8
Supply Number:CoMat 05-020
Type:sp01
Supply Short Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/33 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 320 (ANSI B74.18)
JCR-027 (JAEC REF)
JCR-186 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
LOCAL
K6835
Manufacturer Code:1E1X8
Supply Number:CoMat 05-021
Type:sp01
Supply Short Name:CoMat 05-021 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-021 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/35 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 240 (ANSI B74.18 )
JCR-188 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
K6835
LOCAL
