TASK 72-32-17-300-009 NF Harness Bracket - Blend Repair, Repair-009 (VRS1710)
General
Price and availability - not applicable
The practices and processes referred to in the procedure by the TASK number are in the SPM.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Hand held pneumatic grinder | LOCAL | Hand held pneumatic grinder | ||
| Fluorescent Penetrant Inspection Equipment | LOCAL | Fluorescent penetrant inspection equipment | ||
| Magnifying glass, 10x | LOCAL | Magnifying glass, 10x |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
The surface finish of the repair must be the same as the adjacent area.
Refer to the SPM TASK 70-35-03-300-501.
Make smooth and/or hand polish to remove nicks, scores, galls and/or burrs.
SUBTASK 72-32-17-350-058 Remove the Damage from the NF Bracket
Refer to Figure.
Visually examine the repaired area for nicks, scores and galls using a Magnifying glass, 10x.
Refer to TASK 72-32-17-200-000 (INSPECTION-000).
Visually examine the repaired area.
SUBTASK 72-32-17-220-077 Visually Examine the NF Bracket
Refer to TASK 72-32-17-200-000 (INSPECTION-000) and the SPM TASK 70-23-05-230-501.
Fluorescent penetrant examine the repaired area.
SUBTASK 72-32-17-230-054 Examine the NF Bracket for Cracks

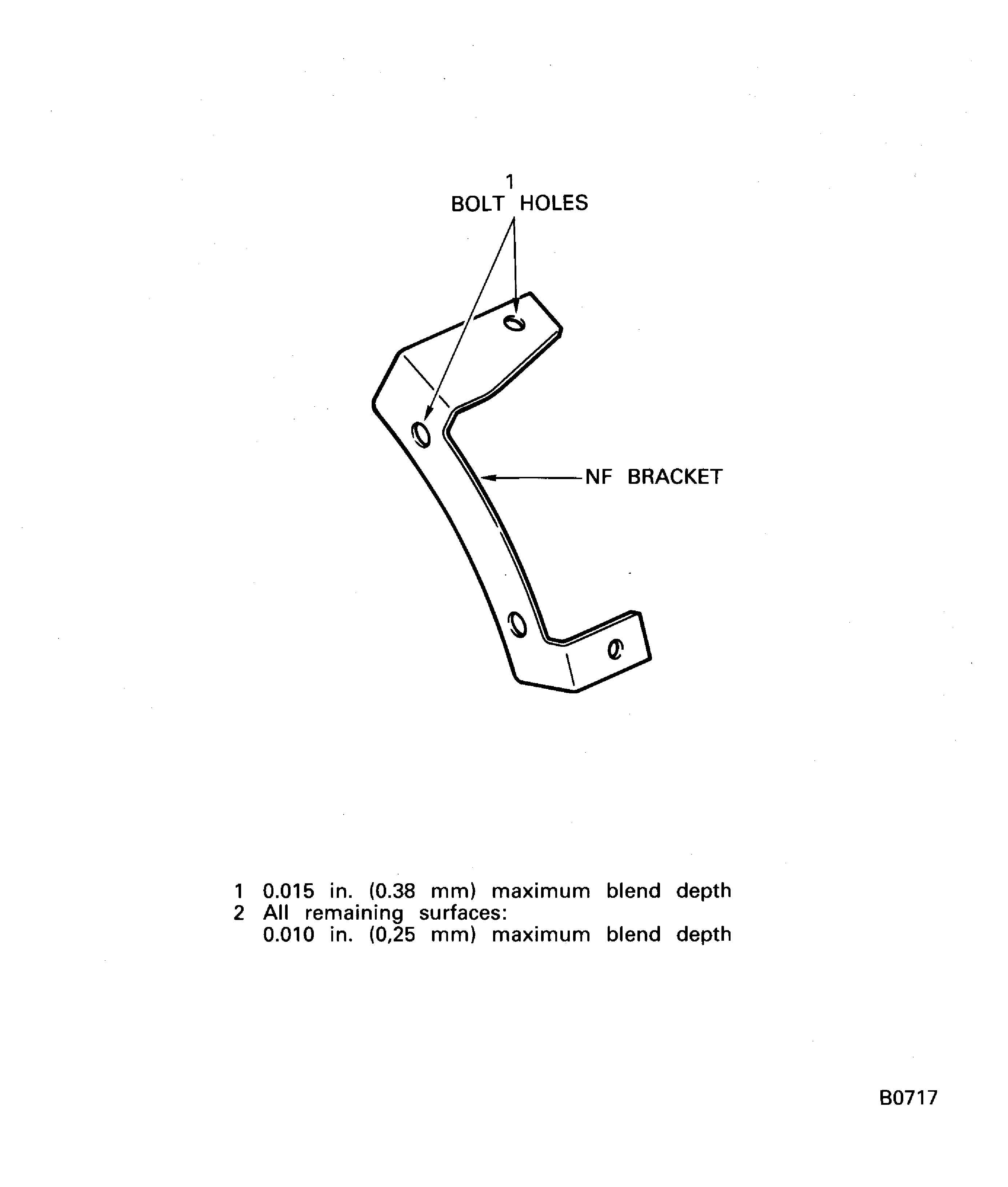

Figure: NF bracket - repair limit
NF bracket - repair limit
