TASK 72-32-17-300-001 No. 2 Bearing Support Mounting Brackets - Blend Repair The Bushes, Repair-001 (VRS1216)
Material of component
RR | ||
|---|---|---|
DESCRIPTION | SYMBOL | MATERIAL |
Bracket | - | Glass filled polymide |
Bush | - | Corrosion and heat |
resistant steel (A-286) |
General
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
Price and availability - none
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-019 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-019 | ||
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Use portable grinding equipment, abrasive stone or CoMat 05-019 WATERPROOF SILICON CARBIDE or CoMat 05-020 WATERPROOF SILICON CARBIDE and CoMat 05-021 WATERPROOF SILICON CARBIDE and/or fine file.
Surface finish of the repaired area must be the same as the adjacent surface.
Refer to the SPM TASK 70-35-03-300-501.
Scallop, make smooth and/or hand polish to remove the damage.
SUBTASK 72-32-17-350-055 Remove the Damage from the Bush
Refer to TASK 72-32-17-200-000 (INSPECTION/CHECK-000) for the applicable Inspection/Check TASK.
Visually examine the repaired area.
SUBTASK 72-32-17-220-075 Examine the Bush

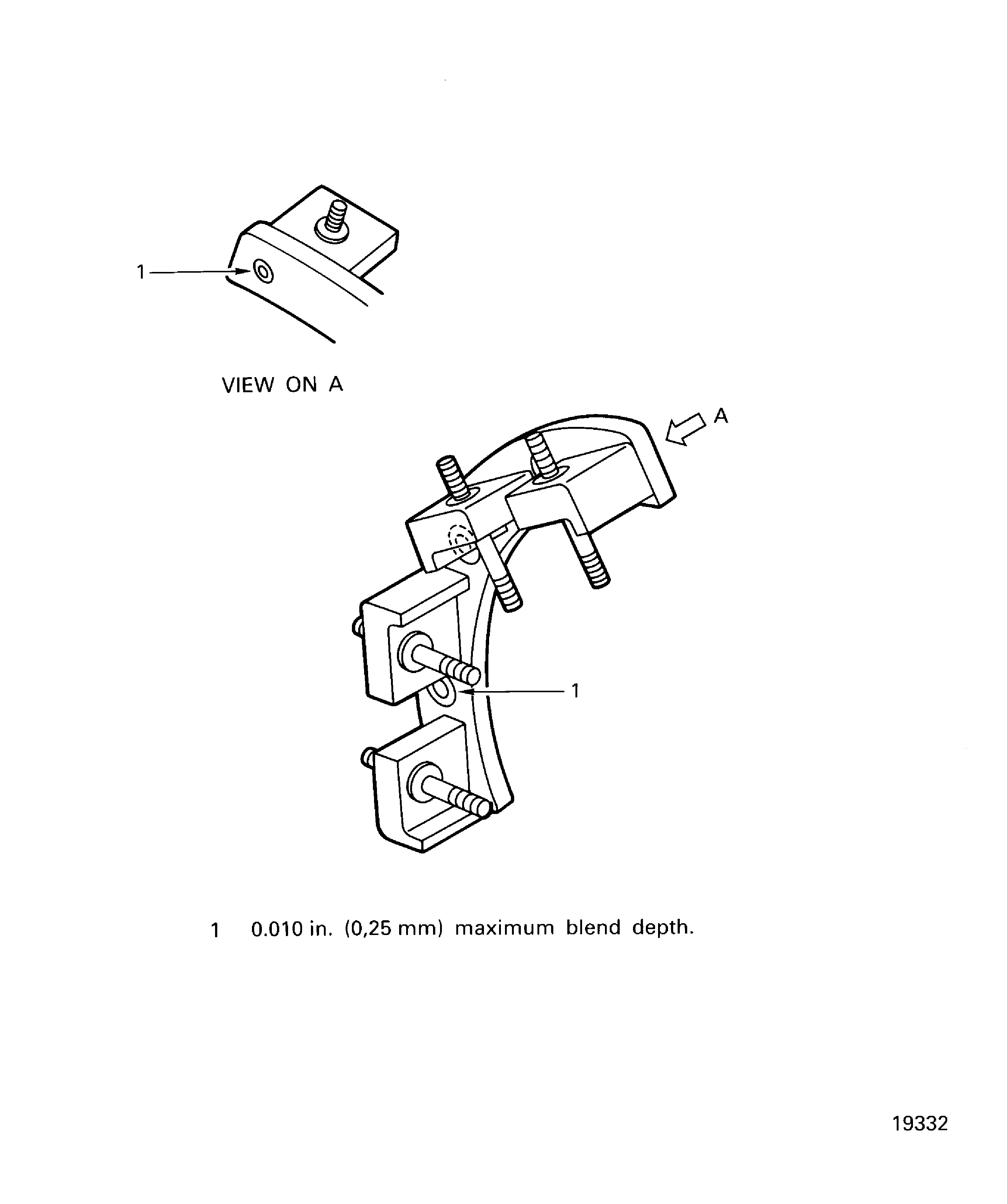

Figure: Repair Details and Dimensions
Repair Details and Dimensions
