TASK 72-32-19-300-004 Hydraulic Seal - Replace The Dry Film Lubricant, Repair-004 (VRS1229)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK number are in the SPP.
NOTE
To identify consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-002 ADHESIVE TAPE GENERALPURPOSE PAPER | LOCAL | CoMat 02-002 | ||
| CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING | 94960 | CoMat 02-019 | ||
| CoMat 07-009 THINNER | LOCAL | CoMat 07-009 | ||
| CoMat 10-002 DRY FILM LUBRICANT | LOCAL | CoMat 10-002 |
Spares
NONESafety Requirements
NONEProcedure
Refer to TASK 72-32-19-100-000 (CLEANING-000).
Remove the dry film lubricant from the hydraulic seal assembly.
SUBTASK 72-32-19-110-056 Remove the Dry Film Lubricant
Refer to the SPM TASK 70-11-03-300-503.
Remove the grease.
The thickness of dry film lubricant coating is to be 0.00012 to 0.00059 in. (0.003 to 0.015 mm).
Refer to the SPM TASK 70-38-03-380-501.
Apply the dry film lubricant.
Refer to the SPM TASK 70-38-03-380-501.
Examine the layer of dry film lubricant.
SUBTASK 72-32-19-380-053 Apply the Dry Film Lubricant to the Hydraulic Seal Assembly

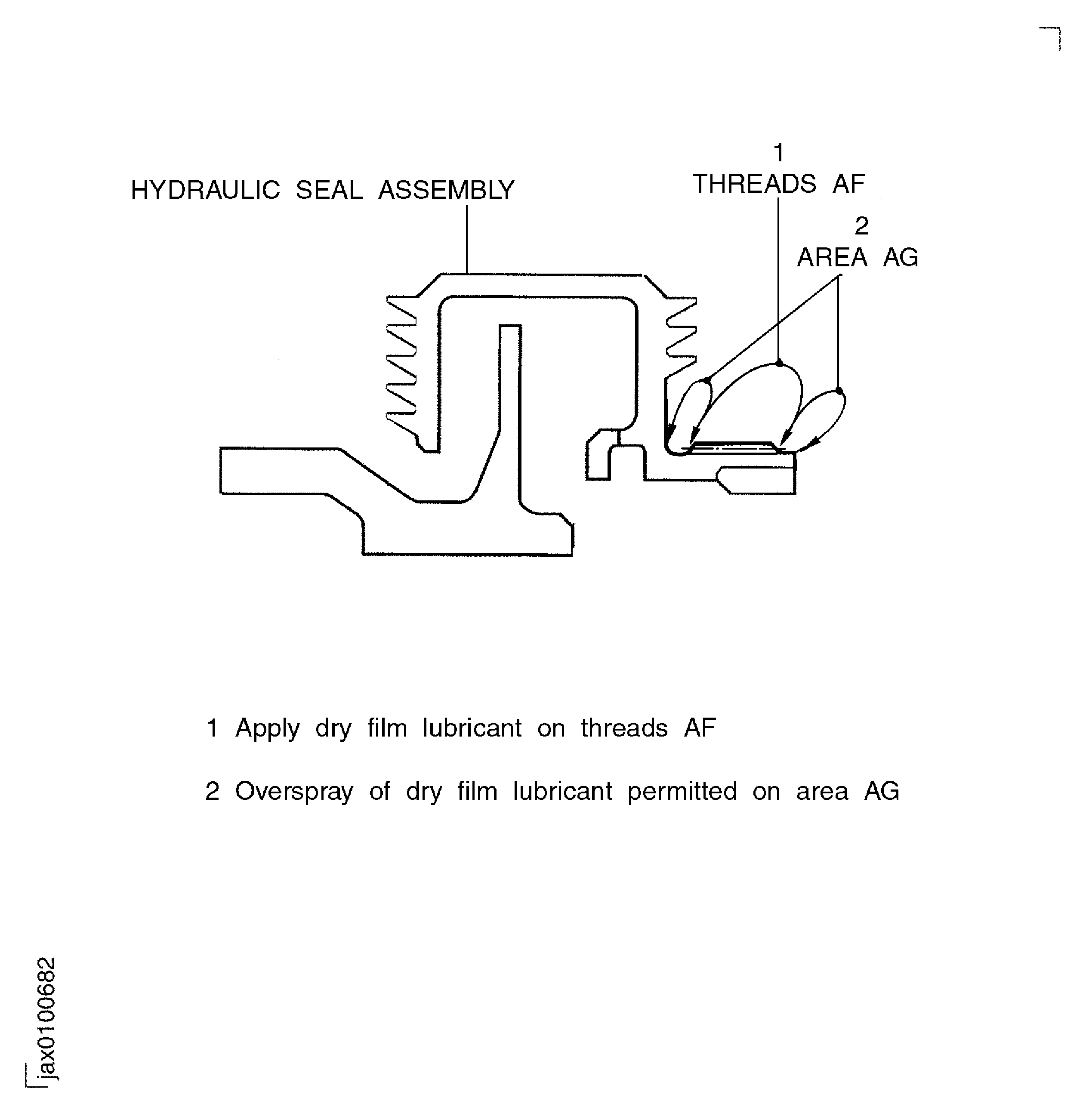

Figure: Apply the dry film lubricant to the area and location of hydraulic seal assembly - Assembly A
Apply the dry film lubricant to the area and location of hydraulic seal assembly - Assembly A

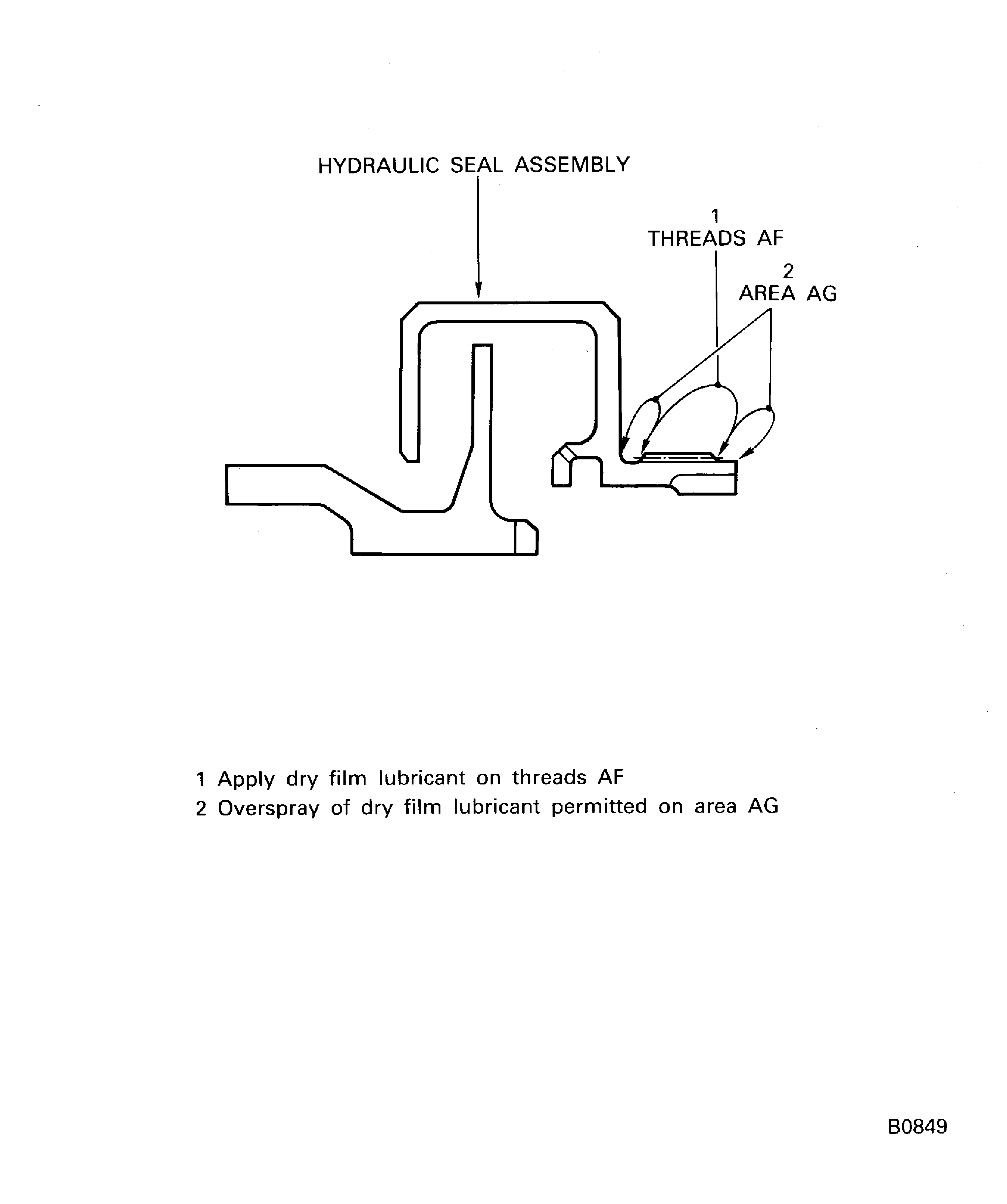

Figure: Apply the dry film lubricant to the area and location of hydraulic seal assembly - Assembly B
Apply the dry film lubricant to the area and location of hydraulic seal assembly - Assembly B
