TASK 72-32-19-300-001 Hydraulic Ring - Blend Repair, Repair-001 (VRS1230)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPP.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-019 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-019 | ||
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Use abrasive stone or CoMat 05-019 WATERPROOF SILICON CARBIDE, CoMat 05-020 WATERPROOF SILICON CARBIDE and CoMat 05-021 WATERPROOF SILICON CARBIDE and/or fine file.
Surface finish of the repaired area must be the same as the adjacent surface.
Refer to Figure.
Refer to the SPM TASK 70-35-03-300-501.
Make smooth and/or hand polish to remove the raised metal.
SUBTASK 72-32-19-350-051 Remove the Damage of the Hydraulic Ring
Refer to TASK 72-32-19-200-000 (INSPECTION-000).
Visually examine the repaired area.
SUBTASK 72-32-19-220-062 Examine the Hydraulic Ring

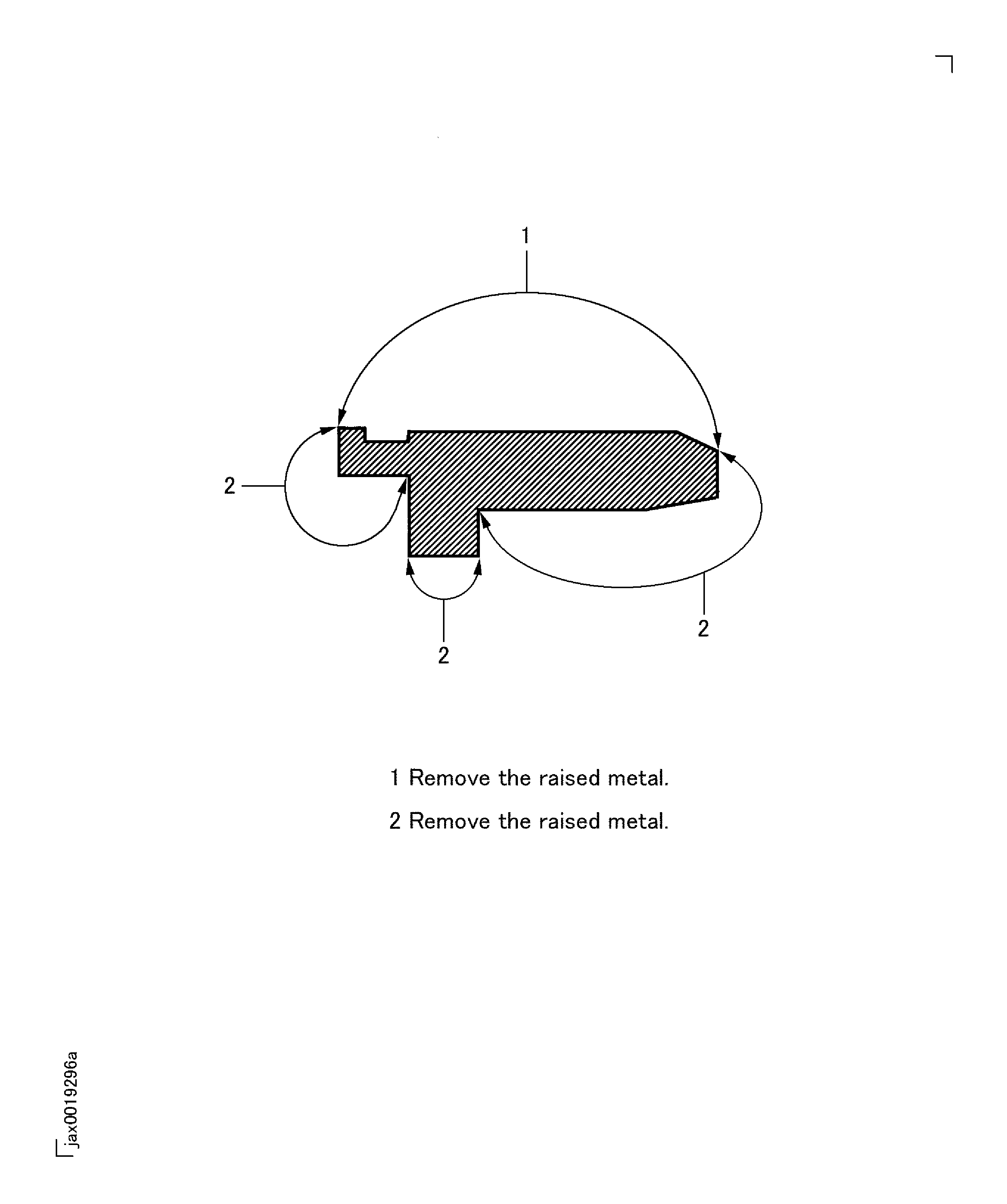

Figure: Hydraulic ring - Repair limit
Hydraulic ring - Repair limit
