TASK 72-32-21-300-002 No. 3 Bearing Housing Shoulder Stud - Replace The Anti-Galling Compound, Repair-002 (VRS3418)

DMC:V2500-A0-72-32-2102-00A-609A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-21-300-002 No. 3 Bearing Housing Shoulder Stud - Replace The Anti-Galling Compound, Repair-002 (VRS3418)

Effectivity

FIG/ITEM

PART NO.

01-080

2A0422

01-080

2A1167

01-080

2A1667

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

No.3 bearing housing

-

Titanium alloy

Shoulder stud

-

Titanium alloy

General

Price and availability - refer to IAE

The practices and processes referred to in this procedure by TASK numbers are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-21-380-051-001 Replace the Anti-Galling to the Shoulder Stud (PN 2A0422 or 2A1667)

      1. Replace the anti-galling compound to the shoulder stud.

      1. Refer to Figure and the SPM TASK 70-38-27-380-501.

    2. SUBTASK 72-32-21-380-051-002 Replace the Anti-Galling Compound to the Shoulder Stud (PN 2A1167)

      1. Replace the anti-galling compound to the shoulder stud.

      1. Refer to Figure and the SPM TASK 70-38-27-380-501.

    3. SUBTASK 72-32-21-220-079 Examine the Repair

      1. Examine the shoulder stud after you apply the anti-galling compound.

      1. Refer to TASK 72-32-21-200-000 (INSPECTION-000).

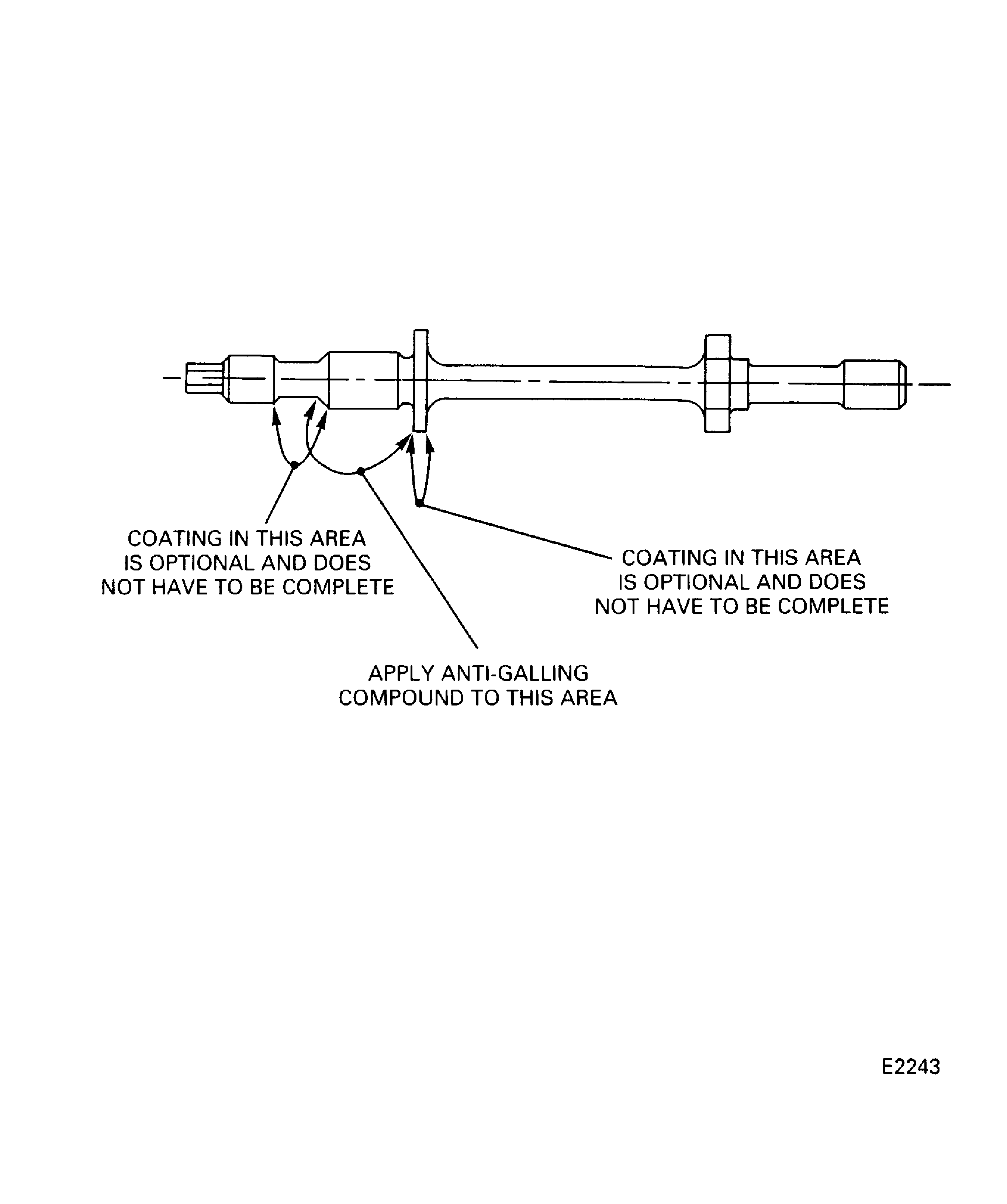

    4. Figure: Replace the anti-galling compound on the shoulder stud (PNs 2A0422 or 2A1667)

    Replace the anti-galling compound on the shoulder stud (PNs 2A0422 or 2A1667)

    Figure: Replace the anti-galling compound on the shoulder stud (PN 2A1167)

    Replace the anti-galling compound on the shoulder stud (PN 2A1167)

Requirements After Job Completion

Follow-On Conditions

NONE
