DMC:V2500-A0-72-32-2200-00A-649A-CIssue No:001.00Issue Date:2013-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
Common Information
TASK 72-32-22-300-001 No. 3 Bearing Seal Support - Blend Repair, Repair-001 (VRS3001)
General
Price and availability - refer to IAE
The practices and processes referred to in the procedure by the TASK number are in the SPM.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to Figure and the SPM TASK 70-35-17-350-501.
Blend damage on the seal support.
SUBTASK 72-32-22-350-059 Blend the No. 3 Bearing Seal Support Assembly
Refer to TASK 72-32-22-200-000.
Examine the blended areas.
SUBTASK 72-32-22-220-076 Examine the No. 3 Bearing Seal Support Assembly after Blend Repair

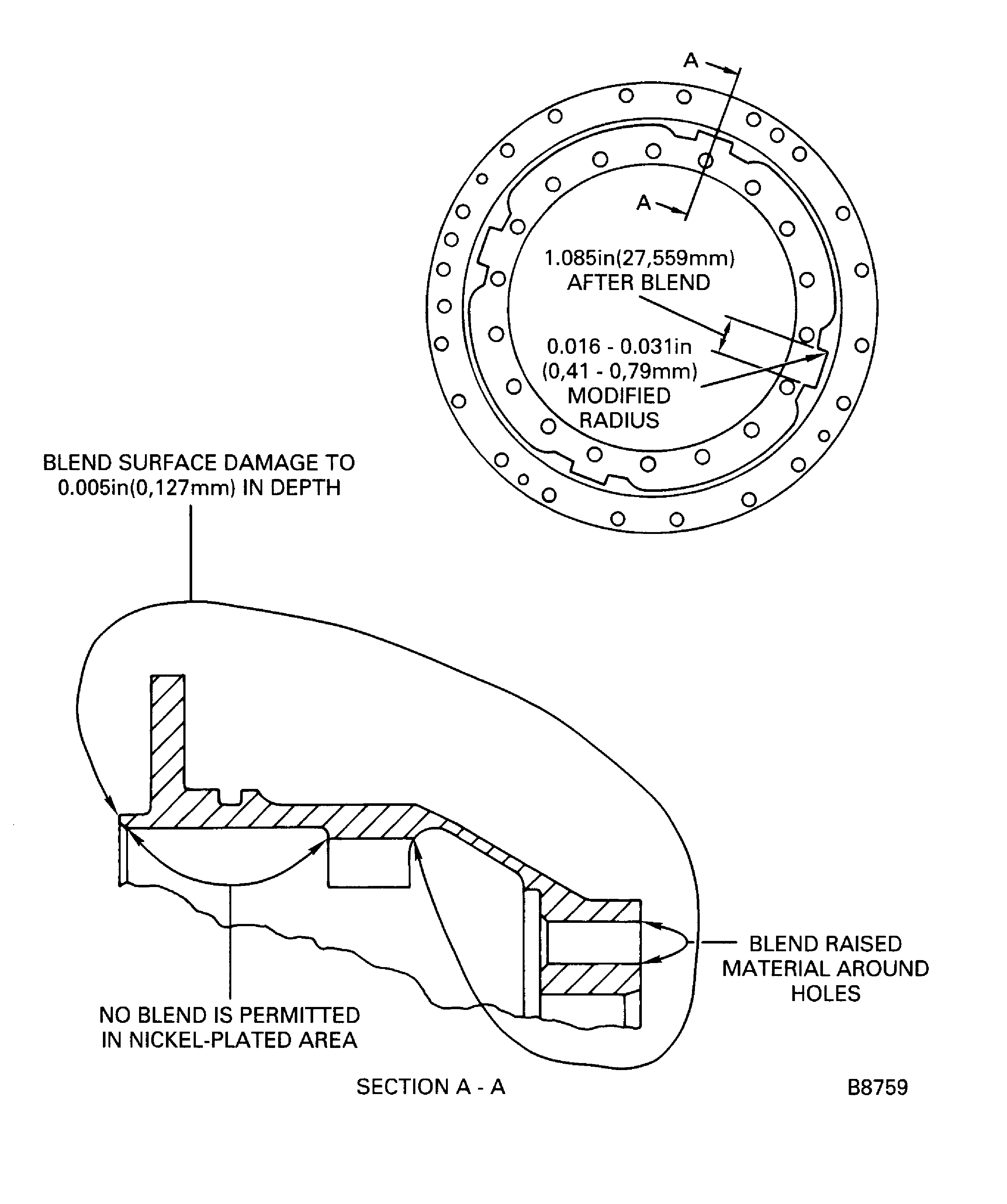

Figure: No. 3 bearing seal support assembly blend repair locations
No. 3 bearing seal support assembly blend repair locations
