TASK 72-32-22-300-005 No. 3 Bearing Seal Support - Nickel Plate The Slot, Repair-005 (VRS3005)

DMC:V2500-A0-72-32-2200-01A-647A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-22-300-005 No. 3 Bearing Seal Support - Nickel Plate The Slot, Repair-005 (VRS3005)

Effectivity

FIG/ITEM

PART NO.

01-040

2A0421

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

No. 3 bearing seal support

-

Titanium alloy

assembly

General

Price and availability - refer to IAE

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-22-350-062 Remove the Nickel Plate from the Slot of the No. 3 Bearing Seal Support Assembly

      1. If there is nickel plate on the slot of the seal support, strip it.

      1. Refer to Figure and the SPM TASK 70-33-25-330-501.

    2. SUBTASK 72-32-22-350-063 Apply Nickel Plate onto the Slot of the No. 3 Bearing Seal Support Assembly

      1. Apply nickel plate onto the seal support.

      1. Refer to Figure and the SPM TASK 70-33-25-330-501.

    3. SUBTASK 72-32-22-220-078 Examine the No. 3 Bearing Seal Support Assembly after Nickel Plate Repair

      1. Examine the dimension of the slot after plating.

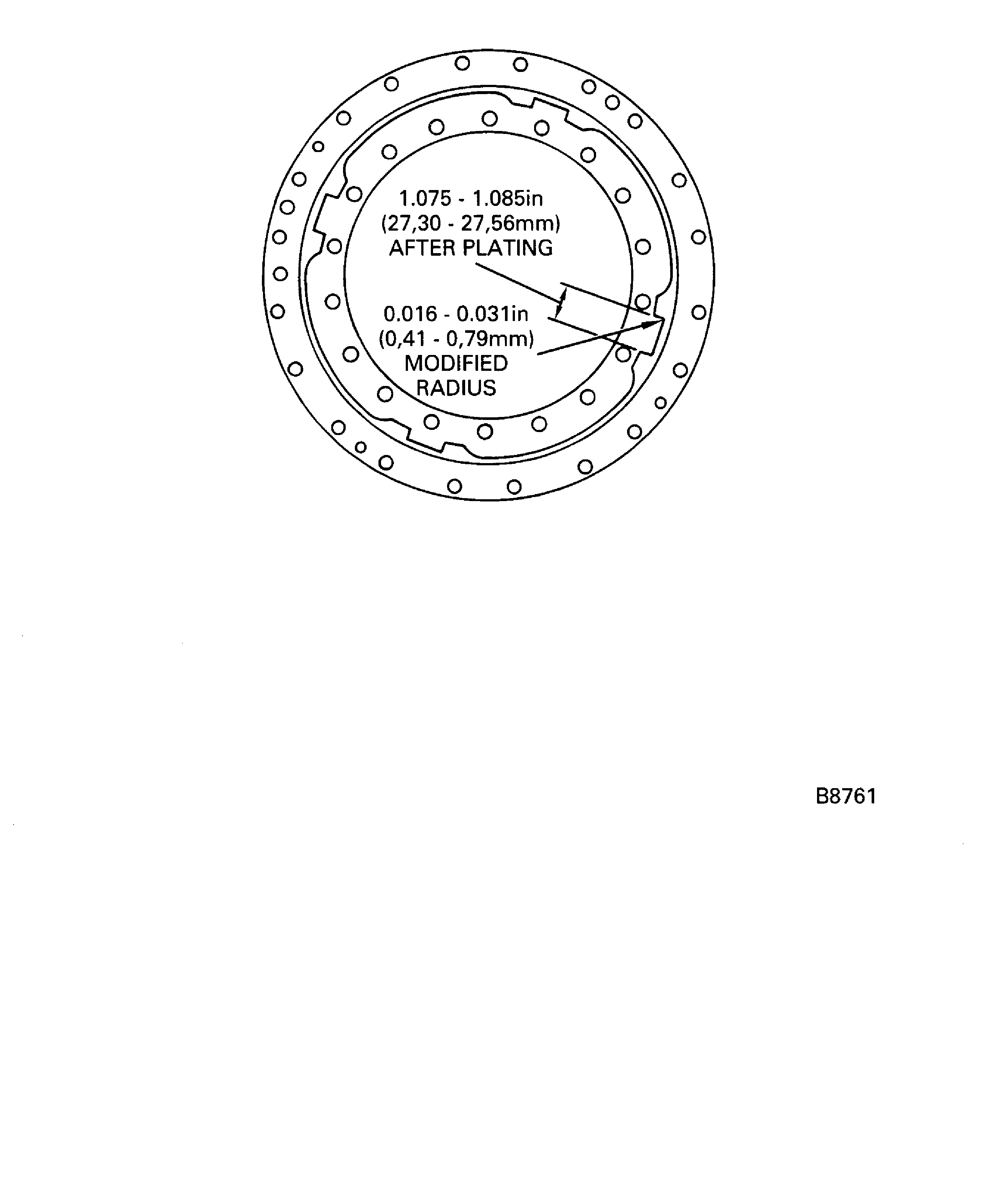

    4. Figure: No. 3 bearing seal support assembly nickel plate repair

    No. 3 bearing seal support assembly nickel plate repair

Requirements After Job Completion

Follow-On Conditions

NONE
