TASK 72-32-25-300-019 No. 3 Bearing Seal Seat - Nickel Plate The Pilot Diameter, Repair-019 (VRS3478)

DMC:V2500-A0-72-32-2510-00A-647A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-25-300-019 No. 3 Bearing Seal Seat - Nickel Plate The Pilot Diameter, Repair-019 (VRS3478)

Effectivity

FIG/ITEM

PART NO.

02-400

2A1796

02-400

2A1799

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

No. 3 bearing seal seat

-

AMS6322 or 6323 steel

General

Price and availability - refer to IAE

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
LatheLOCALLathe

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-25-350-053 Machine the Pilot Diameter

    1. Refer to Figure.

      2. Machine the pilot diameter.

      1. Machine the pilot diameter to 5.904 to 5.916 in. (149.96 to 150.27 mm).

        Hold to the minimum value.

        If the pilot diameter was plated before, you can strip the diameter.

        Refer to the SPM TASK 70-33-05-300-503.

    2. SUBTASK 72-32-25-330-053 Apply Nickel Plate to the Pilot Diameter

    1. Refer to Figure.

      2. Apply nickel plate to the pilot diameter.

      1. Refer to the SPM TASK 70-33-05-300-503.

        The plate must have sufficient thickness to permit finish machining.

        NOTE

        You can plate outside the enclosed area, but you must remove it.

    3. SUBTASK 72-32-25-350-054 Machine the Pilot Diameter After Nickel Plate

    1. Refer to Figure.

      2. Machine the pilot diameter.

      1. Machine the pilot diameter to 5.896 to 5.898 in. (149.759 to 149.809 mm).

    4. SUBTASK 72-32-25-220-091 Examine the No. 3 Bearing Seal Seat After Repair

    1. Refer to Figure.

      2. Examine the seal seat after repair.

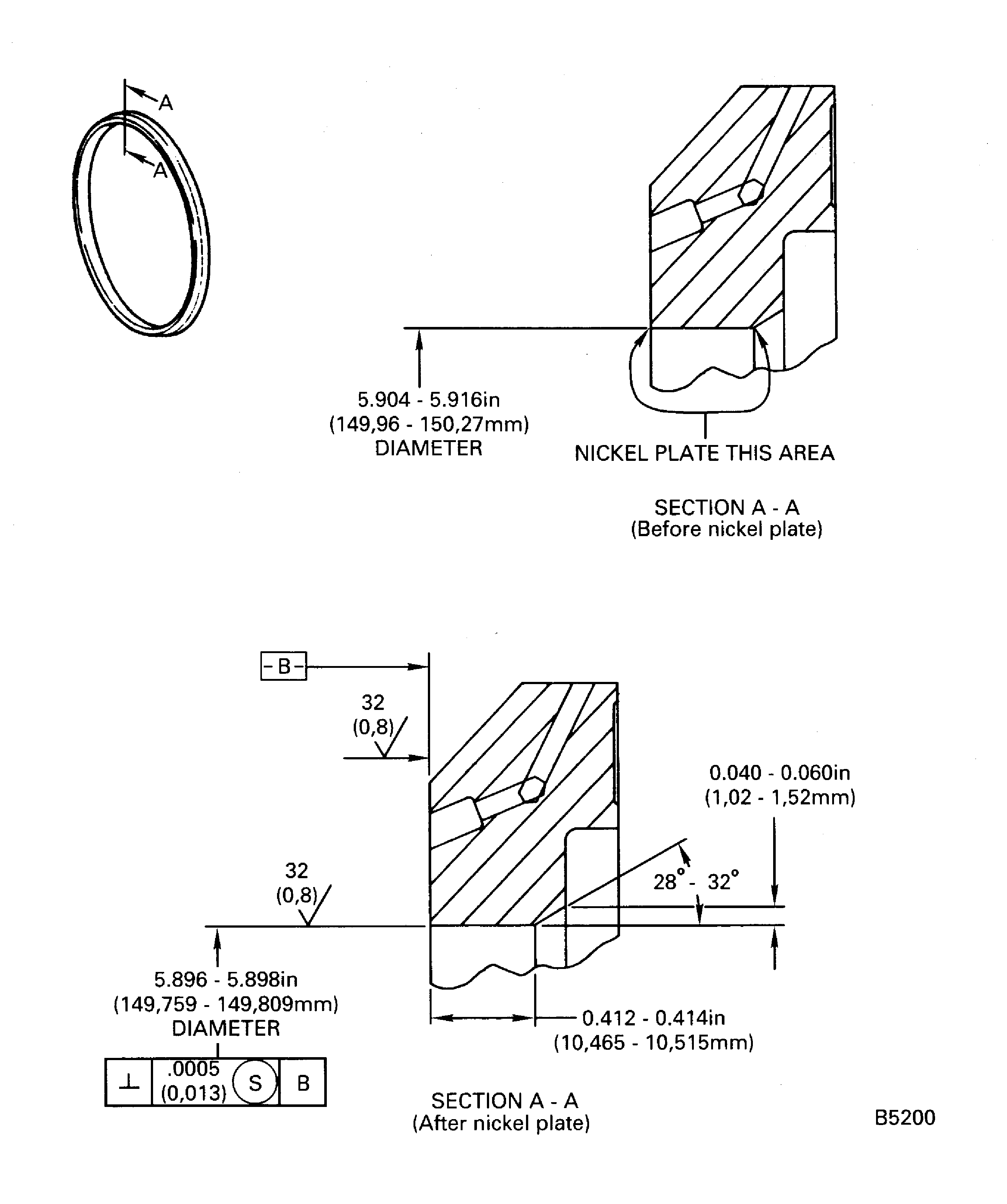

    5. Figure: No. 3 bearing seal seat nickel plate the pilot diameter

    No. 3 bearing seal seat nickel plate the pilot diameter
