TASK 72-32-35-300-010 Front Bearing Compartment Rear Air Seal Assembly - Recoat The Dry Film Lubricant, Repair-010 (VRS1225)
General
This Repair TASK gives the procedure for recoating the dry film lubricant.
Price and Availability - Refer to IAE
The practices and processes referred to in the procedure by TASK number are in the SPM.
NOTE
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Standard workshop equipment | LOCAL | Standard workshop equipment | ||
| Dry film lubricant spraying equipment | LOCAL | Dry film lubricant spraying equipment | ||
| Oven | LOCAL | Oven |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 01-124 ISOPROPYL ALCOHOL | LOCAL | CoMat 01-124 | ||
| CoMat 02-002 ADHESIVE TAPE GENERALPURPOSE PAPER | LOCAL | CoMat 02-002 | ||
| CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING | 94960 | CoMat 02-019 | ||
| CoMat 07-009 THINNER | LOCAL | CoMat 07-009 | ||
| CoMat 10-004 DRY FILM LUBRICANT | LOCAL | CoMat 10-004 | ||
| CoMat 02-099 LINT-FREE CLOTH | LOCAL | CoMat 02-099 |
Spares
NONESafety Requirements
NONEProcedure
Refer to TASK 72-32-35-100-000 (CLEANING-000).
Remove the dry film lubricant from the air seal assembly.
SUBTASK 72-32-35-100-051 Remove the Dry Film Lubricant
Refer to Figure.
Use CoMat 02-099 LINT-FREE CLOTH which is moistened with CoMat 01-124 ISOPROPYL ALCOHOL degreasing fluid and make clean the coating area.
Remove the grease.
Use CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING or CoMat 02-002 ADHESIVE TAPE GENERALPURPOSE PAPER.
Be careful not to damage the brush seal bristles with adhesive material of the masking tape.
WARNING
ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION IN THE WORK AREA.WARNING
PROTECTIVE CLOTHING, FACE MASKS AND EYE PROTECTION MUST ALWAYS BE USED.WARNING
DO NOT LET THE SOLVENT CLEANER OR ITS VAPOR TOUCH THE EYES OR SKIN.WARNING
ALWAYS KEEP OPEN FLAMES AWAY FROM THE WORK AREA.WARNING
IT IS THE RESPONSILIBILTY OF THE OPERATOR TO OBTAIN AND OBSERVE THE MANUFACTURERS MATERIAL SAFETY SHEETS FROM THE CONSUMABLE MATERIALS INFORMATION SUCH AS HAZARDOUS INGREDIENTS, PHYSICAL/CHEMICAL CHARACTERISTICS, FIRE, EXPLOSION, REACTIVITY, HEALTH HAZARD DATA, PRECAUTIONS FOR SAFE HANDLING, USE AND CONTROL MEASURES AND ALSO TO TAKE LOCAL REGULATIONS INTO CONSIDERATION.Apply the masking tape.
Refer to the SPM TASK 70-38-03-380-501.
Stove the FBC rear air seal.
Refer to the SPM TASK 70-38-03-380-501, for inspection standard.
Examine the layer of Dry Film Lubricant.
SUBTASK 72-32-35-380-054 Apply Dry Film Lubricant to the FBC Rear Air Seal

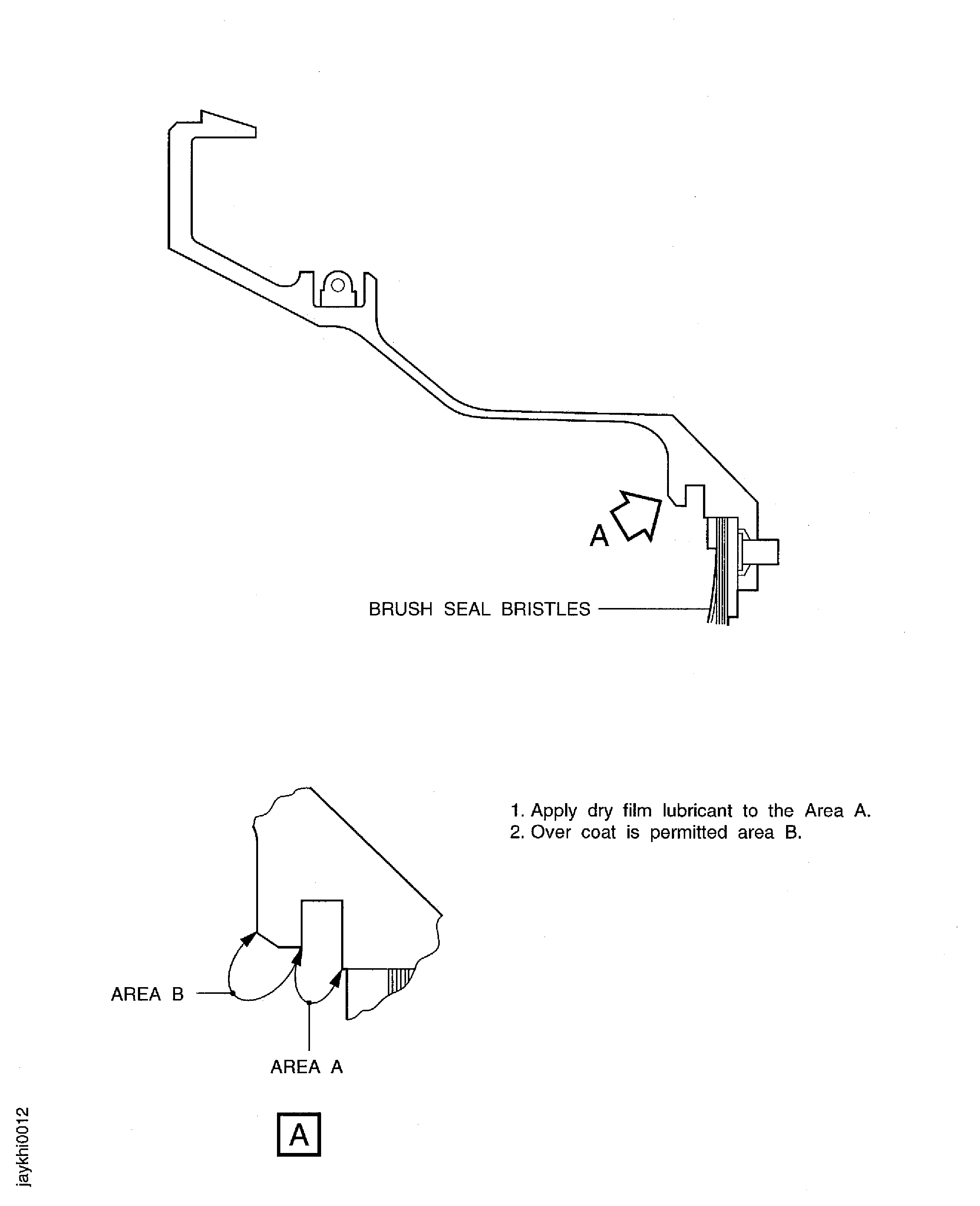

Figure: FBC rear air seal
FBC rear air seal
