TASK 72-32-36-300-004 No. 2 And 3 Bearing Oil Distributor And Tubes - Related Parts - Repair The Surface Damage On The Sub Oil Distributor, Repair 004 (VRS1260)

DMC:V2500-A0-72-32-3600-00A-649A-C|Issue No:002.00|Issue Date:2019-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-36-300-004 No. 2 And 3 Bearing Oil Distributor And Tubes - Related Parts - Repair The Surface Damage On The Sub Oil Distributor, Repair 004 (VRS1260)

Effectivity

FIG/ITEM

PART NO.

01-400

5A0328

01-400

5A1266

Material of component

PART IDENT

SYMBOL

MATERIAL

Sub oil distributor

AL alloy casting (C355, T6)

General

Price and availability - none.

The practices and processes referred to in the procedure by the TASK number are in SPM.

Related repairs: Sub oil distributor assembly - Replace the pin. Refer to TASK 72-32-36-300-005 (REPAIR-005).

NOTE

To identify the consumable materials, refer to the Consumable Materials Index.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent penetrant inspection equipmentLOCALFluorescent Penetrant Inspection Equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 05-107 ABRASIVE STONEK6835CoMat 05-107

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-36-350-055 Remove the Damage of the Oil Distributor

    1. Refer to Figure.

      2. Scallop, make smooth and/or hand polish to remove the nicks, scratches and/or edge burrs.

      2. Surface finish of the repair must be the same as the adjacent area. Refer to SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-32-36-220-108 Examine the Oil Distributor

      1. Visually examine the repaired area.

      1. Visually examine the repaired area for nicks, galls, scores and/or pick-up using 10X magnifying glass.

      2. Refer to TASK 72-32-36-200-400 (INSPECTION-000).

    3. SUBTASK 72-32-36-230-075 Examine the Oil Distributor

      1. Fluorescent penetrant examine the repaired area.

      1. Make sure there are no cracks in the repaired area.

      2. Refer to TASK 72-32-36-200-400 (INSPECTION-000).

      3. Refer to SPM TASK 70-23-05-230-501.

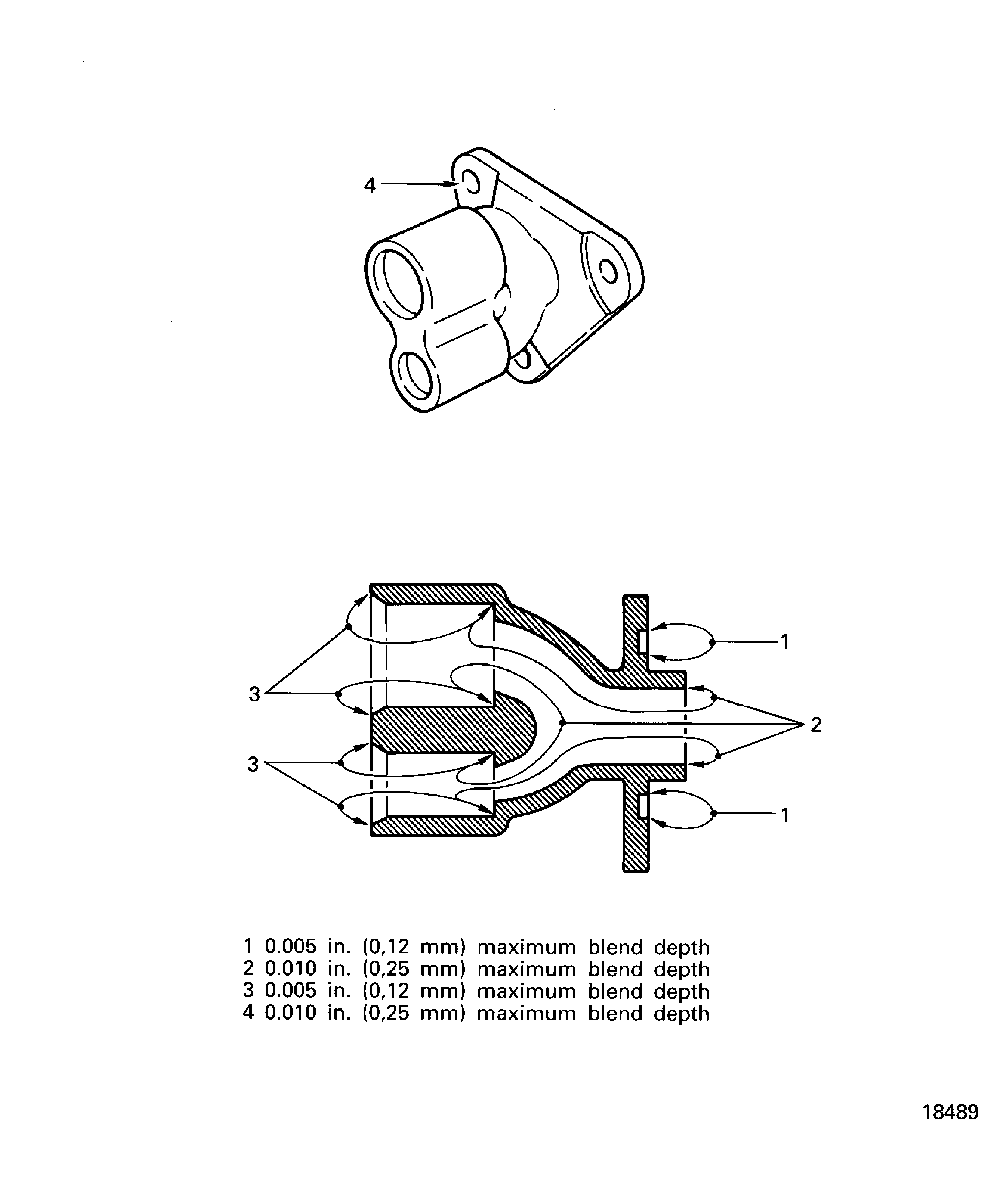

    4. Figure: Oil Distributor Repair Limit

    Oil Distributor Repair Limit

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised steps and SPM task reference. (19VC194)

Manufacturer Code:44197
Enterprise Name:SAINT-GOBAIN INDUSTRIAL CERAMICS INC.
BU Name:SAINT-GOBAIN ABRASIVES, INC
Street:ONE NEW BOND STREET
P.O. Box:PO BOX 15008
City:WORCESTER
State:MA
Zip Code:01615-0008
Country:USA
Phone Number:1-508-795-5000
Fax Number:1-508-795-2828
Internet:www.saint-gobain-northamerica.com
Manufacturer Code:K6835
Enterprise Name:MED-LAB LTD
BU Name:MED-LAB LTD
Street:COPELAND ST
City:DERBY
Zip Code:DE1 2PU
Country:GREAT BRITAIN
Phone Number:44-1332-349094
Fax Number:44-1332-371237
Email:sales@med-lab.co.uk
Internet:www.med-lab.co.uk
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:1E1X8
Supply Number:CoMat 05-019
Type:sp01
Supply Short Name:CoMat 05-019 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-019 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/31 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 400 (ANSI B74.18)
JCR-184 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
LOCAL
K6835
Manufacturer Code:1E1X8
Supply Number:CoMat 05-020
Type:sp01
Supply Short Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/33 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 320 (ANSI B74.18)
JCR-027 (JAEC REF)
JCR-186 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
LOCAL
K6835
Manufacturer Code:1E1X8
Supply Number:CoMat 05-021
Type:sp01
Supply Short Name:CoMat 05-021 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-021 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/35 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 240 (ANSI B74.18 )
JCR-188 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
K6835
LOCAL
Manufacturer Code:K6835
Supply Number:CoMat 05-107
Type:sp01
Supply Short Name:CoMat 05-107 ABRASIVE STONE
Supply Name:CoMat 05-107 ABRASIVE STONE
Specification Groups:
Doc NumberType
OMAT: 551MEDIUM INDIA MF244 SS-S-736/2-25 TYPE II CLASS A1
Suppliers:
ManufacturerRemarks
K6835
44197
LOCAL
