TASK 72-32-36-300-010 No. 2 and 3 Bearing Oil Distributor And Tubes - Related Parts - Replace The Locating Pin Of The Main Oil Distributor Assembly, Repair-010 (VRS1933)
General
The practices and processes referred to in the procedure by the TASK number are in the SPM.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Fluorescent Penetrant Inspection Equipment | LOCAL | Fluorescent Penetrant Inspection Equipment |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-099 LINT-FREE CLOTH | LOCAL | CoMat 02-099 | ||
| CoMat 03-026 LIQUID NITROGEN | LOCAL | CoMat 03-026 | ||
| CoMat 05-019 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-019 | ||
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Inspect and identify defective locating pin
Use hand tools
Press out defective locating pin
Remove burrs.
Refer to SPM TASK 70-35-03-300-501.
Examine for damage in bore
Ensure correct interference.
Dimensionally inspect the pin hole.
SUBTASK 72-32-36-350-062 Remove the Defective Locating Pin from Main Oil Distributor Assembly
Make sure there are no cracks in the pin hole.
Refer SPM TASK 70-23-05-230-501.
Fluorescent penetrant examine the pin hole.
SUBTASK 72-32-36-230-079 Examine the Main Oil Distributor
Use clean dry air blast or CoMat 02-099 LINT-FREE CLOTH.
Clean the locating pin and the pin hole
Freeze the locating pin to aid replacement into the pin hole.
Freeze the locating pin
Use hand tools.
Refer to Figure.
Install and press the locating pin into the pin hole
SUBTASK 72-32-36-350-063 Install the New Locating Pin
Pin shoulder must be located against flange face.
Refer to Figure.
Visually examine the pin seating
SUBTASK 72-32-36-220-115 Examine the Pin Seating

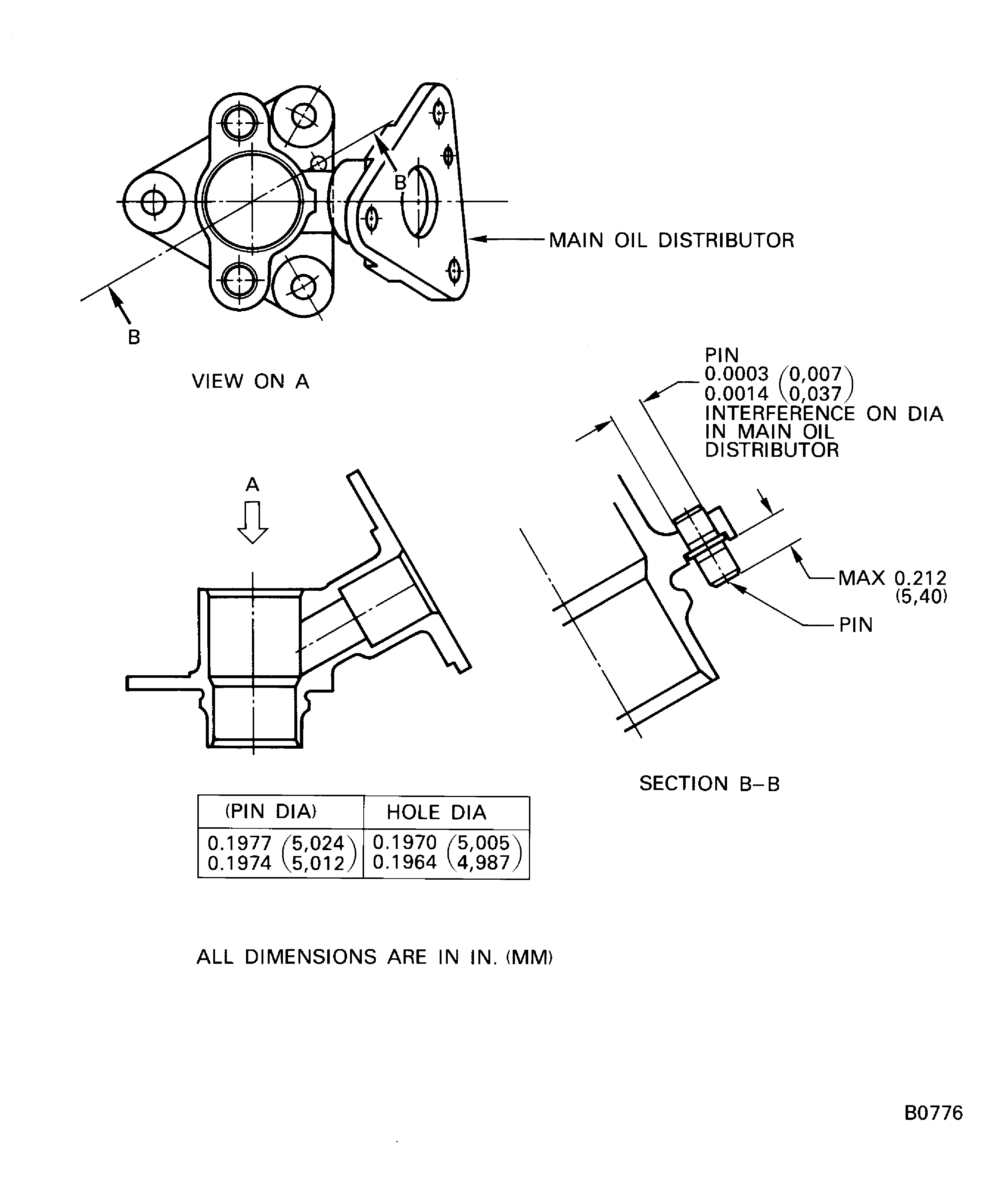

Figure: Replace Locating Pin Of Main Oil Distributor
Replace Locating Pin Of Main Oil Distributor
