TASK 72-32-36-300-007 No. 2 and 3 Bearing Oil Distributor And Tubes - Related Parts - Oil Filter Housing - Repair The Surface Damage, Repair-007 (VRS1254)
General
Repair parts - none.
The practices and processes referred to in the procedure by the TASK number are in the SPM.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-019 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-019 | ||
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 | ||
| CoMat 05-107 ABRASIVE STONE | K6835 | CoMat 05-107 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
The surface finish of the repair must be the same as the adjacent area.
Refer to SPM TASK 70-35-03-300-501.
Scallop, make smooth and/or hand polish to remove the nicks, scratches and/or edge burrs.
SUBTASK 72-32-36-350-054 Remove the Damage of the Oil Filter Housing
Visually examine the repaired area for nicks, galls, scores and/or pick-up using 10X magnifying glass.
Refer to TASK 72-32-36-200-401.
Visually examine the repaired area.
SUBTASK 72-32-36-220-107 Examine the Oil Filter Housing
Make sure there are no cracks in the repaired area.
Refer to TASK 72-32-36-200-401.
Refer to SPM TASK 70-35-03-300-501.
Fluorescent penetrant examine the repaired area.
SUBTASK 72-32-36-230-074 Examine the Oil Filter Housing

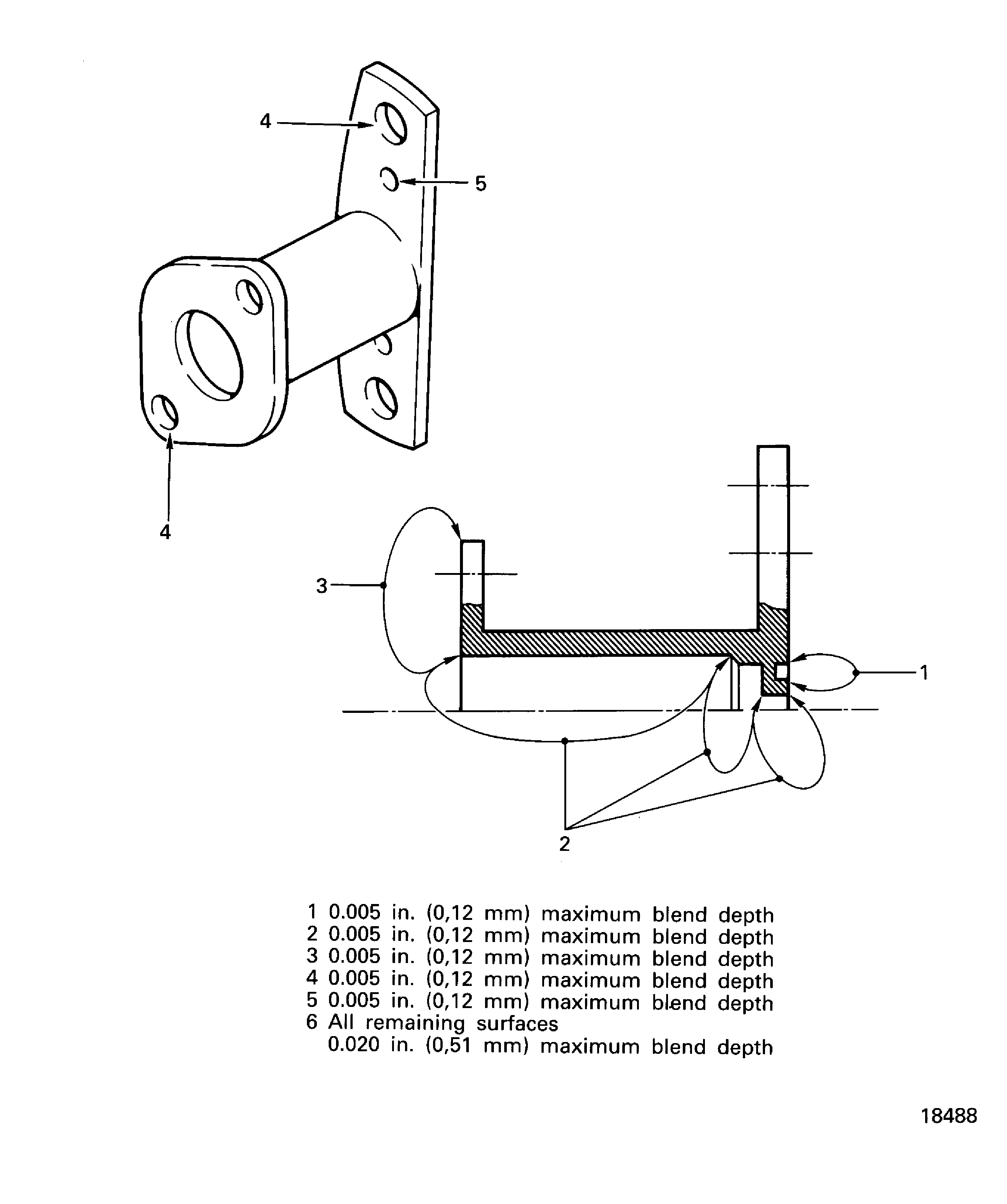

Figure: Oil Filter Housing Repair Limits
Oil Filter Housing Repair Limits
